Parts for Mariner W15 HP Driveshaft Housing

Revise Search: All Models > W15 HP > 684-346712 & Up (ML) > Driveshaft Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	1587-9512M	DRIVESHAFT HOUSING (SHORT SHAFT) (1 required per assembly)
		1587-9512M - Drive Shaft Housing. [ More info ] Unavailable
		1587-811276M - Drive Shaft Housing, NLA [ More info ] $132.00 2 In Stock.
#1	1587-8622M	DRIVESHAFT HOUSING (LONG/SUPER LONG SHAFT) (1 required per assembly)
		1587-8622M - Drive Shaft Housing [ More info ] Unavailable
		1587-811277M - Drive Shaft Housing, NLA [ More info ] Unavailable
#2	27-96618M	GASKET (1 required per assembly)
		27-96618M - Gasket [ More info ] Unavailable
		27-96618 - Gasket [ More info ] $18.33 10+ In Stock.
#3	17-82364M	DOWEL PIN (2 required per assembly)
		17-82364M - Pin -Dowel - Priced Individually [ More info ] $3.75 10+ In Stock.
#4	10-97749M	BOLT (6 required per assembly)
		10-97749M - Bolt, NLA [ More info ] $3.33 10+ In Stock.
#5	12-82217M	WASHER (6 required per assembly)
		12-82217M - Washer, NLA [ More info ] $1.67 10+ In Stock.
#6	810453M	PLATE (1 required per assembly)
		810453M - Plate [ More info ] $9.00 10+ In Stock.
#7	84041M	SEAL (1 required per assembly)
		84041M - Seal, NLA [ More info ] $4.00 9 In Stock.

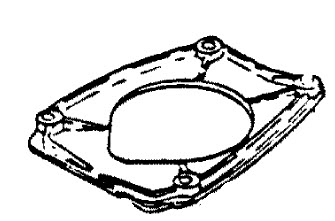

#8	83953M	SEAL PROTECTOR (1 required per assembly)
		83953M - Protector, NLA [ More info ] $8.00 10+ In Stock.
#9	10-82476M	BOLT (4 required per assembly)
		10-82476M - Bolt, NLA [ More info ] $1.50 10+ In Stock.
#10	810454M	EXHAUST MANIFOLD (1 required per assembly)
		810454M - Exhaust Manifold [ More info ] $20.00 5 In Stock.
#11	27-83955M	GASKET (1 required per assembly)
		27-83955M - Exhaust Manifold Gasket [ More info ] $6.75 10+ In Stock.
#12	10-83539M	BOLT (6 required per assembly)
		10-83539M - 10-83539M - BOLT (M6 x 20) [ More info ] Unavailable Replaced by 10-84058M
		10-84058M - Bolt [ More info ] $7.50 Available to Order: Usually ships within 10 days.
#13	12-82214M	WASHER (6 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $4.90 10+ In Stock.
#14	84042M	EXTENSION - SUPER LONG SHAFT (1 required per assembly)
		84042M - EXTENSION,NLA [ More info ] Unavailable
#16	10-814575M	BOLT - SUPER LONG SHAFT (4 required per assembly)
		10-814575M - BOLT [ More info ] Unavailable
		10-82442M - Bolt, NLA [ More info ] $4.17 10+ In Stock.
#18	23-815011M	BUSHING - SUPER LONG SHAFT (1 required per assembly)
		23-815011M - Bushing [ More info ] $10.00 3 In Stock.
#19	53-83758M	SNAP RING - SUPER LONG SHAFT (1 required per assembly)
		53-83758M - Circlip, NLA [ More info ] $1.88 10+ In Stock.
#20	94621M	STOPPER (1 required per assembly)
		94621M - Stopper, NLA [ More info ] $1.88 10+ In Stock.
#21	84269M	SPLASH PLATE - LONG SHAFT (1 required per assembly)
		84269M - SPLASH PLATE,NLA [ More info ] Unavailable
#22	10-82457M	BOLT - LONG SHAFT (1 required per assembly)
		10-82457M - BOLT Note: Priced Individually [ More info ] Unavailable
		10-82428M - SCREW Note: Priced Individually [ More info ] Unavailable
		10-827043M - Bolt, NLA [ More info ] $5.99 6 In Stock.
#24	11-82390M	NUT - LONG SHAFT (1 required per assembly)
		11-82390M - Nut, (M6) [ More info ] $3.33 10+ In Stock.
#25	84-811994M	LEAD WIRE (1 required per assembly)
		84-811994M - Lead Wire, NLA [ More info ] Unavailable
#26	10-811995M	SCREW (1 required per assembly)
		10-811995M - Screw [ More info ] $1.25 2 In Stock.
