Parts for Mariner 40B (Thru Prop. Exhaust) Throttle Control

Revise Search: All Models > 40B (Thru Prop. Exhaust) > E-676-B100461 - B102785 > Throttle Control

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

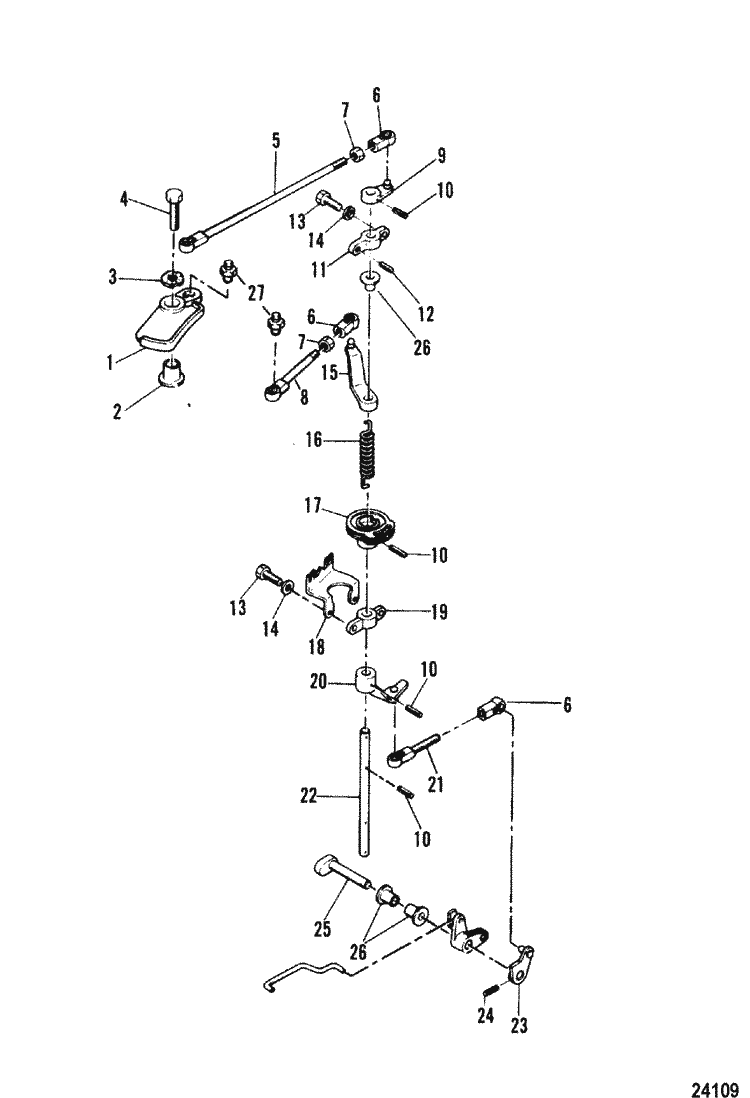

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	83917M	CAM (1 required per assembly)
		83917M - CAM,NLA [ More info ] Unavailable
#3	13-81868M	WAVE WASHER (1 required per assembly)
		13-81868M - Wave Washer - Priced Individually [ More info ] Unavailable
#4	10-81713M	BOLT (1 required per assembly)
		10-81713M - Screw, NLA [ More info ] $5.00 8 In Stock.
#5	83544M	LINK, ROD (1 required per assembly)
		83544M - Link Rod, NLA [ More info ] Unavailable
#6	81225M	END, LINK ROD (3 required per assembly)
		81225M - Coupler [ More info ] Unavailable
		16715M - Joint [ More info ] $24.57 9 In Stock.
#7	11-82378M	NUT (2 required per assembly)
		11-82378M - NUT [ More info ] Unavailable
		11-82388M - Nut, (M5) [ More info ] $8.50 Available to Order: Usually ships within 10 days.
#8	83918M	LEVER, MAGNETO CONTROL (1 required per assembly)
		83918M - Rod, NLA [ More info ] Unavailable
#9	83546M	LEVER, MAGNETO CONTROL (1 required per assembly)
		83546M - LEVER [ More info ] Unavailable
		94504M - LEVER,NLA [ More info ] Unavailable
#10	17-82149M	PIN, (18.5 mm), ROLL (4 required per assembly)
		17-82149M - Pin, (18.5 Mm) [ More info ] Unavailable
#11	83547M	BRACKET (1 required per assembly)
		83547M - Bracket, NLA [ More info ] $5.00 2 In Stock.
#12	17-82154M	PIN, ROLL (1 required per assembly)
		17-82154M - Pin -roll, NLA [ More info ] $1.50 10+ In Stock.
#13	10-83539M	BOLT, M6 x 20 (3 required per assembly)
		10-83539M - 10-83539M - BOLT (M6 x 20) [ More info ] Unavailable Replaced by 10-84058M
		10-84058M - Bolt [ More info ] $7.50 Available to Order: Usually ships within 10 days.
#14	13-82199M	WASHER, LOCK (3 required per assembly)
		13-82199M - LockWasher - Priced Individually [ More info ] $0.25 4 In Stock.
		12-82214M - Washer - Priced Individually [ More info ] $4.90 10+ In Stock.
#15	83548M	LEVER, MAGNETO CONTROL (1 required per assembly)
		83548M - LEVER,NLA [ More info ] Unavailable
#16	24-83549M	SPRING (1 required per assembly)
		24-83549M - SPRING,NLA [ More info ] Unavailable
#17	83919M	PULLEY (1 required per assembly)
		83919M - Pulley, NLA [ More info ] $5.00 10 In Stock.
#18	83551M	BRACKET (1 required per assembly)
		83551M - Bracket, NLA [ More info ] $4.00 9 In Stock.
#19	83537M	BRACKET (1 required per assembly)
		83537M - Bracket [ More info ] $5.00 2 In Stock.
#20	83920M	LEVER, MAGNETO CONTROL (1 required per assembly)
		83920M - Lever [ More info ] $8.00 10+ In Stock.
#21	83921M	ROD (1 required per assembly)
		83921M - Rod [ More info ] $14.80 1 In Stock.
#22	83555M	SHAFT, LINK CONNECTING (1 required per assembly)
		83555M - Shaft, NLA [ More info ] $6.00 8 In Stock.
#23	83526M	LEVER, THROTTLE CONTROL (1 required per assembly)
		83526M - Lever [ More info ] Unavailable
#24	17-82158M	PIN, ROLL (1 required per assembly)
		17-82158M - Pin -roll, NLA [ More info ] $2.25 10+ In Stock.
#25	83527M	SHAFT, THROTTLE CONTROL (1 required per assembly)
		83527M - Shaft [ More info ] Unavailable
		83527T - Shaft [ More info ] $60.08 Available to Order: Usually ships within 10 days.
#26	23-81946M	BUSHING (3 required per assembly)
		23-81946M - Bushing, NLA [ More info ] $7.00 10+ In Stock.
#27	84305M	JOINT (2 required per assembly)
		84305M - Ball Joint [ More info ] Unavailable
