Parts for Mariner 25 HP K Bottom Cowl
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2168-826980 1 | BOTTOM COWLING (1 required per assembly) (M-000252/ML-303099 & UP) |
 |
|
2168-826980 1 - BOTTOM COWL NLA [ More info ] Unavailable |
| #1 | 2168-826980M | BOTTOM COWLING (1 required per assembly) (M-000251/ML-303098 & BELOW) |
|
|
2168-826980M - BOTTOM COWL NLA [ More info ] Unavailable |
| #2 | 25-84876M | GROMMET (1 required per assembly) |
|
|
25-84876M - Grommet, NLA [ More info ]
|
| #3 | 23-84911M | SLEEVE (4 required per assembly) |
|
|
23-84911M - Collar, NLA [ More info ]
|
| #4 | 11-82383M | NUT (4 required per assembly) |
|
|
11-82383M - Nut, NLA [ More info ]
|
| #5 | 10-84088M | BOLT (1 required per assembly) |
  |
|
10-84088M - Bolt [ More info ]
|
| #6 | 12-81794M | WASHER (1 required per assembly) |
|
|
12-81794M - Washer, Cowl Clamp Lever [ More info ]
|
| #7 | 54-84914M | CLAMP (1 required per assembly) |
|
|
54-84914M - Clamp [ More info ]
|
| #8 | 23-81949M | BUSHING (2 required per assembly) |
|
|
23-81949M - Bushing [ More info ] Unavailable |
| #9 | 84913M | LEVER (1 required per assembly) |
|
|
|
| #10 | 80510M | SPACER (1 required per assembly) |
|
|
80510M - Spacer, NLA [ More info ]
|
| #11 | 13-81869M | WAVE WASHER (1 required per assembly) |
|
|
13-81869M - Wave Washer, NLA [ More info ]
|
| #12 | 25-84910M | GROMMET (4 required per assembly) |
|
|
25-84910M - Grommet, NLA [ More info ]
|
| #13 | 12-95507M | WASHER (4 required per assembly) |
|
|
12-95507M - Washer, NLA [ More info ]
|
| #14 | 16-95505M | STUD (4 required per assembly) |
|
|
16-95505M - Stud, NLA [ More info ]
|
| #15 | 12-82217M | WASHER (4 required per assembly) |
|
|
12-82217M - Washer, NLA [ More info ]
|
| #17 | 25-826981M | GROMMET (1 required per assembly) |
|
|
25-826981M - GROMMET,NLA [ More info ] Unavailable |

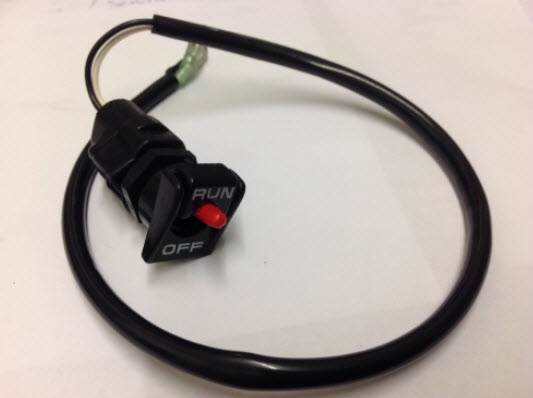

| #18 | 87-14222M | SWITCH-Stop (1 required per assembly) (DESIGN I) |
  |
|
87-14222M - Switch [ More info ] Unavailable |
| #19 | 87-97757M | SWITCH-Stop (1 required per assembly) (DESIGN II) |
|
|
87-97757M - Switch Assembly, NLA [ More info ]
|
| #20 | 97756M | STOPPER (1 required per assembly) |
  |
|
97756M - Lanyard Stopper [ More info ]
|
| #21 | 19-852837 | CAP (1 required per assembly) |
|
|
19-852837 - CAP NLA [ More info ] Unavailable |
| #22 | 25-83988M | GROMMET (1 required per assembly) |
|
|
25-83988M - Grommet, Bottom Cowl (manual) NLA [ More info ]
|
