Parts for Mariner 15 Carburetor (2 Cylinder) (4-Stroke) Recoil Starter

Revise Search: All Models > 15 Carburetor (2 Cylinder) (4-Stroke) > 0R235949 & Up > Recoil Starter

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

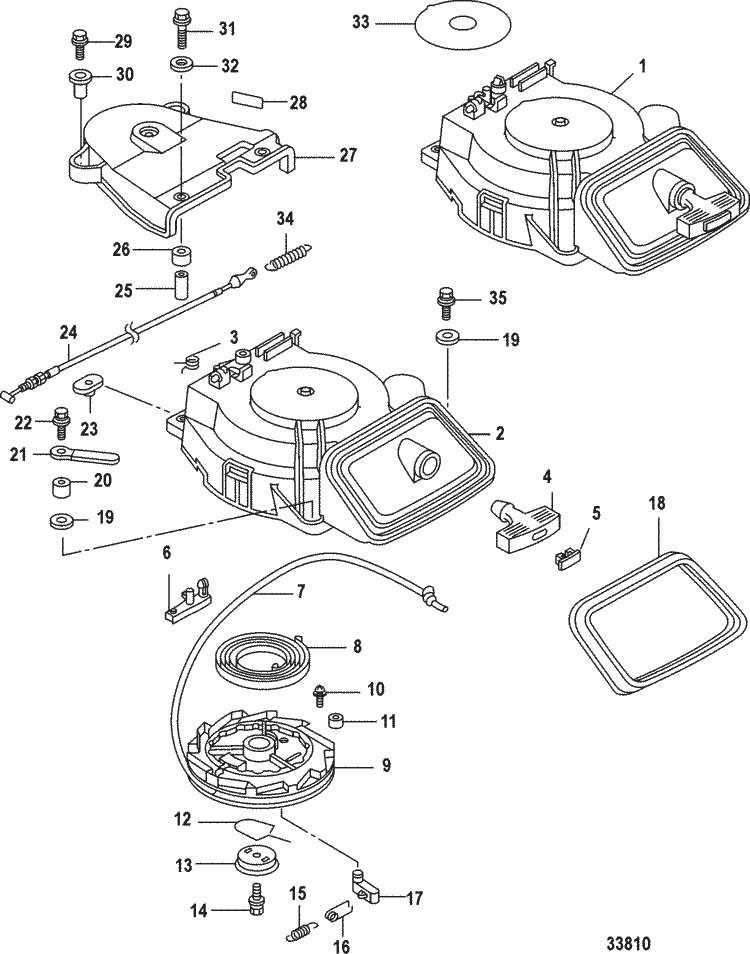

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	37-898103193	DECAL, Interferance (1 required per assembly)
		37-898103193 - DECAL Interferanc [ More info ] Unavailable
#1	879147T83	STARTER ASSEMBLY, Recoil (1 required per assembly)
		879147T83 - Recoil Starter [ More info ] Unavailable
		8M0126983 - Recoil Starter [ More info ] $309.33 Available to Order: Usually ships within 10 days.
		5040641 - Recoil Starter Assembly [ More info ] $306.50 Available to Order: Usually ships within 10 days.
#2	879147T84	HOUSING, Starter (1 required per assembly)
		879147T84 - Recoil Housing [ More info ] Unavailable
		8M0138744 - Starter Housing [ More info ] $156.58 Available to Order: Usually ships within 10 days.
		5040643 - Starter Case [ More info ] $96.86 $58.88 2 In Stock.
#3	24-812645008	SPRING, Starter Lock (1 required per assembly)
		24-812645008 - Spring, Starter Lock [ More info ] $6.70 1 In Stock.
#4	898103122	HANDLE, Starter (1 required per assembly)
		898103122 - Handle A [ More info ] Unavailable
		8M0136189 - Starter Handle [ More info ] $21.33 Available to Order: Usually ships within 10 days.
		5040640 - Starter Handle [ More info ] $7.00 $5.85 1 In Stock.
#5	853755002	CAP, Starter Handle (1 required per assembly)
		853755002 - Cap [ More info ] $17.70 Available to Order: Usually ships within 10 days.
		5041192 - Rope Anchor [ More info ] $4.00 $3.34 4 In Stock.
#6	804031002	LOCK, Starter (1 required per assembly)
		804031002 - Starter Lock [ More info ] $11.70 Available to Order: Usually ships within 10 days.
		5041195 - Starter Lock [ More info ] $9.65 Available to Order: Usually ships within 10 days.

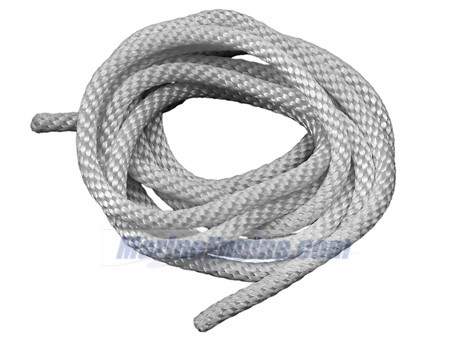

#7	50-850057003	ROPE, Starter (1 required per assembly)
		50-850057003 - Starter Rope [ More info ] Unavailable
		50-850057Q03 - Starter Rope - Priced Individually [ More info ] Unavailable
		508M0110715 - Starter Rope [ More info ] $23.12 1 In Stock.
#8	24-804024008	SPRING, Starter (1 required per assembly)
		24-804024008 - Starter Spring [ More info ] $36.83 Available to Order: Usually ships within 10 days.
#9	898103118	REEL (1 required per assembly)
		898103118 - Reel [ More info ] $49.08 Available to Order: Usually ships within 10 days.
		5040642 - REEL [ More info ] $56.60 Available to Order: Usually ships within 10 days.
#10	10-898103121	SCREW, Tapping (1 required per assembly)
		10-898103121 - Screw [ More info ] $3.00 Available to Order: Usually ships within 10 days.
#11	23-898103120	BUSHING (1 required per assembly)
		23-898103120 - Bushing [ More info ] $8.90 Available to Order: Usually ships within 10 days.
#12	24-852778010	SPRING, Friction (1 required per assembly)
		24-852778010 - Spring, Friction [ More info ] Unavailable
		248M0126988 - SPRING FRICTION [ More info ] $18.17 Available to Order: Usually ships within 10 days.
#13	812638002	PLATE, Friction (1 required per assembly)
		812638002 - Friction Plate [ More info ] $13.60 Available to Order: Usually ships within 10 days.
		5041188 - Friction Plate [ More info ] $4.00 $2.43 4 In Stock.
#14	10-812637002	BOLT, Starter Shaft (1 required per assembly)
		10-812637002 - Bolt [ More info ] $4.00 Available to Order: Usually ships within 10 days.
#15	24-812634004	SPRING, Return (1 required per assembly)
		24-812634004 - Spring, Return [ More info ] $15.10 Available to Order: Usually ships within 10 days.
#16	898101148	GUIDE, Ratchet (1 required per assembly)
		898101148 - Guide [ More info ] $10.00 Available to Order: Usually ships within 10 days.
		5041066 - Return Spring [ More info ] $3.00 $1.82 10+ In Stock.
#17	898103119	RATCHET (1 required per assembly)
		898103119 - Ratchet [ More info ] $8.00 1 In Stock.
		5040639 - Ratchet [ More info ] $9.65 Available to Order: Usually ships within 10 days.
#18	898103123	SEAL, Starter (1 required per assembly)
		898103123 - Seal [ More info ] $22.08 Available to Order: Usually ships within 10 days.
		5040698 - Starter Seal [ More info ] $40.28 Available to Order: Usually ships within 10 days.
#19	12-95392 1	WASHER, Stainless Steel (3 required per assembly)
		12-95392 1 - Washer [ More info ] $5.40 4 In Stock.
#20	23-803573 1	COLLAR (1 required per assembly)
		23-803573 1 - Collar [ More info ] $5.80 Available to Order: Usually ships within 10 days.
#21	54-95306	CLAMP (1 required per assembly)
		54-95306 - Clamp [ More info ] Unavailable
		548M0130961 - Clamp [ More info ] $5.10 Available to Order: Usually ships within 10 days.
#22	10-879194264	BOLT (1 required per assembly)
		10-879194264 - Bolt [ More info ] $4.30 Available to Order: Usually ships within 10 days.
#23	11-856949001	NUT (2 required per assembly)
		11-856949001 - NUT [ More info ] Unavailable
		11-856949002 - Nut [ More info ] $5.80 Available to Order: Usually ships within 10 days.
#24	898103164	WIRE , Starter Lock (1 required per assembly)
		898103164 - Cable - Lock [ More info ] $74.17 Available to Order: Usually ships within 10 days.
#25	23-895162	COLLAR, Steel (2 required per assembly)
		23-895162 - Collar [ More info ] Unavailable
		23-895162001 - Collar [ More info ] Unavailable
#26	25-881305006	GROMMET, Rubber (2 required per assembly)
		25-881305006 - Grommet, Rubber [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#27	895133T01	COVER, Belt (1 required per assembly)
		895133T01 - Cover [ More info ] $25.08 Available to Order: Usually ships within 10 days.
		5041198 - Belt Cover [ More info ] $20.90 Available to Order: Usually ships within 10 days.
#28	NSS	NOT SOLD SEPARATE, Decal-Spark Plug (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#29	10-879194249	BOLT (2 required per assembly)
		10-879194249 - Bolt [ More info ] $3.50 2 In Stock.
		10-16705 - Bolt [ More info ] $3.90 Available to Order: Usually ships within 10 days.
#30	23-898101941	COLLAR (2 required per assembly)
		23-898101941 - Collar [ More info ] $5.90 Available to Order: Usually ships within 10 days.
#31	10-879194251	BOLT (2 required per assembly)
		10-879194251 - Bolt [ More info ] Unavailable
		10-95362 - Bolt [ More info ] Unavailable
		10-16830 - Bolt [ More info ] $5.10 Available to Order: Usually ships within 10 days.
#34	24-898101185	SPRING, Starter Lock Cam (1 required per assembly)
		24-898101185 - Spring, Starter Lock Cam [ More info ] $14.30 Available to Order: Usually ships within 10 days.
