Engine Cover Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor
Tap to zoom. Scroll down to order.

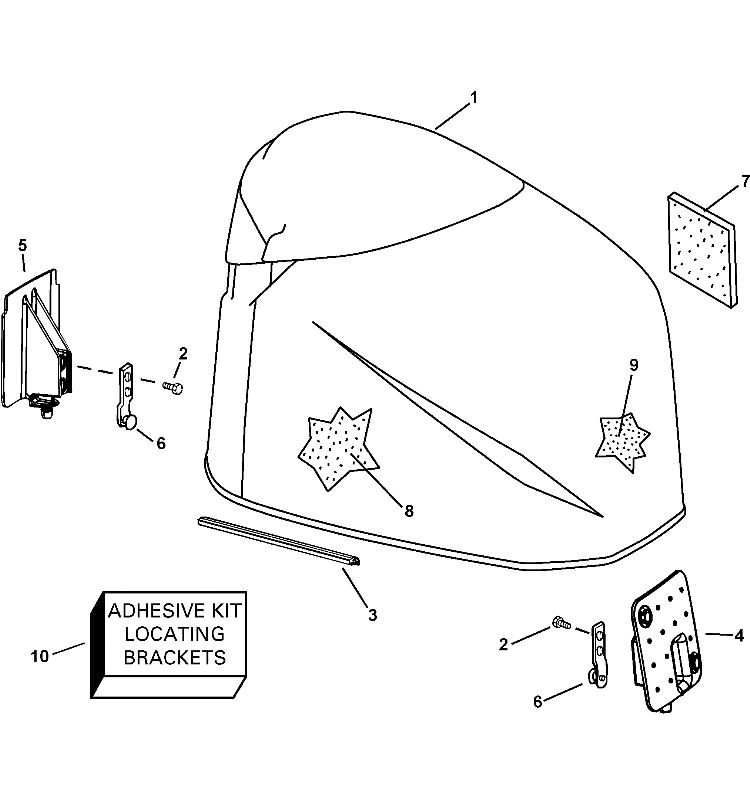

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 285595 — ENGINE COVER ASSY, "WHITE". IMPORTANT: WHEN ORDERING "ENGINE COVER ASSY" ALSO ORDER APPROPRIATE "HP" DECALS. (1 required per assembly) | ||
 |
0285595 - Engine Cover, \WHITE\. IMPORTANT: When ordering \Engine Cover\ also order appropriate \HP\ decals. [ More info ] Unavailable |
|
|
|
0285613 - Upper Motor Cover Assembly, Ev/Di/Wht [ More info ] Unavailable |
| #1 — 5004956 — ENGINE COVER ASSY, "BLUE". IMPORTANT: WHEN ORDERING "ENGINE COVER ASSY" ALSO ORDER APPROPRIATE "HP" DECALS. (1 required per assembly) | ||
  |
|

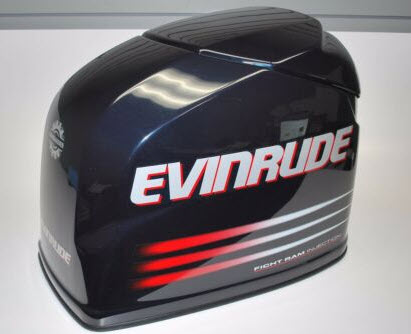

5004956 - Upper Motor Cover Assembly, Ev Blue V6 [ More info ] Unavailable |
| #1 — 285607 — ENGINE COVER ASSY, "BLUE". IMPORTANT: WHEN ORDERING "ENGINE COVER ASSY" ALSO ORDER APPROPRIATE "HP" DECALS; FHL MODELS ONLY; NEW P/N FOR 2003 (1 required per assembly) | ||
|
|
0285607 - Upper Motor Cover Assembly, Ev 200/225 [ More info ] Unavailable |

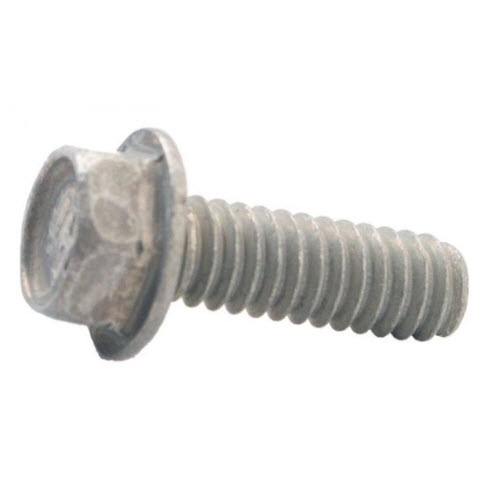

| #2 — 328744 — *SCREW (1 required per assembly) | ||
  |
|
|
| #3 — 344813 — *SEAL (1 required per assembly) | ||
  |
|

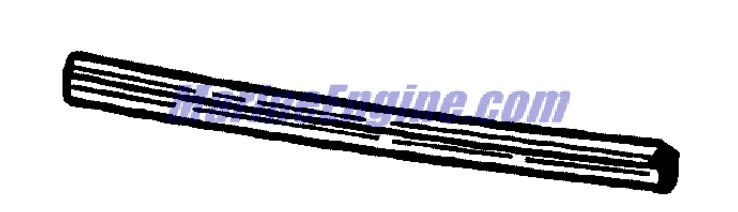

0344813 - Motor Cover Seal [ More info ] Unavailable |
| #4 — 346780 — *LATCH BRACKET, FRONT (1 required per assembly) | ||
  |
|

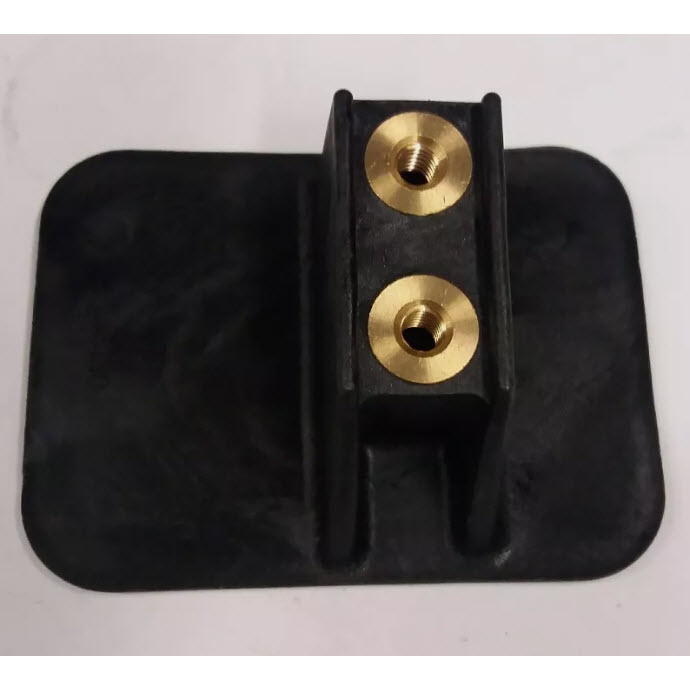

0346780 - Bracket, Latch Front [ More info ]
|
| #5 — 437393 — *LATCH BRACKET, REAR (1 required per assembly) | ||
  |
|
0437393 - Bracket,LATCH [ More info ] Unavailable |

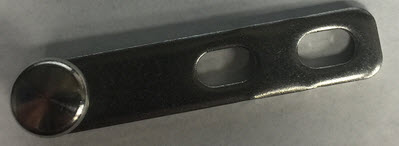

| #6 — 435716 — *HOOK ASSY (1 required per assembly) | ||
  |
|
|
| #7 — 349280 — *SOUND BLANKET, PORT (1 required per assembly) | ||
  |
|

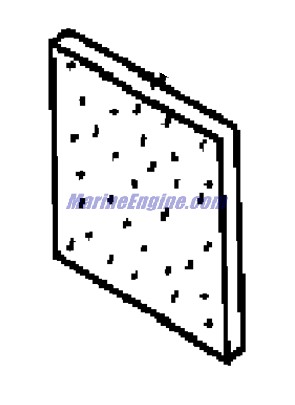

0349280 - Sound Blanket [ More info ] Unavailable |

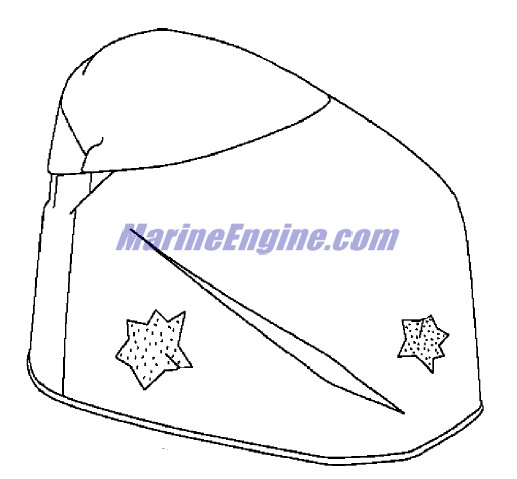

| #8 — 348872 — *SOUND BLANKET, STBD (1 required per assembly) | ||
  |
|
0348872 - Sound Blanket [ More info ] Unavailable |

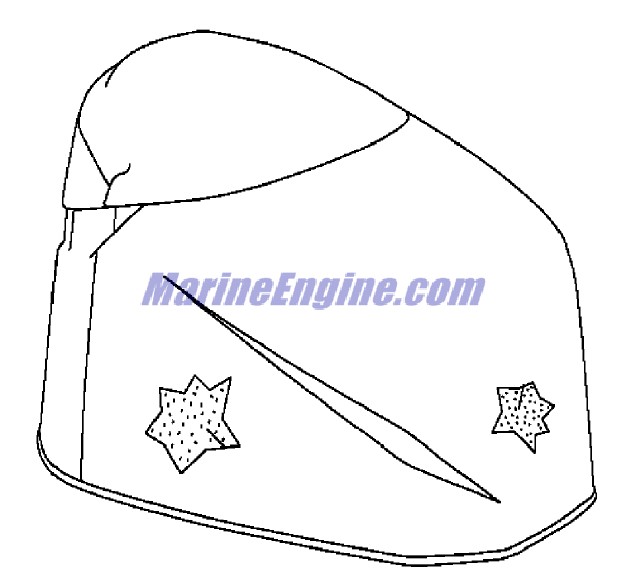

| #9 — 349279 — *SOUND BLANKET, FRONT (1 required per assembly) | ||
  |
|
0349279 - Sound Blanket [ More info ] Unavailable |
| #10 — 431929 — ADHESIVE KIT, LOCATING BRACKETS (1 required per assembly) | ||
  |
|

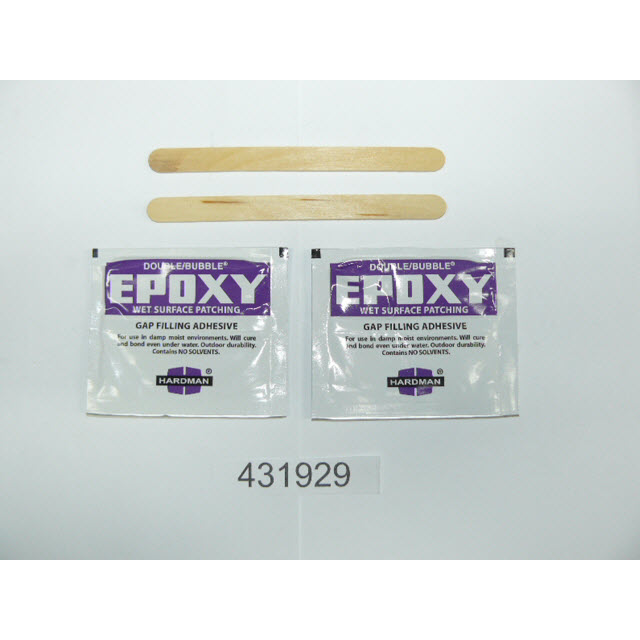

0431929 - Epoxy Adhesive Kit, GROUND SHIP ONLY [ More info ]
|
