Magneto Parts for 1974 Evinrude 2 hp 2402E Outboard Motor

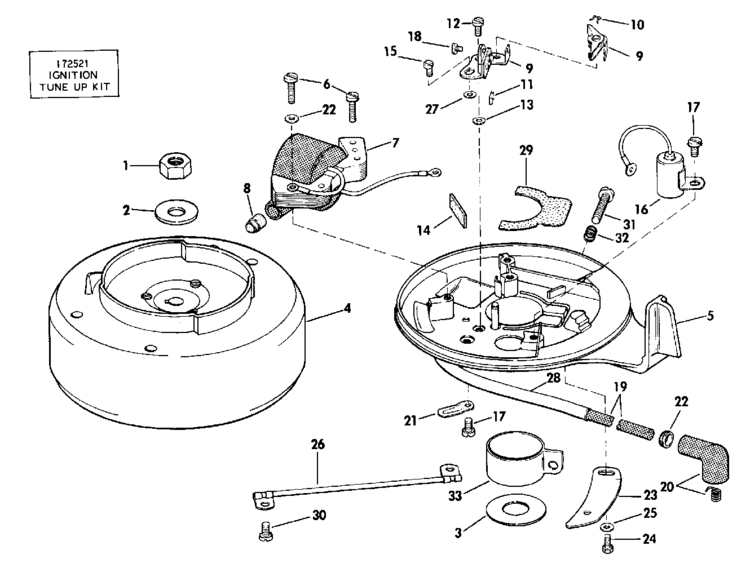

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

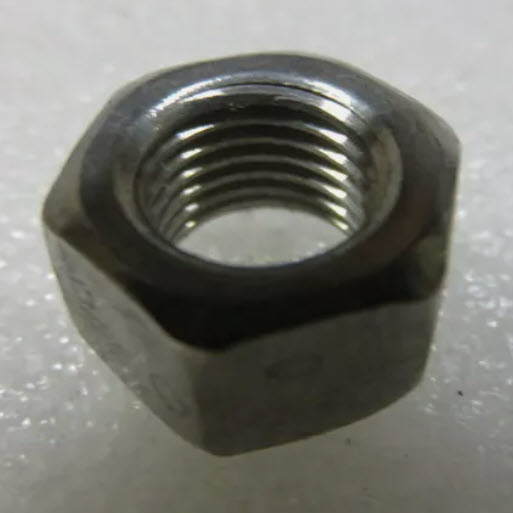

| #1 — 552938 — NUT, FLYWHEEL (1 required per assembly) | ||
  |
|
|
| #2 — 311096 — WASHER, NUT, FLYWHEEL (1 required per assembly) | ||
  |
|
0311096 - Washer [ More info ]
|
| #3 — 315039 — WASHER, PLATE TO CYLINDER (1 required per assembly) | ||
  |
|

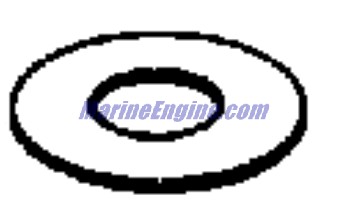

0315039 - WASHER PLATE [ More info ] Unavailable |
| #4 — 580892 — FLYWHEEL (1 required per assembly) | ||
  |
|
0580892 [ More info ] Unavailable Replaced by 0582387 |
  |
|

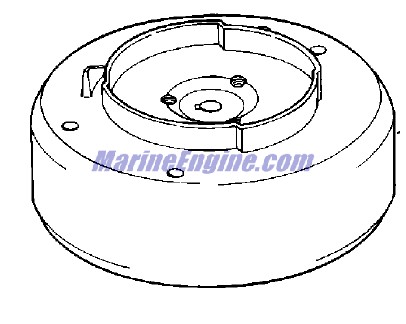

0582387 - Flywheel [ More info ]
|
  |
|
0583563 - Flywheel AY [ More info ] Unavailable |
| #5 — 580882 — ARMATURE PLATE & POST (1 required per assembly) | ||
 |
|
0580882 [ More info ] Unavailable Replaced by 0581432 |
  |
|

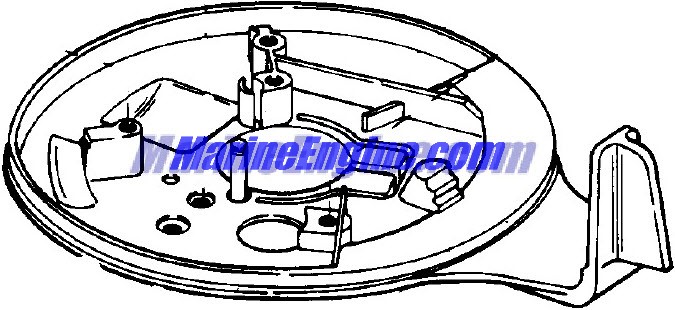

0581432 - Armature Plate & Post [ More info ]
|
  |
|

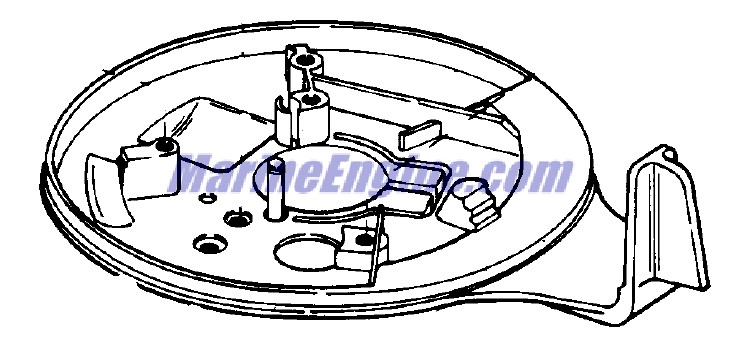

0582957 - Armature Plate [ More info ]
|

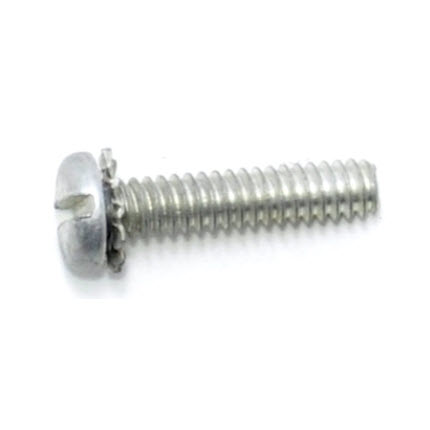

| #6 — 510397 — SCREW, SEMS (3 required per assembly) | ||
|
|
|
| #7 — 580197 — COIL & LAMINATION (1 required per assembly) | ||
|
0580197 - Coil & Lamination [ More info ] Unavailable |
|
  |
0582370 - Coil & Lamination [ More info ] Unavailable |
|
  |
|
0582931 [ More info ] Unavailable Replaced by 0582995 |
  |

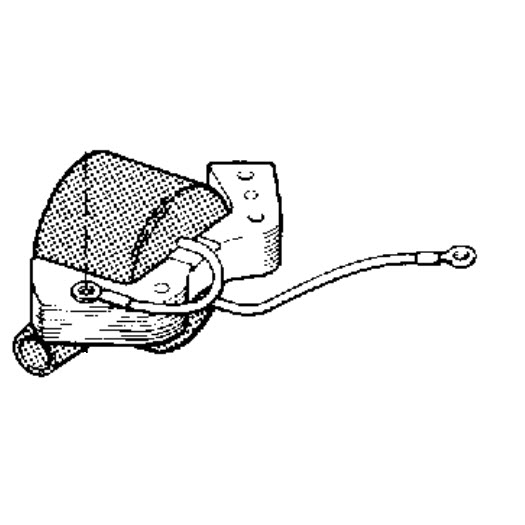

0582995 - Ignition Coil and Lamination [ More info ] Unavailable |
|
  |
|

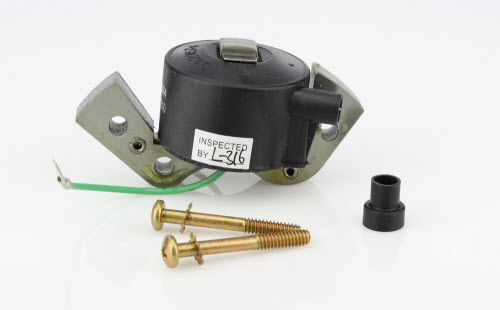

0584477 - Ignition Coil and Lamination with Grommet [ More info ]
|
  |
|

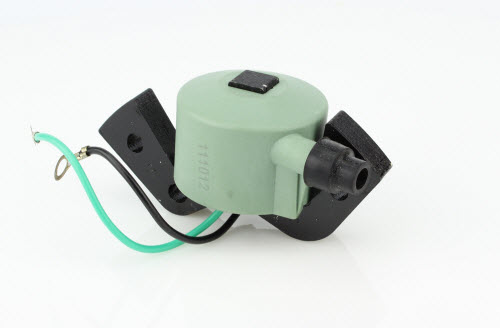

18-5181 - Ignition Coil, 584477 [ More info ]
|
  |
|

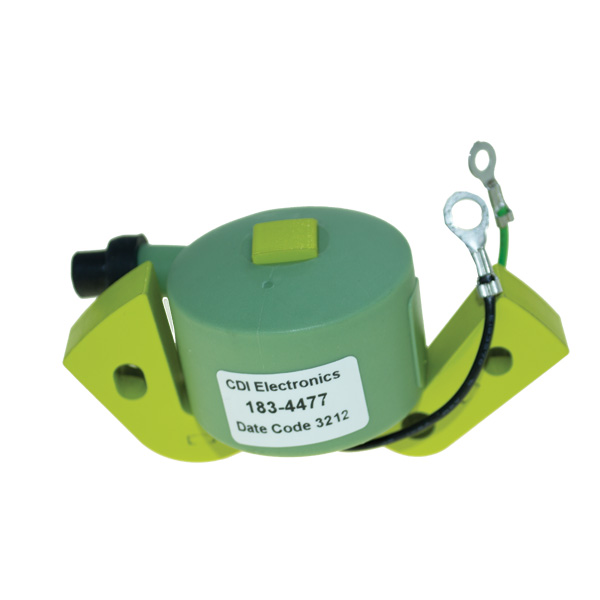

183-4477 - Ignition Coil [ More info ]
|
| #8 — 510289 — GROMMET, COIL (1 required per assembly) | ||
  |
|

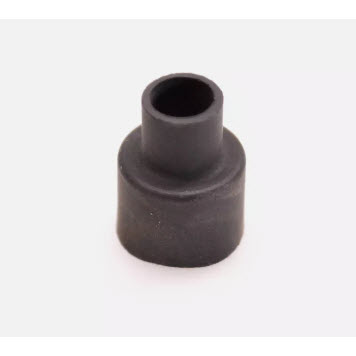

0510289 - Ignition Coil Grommet [ More info ]
|
| #9 — 580148 — BREAKER POINTS ASSY. (1 required per assembly) | ||
  |
|
0580148 - Breaker Points [ More info ] Unavailable |
  |
|

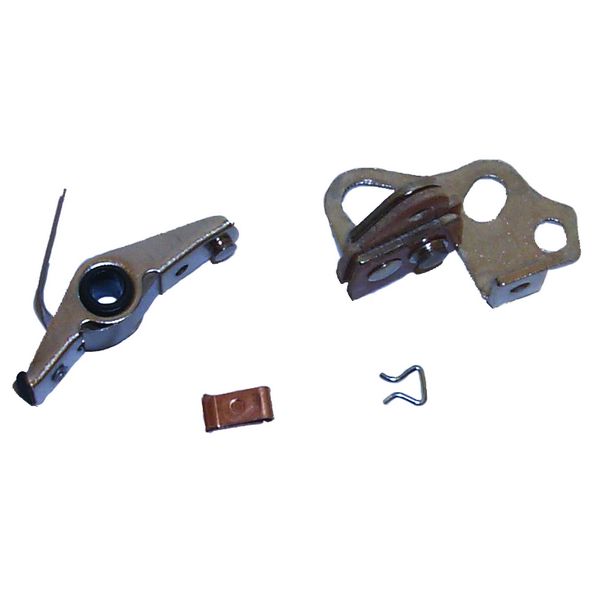

18-5156 - Contact Set - Breaker Points, 580148 [ More info ]
|
| #10 — 307594 — CLIP, SPRING (1 required per assembly) | ||
  |
|
0307594 - Spring Clip [ More info ]
|
| #11 — 510204 — CLIP, BREAKER SPRING (1 required per assembly) | ||
  |
|
|
| #12 — 510278 — SCREW (1 required per assembly) | ||
|
|
|
| #13 — 510208 — WASHER, BOW (1 required per assembly) | ||
|
|

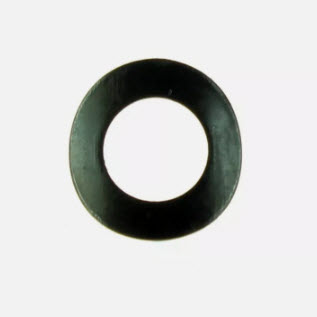

0510208 - Washer [ More info ]
|
| #14 — 581010 — WICK, OILER (1 required per assembly) | ||
  |
|

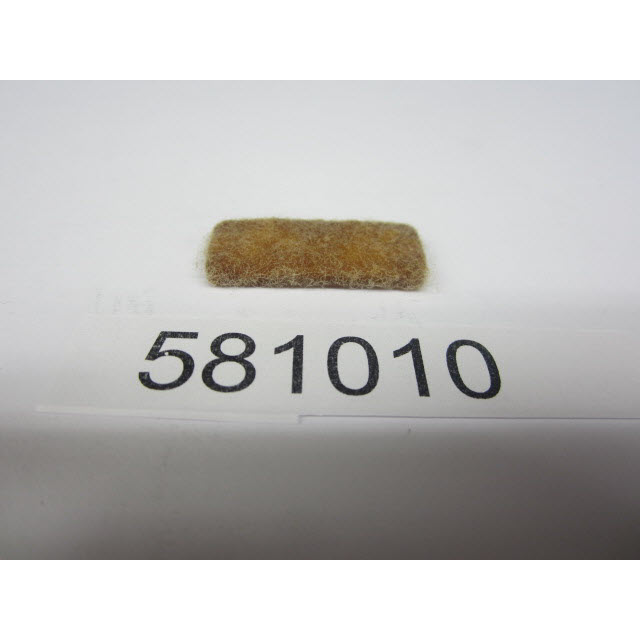

0581010 - Oiler Wick [ More info ]
|
| #15 — 510185 — SCREW, ECCENTRIC (1 required per assembly) | ||
  |
|

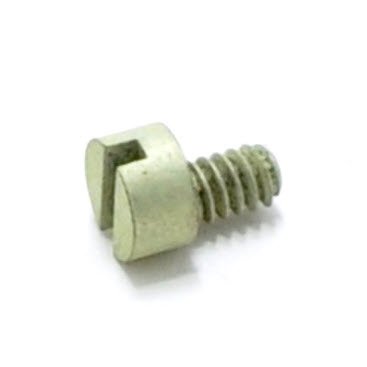

0510185 - Breaker Screw [ More info ]
|
| #16 — 580321 — CONDENSER (1 required per assembly) | ||
  |
|

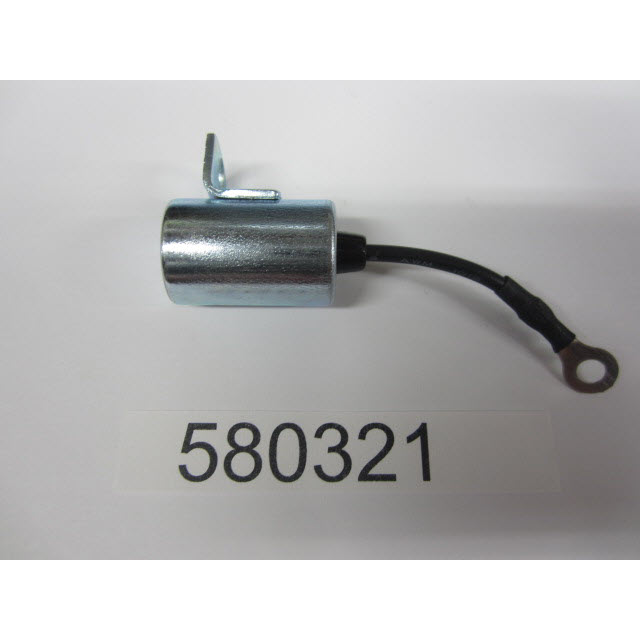

0580321 - Condenser [ More info ]
|
  |
|

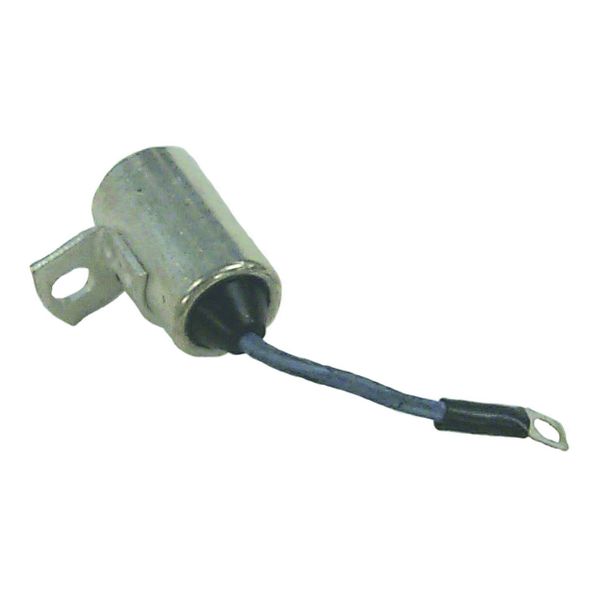

18-5199 - Condenser 580321 [ More info ]
|
| #17 — 510193 — SCREW, SEMS (2 required per assembly) | ||
  |
|
|

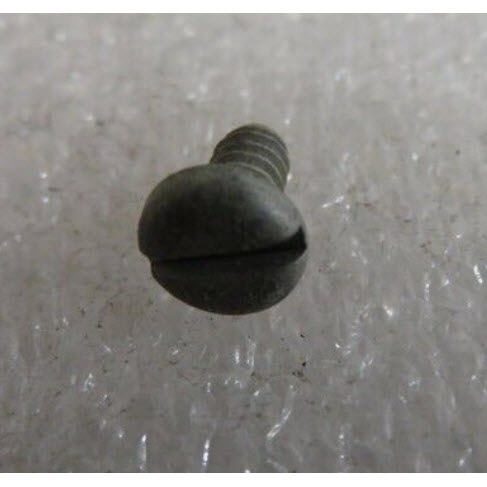

| #18 — 510194 — SCREW (1 required per assembly) | ||
  |
|
|
| #19 — 0 — LEAD. CUT FROM 100FT. ROLL, PART NUMBER 510883. (1 required per assembly) |
| #20 — 581027 — COVER AND TERMINAL (1 required per assembly) | ||
  |
|
0581027 - Spark Plug Boot and Clip for 7mm Wire, Sold Individually as Shown [ More info ]
|
  |
|
18-5750-9 - Spark Plug Boot and Clip, for 7 mm wire (Pack of 10) [ More info ]
|

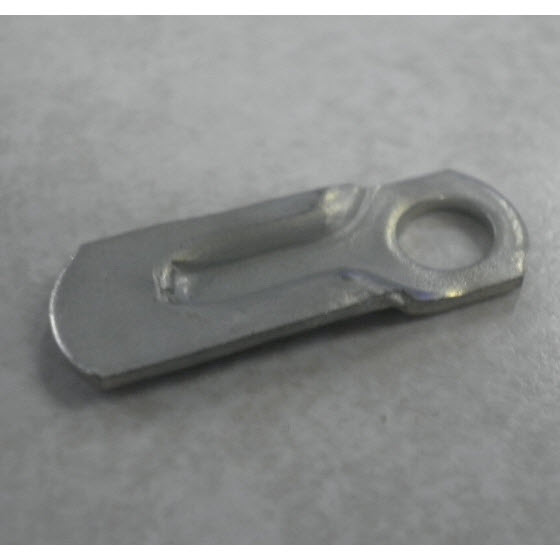

| #21 — 510190 — CLAMP (1 required per assembly) | ||
|
|
0510190 - Clamp - High Tension Lead [ More info ]
|

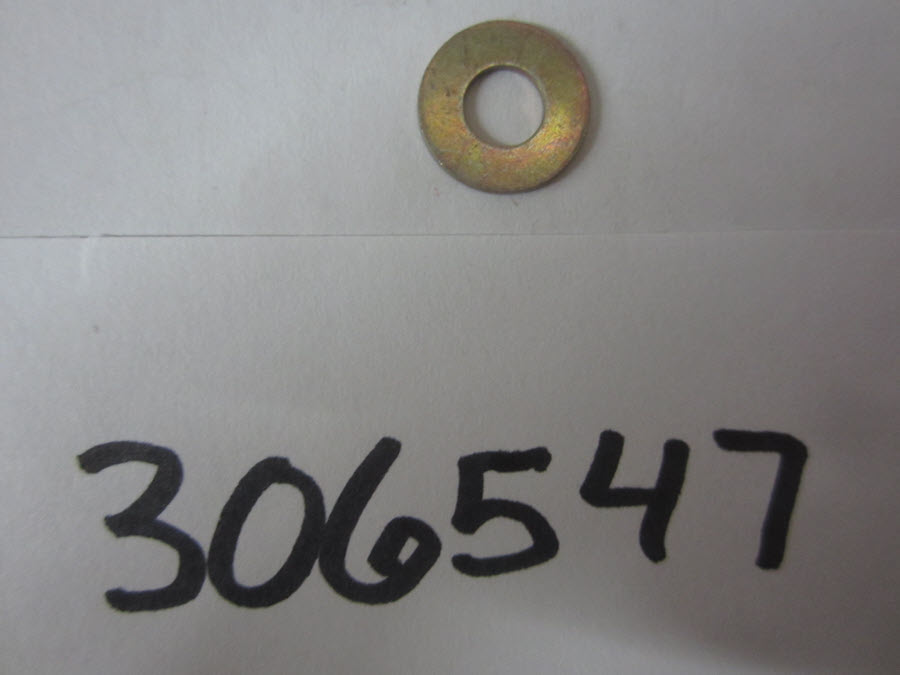

| #22 — 306547 — WASHER (1 required per assembly) | ||
|
|
0306547 - Washer [ More info ]
|
| #23 — 313536 — CAM, ARMATURE PLATE (1 required per assembly) | ||
|
|
0313536 - THROTL CONTROL CAM [ More info ] Unavailable |
| #24 — 304441 — SCREW, CAM (2 required per assembly) | ||
|
|
0304441 [ More info ] Unavailable Replaced by 0321701 |
|
|

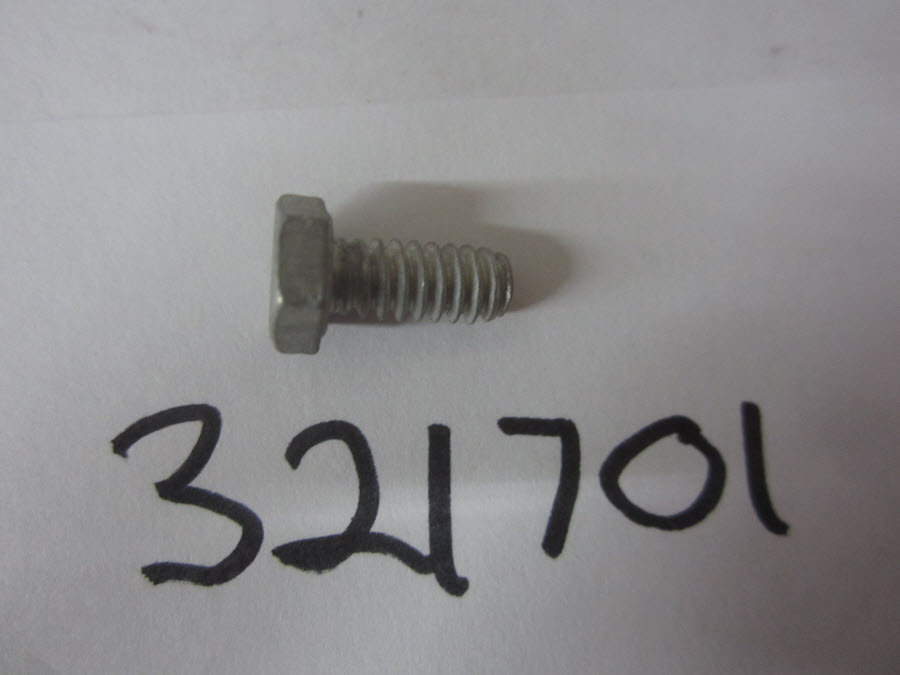

0321701 - Screw, Cam To Retainer [ More info ]
|
| #25 — 300154 — WASHER, SCREW TO CAM (1 required per assembly) | ||
  |
|
0300154 - Washer [ More info ]
|

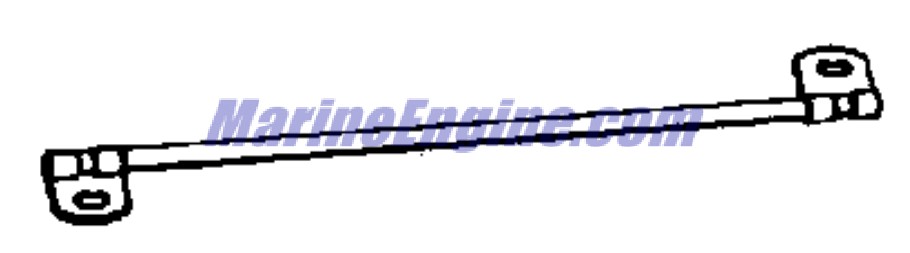

| #26 — 580733 — LEAD ASSY., GROUND (1 required per assembly) | ||
  |
|
0580733 - Ground Lead [ More info ] Unavailable |

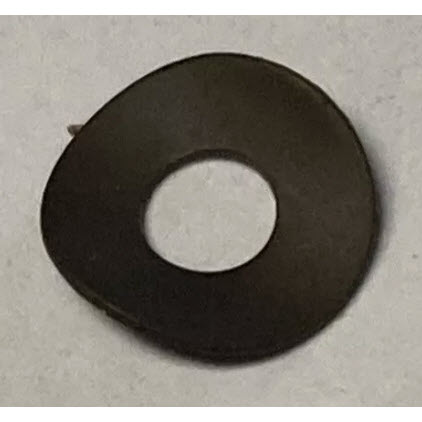

| #27 — 510391 — BOW WASHER, ECCENTRIC SCR. (1 required per assembly) | ||
|
|
0510391 - Bow Washer [ More info ]
|
| #28 — 510772 — TUBING, H.T. LEAD (1 required per assembly) | ||
  |
|

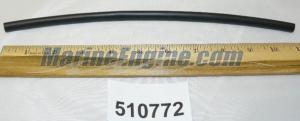

0510772 - Tubing [ More info ] Unavailable |

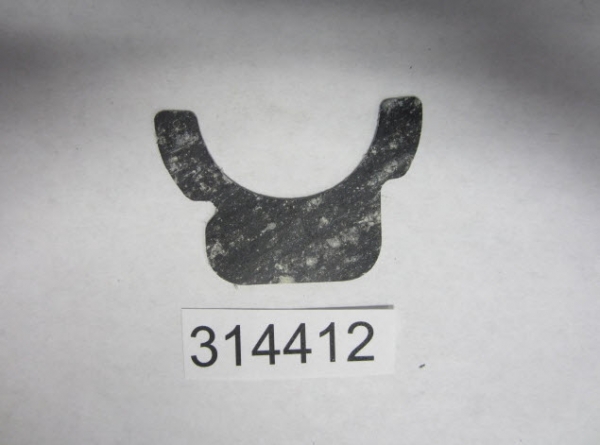

| #29 — 314412 — GASKET, ARMATURE PLATE (1 required per assembly) | ||
  |
|
0314412 - Armature Plate Gasket [ More info ]
|

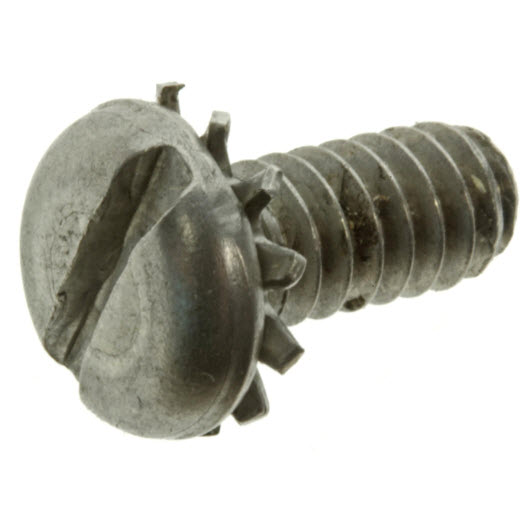

| #30 — 303737 — SCREW, LEAD ASSEMBLY (1 required per assembly) | ||
  |
|
0303737 - Lead Assembly Screw [ More info ]
|
  |
|

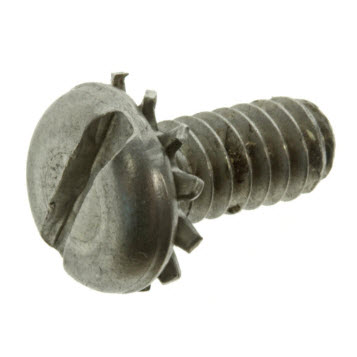

0329594 - Screw, Clamp [ More info ]
|

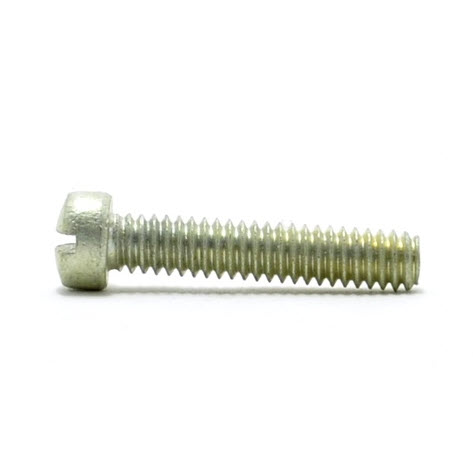

| #31 — 306468 — SCREW, ARMATURE PLATE (1 required per assembly) | ||
|
|
|
| #32 — 307595 — SPRING, ARMATURE PLATE (1 required per assembly) | ||
  |
|
0307595 - Spring [ More info ]
|
| #33 — 313381 — LINER, CYL. TO ARMATURE PLATE (1 required per assembly) | ||
  |
|

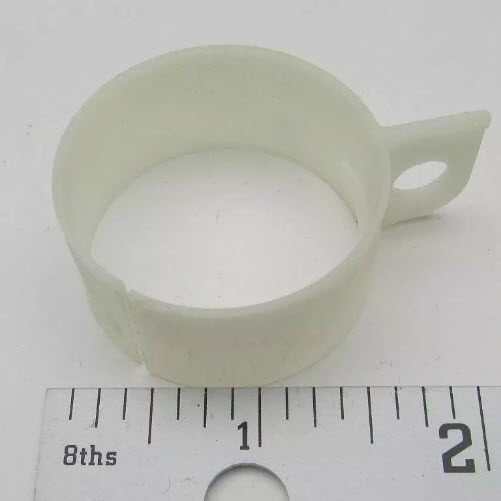

0313381 - Cylinder to Armature Plate Liner [ More info ]
|
| #580142 — 580142 — LEAD ASSY., H.T. (1 required per assembly) | ||
|
0580142 - Spark Plug Lead, 32 Inch, One Boot Only [ More info ] Unavailable |
|
|
|
0582635 - LEAD AY [ More info ] Unavailable |
  |
|

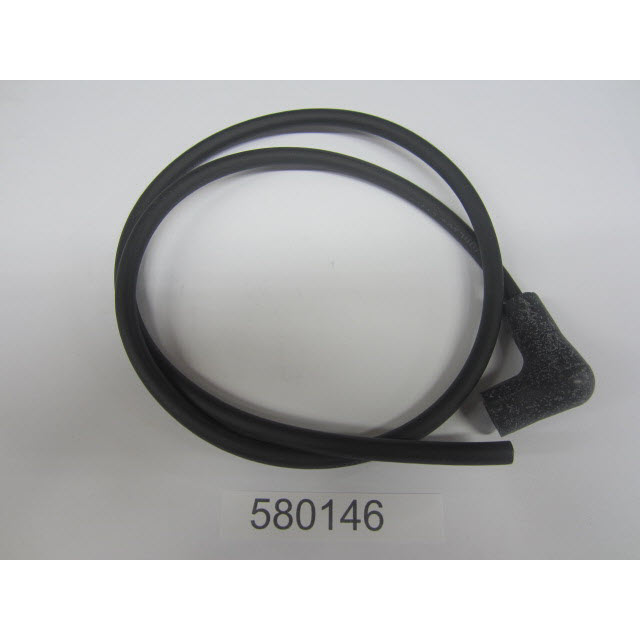

0580146 - Spark Plug Lead, 32 Inch, One Boot Only [ More info ]
|
| #580889 — 580889 — ARMATURE PLATE ASSY (1 required per assembly) | ||
|
0580889 - Armature Plate [ More info ] Unavailable |
|
  |
|

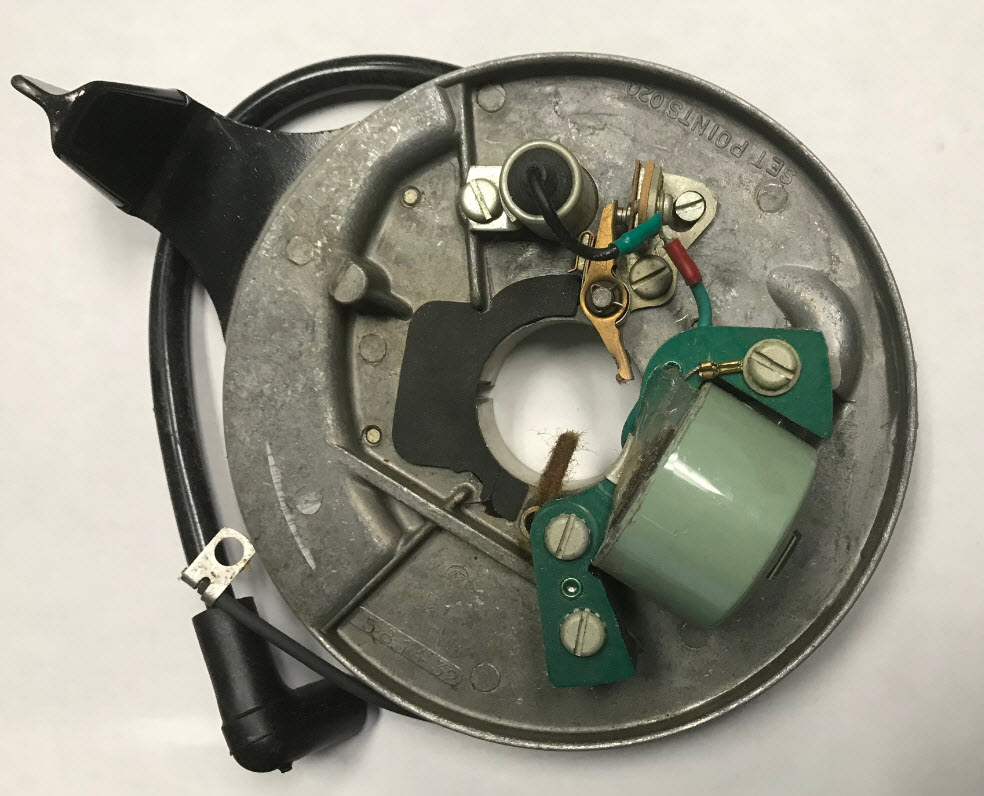

0581762 - Armature Plate Assembly [ More info ] Unavailable |
