Parts for Force 90 HP (1990 L-Drive) Trim Pump Bracket & Relays

Revise Search: All Models > 90 HP (1990 L-Drive) > 90LD90C ( ) > Trim Pump Bracket & Relays

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

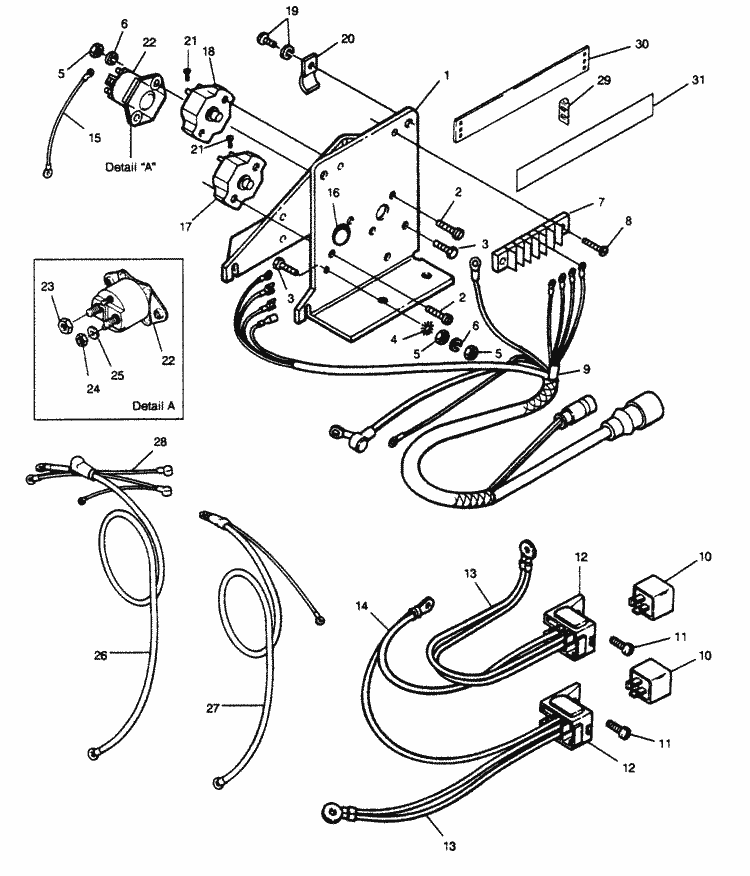

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F695371-2	BRACKET, TRIM COMPONENTS (1 required per assembly)
		F695371-2 - F6953713 [ More info ] Unavailable
		F695371-3 - Pump Bracket/Ele, NLA [ More info ] Unavailable
#2	F1303	SCREW, 8 - 32 X 3/4 (4 required per assembly)
		10-F1303 - Screw [ More info ] $0.40 2 In Stock.
#3	F1999	SCREW, 1/4 - 20 X 7/8 (3 required per assembly)
		10-F1999 - Screw -ss [ More info ] $1.10 10 In Stock.
		10-28668 - Screw - Priced Individually [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#4	F8158	LOCKWASHER (1 required per assembly)
		F8158 - LockWasher - Priced Individually [ More info ] Unavailable
		13-93702 - LockWasher - Priced Individually [ More info ] $2.21 8 In Stock.
#5	F1341	NUT, 1/4 - 20 (4 required per assembly)
		F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable
		11-64015 - Nut (1 /4-20) [ More info ] $2.70 Available to Order: Usually ships within 10 days.
#6	F1975	LOCKWASHER (2 required per assembly)
		13-F1975 - LockWasher - Priced Individually [ More info ] Unavailable
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#7	F722497	BLOCK, TERMINAL (1 required per assembly)
		86-F722497 - Terminal Block, NLA [ More info ] Unavailable
#8	F1733	SCREW, 10 - 24 X 5/8 (2 required per assembly)
		10-F1733 - Screw, SS [ More info ] $1.29 2 In Stock.
		10-852453 - Screw [ More info ] $1.40 Available to Order: Usually ships within 10 days.
#9	F722744	HARNESS, BOAT INTERFACE (1 required per assembly)
		84-F722744 - HARNESS [ More info ] Unavailable
		84-819025A 1 - Harness, NLA [ More info ] Unavailable
#10	F698917	RELAY, POWER TRIM (2 required per assembly)
		87-F698917 - Relay [ More info ] $9.00 5 In Stock.
#11	F1760	SCREW, 10 - 24 X 5/8 (2 required per assembly)
		10-F1760 - Screw -ss, NLA [ More info ] $1.38 10+ In Stock.
#12	F722293	SOCKET (2 required per assembly)
		F722293 - SOCKET,NLA [ More info ] Unavailable
		817020 - SOCKET,NLA [ More info ] Unavailable
#13	F722683	WIRE ASSY - BLACK (2 required per assembly)
		84-F722683 - Wire Assembly, NLA [ More info ] $5.00 10 In Stock.
#14	F722583	WIRE ASSY - RED W/PURPLE STRIPE (1 required per assembly)
		84-F722583 - Wire Assembly, NLA [ More info ] $5.00 10 In Stock.
#15	F722664	WIRE, STARTER SOLENOID GROUND (1 required per assembly)
		84-F722664 - WIRE ASSY,NLA [ More info ] Unavailable
#16	F695374	DECAL, CIRCUIT BREAKER (2 required per assembly)
		37-F695374 - DECAL,NLA [ More info ] Unavailable
#17	F698460	BREAKER, CIRCUIT, 25 AMP (1 required per assembly)
		88-F698460 - Breaker-25 AMP,NLA [ More info ] Unavailable
#18	F695460	BREAKER, CIRCUIT, 35 AMP (1 required per assembly)
		88-F695460 - Breaker - 35 Amp, NLA [ More info ] $17.78 10+ In Stock.
#19	F1734	SCREW W/LOCKWASHER, 1/4 - 20 X 1/2 (2 required per assembly)
		F1734 - Screw w/ Lw, NLA [ More info ] Unavailable
		10-34939 - Screw w/ Lw, NLA [ More info ] $1.67 10+ In Stock.
#20	F289446-1	CLAMP, CABLE (3 required per assembly)
		54-F289446-1 - CLAMP,NLA [ More info ] Unavailable
#21	F1280	SCREW, 8 - 32 X 1/4 (4 required per assembly)
		10-F1280 - Screw -ss [ More info ] $0.51 10+ In Stock.
		108M0129582 - Screw [ More info ] $0.56 Available to Order: Usually ships within 10 days.
#22	F460917-1	RELAY, STARTER (1 required per assembly)
		89-F460917-1 - Solenoid [ More info ] Unavailable
		89-817109A 3 - Solenoid Kit [ More info ] $79.67 Available to Order: Usually ships within 10 days.
		18-5835 - Solenoid, 89-817109A3 - 4 Post [ More info ] $54.99 $49.88 7 In Stock.
		SW295 - Solenoid [ More info ] $39.75 $37.03 5 In Stock.
		SW109 - Solenoid [ More info ] $41.40 $38.51 2 In Stock.
#23	F1515	NUT, 5/16 - 18 (2 required per assembly)
		F1515 - Hex Hut, 5/16 - 18 [ More info ] Unavailable
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#24	F1513	NUT, 10 - 32 (2 required per assembly)
		F1513 - Hex Nut 10 - 32 [ More info ] $0.86 10+ In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.90 10+ In Stock.
#26	F722833	CABLE, BATTERY POSITIVE (RED) (1 required per assembly)
		84-F722833 - Cable - Red, NLA [ More info ] $20.00 10+ In Stock.
#27	F722841	CABLE, BATTERY NEGATIVE (BLACK) (1 required per assembly)
		84-F722841 - Cable - Black, NLA [ More info ] $14.00 10+ In Stock.
#28	F722635	WIRE ASSY, RED W/BOOTS (1 required per assembly)
		84-F722635 - Wire Assembly, NLA [ More info ] $5.00 10+ In Stock.
#29	F664384	CLIP, COVER (2 required per assembly)
		54-F664384 - Clip, NLA [ More info ] $2.77 10+ In Stock.
#30	F694672	COVER, TERMINAL BLOCK (1 required per assembly)
		F694672 - Cover [ More info ] $3.75 10+ In Stock.
#31	F691025	PAD, INSULATING (1 required per assembly)
		F691025 - Pad, NLA [ More info ] $1.50 8 In Stock.
