Parts for Force 85 HP (1989) Fuel Line

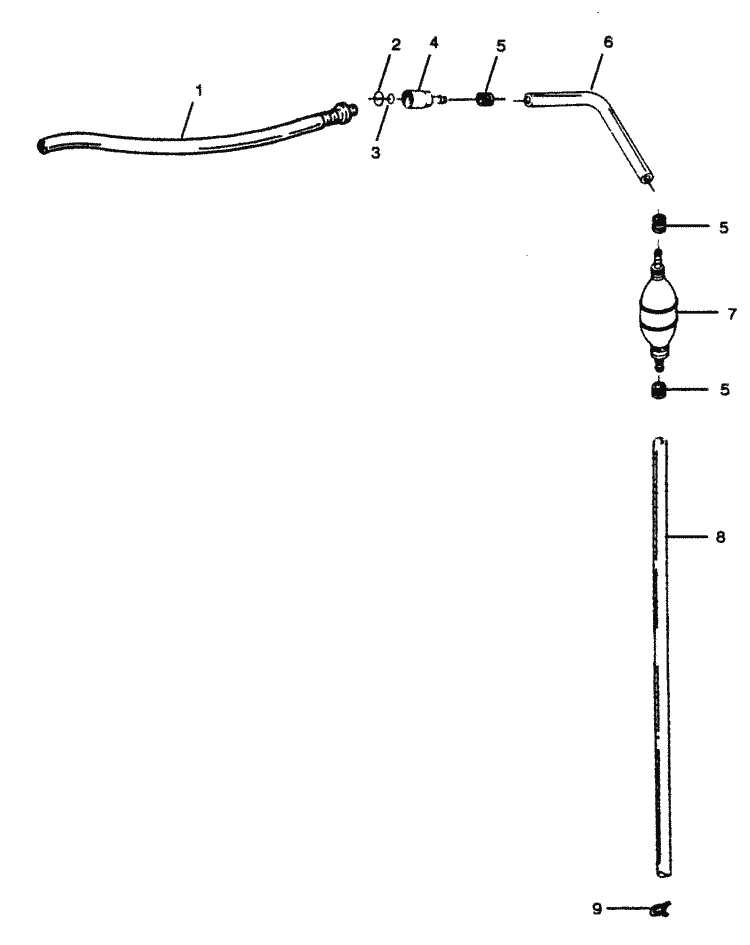

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | FA612754 | FUEL LINE (SUPPORT PLATE) (1 required per assembly) |
 |
|
FA612754 - Hose/Coupler Assembly [ More info ]
|
|
|
32-820661A 1 - Hose/Coupler Kit [ More info ]
|
| #2 | F17816 | SEAL, FUEL LINE COUPLER (LARGE) (1 required per assembly) |
  |
|
F17816 - Large Seal [ More info ]
|
| #3 | F17815 | SEAL, FUEL LINE COUPLER (SMALL) (1 required per assembly) |
|
|
F17815 - Small Seal [ More info ]
|
| #4 | F197787-3 | COUPLER, FUEL LINE (1 required per assembly) |
  |
|
F197787-3 - F197787-3 - COUPLER Fuel O [ More info ] Unavailable Replaced by -F197787Q3 |
  |
|
F197787Q3 - Fuel Coupler Assembly - Priced Individually [ More info ]
|
  |
|
18-8062 - Fitting, F197787-3 [ More info ]
|
  |
|
F197787T3 - Coupler- Fuel - Priced Individually [ More info ]
|
| #5 | F298788 | FERRULE (1 required per assembly) |
|
|
F298788 - F298788 - FERRULE O [ More info ] Unavailable Replaced by 54-41582 7 |
  |
|
54-41582 7 - 54-41582 7 - CLAMP Nylon O [ More info ] Unavailable Replaced by 54-41582Q 7 |
  |
|
54-41582Q 7 - Clamps - Set of 4 [ More info ]
|
  |
|
18-8020-9 - Snapper Clamp, 10PK [ More info ]
|
  |
|
54-41582T 7 - Clamps - Set of 4 [ More info ]
|
| #6 | F458754 | HOSE, SHORT (1 required per assembly) |
|
|
F458754 - F458754 - HOSE O [ More info ] Unavailable Replaced by -F694360 |
|
|
F694360 - F694360 - HOSE-9.5 INCH O [ More info ] Unavailable Replaced by 32-819248 35 |
|
|
32-819248 35 - 32-819248 35 - HOSE O [ More info ] Unavailable Replaced by 32-819248 67 |
|
|
32-819248 67 - 32-819248 67 - HOSE-25 INCH O [ More info ] Unavailable Replaced by 32-99127109 |
  |
|
32-99127109 - 32-99127109 - LINE (57.00 Inche O [ More info ] Unavailable Replaced by 32-830756109 |
  |
|
32-830756109 - 32-830756109 - HOSE (57.00 Inche O [ More info ] Unavailable Replaced by 32-8M0047428 |
  |
|
32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #7 | 89396A38 | PRIME BULB (1 required per assembly) |
|
|
89396A38 - 89396A38 - BULB ASSEMBLY Pri O [ More info ] Unavailable Replaced by -89396Q38 |
  |
|
89396Q38 - 89396Q38 - PRIMER BULB O [ More info ] Unavailable Replaced by -89396Q01 |
  |
|
89396Q01 - PRIMER BULB @4 O NLA [ More info ] Unavailable |
|
|
18-8004S - Primer Bulb-5/16'' - Special Order - No Returns [ More info ]
|
  |
|
18-8004EP-1 - Primer Bulb -5/16 Inch [ More info ]
|
| #8 | 32-817738A 1 | HOSE, LONG (1 required per assembly) |
|
|
32-817738A 1 - LINE ASSEMBLY Fue O NLA [ More info ] Unavailable |
| #9 | F97772 | CLAMP (1 required per assembly) |
|
|
F97772 - F97772 - CLAMP O [ More info ] Unavailable Replaced by 54-63933 |
|
|
54-63933 - Clamp, NLA [ More info ]
|
| # | FA630752 | FUEL LINE COMPLETE (BAYLINER MODELS) (1 required per assembly) |
|
|
FA630752 - FA630752 - LINE ASSEMBLY Fue O [ More info ] Unavailable Replaced by 32-819380A 7 |
|
|
32-819380A 7 - HOSE O NLA [ More info ] Unavailable |
