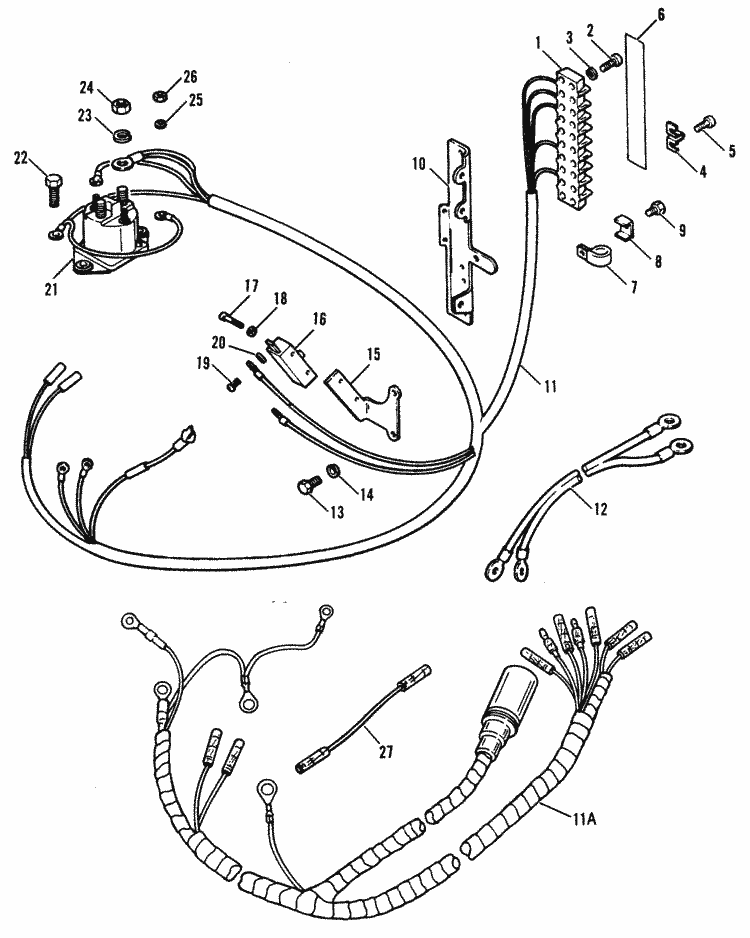

Parts for Force 70 HP (1991-1995) Electrical Components
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 54-823461 | CABLE TIE (8-1/2") (AR required per assembly) |
#1 | FA616497 | BLOCK KIT, Terminal (1 required per assembly) SERIAL 0E000001-0E009499 (2 Row - 8 Position) (1991B Thru 1992C) |
FA616497 - Terminal Block Kit, NLA [ More info ] Unavailable |
||
#2 | 10-41069 | SCREW (10-24 x 3/4") (2 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#3 | 13-26996 | LOCKWASHER (#10) (2 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#4 | 54-F307317 | CLIP, Ground (2 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#6 | 37-F529398-1 | DECAL, Wiring (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#7 | 54-F289446-1 | CLAMP (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
54-F289446-1 - CLAMP,NLA [ More info ] Unavailable |
||
#8 | 54-F438668 | RETAINER, Cable Clamp (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#9 | 10-34939 | SCREW (1/4-20 x 1/2") (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#10 | F438493 | BRACKET, Terminal Block (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#11 | 84-817459A 1 | HARNESS ASSEMBLY, Wiring (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
84-817459A 1 - Harness Assembly, NLA [ More info ] Unavailable |
||
#11A | 84-823392A 1 | HARNESS ASSEMBLY, Wiring (1 required per assembly) SERIAL 0E009500-0E093699 |
84-823392A 1 - HARNESS ASSY [ More info ] Unavailable |
||
#11A | 84-827244A 1 | HARNESS ASSEMBLY, Wiring (1 required per assembly) SERIAL 0E093700-0Z999999 |
#12 | 84-F381896-4 | CABLE, Battery (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
84-F381896-4 - Battery Cable [ More info ] Unavailable |
||
84-855844A 1 - Battery Cable Assembly [ More info ] Unavailable |
||
84-8M0210761 - CABLE KIT-BATTERY Q=T [ More info ] In Stock |
||
#13 | 10-F1532 | SCREW (1/4-20 x 1") (2 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#15 | F749551-1 | BRACKET, Interlock Switch (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#16 | 87-F84449 | SWITCH, Starter Interlock (1 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
87-F84449 - Switch [ More info ] Unavailable |
||
#17 | 10-F2193 | SCREW (6-32 x 7/8") (2 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#18 | 12-27882 | WASHER (1991B Thru 1992C) (2 required per assembly) SERIAL 0E000001-0E009499 |
#19 | 10-69080 | SCREW (6-32 x 1/4") (2 required per assembly) SERIAL 0E000001-0E009499 (1991B Thru 1992C) |
#20 | 13-F1704 | LOCKWASHER (#6) (2 required per assembly) |
#21 | 89-F460917-1 | RELAY, Starter (1 required per assembly) |
89-F460917-1 - Solenoid [ More info ] Unavailable |
||
#22 | 10-820628 | SCREW (1/4-20 x 5/8") (2 required per assembly) |
#23 | 13-53166 | LOCKWASHER (5/16") (2 required per assembly) |
#24 | 11-68292 | NUT (5/16-18) (2 required per assembly) |
11-8M0204668 - NUT @5 [ More info ] Unavailable |
||
#26 | 11-68219 | NUT (10-32) (2 required per assembly) |
#27 | 84-825275A 1 | CABLE ASSEMBLY (Black/Yellow) (1 required per assembly) SERIAL 0E039024-0Z999999 |
