Parts for Force 5 HP (1997) Intake System

Revise Search: All Models > 5 HP (1997) > 0E203000 - 0E287999 ( ) > Intake System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

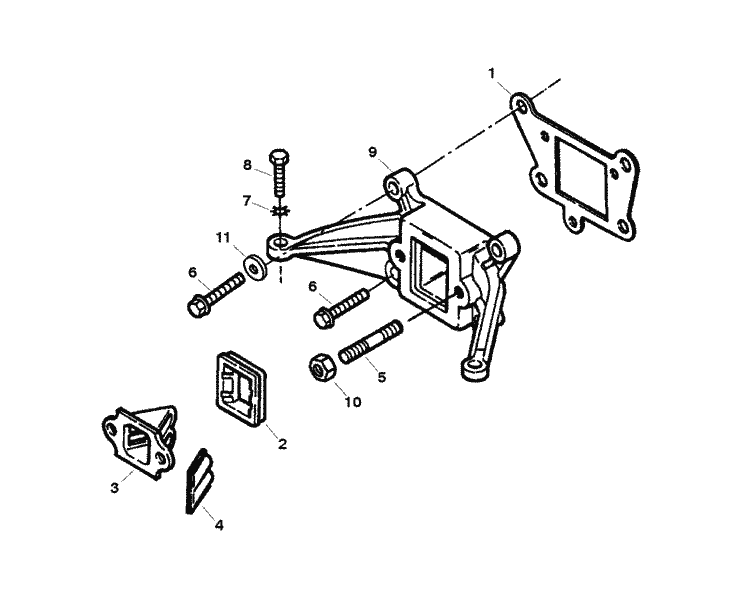

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	800-819854A 2	POWERHEAD ASSEMBLY (1 required per assembly)
		800-819854A 2 - Powerhead [ More info ] Unavailable
		800-819854A 5 - Powerhead Assembly, 5HP, 98-9 [ More info ] Unavailable
		900-819367T 1 - Cylinder Head, NLA [ More info ] $28.00 10+ In Stock.
		700-819920A 3 - Piston Kit - Std, NLA [ More info ] $55.00 2 In Stock.
		400-819797A 1 - CrankShaft Assembly, NLA [ More info ] $40.00 5 In Stock.
#	FG1034 1	GASKET SET-Powerhead (1 required per assembly)
		FG1034-1 - Gasket Set [ More info ] Unavailable
#1	27-F521168	GASKET-Carburetor Adapter (1 required per assembly)
		27-F521168 - Carburetor Adapter Gasket [ More info ] $2.99 7 In Stock.
#2	F712504	GROMMET-Reed Plate (1 required per assembly)
		F712504 - Grommet, Reed Plate,NLA [ More info ] $22.21 10+ In Stock.
#3	819677	PLATE-Reed (1 required per assembly)
		819677 - Reed Plate [ More info ] $6.66 10+ In Stock.
#4	34-F31160 2	REED (2 required per assembly)
		34-F31160-2 - Reed, NLA [ More info ] $25.54 4 In Stock.
#5	16-826625	STUD (.250-20 x 1.130) With Dri Lok (2 required per assembly)
		16-826625 - Stud, NLA [ More info ] Unavailable
#6	10-819110100	SCREW (.250-20 x 1.00) (4 required per assembly) TORQUE 70 LB. IN. 7.8 N-M
		10-819110100 - Screw [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#7	13-F8060	LOCKWASHER (.250 External) (2 required per assembly)
		13-F8060 - LockWasher, NLA [ More info ] $1.25 10+ In Stock.
#8	10-F2008	SCREW (.250-20 x .875) (2 required per assembly)
		10-F2008 - Screw -ss, NLA [ More info ] $2.77 10+ In Stock.
#9	F712167T	ADAPTER-Carburetor (Painted) (1 required per assembly) TORQUE 70 LB. IN. 7.8 N-M
		F712167T - Adapter-Carburetor [ More info ] Unavailable
		820097A 1 - Carburetor Adapter Assembly, NLA [ More info ] $10.00 10+ In Stock.
#10	11-20890	NUT (.250-20) (2 required per assembly) TORQUE 70 LB. IN. 7.8 N-M
		11-20890 - Nut (1/4 x20) [ More info ] $1.60 7 In Stock.
#11	12-18678	WASHER (2 required per assembly)
		12-18678 - Washer, NLA [ More info ] $1.25 10+ In Stock.
