18-5176 - Coil 584561
Replaces OEM #0584561.
Sierra # 18-5176 Ignition coil Kit

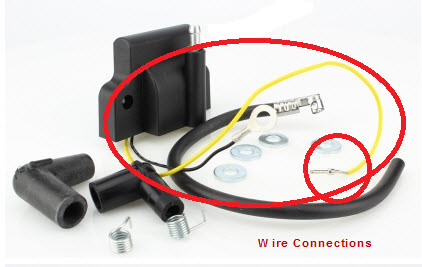

This has an external ground (black wire with ring terminal). Use a coil mounting bolt and place the ring terminal of the black wire on the bolt to ground coil when installed.
The yellow wire is the the power wire that is made into the coil. If you look at the ends of the yellow wire you will see the same style bullet connector on the “engine” end.
Also the primary wire connections are potted into the housing to help prevent corrosion at the connections on the coil end.
Sierra Marine Coil is equivalent to parts:
- 584561 Evinrude Johnson OMC BRP
- 9-23103 Mallory Marine
Additional information about this part can be found on page(s) 210 of the Sierra Marine catalog.
