STATOR (MERCURY) - 2/3/4 CYL | 16 AMP

List Price

Your Price
$0.00

Add to shopping cart6 In Stock.

SECURE CHECKOUT
SPEEDY DELIVERY
30-DAY RETURN
FULL WARRANTY

Part Number
174-9710K 1

Manufacturer
CDI Electronics

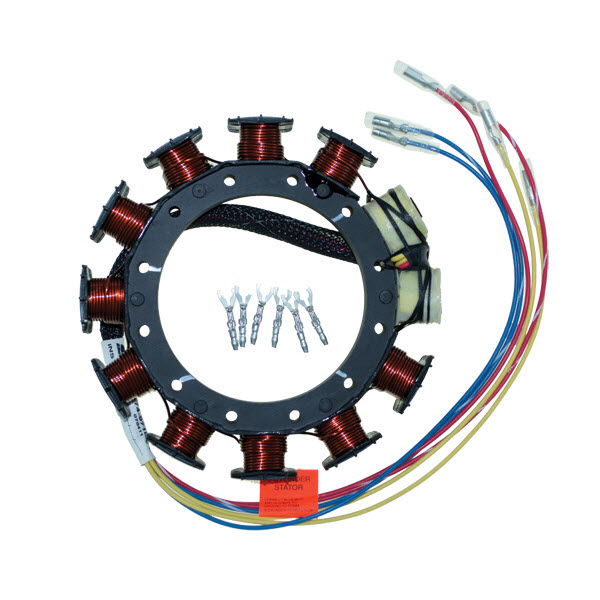

174-9710K 1 - Stator - 2, 3 & 4 Cylinder, 16 Amp

DO NOT USE THE RED STATOR ADAPTER WITH THIS REPLACEMENT!

Fits: 1987-1997 (45 JET,50,55,60,65 JET,70,75,80,90 & 95HP - 3 Cyl.) 1989-1997 (30 JET,40,80 JET,100,115,120 JET & 125HP - 4 Cyl.)

Replaces: Mercury #398-818535A17,
398-818535A18,
398-9710A11, 398-9710A12,
398-9710A14, 398-9710A15,
398-9710A17, 398-9710A18,
398-9710A22, 398-9710A23,
398-9710A25, 398-9710A28,
398-9710A30,
398-9710A31,398-9710A33,
398-9710A34, 398-9710A35,
398-9710A36, 398-9710A38,
398-9710A39, 398-9710A43,
398-9710A45, 398-9710A46,
398-9710A47, 398-9710A48,
398-9710A49, 398-9873A 9,
398-9873A17, 398-9873A19,
398-9873A24, 398-9873A25,
398-9873A29,
398-9873A32, 398-9873A33,
398-9873A35,398-9873A38,
F747095

*Not for use with Flywheels with
Bolted-in Magnets.
Requires Voltage Regulator

If this stator is to be used as a replacement for the RED Mercury stator series, connect all wires

as they were originally from the factory.
If this stator is to be used on a three cylinder engine, connect the red/white and blue/white

striped wires to engine ground.

***NOT for use with Flywheels with Bolted-In Magnets.***

***Requires a Voltage Regulator.***

Technical information (PDF)
More technical information (PDF)
Warranty (PDF)
Enlarge photo


CDI Electronics Stator (mercury) - 2/3/4 Cyl | 16 Amp is equivalent to parts:

  • 9873A38 Mercury Marine
  • 9873A37 Mercury Marine
  • 9873A35 Mercury Marine
  • 9710A49 Mercury Marine
  • 9710A47 Mercury Marine
  • 9710A45 Mercury Marine
  • 9710A43 Mercury Marine
  • 9710A38 Mercury Marine
  • 9710A35 Mercury Marine
  • 9710A34 Mercury Marine
  • 9710A33 Mercury Marine
  • 9710A31 Mercury Marine
  • 9710A28 Mercury Marine
  • 9710A22 Mercury Marine
  • 9710A18 Mercury Marine
  • 9710A17 Mercury Marine
  • 832075A8 Mercury Marine
  • 832075A5 Mercury Marine
  • 832075A19 Mercury Marine
  • 832074A6 Mercury Marine
  • 832074A4 Mercury Marine
  • 832074A11 Mercury Marine
  • 818535A17 Mercury Marine
  • 398832075A19 Mercury Marine
  • 398832075A 8 Mercury Marine
  • 398832075A 5 Mercury Marine
  • 398832074A11 Mercury Marine
  • 398832074A 6 Mercury Marine
  • 398832074A 4 Mercury Marine
  • 398  9873A38 Mercury Marine
  • 398  9873A35 Mercury Marine
  • 398  9710A49 Mercury Marine
  • 398  9710A47 Mercury Marine
  • 398  9710A45 Mercury Marine
CDI Electronics produces state of the art Quick Strike Ignitions and components that have become the industry standard for quality electronic ignition systems. CDI also makes a line of electronics testing equipment for marine engine applications.
