6276 - Tilt Trim Motor, 809885A1, A2

Arco Marine 6276 - Tilt Trim Motor, 809885A1, A2

List Price
$389.95

Your Price
$351.64

Add to shopping cart6 in stock.

Part Number
6276

Manufacturer
Arco Marine

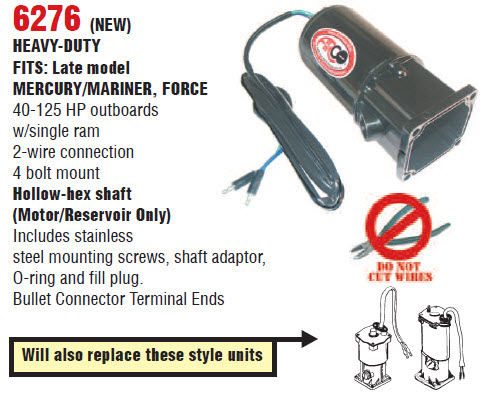

ARCO NEW OEM Premium Replacement Tilt Trim Motor - 6276

ARCO Part #6276

ARCO NEW OEM Premium Replacement Tilt Trim Motor HEAVY-DUTY.

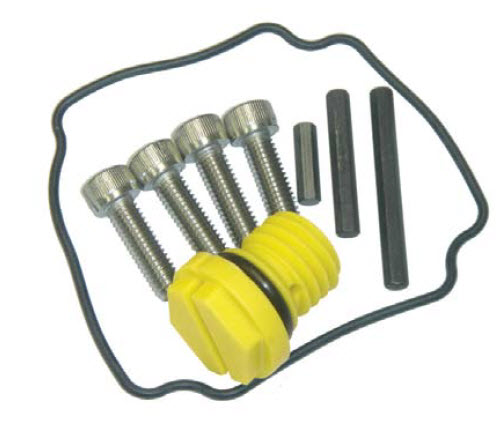

Fits: Late model Mercury /Mariner, FORCE 40-125 HP outboards w/single ram, 2-wire connection, 4-bolt mount, Hollow-hex shaft, (Motor/Reservoir Only) Includes stainless steel mounting screws, shaft adaptor, O-ring and fill plug. Bullet Connector Terminal Ends.

Replaces Part Numbers:

MERCURY 19217A1
MERCURY 19217A5
MERCURY 809885A1
MERCURY 809885A2
MERCURY 809885T2
MERCURY 811674
MERCURY 813447
MERCURY 818903A1
MERCURY 819479A1
MERCURY 8197480A1
MERCURY 819762A4
MERCURY 19762A5
MERCURY 19762A6
MERCURY 19762A7
MERCURY 1977A8
MERCURY 1977A9
MERCURY 22870A1
MERCURY 30250A3
MERCURY 30250T3
MERCURY 2021A1
MERCURY 32021T1
MERCURY 32021A2
MERCURY 32021T2
MERCURY 55654A1
MERCURY 55654T2
MERCURY 93907A02

QUALITY ASSURANCE
• Epoxy Powder coated for maximum corrosion protection
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance

PRECISION TESTING
• All armatures tested to withstand 50 times operation voltage (12V)
• All motors performance tested at 5 different load levels
• All motors must meet or exceed OEM performance before being boxed

ARCO Marine is a USA based manufacturer

Technical information (PDF)
Warranty (PDF)
Enlarge photo
More photos


Arco Marine Tilt & Trim Motor is equivalent to parts:

ARCO is a leading supplier of electrical products for marine engines including inboard/outboard starters, trim/tilt motors, alternators, solenoids, rectifiers and more. All of ARCO's parts are built to meet or exceed OEM qualifications.
