6250 - Trim Motor, 828708

Arco Marine 6250 - Trim Motor, 828708

List Price

Your Price

Add to shopping cart3 in stock.

Part Number

Arco Marine

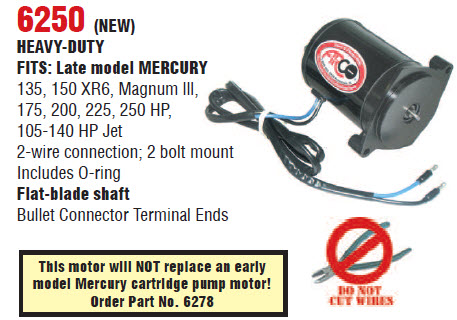

ARCO NEW Original Equipment Quality Replacement Tilt Trim Motor - 6250
ARCO Part #6250

Fits: Late model Mercury 135, 150 XR6, Magnum lll,
175, 20ARCO NEW Original Equipment Quality Replacement Tilt Trim Motor 0, 225, 250 HP, 105-140 HP Jet, 2-wire connection,
2-bolt mount, Includes O-ring, Flat-blade shaft, Bullet Connector Terminal Ends.

Replaces Part Numbers:
MERCURY 8M0031551
MERCURY 828708
MERCURY 878265A1
MERCURY 878265A4

• Epoxy Powder coated for maximum corrosion protection
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• All armatures tested to withstand 50 times operation voltage (12V)
• All motors performance tested at 5 different load levels
• All motors must meet or exceed OEM performance before being boxed
ARCO Marine is a USA based manufacturer

Technical information (PDF)
Warranty (PDF)
Enlarge photo
More photos

Arco Marine Tilt & Trim Motor is equivalent to parts:

ARCO is a leading supplier of electrical products for marine engines including inboard/outboard starters, trim/tilt motors, alternators, solenoids, rectifiers and more. All of ARCO's parts are built to meet or exceed OEM qualifications.
