Yamaha side mount remote control wiring (4)

[Rrichterr]

Hi Guys,

Repowering my boat with a 2007 Yamaha F115 4-stroke with a new control box (703) that is replacing a 1996 Mariner 135 2stroke and it’s associated Mercury side mount control box

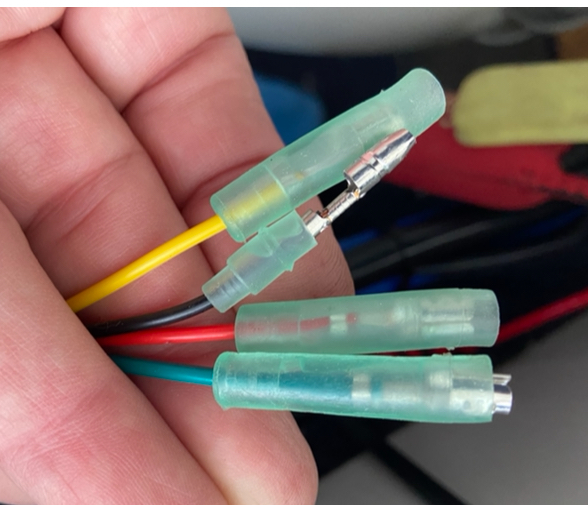

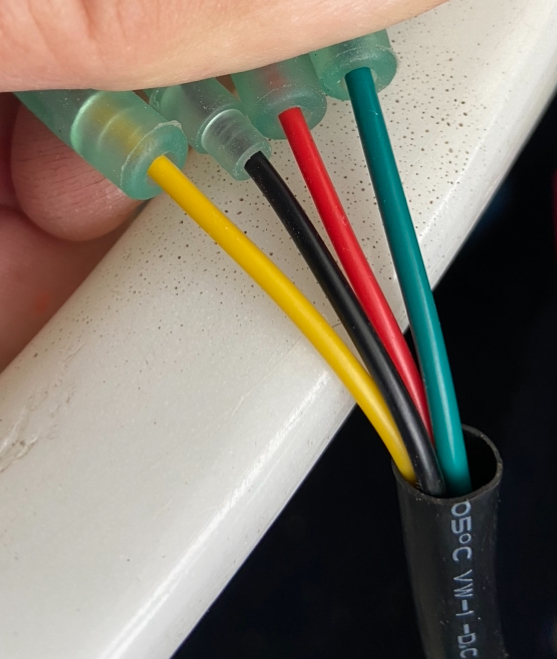

Can anyone identify the wire assignments for the 4 wire pigtail that exits this new control box (see pic) ?

Has anyone done this conversion and figured out how to tie these 4 wires into the Mercury pigtail that had a 5 pin plug. Going to the dash?

Any help appreciated. Thx



[boscoe]

Red is battery power.
Yellow is key on battery power.
Black is battery ground.
Green is the tachometer signal.



[boscoe]

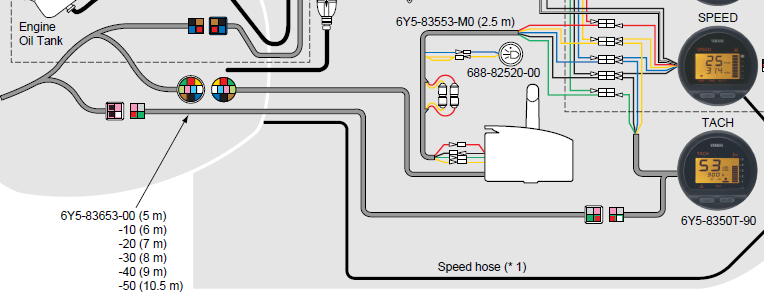

Here is the way that Yamaha does it.



[Rrichterr]

Thank you sir. Will attempt to feed these to the original harness to get some of gushes working.
