Look for ECM Coupler Layout Diagram

JY Marine

JY Marine

Member
Hey guys anyone have or could share me a ecm coupler layout of ecu pinouts, for 6D6-11 yamaha, i believe its a 75hp-100hp.

Would be much appreciated thanks.

JY Marine said:
Hey guys anyone have or could share me a ecm coupler layout of ecu pinouts, for 6D6-11 yamaha, i believe its a 75hp-100hp.

Would be much appreciated thanks.
Click to expand...
You'll need to look for this, using the model and serial number in order to find accurate info.

It would be in the applicable service manual.

Is technical work being done on the motor without a service manual?

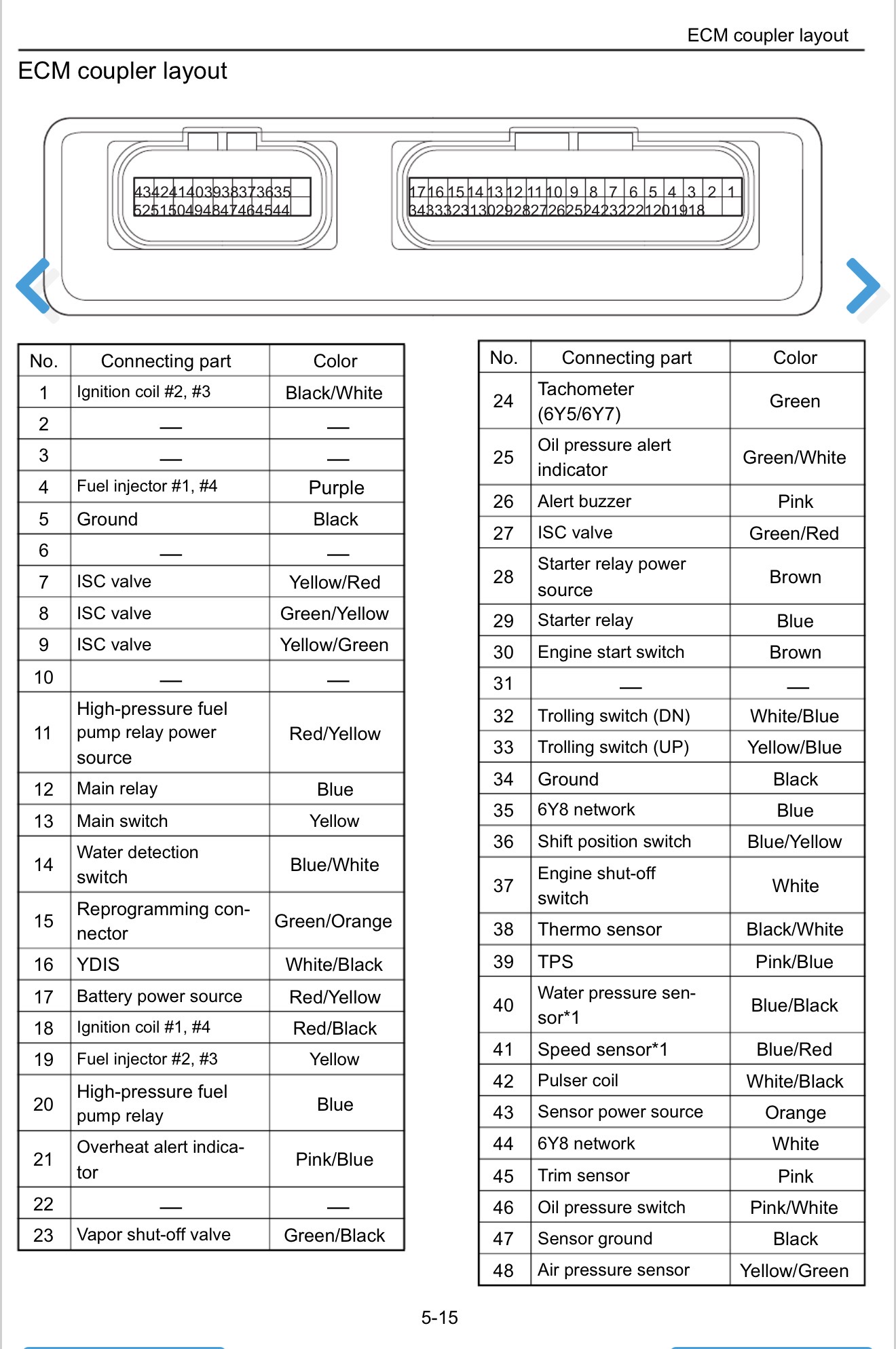

Im looking for something like this but for the 6D6 model if possible please

What is the source of your data?

Appears to be Yamaha data but some of the colours are not making sense to me.

Its from a manual i believe it was 100hp, its just a diagram of ecu pinout. I just need to know which pins for YDIS, battery power source and ground. Same ecu and plugs but just different pinouts

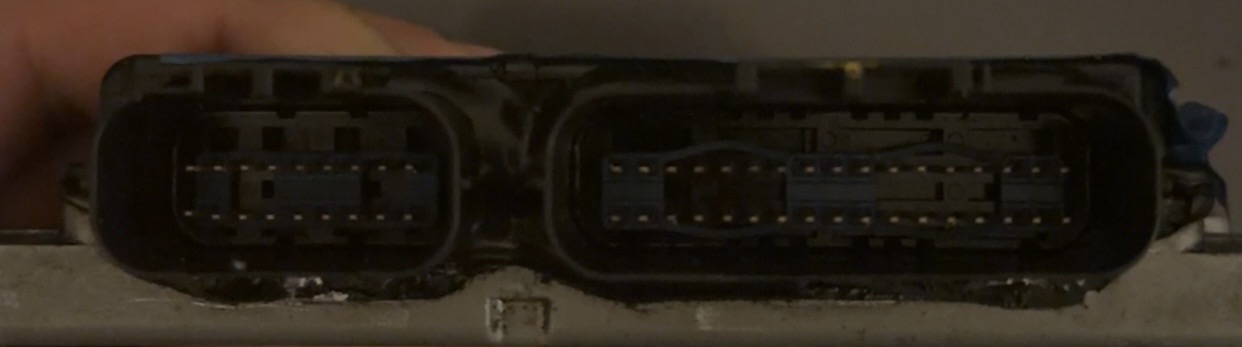

by any chance you can mark the ydis, power source and ground on this picture i sent, im not the best at figuring out which side and top or bottom:ROFLMAO:


Attachments

  • IMG_4960.jpeg
    51.7 KB · Views: 26
Honestly cannot remember model of the motor that it was on, i just needed to know how much hours it has thats why i wanted the ydis and power source and ground pins so i can put it through diagnostics, it wouldve been easier if i had the ecu loom for it.

Let's start over.

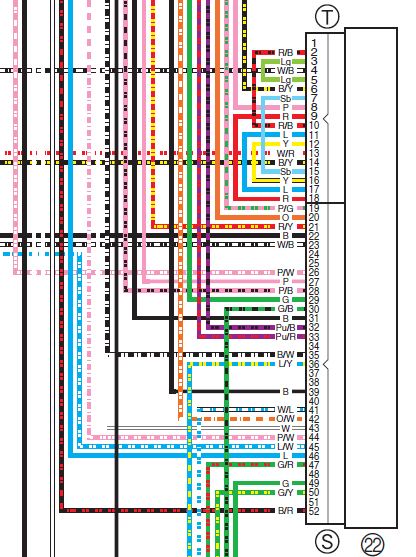

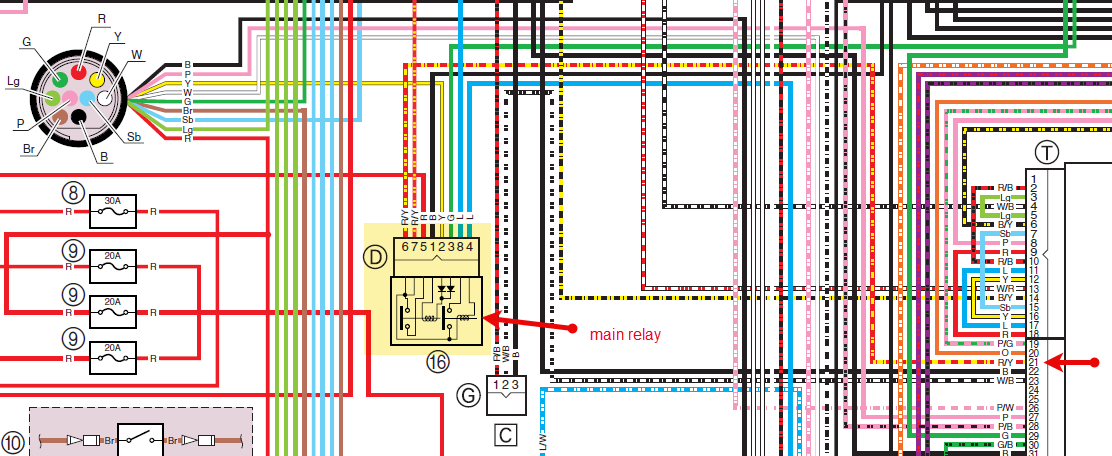

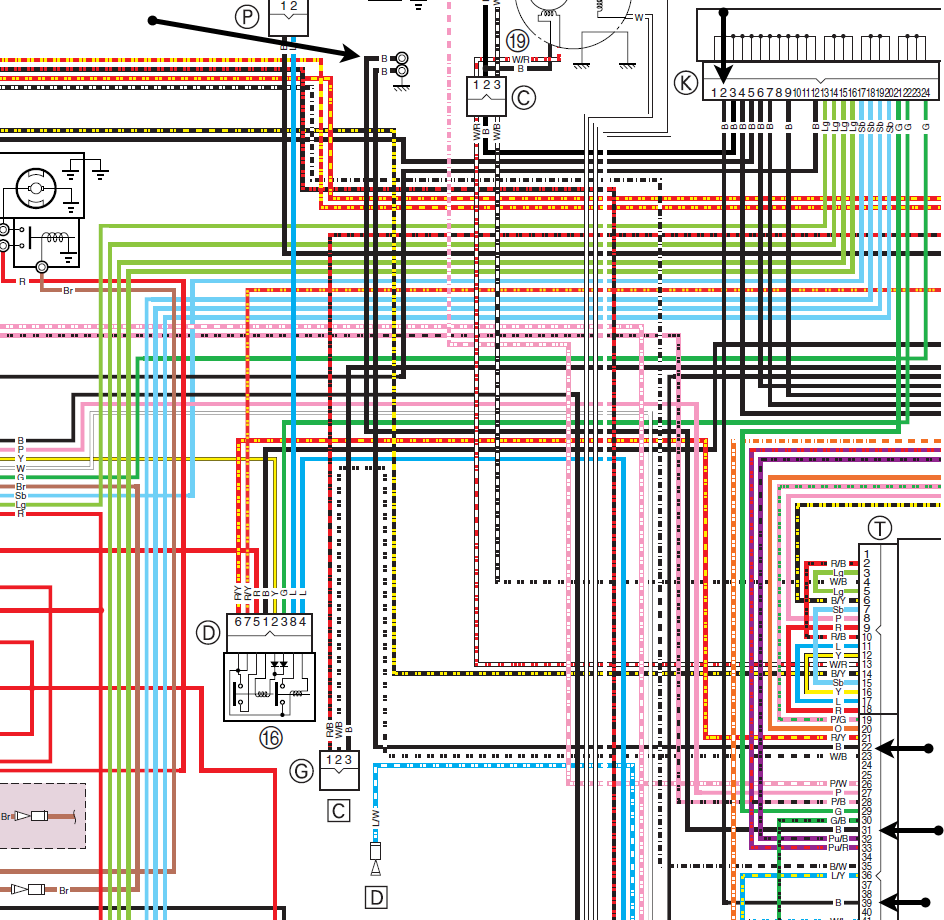

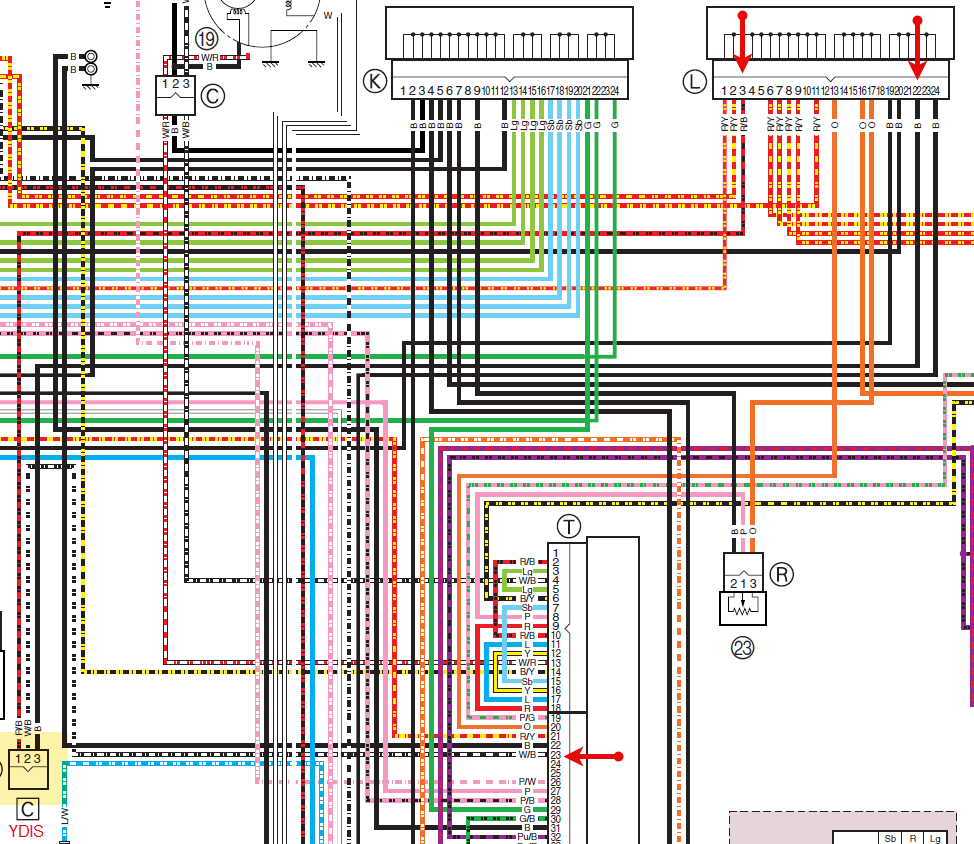

The 6D6 -11 ECU was used on a 2008 F75TLR. Here is data from a later SM that covers the -11 ECU.

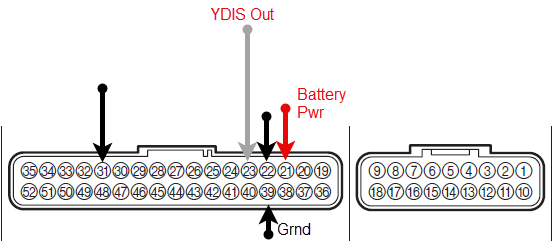

Connector side.


Back
Top
