Lever lock replacement for 9.9 outboard for 1986 Johnson motor

[Johnson1986!]

I need to replace my broken lever lock, part # 320514 for 1986 9.9 johnson outboard, model # J10RCDB. I am looking for a detailed picture of an assembled lock lever that shows bushings and spring washer placement location.

Does anybody know where I can find a detailed photograph of an assembled lock lever for 9.9 johnson?

Much appreciated, Chris



[OlderBw]

I can’t figure out what part you are talking about here. I have this motor and can send pix.



[OlderBw]

Ah ha …

Part number 320514 (also listed as 0320514) corresponds to the Tilt Lock Lever and Shaft assembly for Johnson and Evinrude 9.9 HP and 15 HP outboard motors.



[OlderBw]

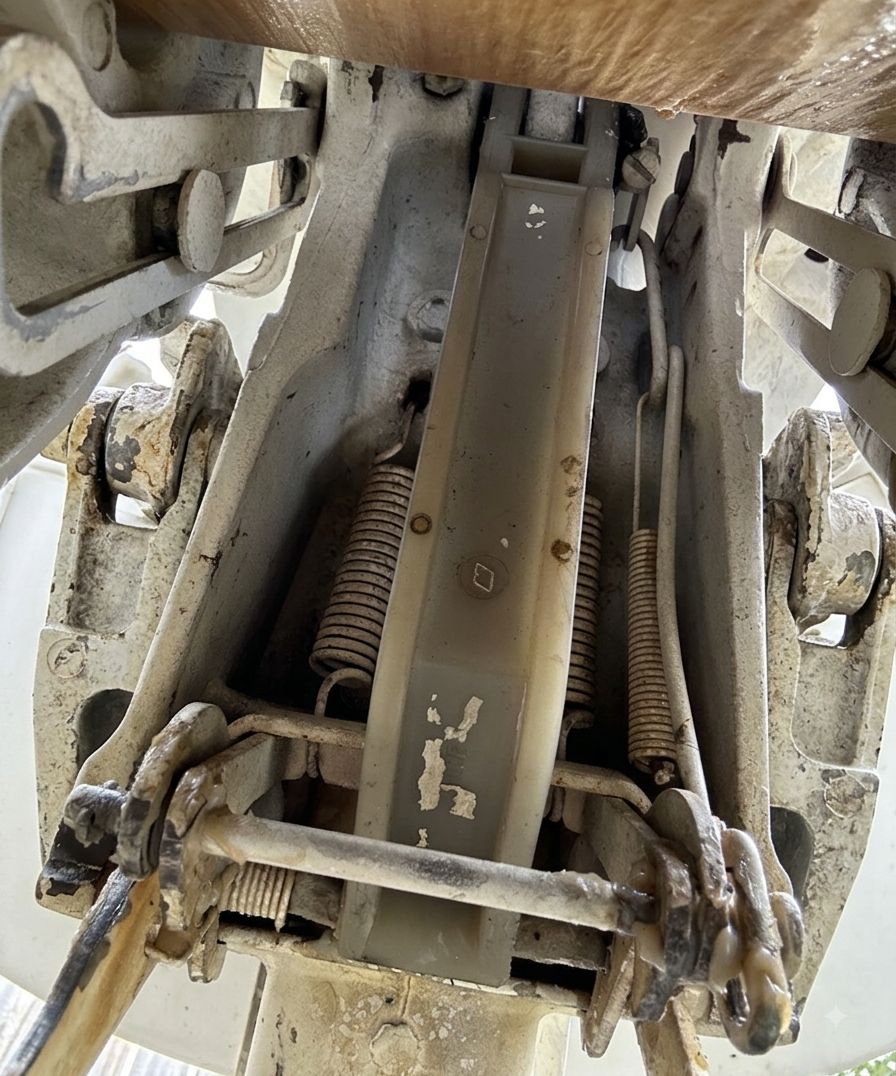

This view has the center blocked out by another part but let me know what you want beyond this …
