2000 Evinrude 90 (e90FPLSSH) Wire identification (and 2 plugs)

I

Ipswichwhaler

New member
I just purchased a 2000 Evinrude 90 FICHT (e90FPLSSH) from a guy who was moving to a 4-stroke. Package came with oil tank, all gauges and wire harness. I hooked up the wire harness yesterday and there are a few wires I am unsure where they go. Here are some pics....

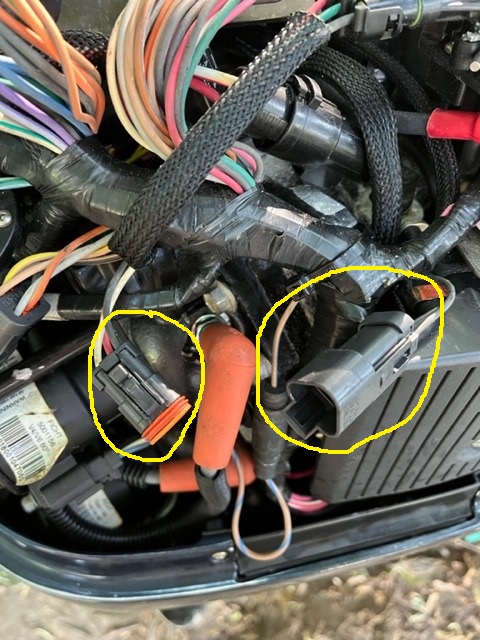

This is under the cowling. I fed the harness in and plugged everything in. These 2 plugs were left. They are both the triangle 3 wire plugs... one male, one female. female has one wire going in... male has 3 wires.

Under the console I plugged in the big square plug into the tack (gauge has the warning lights also). \
The tilt and trim I could identify. These 2 pictures I am unsure. One I am pretty sure is the volt meter. The other... water?



Any help? I just want to get it right from the start. Thanks!

I figured out the plugs.... one is the info cable for a computer hookup and the other may be for an engine tilt gauge.

The loose wires.. one is definitely for the Alt, the other for a speed-O ?

No one have a book with the schematic? Can someone point me to a schematic for this engine?
