1984 e150stlcrd Vacuum hose diagram needed HELP!

B

bowhunter757

New member
I pulled a bonehead move the other day....I rebuilt the carbs but forgot to take pictures of the vacuum lines and how they were routed / attached to the engine before pulling them off of the engine.

So far, I have been to three different local boat shops and surfed the far reaches of the internet but cannot find a diagram that will show me how hook everything back up.

Can someone please point me in the right direction?

Thanks!

There really are no " vacuum lines " on these motors.---------Do these lines come from the primer / electric valve ?-----------Or are these the re-circulation hoses ?

racerone said:
There really are no " vacuum lines " on these motors.---------Do these lines come from the primer / electric valve ?-----------Or are these the re-circulation hoses ?
Click to expand...


Thanks for the reply...
Yes, they are the 3/32" lines that come from the primer/electric valve. they route to the top center of each carb and to the block.

The lines from the primer only go to each carburetor and it does not matter which goes to which carburetor.-------Earlier motors I believe had lines from the primer going to the bypass covers.-------Trace the lines and see how many come from the primer.------There are 2 at the primer and a tee fitting to split one of them ??????

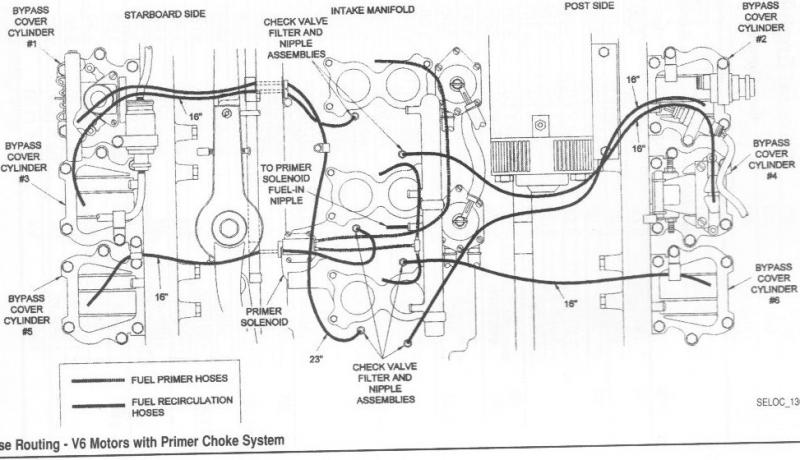

Here's what I got:


Attachments

  • HoseRte.jpg
    59 KB · Views: 5,161
racerone said:
The lines from the primer only go to each carburetor and it does not matter which goes to which carburetor.-------Earlier motors I believe had lines from the primer going to the bypass covers.-------Trace the lines and see how many come from the primer.------There are 2 at the primer and a tee fitting to split one of them ??????
Click to expand...

There are two at #22 on the primer. There is a 3 way splitter #67 and a 4 way splitter at #66.



Strange that they crisscross the hoses like that. On a V4 the recirc lines go from the #1 carb/intake to #1 bypass cover. #2 to #2 and so on. No tees or other mumbo jumbo. The primer lines run from it straight to the carbs?
