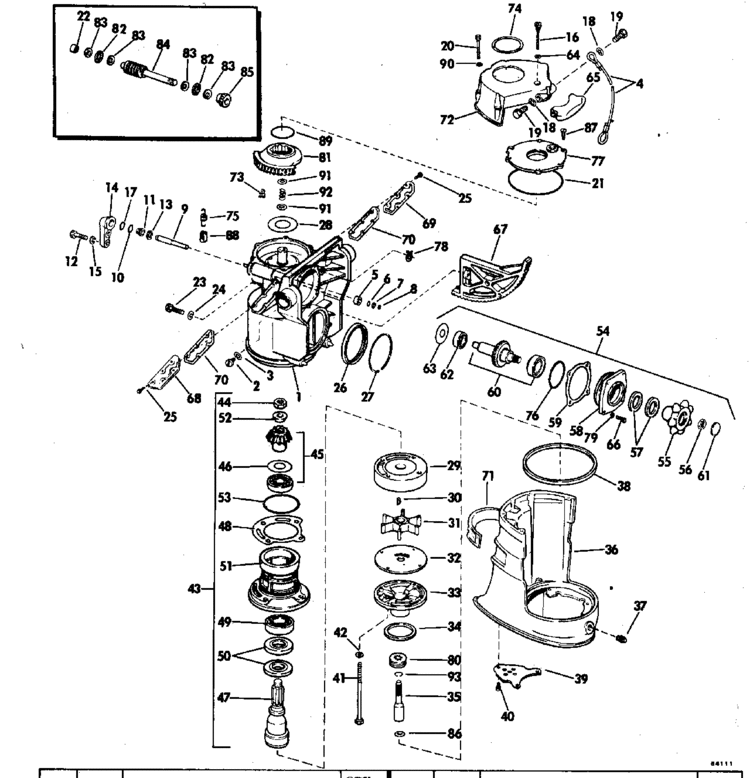

Upper Gearcase Group-low Profile 120, 140, 165, 175, 190&235 Hp Parts for 1976 OMC Stern Drive 190hp 990231M Stern Drive
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 980805 — GEAR HOUSING AND BUSHING ASSY (1 required per assembly) | ||
  |
|
0980805 - Gear Housing, Pin & Retainer Assembly [ More info ] Unavailable |
| #2 — 307551 — PLUG,OIL (1 required per assembly) | ||
  |
|
0307551 - Drain Screw, Allen Type, Gasket Included [ More info ]
|
  |
|
18-4255 - Drain Screw, 307551 Allen Type, Gasket Included [ More info ]
|
  |
|
18-2387 - Drain Plug Slotted or Allen - No Gasket [ More info ]
|
|
|
0307551 - Drain Screw, Allen Type, Gasket Included [ More info ]
|
| #3 — 311598 — WASHER,PLUG (1 required per assembly) | ||
  |
|
0311598 - Drain Plug Washer [ More info ]
|
|
|
0311598 - Drain Plug Washer [ More info ]
|
| #4 — 980025 — CABLE ASSY,GROUND (1 required per assembly) | ||
  |
|
0980025 - Lead, Ground [ More info ]
|
| #5 — 308883 — BUSHING,RETAINER (1 required per assembly) | ||
  |
|
0308883 - Retainer Bushing [ More info ]
|
| #6 — 909048 — SEAL RING,SHAFT (1 required per assembly) | ||
  |
|
0909048 - Quad Ring [ More info ]
|
|
|
0909048 - Quad Ring [ More info ]
|
| #7 — 314390 — RETAINER,O-RING (1 required per assembly) | ||
  |
|
|
| #8 — 313236 — RETAINING RING,SHAFT (1 required per assembly) | ||
  |
0313236 - Retaining Ring [ More info ] Unavailable |
|
  |
|
0911317 - Retaining Ring [ More info ]
|
| #9 — 908890 — SPACER SHAFT. MECHANICAL (PUSH-PULL) STEERING ONLY (1 required per assembly) | ||
  |
|
0908890 - Spacer Shaft [ More info ]
|

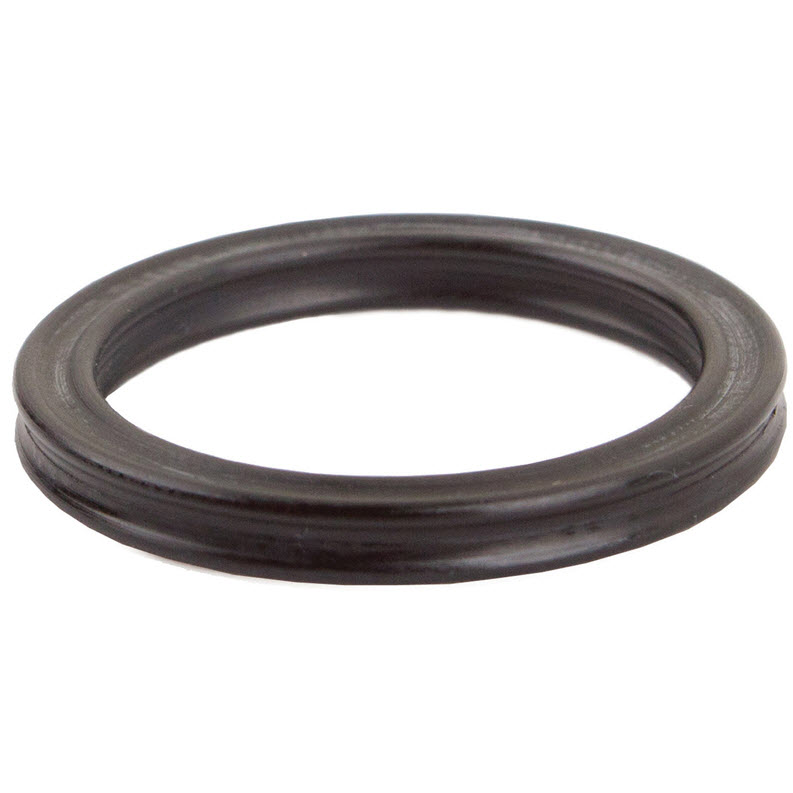

| #10 — 909139 — QUAD RING,RETAINER (1 required per assembly) | ||
  |
|
0909139 - Quad Ring [ More info ]
|
| #11 — 908871 — RETAINER,STEERING WORM (1 required per assembly) | ||
  |
|
0908871 - Retainer [ More info ]
|

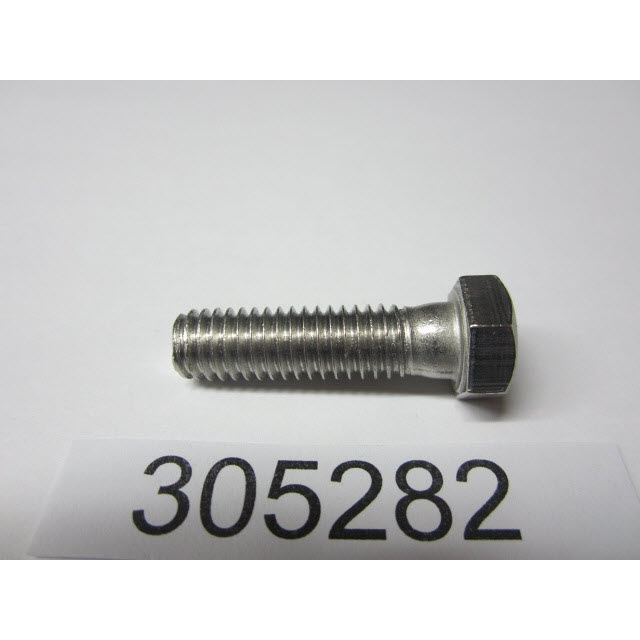

| #12 — 305282 — SCREW,BRACKET (2 required per assembly) | ||
  |
|
0305282 - Screw, Gearcase To Exh Hsg [ More info ]
|
| #13 — 313238 — RETAINING RING (1 required per assembly) | ||
  |
0313238 - Retaining Ring [ More info ] Unavailable |
|
  |
|
0911316 - Retaining Ring, Gear Shaft [ More info ]
|
| #14 — 908870 — BRACKET,STEERING WORM RET. (1 required per assembly) | ||
  |
|

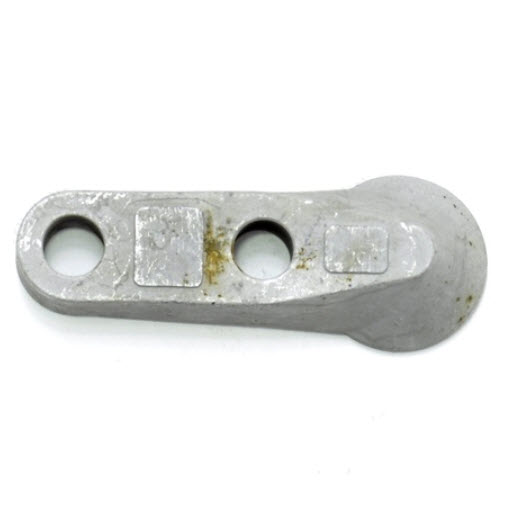

0908870 - Bracket, Steer Ret [ More info ]
|

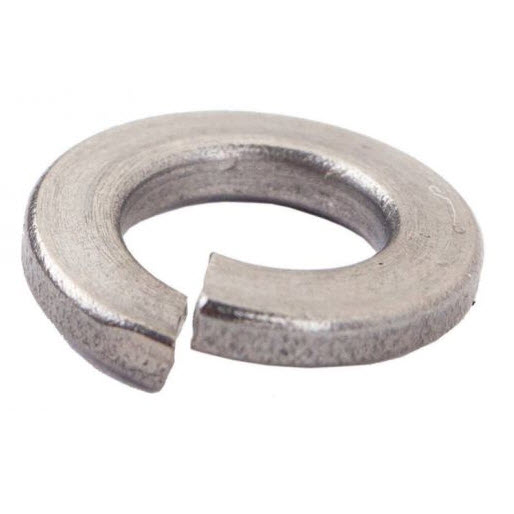

| #15 — 307708 — LK WASH,STEERING WORM RET BRKT. (2 required per assembly) | ||
  |
|
0307708 - Steering worm Retaining Lock Washer [ More info ]
|
| #16 — 980657 — SCREW PLUG,COVER (1 required per assembly) | ||
  |
|
0980657 - Indicator Plug, Exhaust Housing Cover [ More info ]
|
| #17 — 909140 — O-RING,RETAINER BACK-UP (1 required per assembly) | ||
  |
|

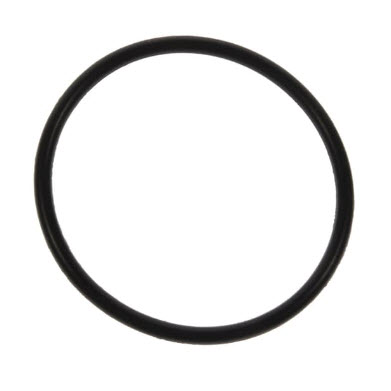

0909140 - O-Ring [ More info ]
|
| #18 — 307708 — LOCKWASHER,SCREW (2 required per assembly) | ||
|
|
0307708 - Steering worm Retaining Lock Washer [ More info ]
|
| #19 — 305513 — SCREW,BUMPER (2 required per assembly) | ||
  |
|
0305513 - Positive Terminal Screw [ More info ]
|
| #20 — 909171 — SCREW,COVER TO HOUSING (5 required per assembly) | ||
 |
|
|
  |
|
0981185 - Screw, Cover To Base, NLA [ More info ]
|
| #21 — 313175 — O-RING,COVER (1 required per assembly) | ||
  |
|
0313175 - O-Ring [ More info ]
|
  |
|
18-7107-9 - O-Ring (PK5) 313175 [ More info ]
|
|
|
0313175 - O-Ring [ More info ]
|
| #22 — 308883 — BUSHING (1 required per assembly) | ||
|
|
0308883 - Retainer Bushing [ More info ]
|
| #23 — 308843 — SCREW,TILT QUADRANT (3 required per assembly) | ||
  |
|
0308843 - Screw, NLA [ More info ]
|
| #24 — 120177 — WASHER,TILT QUADRANT (3 required per assembly) | ||
  |
|
0120177 - Lock Washer [ More info ]
|
  |
|
3856736 - Washer Volvo Penta - Volvo Penta (3856736) [ More info ]
|
| #25 — 308698 — SCREW,WATER COVER (10 required per assembly) | ||
|
|
0308698 [ More info ] Unavailable Replaced by 0329217 |
  |
|
|
| #26 — 308768 — EXHAUST SEAL (1 required per assembly) | ||
  |
|
0308768 - Seal, Exhaust [ More info ]
|
| #27 — 308590 — SPRING,SEAL (1 required per assembly) | ||
  |
|
0308590 - Seal Spring [ More info ]
|
| #28 — 313220 — SHIM (0 required per assembly) | ||
  |
|
|
| #29 — 313172 — IMPELLER HOUSING (1 required per assembly) | ||
|
0313172 - Impeller Housing [ More info ] Unavailable |
|
|
|
0909754 [ More info ] Unavailable Replaced by 0910241 |
|
|
0910241 [ More info ] Unavailable Replaced by 0983298 |
  |
|
0983298 - Impeller Housing And Plug [ More info ]
|
  |
|
18-3119 - Impeller Housing 983298 [ More info ]
|
|
|
0983298 - Impeller Housing And Plug [ More info ]
|
| #30 — 308928 — KEY,IMPELLER TO SHAFT (1 required per assembly) | ||
  |
|
0308928 - Impeller Key [ More info ]
|
|
|
0308928 - Impeller Key [ More info ]
|
| #31 — 379475 — IMPELLER ASSEMBLY (1 required per assembly) | ||
  |
|
0379475 - Impeller [ More info ]
|
  |
|
0777130 - Impeller [ More info ]
|
  |
|
18-3086 - Impeller, 777130 [ More info ]
|
|
|
0777130 - Impeller [ More info ]
|
| #32 — 313176 — PLATE,IMPELLER (1 required per assembly) | ||
  |
|
0313176 - Impeller Plate [ More info ]
|
|
|
0313176 - Impeller Plate [ More info ]
|
| #33 — 313155 — SWIVEL HOUSING (1 required per assembly) | ||
  |
0313155 - Swivel Housing - 910239 [ More info ] Unavailable |
|
  |
|
0910239 - Swivel Housing [ More info ]
|
| #34 — 310648 — THRUST WASHER (1 required per assembly) | ||
  |
|
0310648 - Washer [ More info ]
|
| #35 — 909114 — DRIVESHAFT (1 required per assembly) | ||
|
|
0909114 [ More info ] Unavailable Replaced by 0909753 |
  |
|
0909753 - Drive Shaft - Exhaust Housing [ More info ]
|
  |
|
18-2185 - Drive Shaft, 909753 [ More info ]
|
|
|
0909753 - Drive Shaft - Exhaust Housing [ More info ]
|
| #36 — 907742 — EXHAUST HOUSING (1 required per assembly) | ||
  |
|
0907742 - Exhaust Housing, 80 HP, NLA [ More info ] Unavailable |
| #37 — 313221 — PLUG,EXHAUST HOUSING (1 required per assembly) | ||
  |
|
0313221 - Exhaust Housing Plug [ More info ]
|
| #38 — 308596 — SEAL,EXHAUST HOUSING (1 required per assembly) | ||
  |
|
0308596 - Exhaust Housing Seal [ More info ]
|
| #39 — 313541 — PLATE,BACK PRESSURE (1 required per assembly) | ||
  |
|
|
| #40 — 308738 — SCREW,PLATE (3 required per assembly) | ||
  |
0308738 - Retainer to Anchor Block Screw [ More info ] Unavailable |
|
  |
|
|
  |
|

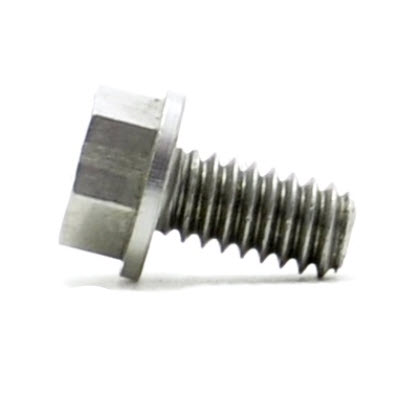

3852115 - Screw, Volvo [ More info ]
|
  |
|
3852053 - Screw, Volvo [ More info ]
|
| #41 — 313540 — SCREW,HOUSING (4 required per assembly) | ||
  |
|
0313540 - Screw, Housing, NLA [ More info ]
|
| #42 — 313169 — LOCKWASHER (4 required per assembly) | ||
  |
0313169 - Washer [ More info ] Unavailable |
|
  |
|

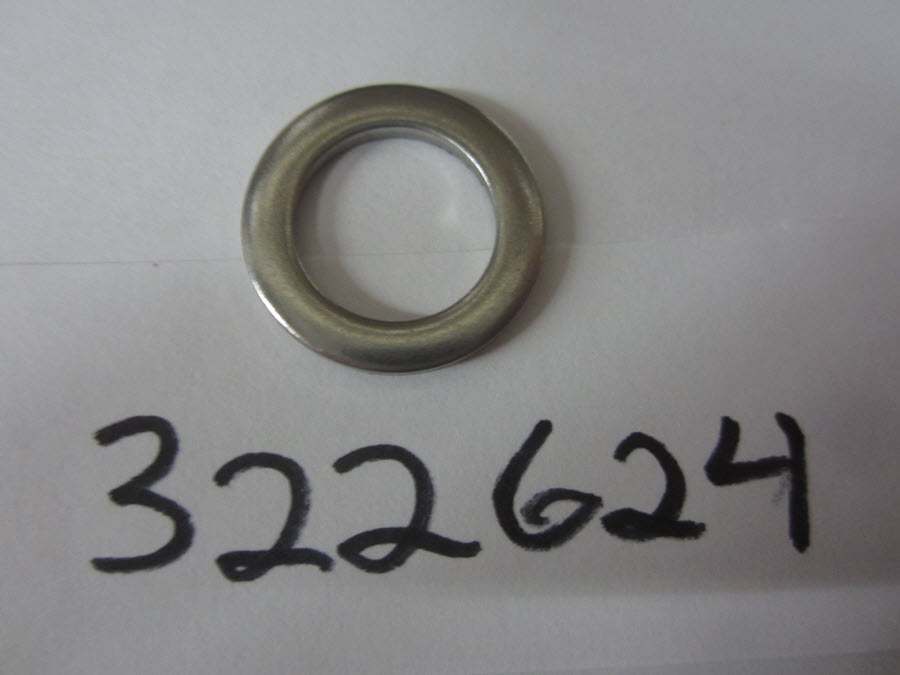

0322624 - Washer [ More info ]
|
| #43 — 979926 — BEARING HOUSING ASSY. 120 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0979926 - HSG ASSY C SUFFIX [ More info ] Unavailable |
| #43 — 979706 — BEARING HOUSING ASSY. 140 HP MODELS ONLY (1 required per assembly) | ||
|
|
0979706 - Bearing Housing Assembly [ More info ]
|
| #43 — 979834 — BEARING HOUSING ASSY. 165 HP MODELS ONLY (1 required per assembly) | ||
|
|
0979834 [ More info ] Unavailable Replaced by 0981230 |
|
|
0981230 - Bearing Housing and Pin Assembly [ More info ] Unavailable |
| #43 — 981094 — BEARING HOUSING ASSY. 235 HP MODELS ONLY (1 required per assembly) | ||
  |
|

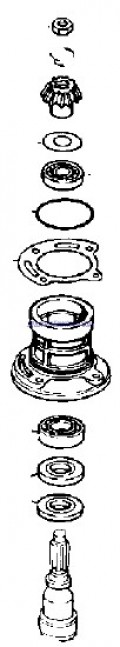

0981094 - Bearing Housing [ More info ]
|
| #43 — 981230 — BEARING HOUSING ASSY. MODELS WITH "M" SUFFIX ONLY 175 & 190 HP MODELS ONLY (1 required per assembly) | ||
|
|
0981230 - Bearing Housing and Pin Assembly [ More info ] Unavailable |
| #44 — 907866 — LOCKNUT,PINION (1 required per assembly) | ||
  |
|
0907866 - Lock Nut [ More info ]
|
  |
|
18-3731 - Lock Nut 907866 [ More info ]
|
|
|
0907866 - Lock Nut [ More info ]
|
| #45 — 979925 — PINION GEAR & BUSHING ASSY. 120 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0979925 - Pinion Gear & Bearing Assy. 100 & 120 With "C" Model Suffix [ More info ]
|
| #45 — 979855 — PINION GEAR & BUSHING ASSY. 140 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0979855 - Pinion Gear & Bushing Assy [ More info ]
|
| #45 — 979999 — PINION GEAR & BUSHING ASSY. 165 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0979999 - Gear & Bearing Assembly [ More info ]
|
| #45 — 981116 — PINION GEAR & BUSHING ASSY. 235 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0981116 - Pinion Gear & Bearing [ More info ]
|
| #45 — 981219 — PINION GEAR & BUSHING ASSY. MODELS WITH "M" SUFFIX ONLY 175 & 190 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0981219 - Pinion Gear And Bearing Assembly [ More info ]
|
| #46 — 313192 — SHIM,BEARING TO PISTON,.002" (0 required per assembly) | ||
  |
|
0313192 - Bearing to Piston Shim .002 Inch [ More info ]
|
| #46 — 313193 — SHIM,BEARING TO PISTON,.003" (0 required per assembly) | ||
  |
|
0313193 - Bearing to Piston Shim .003 Inch [ More info ]
|
| #46 — 313194 — SHIM,BEARING TO PISTON,.004" (0 required per assembly) | ||
  |
|

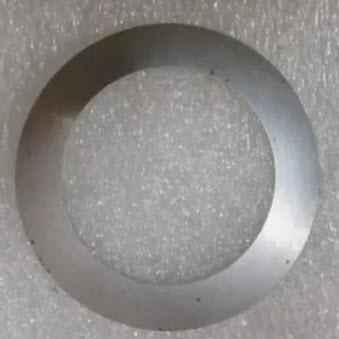

0313194 - Bearing to Piston Shim .004 Inch [ More info ]
|
| #46 — 313195 — SHIM,BEARING TO PISTON,.005" (0 required per assembly) | ||
  |
|
0313195 - Bearing to Piston Shim .005 Inch [ More info ]
|

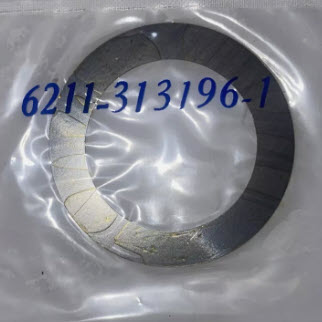

| #46 — 313196 — SHIM,BEARING TO PISTON,.006" (0 required per assembly) | ||
  |
|
0313196 - Bearing to Piston Shim .006 Inch [ More info ]
|
| #46 — 313197 — SHIM,BEARING TO PISTON,.007" (0 required per assembly) | ||
  |
|
0313197 - Bearing to Piston Shim .007 Inch [ More info ]
|
| #46 — 313198 — SHIM,BEARING TO PISTON,.008" (0 required per assembly) | ||
  |
|
|
| #46 — 313199 — SHIM,BEARING TO PISTON,.009" (0 required per assembly) | ||
  |
|
0313199 - Bearing to Piston Shim .009 Inch [ More info ]
|
| #46 — 313200 — SHIM,BEARING TO PISTON,.010" (0 required per assembly) | ||
  |
|
0313200 - Bearing to Piston Shim .010 Inch [ More info ]
|
| #47 — 907738 — DRIVESHAFT,UPPER. MODELS WITH "A11" SUFFIX ONLY 175 & 190 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0907738 - Pinion Shaft, Lo Pro [ More info ]
|

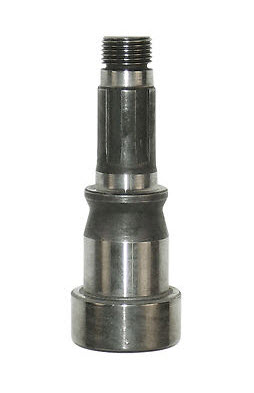

| #47 — 909121 — DRIVESHAFT,UPPER. MODELS WITH "M" SUFFIX ONLY 175 & 190 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0909121 - Upper Pinion Shaft [ More info ]
|
  |
|

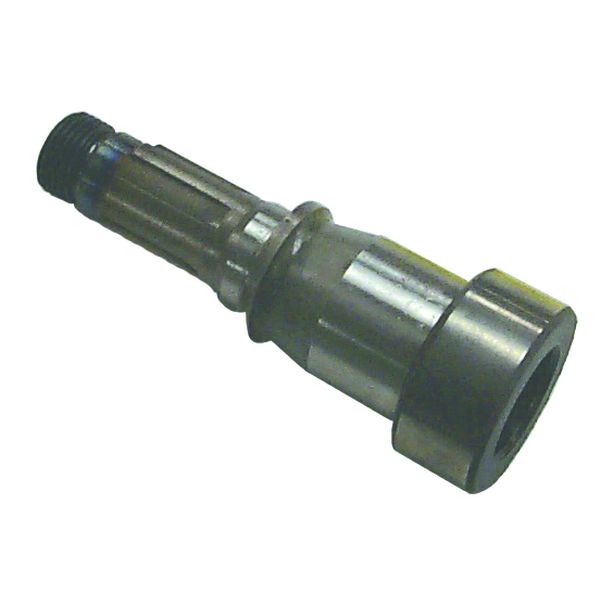

18-2183 - Shaft 909121 [ More info ]
|
|
|
0909121 - Upper Pinion Shaft [ More info ]
|
| #18 — 313185 — SHIM,BEARING HOUSING,.005" (0 required per assembly) | ||
  |
|
0313185 - Bearing Housing Shim .005 Inch [ More info ]
|

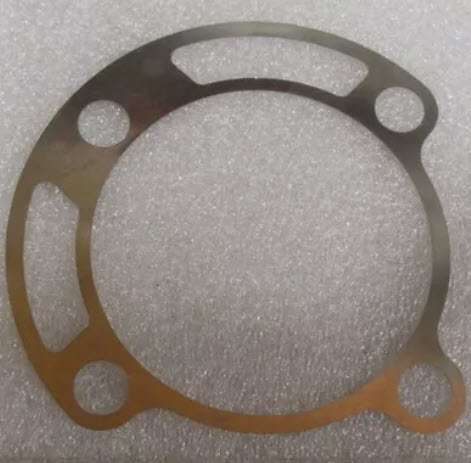

| #48 — 313186 — SHIM,BEARING HOUSING,.006" (0 required per assembly) | ||
  |
|
|
| #48 — 313187 — SHIM,BEARING HOUSING,.007" (0 required per assembly) | ||
  |
|
0313187 - Bearing Housing Shim .007 Inch [ More info ]
|
| #48 — 313188 — SHIM,BEARING HOUSING,.008" (0 required per assembly) | ||
  |
|
0313188 - Bearing Housing Shim .008 [ More info ]
|
| #48 — 313189 — SHIM,BEARING HOUSING,.009" (0 required per assembly) | ||
  |
|
|
| #48 — 313190 — SHIM,BEARING HOUSING,.010" (0 required per assembly) | ||
  |
|
0313190 - Bearing Housing Shim .010 Inch [ More info ]
|
| #49 — 382165 — ROLLER BEARING,LOWER (1 required per assembly) | ||
  |
|
0382165 - Roller Bearing [ More info ]
|
| #50 — 313191 — SEAL,BEARING RETAINER (2 required per assembly) | ||
  |
|
0313191 [ More info ] Unavailable Replaced by 0981268 |
  |
|
0981268 - Seal, Bearing Retainer [ More info ]
|
  |
|
18-2073 - Seal, 981268 [ More info ]
|
|
|
0981268 - Seal, Bearing Retainer [ More info ]
|
| #51 — 907734 — BEARING HOUSING (1 required per assembly) | ||
|
|
910240 - Bearing Housing [ More info ]
|
  |
|
0910240 - Bearing Housing [ More info ]
|
| #52 — 909123 — CENTERING CONE. 235 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0909123 - Centering Cone [ More info ]
|
| #53 — 553126 — O-RING,HOUSING (1 required per assembly) | ||
  |
|
0553126 - O RING [ More info ]
|
  |
|
18-7172-9 - O-Ring (PK5) 553126, 25-31305 [ More info ]
|
|
|
0553126 - O RING [ More info ]
|
| #54 — 980752 — BALL GEAR & SHAFT ASSY. 120 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0980752 - Cup Gear, Shaft And Bearing [ More info ]
|
| #54 — 980753 — BALL GEAR & SHAFT ASSY (1 required per assembly) | ||
  |
|
0980753 - Cup Gear, Shaft and Bearing [ More info ]
|
| #54 — 980754 — BALL GEAR & SHAFT ASSY. 175 & 190 HP MODELS ONLY 165 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0980754 - Ball Gear, Shaft & Bearing [ More info ] Unavailable |

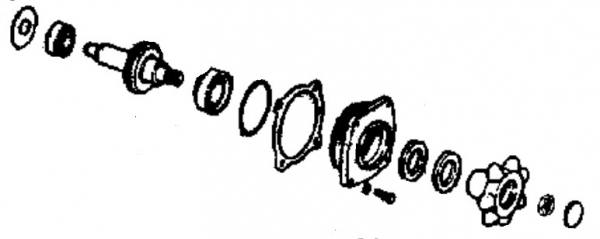

| #54 — 980755 — BALL GEAR & SHAFT ASSY. 235 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0980755 - Cup Gear, Shaft & Bearing [ More info ]
|
| #55 — 908069 — BALL GEAR,SHAFT (1 required per assembly) | ||
  |
|
0908069 - Ball Gear [ More info ]
|
|
|
0908069 - Ball Gear [ More info ]
|
  |
|
43-01656 - Ball Gear OMC 908069 18-2177 [ More info ]
|
| #56 — 908064 — NUT (1 required per assembly) | ||
  |
|
|
  |
|
18-3725-9 - Nut, 908064, 5PK [ More info ]
|
|
|
|
| #57 — 981196 — OIL RETAINER (1 required per assembly) | ||
  |
|
|
  |
|
|
|
|
|
| #58 — 313184 — BEARING RETAINER (1 required per assembly) | ||
  |
|
0313184 - Bearing Retainer [ More info ]
|
| #59 — 313202 — SHIM,RETAINER TO HSG..002" (0 required per assembly) | ||
  |
|
0313202 - Retainer to Housing Shim .002 Inch [ More info ]
|

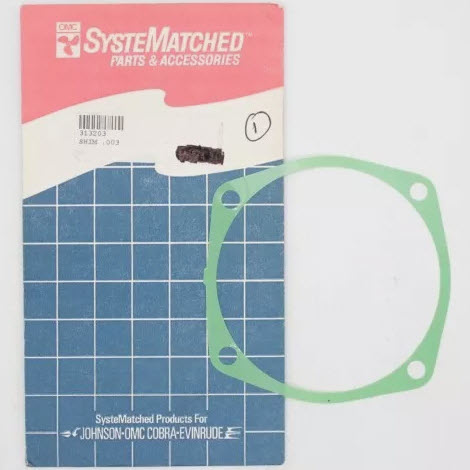

| #59 — 313203 — SHIM,RETAINER TO HSG..003" (0 required per assembly) | ||
  |
|
0313203 - Retainer to Housing Shim .003 Inch [ More info ]
|
| #59 — 313204 — SHIM,RETAINER TO HSG..004" (0 required per assembly) | ||
  |
|
0313204 - Retainer to Housing Shim .004 Inch [ More info ]
|
| #59 — 313205 — SHIM,RETAINER TO HSG..005" (0 required per assembly) | ||
  |
|
0313205 - Retainer to Housing Shim .005 Inch [ More info ]
|
| #59 — 313206 — SHIM,RETAINER TO HSG..010" (0 required per assembly) | ||
  |
|
0313206 - Retainer to Housing Shim .010 Inch [ More info ]
|
| #60 — 980480 — SHAFT & BEARING. 120 HP MODELS ONLY (1 required per assembly) | ||
  |
|
|
| #60 — 980483 — SHAFT & BEARING (1 required per assembly) | ||
|
|
0980483 - Shaft Pin And Bearing [ More info ]
|
| #60 — 980481 — SHAFT & BEARING. 175 & 190 HP MODELS ONLY 165 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0980481 - Shaft Gear & Bearing [ More info ]
|

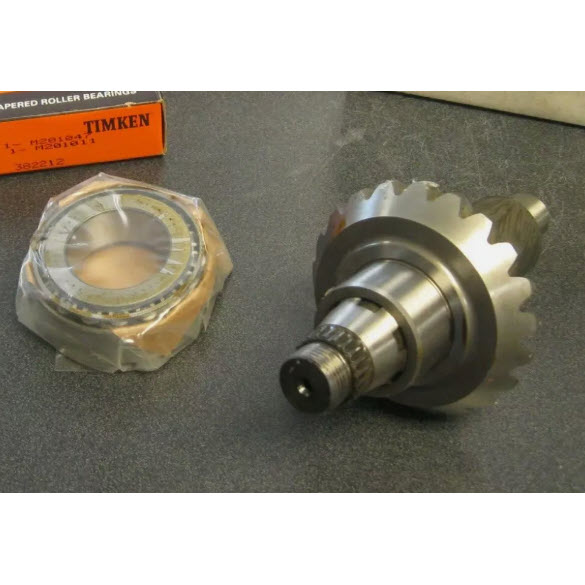

| #60 — 980482 — SHAFT & BEARING. 235 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0980482 - Shaft Gear & Bearing [ More info ]
|
| #61 — 908062 — PLUG,BALL GEAR (1 required per assembly) | ||
  |
|
0908062 - Ball Gear Plug [ More info ]
|
  |
|
18-4251-9 - Plug, 908062, 5PK [ More info ]
|
|
|
0908062 - Ball Gear Plug [ More info ]
|
| #62 — 375761 — ROLLER BEARING ASSY (1 required per assembly) | ||
  |
|
0375761 - Roller Bearing [ More info ]
|
| #63 — 313162 — SHIM,BEARING TO HOUSING,.002" (0 required per assembly) | ||
  |
|
0313162 - Bearing to Housing Shim .002 Inch [ More info ]
|
| #63 — 313163 — SHIM,BEARING TO HOUSING,.003" (0 required per assembly) | ||
  |
|
0313163 - Bearing to Housing Shim .003 Inch [ More info ]
|
| #63 — 313164 — SHIM,BEARING TO HOUSING,.004" (0 required per assembly) | ||
  |
|
0313164 - Bearing to Housing Shim .004 Inch [ More info ]
|
| #63 — 313165 — SHIM,BEARING TO HOUSING,.005" (0 required per assembly) | ||
  |
|
0313165 - Bearing to Housing Shim .005 Inch [ More info ]
|
| #63 — 313166 — SHIM,BEARING TO HOUSING,.006" (0 required per assembly) | ||
  |
|
0313166 - Bearing to Housing Shim .006 Inch [ More info ]
|
| #63 — 313167 — SHIM,BEARING TO HOUSING,.007" (0 required per assembly) | ||
  |
|
0313167 - Bearing to Housing Shim .007 Inch [ More info ]
|
| #63 — 313168 — SHIM,BEARING TO HOUSING,.008" (0 required per assembly) | ||
  |
|
0313168 - Bearing to Housing Shim .008 inch [ More info ]
|
| #64 — 315189 — GASKET,SCREW PLUG (1 required per assembly) | ||
  |
|
0315189 - Filter Gasket [ More info ]
|
  |
|
18-0939-9 - Gasket 315189 2-Pack [ More info ]
|
|
|
0315189 - Filter Gasket [ More info ]
|
| #65 — 379259 — BUMPER ASSY (1 required per assembly) | ||
  |
|
0379259 -Outdrive Bumper [ More info ]
|

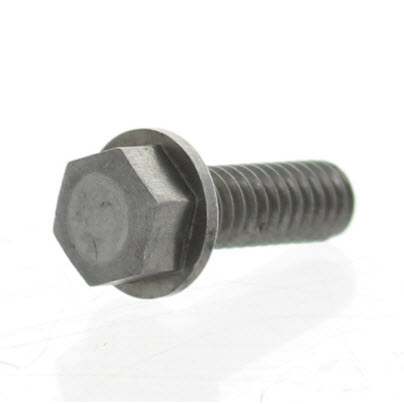

| #66 — 308707 — SCREW,RETAINER TO HOUSING (4 required per assembly) | ||
  |
|
0308707 - Screw ( 13/16 Inch Long) [ More info ]
|
| #67 — 313223 — TILT QUADRANT (1 required per assembly) | ||
  |
|
0313223 - Tilt Quadrant [ More info ]
|
| #68 — 308591 — WATER COVER,STARBOARD (1 required per assembly) | ||
  |
|
|
| #69 — 308699 — WATER COVER,PORT (1 required per assembly) | ||
  |
|
0308699 - Port Side Water Cover [ More info ]
|
| #70 — 308592 — GASKET,WATER COVER (2 required per assembly) | ||
  |
|
0308592 - Water Cover Gasket [ More info ]
|

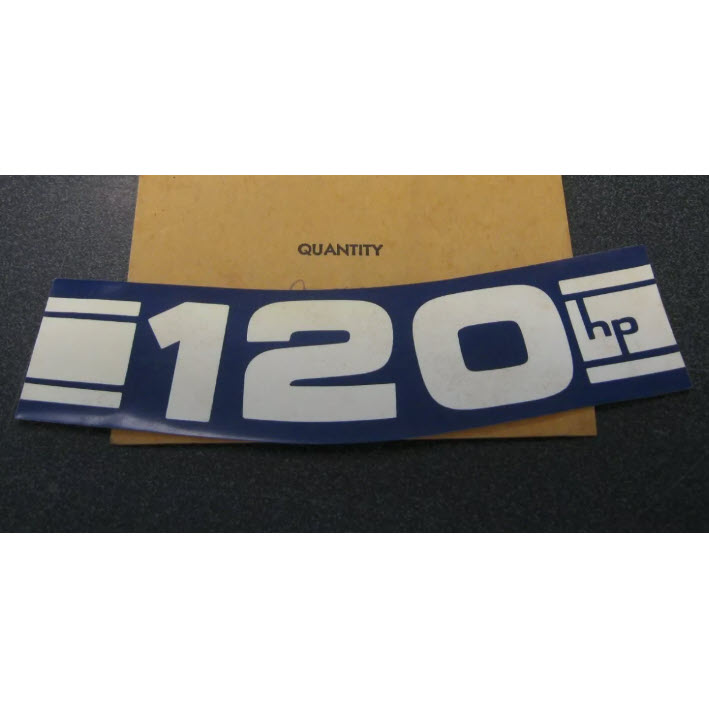

| #71 — 908914 — TRANSFER,120 HP (1 required per assembly) | ||
  |
|
0908914 - Decal Exhaust Housing 120 [ More info ]
|

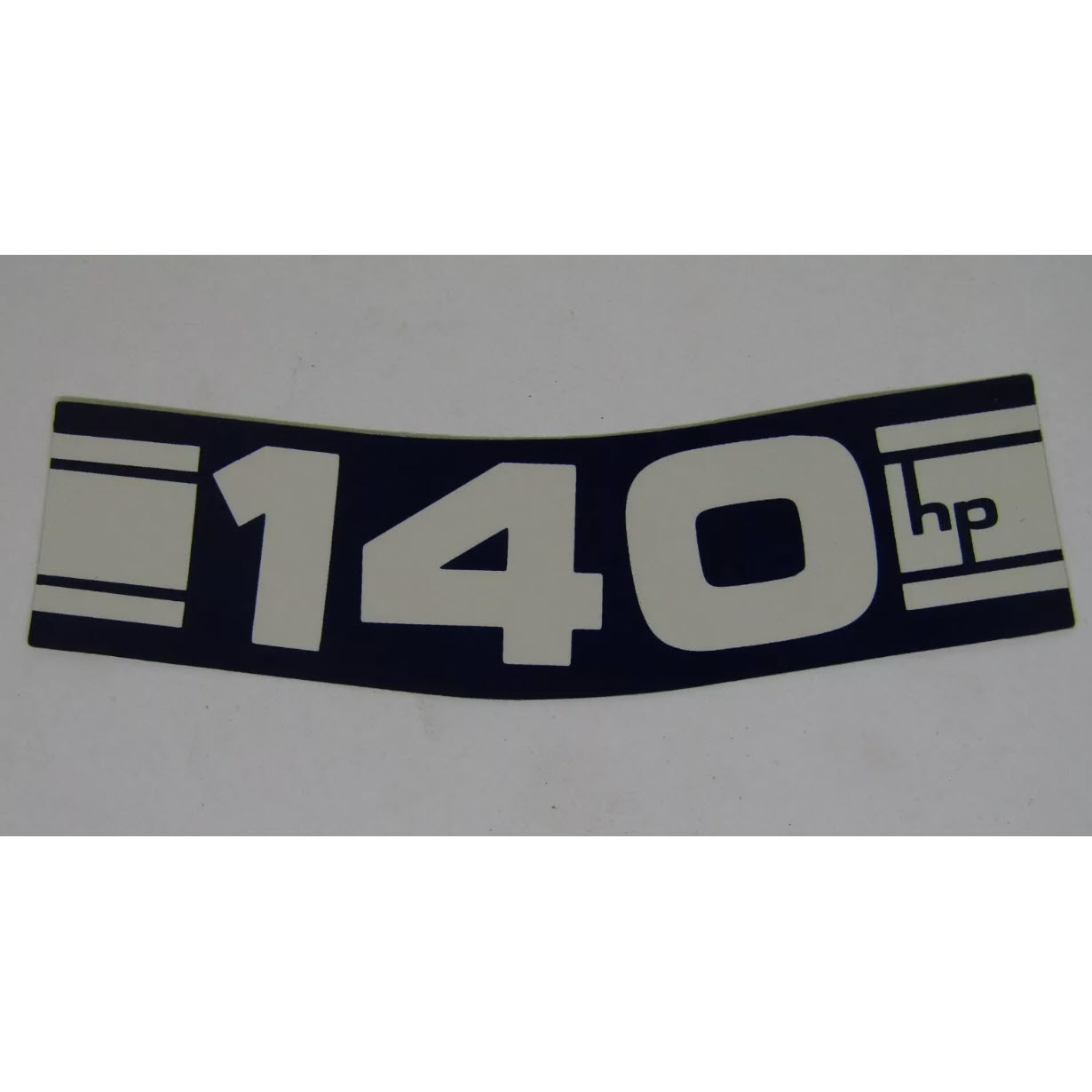

| #71 — 908915 — TRANSFER,140 HP (1 required per assembly) | ||
  |
|
0908915 - Decal Exhaust Housing 140 [ More info ]
|
| #71 — 908916 — TRANSFER,165 HP (1 required per assembly) | ||
|
|
0908916 - DECAL EXH HSG 165 [ More info ] Unavailable |
| #71 — 908917 — TRANSFER,175 HP (1 required per assembly) | ||
|
|
0908917 - DECAL EXH HSG 175 [ More info ] Unavailable |
| #71 — 908918 — TRANSFER,190 HP (1 required per assembly) | ||
|
|
0908918 - L/P 12.60 [ More info ] Unavailable |
| #71 — 909008 — TRANSFER,235 HP (1 required per assembly) | ||
|
|
0909008 - L/P 11.46 [ More info ] Unavailable |
| #72 — 980758 — COVER,EXHUAST HOUSING (1 required per assembly) | ||
  |
|
0980758 -Cover, Exhaust Housing [ More info ]
|

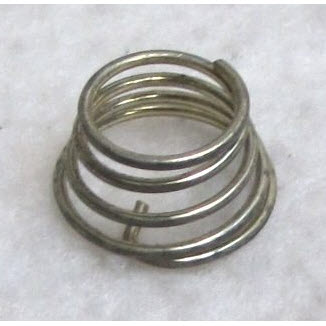

| #73 — 908834 — SPRING,GROUND (1 required per assembly) | ||
  |
|
0908834 - Spring [ More info ]
|
| #74 — 908912 — TRANSFER (1 required per assembly) | ||
|
|
0908912 - Decal, Exhaust Cover Housing [ More info ]
|
| #75 — 308896 — SPRING (1 required per assembly) | ||
  |
|
0308896 - Spring [ More info ]
|
| #76 — 308621 — O-RING,RETAINER TO HOUSING (1 required per assembly) | ||
  |
|
0308621 - Retainer to Housing O-Ring [ More info ]
|
  |
|
18-7121 - O-Ring 25-35029, 308621 [ More info ]
|
|
|
0308621 - Retainer to Housing O-Ring [ More info ]
|
| #77 — 313228 — COVER,GEAR HOUSING (1 required per assembly) | ||
  |
|
0313228 - Cover Gr Housing [ More info ] Unavailable |
| #78 — 302647 — CLAMP,CABLE (2 required per assembly) | ||
  |
|
0302647 - Clamp, NLA [ More info ] Unavailable |
| #79 — 302290 — WASHER,RETAINER SCREW (4 required per assembly) | ||
  |
|
0302290 - Thrust mount Lock Washer [ More info ]
|
|
|
0302290 - Thrust mount Lock Washer [ More info ]
|
| #80 — 907774 — SEAL,DRIVESHAFT (1 required per assembly) | ||
  |
|
0907774 - Drive Shaft Seal [ More info ]
|
|
|
0907774 - Drive Shaft Seal [ More info ]
|
| #81 — 313183 — WORM WHEEL. TRU-COURSE STEERING ONLY (1 required per assembly) | ||
  |
|
0313183 - Worm Wheel [ More info ]
|
| #82 — 381791 — THRUST BEARING ASSY. TRU-COURSE STEERING ONLY (2 required per assembly) | ||
  |
|
0381791 - Thrust Bearing [ More info ]
|
| #83 — 312815 — THRUST WASHER,WORM GEAR. TRU-COURSE STEERING ONLY (4 required per assembly) | ||
|
|
0312815 [ More info ] Unavailable Replaced by 0608030 |
|
|
0608030 [ More info ] Unavailable Replaced by 0915745 |
  |
|
0915745 - Washer [ More info ]
|
| #84 — 313234 — WORM GEAR,STEERING. TRU-COURSE STEERING ONLY (1 required per assembly) | ||
  |
|
0313234 - Worm Gear [ More info ]
|
| #85 — 313235 — GEAR. TRU-COURSE STEERING ONLY (1 required per assembly) | ||
  |
|
0313235 - Gear. Rope And Tru-course Steering Only [ More info ]
|
| #86 — 314491 — O-RING,DRIVESHAFT (1 required per assembly) | ||
  |
|
0314491 - O-ring - Driveshaft [ More info ]
|
  |
|
18-7129 - O-Ring 314491 [ More info ]
|
|
|
0314491 - O-ring - Driveshaft [ More info ]
|
| #87 — 308684 — SCREW,COVER TO HOUSING (6 required per assembly) | ||
  |
|
0308684 - Screw, Plate [ More info ]
|
| #89 — 310327 — O-RING,STEERING WORM WHEEL (1 required per assembly) | ||
  |
|
0310327 - O-Ring, Gearcase Head [ More info ]
|
  |
|
18-7173-9 - O-Ring (PK5) 310327, 25-30224 [ More info ]
|
  |
|
18-7173-9 - O-Ring (PK5) 310327, 25-30224 [ More info ]
|
|
|
0310327 - O-Ring, Gearcase Head [ More info ]
|
| #90 — 302290 — WASHER,EXTENSION HSG COVER (5 required per assembly) | ||
|
|
0302290 - Thrust mount Lock Washer [ More info ]
|
|
|
0302290 - Thrust mount Lock Washer [ More info ]
|

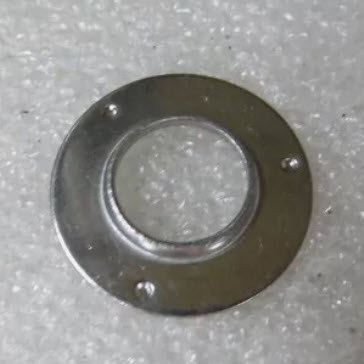

| #91 — 309018 — WASHER. 120 HP MODELS ONLY 140 HP MODELS ONLY (2 required per assembly) | ||
  |
|
0309018 - Spring Washer [ More info ]
|
| #92 — 309019 — SPRING. 120 HP MODELS ONLY 140 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0309019 - Spring [ More info ]
|

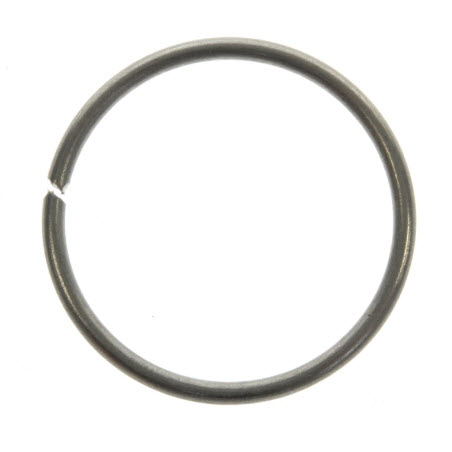

| #93 — 909163 — RETAINER,DRIVESHAFT. MODELS WITH "M" SUFFIX ONLY (1 required per assembly) | ||
  |
|
0909163 - Snap Ring [ More info ]
|
