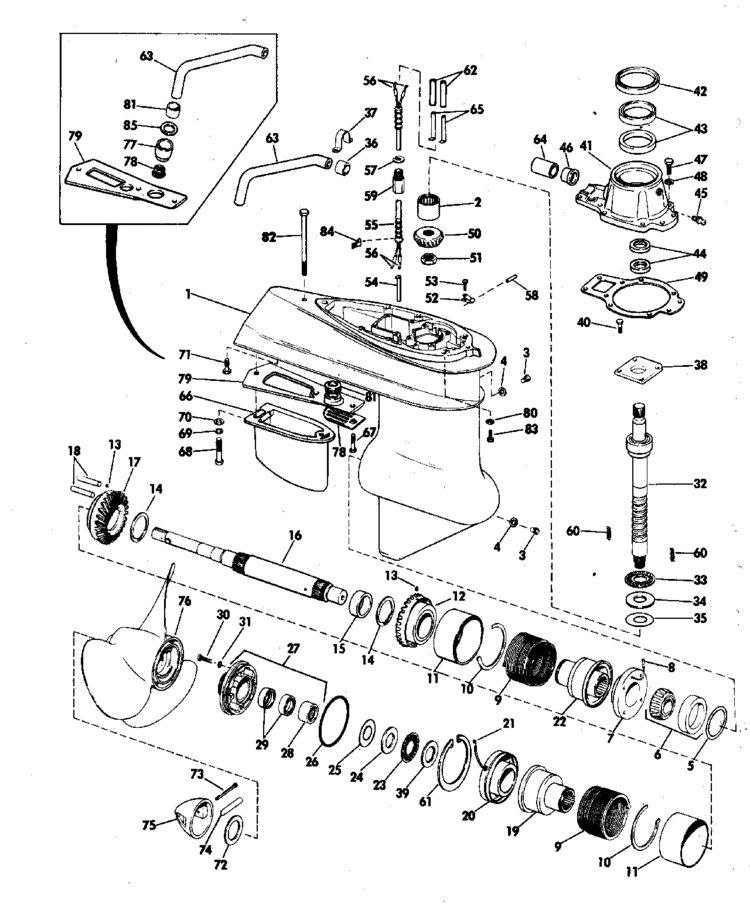

Lower Gearcase Group 120, 140, 165, 175, 190, 225, 235 Hp Parts for 1976 OMC Stern Drive 190hp 990231M Stern Drive
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #980668 — 980668 — GEARCASE ASSY,COMPLETE. NOT SHOWN (1 required per assembly) | ||
 |
|
0980668 - L/P 2695.00 [ More info ] Unavailable |
| #1 — 382383 — GEARCASE & BRG ASSY (1 required per assembly) | ||
  |
|
0382383 - Gearcase, NLA [ More info ] Unavailable |
| #2 — 380439 — ROLLER BRG,DRIVESHAFT (1 required per assembly) | ||
  |
|
0380439 - Roller Bearing Drive Shaft [ More info ]
|
| #3 — 307551 — PLUG,OIL DRAIN (2 required per assembly) | ||
  |
|
0307551 - Drain Screw, Allen Type, Gasket Included [ More info ]
|
  |
|
18-4255 - Drain Screw, 307551 Allen Type, Gasket Included [ More info ]
|
  |
|
18-2387 - Drain Plug Slotted or Allen - No Gasket [ More info ]
|
|
|
0307551 - Drain Screw, Allen Type, Gasket Included [ More info ]
|
| #4 — 311598 — WASHER,PLUG (1 required per assembly) | ||
  |
|
0311598 - Drain Plug Washer [ More info ]
|
|
|
0311598 - Drain Plug Washer [ More info ]
|
| #5 — 313292 — SHIM,BRG TO GEARCASE,.002" (0 required per assembly) | ||
  |
|
0313292 - Shim 002 [ More info ]
|
| #5 — 313293 — SHIM,BRG TO GEARCASE,.003" (0 required per assembly) | ||
  |
|
|
| #5 — 313294 — SHIM,BRG TO GEARCASE,.004" (0 required per assembly) | ||
  |
|
|
| #5 — 313295 — SHIM,BRG TO GEARCASE,.005" (0 required per assembly) | ||
  |
|
|
| #5 — 313296 — SHIM,BRG TO GEARCASE,.006" (0 required per assembly) | ||
  |
|
|
| #5 — 313297 — SHIM,BRG TO GEARCASE,.007" (0 required per assembly) | ||
  |
|
|
| #6 — 379503 — BEARING ASSY,PROP.SHAFT (1 required per assembly) | ||
  |
|
0379503 - Roller Bearing [ More info ]
|
| #7 — 382366 — COIL & LEAD,FRONT (1 required per assembly) | ||
  |
|
0382366 - Coil Housing and Lead Assembly [ More info ]
|
| #8 — 308808 — TERMINAL (1 required per assembly) | ||
  |
|
0308808 - Terminal [ More info ]
|
| #9 — 313455 — SPRING,CLUTCH HUB (2 required per assembly) | ||
  |
|
0313455 - Spring [ More info ]
|
| #10 — 310428 — SPACER (2 required per assembly) | ||
  |
|
0310428 - Spring to Gear Spacer [ More info ]
|
| #11 — 315034 — SLEEVE,SPRING (2 required per assembly) | ||
  |
|
0315034 - Sleeve [ More info ]
|
| #12 — 382270 — GEAR & BUSHING,FORWARD (1 required per assembly) | ||
  |
|
0382270 - Forward Gear & Bushing [ More info ]
|
| #13 — 311944 — SET SCREW (9 required per assembly) | ||
  |
|
|
| #14 — 312007 — RETAINING RING (2 required per assembly) | ||
  |
|
|
| #15 — 313310 — SPACER,PROPELLER SHAFT (1 required per assembly) | ||
  |
|
0313310 - Spacer [ More info ]
|
| #16 — 382337 — PROPELLER SHAFT (1 required per assembly) | ||
  |
|
0382337 - Prop Shaft [ More info ]
|
| #17 — 313311 — GEAR,REVERSE (1 required per assembly) | ||
  |
|
0313311 - Gear, Reverse [ More info ]
|
| #18 — 381025 — NEEDLE BEARING SET (1 required per assembly) | ||
  |
|
0381025 - Needle Bearing Set [ More info ]
|
| #19 — 382336 — CLUTCH HUB,REVERSE (1 required per assembly) | ||
  |
|
0382336 - Hub & Ret [ More info ]
|
| #20 — 382367 — COIL & LEAD,REAR (1 required per assembly) | ||
  |
|
0382367 - Coil and Housing, NLA [ More info ]
|
| #21 — 308808 — TERMINAL (1 required per assembly) | ||
|
|
0308808 - Terminal [ More info ]
|
| #22 — 382334 — CLUTCH HUB ASSY,FWD (1 required per assembly) | ||
  |
|
0382334 - Clutch Hub [ More info ]
|
| #23 — 378262 — THRUST BEARING ASSY (1 required per assembly) | ||
  |
|
0378262 - Thrust Bearing [ More info ]
|
| #24 — 307836 — THRUST WASHER (1 required per assembly) | ||
  |
|
0307836 - Thrust Washer [ More info ]
|
| #25 — 313192 — SHIM,WASHER TO HEAD,.002" (0 required per assembly) | ||
  |
|
0313192 - Bearing to Piston Shim .002 Inch [ More info ]
|
| #25 — 313193 — SHIM,WASHER TO HEAD,.003" (0 required per assembly) | ||
  |
|
0313193 - Bearing to Piston Shim .003 Inch [ More info ]
|
| #25 — 313194 — SHIM,WASHER TO HEAD,.004" (0 required per assembly) | ||
  |
|
0313194 - Bearing to Piston Shim .004 Inch [ More info ]
|
| #25 — 313195 — SHIM,WASHER TO HEAD,.005" (0 required per assembly) | ||
  |
|
0313195 - Bearing to Piston Shim .005 Inch [ More info ]
|
| #25 — 313196 — SHIM,WASHER TO HEAD,.006" (0 required per assembly) | ||
  |
|
0313196 - Bearing to Piston Shim .006 Inch [ More info ]
|
| #25 — 313197 — SHIM,WASHER TO HEAD,.007" (0 required per assembly) | ||
  |
|
0313197 - Bearing to Piston Shim .007 Inch [ More info ]
|
| #25 — 313198 — SHIM,WASHER TO HEAD,.008" (0 required per assembly) | ||
  |
|
|
| #25 — 313199 — SHIM,WASHER TO HEAD,.009" (0 required per assembly) | ||
  |
|
0313199 - Bearing to Piston Shim .009 Inch [ More info ]
|
| #25 — 313200 — SHIM,WASHER TO HEAD,.010" (0 required per assembly) | ||
  |
|
0313200 - Bearing to Piston Shim .010 Inch [ More info ]
|
| #26 — 310414 — O-RING,GEARCASE HEAD (1 required per assembly) | ||
  |
|
0310414 - O-Ring - Gearcase Head [ More info ]
|
  |
|
18-7167-9 - O-Ring (PK5) 25-47254, 310414 [ More info ]
|
|
|
0310414 - O-Ring - Gearcase Head [ More info ]
|
| #27 — 381849 — GEARCASE HEAD ASSY (1 required per assembly) | ||
  |
|
0381849 - Gearcase Head Assembly [ More info ] Unavailable |
| #28 — 379504 — NEEDLE BEARING ASSY (1 required per assembly) | ||
  |
|
0379504 - Needle Bearing [ More info ]
|
  |
|
18-1350 - Bearing, 379504 [ More info ]
|
|
|
0379504 - Needle Bearing [ More info ]
|
| #29 — 310599 — SEAL,GEARCASE HEAD (2 required per assembly) | ||
  |
|
0310599 - Propeller Shaft Seal [ More info ]
|
|
|
0310599 - Propeller Shaft Seal [ More info ]
|
| #30 — 310412 — SCREW,GEARCASE HEAD (4 required per assembly) | ||
  |
|
0310412 - Screw, Gearcase Head, NLA [ More info ]
|
| #31 — 307853 — SEAL,SCREW (1 required per assembly) | ||
  |
|
0307853 - Seal, O-ring [ More info ]
|
  |
|
18-7120 - O-Ring 322598 [ More info ]
|
|
|
0307853 - Seal, O-ring [ More info ]
|
| #32 — 980097 — DRIVESHAFT ASSY (1 required per assembly) | ||
  |
|
0980097 - Drive Shaft & Bearing [ More info ] Unavailable |
| #33 — 382257 — THRUST BEARING (1 required per assembly) | ||
  |
|
0382257 - Thrust Bearing [ More info ]
|
  |
|
0386719 - Thrust Bearing [ More info ]
|
| #34 — 313259 — THRUST WASHER (1 required per assembly) | ||
  |
|
0313259 - Washer [ More info ]
|
| #35 — 313192 — SHIM,THRUST WASHER,.002" (0 required per assembly) | ||
|
|
0313192 - Bearing to Piston Shim .002 Inch [ More info ]
|
| #35 — 313193 — SHIM,THRUST WASHER,.003" (0 required per assembly) | ||
|
|
0313193 - Bearing to Piston Shim .003 Inch [ More info ]
|
| #35 — 313194 — SHIM,THRUST WASHER,.004" (0 required per assembly) | ||
|
|
0313194 - Bearing to Piston Shim .004 Inch [ More info ]
|
| #35 — 313195 — SHIM,THRUST WASHER,.005" (0 required per assembly) | ||
|
|
0313195 - Bearing to Piston Shim .005 Inch [ More info ]
|
| #35 — 313196 — SHIM,THRUST WASHER,.006" (0 required per assembly) | ||
|
|
0313196 - Bearing to Piston Shim .006 Inch [ More info ]
|
| #35 — 313197 — SHIM,THRUST WASHER,.007" (0 required per assembly) | ||
|
|
0313197 - Bearing to Piston Shim .007 Inch [ More info ]
|
| #35 — 313198 — SHIM,THRUST WASHER,.008" (0 required per assembly) | ||
|
|
|
| #35 — 313199 — SHIM,THRUST WASHER,.009" (0 required per assembly) | ||
|
|
0313199 - Bearing to Piston Shim .009 Inch [ More info ]
|
| #36 — 310488 — BUSHING,WATER TUBE (1 required per assembly) | ||
  |
|
0310488 - Water Tube Bushing [ More info ]
|
| #37 — 313729 — CLAMP,BUSHING (1 required per assembly) | ||
  |
|
0313729 - Clamp - Bushing [ More info ]
|
| #38 — 313309 — PLATE,BEARING (1 required per assembly) | ||
  |
|
0313309 - Bearing Plate [ More info ]
|
| #39 — 310413 — THRUST WASHER (1 required per assembly) | ||
  |
|
0310413 - Washer [ More info ]
|
| #40 — 553556 — SCREW,BEARING PLATE (4 required per assembly) | ||
  |
|
|
| #41 — 980014 — SWIVEL BEARING ASSY (4 required per assembly) | ||
  |
|
0980014 -Bearing Retainer [ More info ]
|
| #42 — 310649 — SEAL,UPPER (1 required per assembly) | ||
  |
|
0310649 - Seal - Swivel Bearing [ More info ]
|
|
|
0310649 - Seal - Swivel Bearing [ More info ]
|
| #43 — 313353 — SEAL,MIDDLE (2 required per assembly) | ||
  |
|
|
  |
|
18-2058 - Seal, 313353 [ More info ]
|
|
|
|
| #44 — 310599 — SEAL,LOWER (2 required per assembly) | ||
|
|
0310599 - Propeller Shaft Seal [ More info ]
|
|
|
0310599 - Propeller Shaft Seal [ More info ]
|

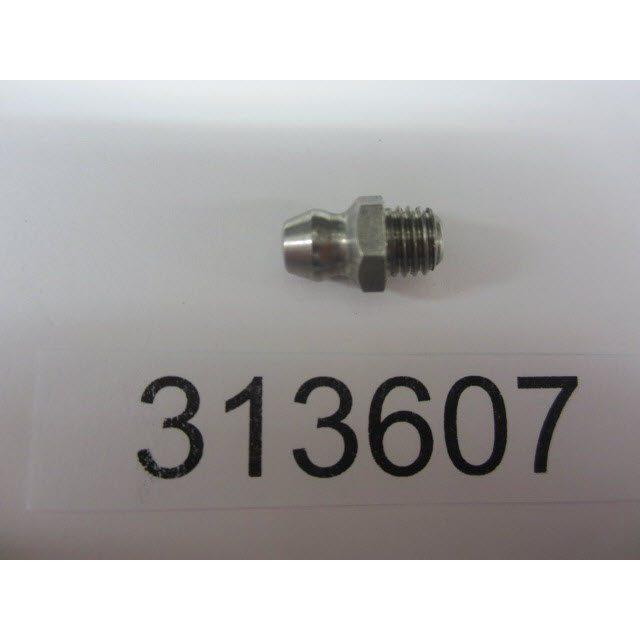

| #45 — 313607 — FITTING,LUBRICATION (2 required per assembly) | ||
  |
|
0313607 - Lube Fitting [ More info ]
|
  |
|

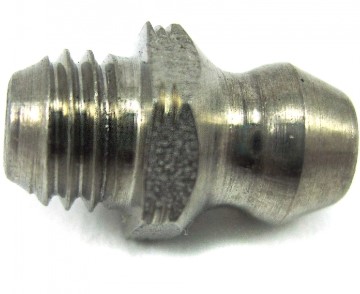

3852121 - Fitting, Volvo [ More info ]
|
| #46 — 908594 — GROMMET,WATER TUBE (1 required per assembly) | ||
  |
|
0908594 - Water Tube Grommet [ More info ]
|
| #47 — 309646 — SCREW,SWIVEL BEARING (10 required per assembly) | ||
  |
0309646 - Screw, 15/16 Inch Long [ More info ] Unavailable |
|
  |
|
|
|
|
|
| #48 — 302290 — WASHER,SWIVEL BEARING (10 required per assembly) | ||
  |
|
0302290 - Thrust mount Lock Washer [ More info ]
|
|
|
0302290 - Thrust mount Lock Washer [ More info ]
|
| #49 — 313368 — GASKET (1 required per assembly) | ||
  |
|
0313368 - Bearing Retainer Gasket [ More info ]
|
|
|
0313368 - Bearing Retainer Gasket [ More info ]
|
| #50 — 313258 — PINION GEAR (1 required per assembly) | ||
  |
|
0313258 - Pinion Gear [ More info ]
|
| #51 — 907866 — LOCKNUT,PINION (1 required per assembly) | ||
  |
|
0907866 - Lock Nut [ More info ]
|
  |
|
18-3731 - Lock Nut 907866 [ More info ]
|
|
|
0907866 - Lock Nut [ More info ]
|
| #52 — 510267 — CLAMP,LEAD (1 required per assembly) | ||
  |
|
0510267 - Bracket [ More info ]
|
| #53 — 510193 — SCREW,CLAMP (1 required per assembly) | ||
  |
|
|
| #54 — 303806 — TUBING,INSULATION (2 required per assembly) | ||
  |
|
0303806 - Tubing [ More info ]
|
| #55 — 379628 — CABLE,SHIFT (1 required per assembly) | ||
  |
|
0379628 - Electric Shift Cable [ More info ]
|
  |
|
18-2192 - Electric Shift Cable 379628 [ More info ]
|
| #56 — 379645 — TERMINAL & SLEEVE (2 required per assembly) | ||
  |
|
0379645 - Terminal Kit [ More info ]
|
| #57 — 310645 — RETAINER,CABLE (1 required per assembly) | ||
  |
|
0310645 - Cable Retainer [ More info ]
|
| #58 — 313929 — SLEEVE,COIL LEAD,FORWARD (1 required per assembly) | ||
  |
|
0313929 - Coil Lead Sleeve, Forward [ More info ]
|
| #59 — 310644 — TUBE,SHIFT CABLE (1 required per assembly) | ||
  |
|
0310644 - Shift Cable Tube [ More info ]
|
| #60 — 380375 — MAGNET & SPRING ASSY (2 required per assembly) | ||
  |
|
0380375 - Magnet And Spring Assembly [ More info ]
|
| #61 — 310416 — RETAINING RING (1 required per assembly) | ||
  |
|
0310416 - Retaining Ring [ More info ]
|
| #62 — 908967 — TUBING (2 required per assembly) | ||
|
|
0908967 - Heat Shrink Tubing [ More info ]
|
| #63 — 908228 — WATER TUBE,INTAKE (1 required per assembly) | ||
  |
|
0908228 - Water Tube [ More info ]
|
| #64 — 908889 — SPACER,WATER TUBE (1 required per assembly) | ||
  |
|
0908889 - Water Tube Spacer [ More info ]
|
| #65 — 303806 — SLEEVE,CABLE LEAD (2 required per assembly) | ||
|
|
0303806 - Tubing [ More info ]
|
| #66 — 908226 — RUDDER (1 required per assembly) | ||
  |
|
0908226 - Rudder-g Case [ More info ]
|
| #67 — 310477 — SCREW,PLATE (1 required per assembly) | ||
  |
|
0310477 - Screw, Plate [ More info ]
|
| #68 — 310596 — SCREW. MODELS WITH "A11" SUFFIX ONLY (1 required per assembly) | ||
  |
|
|
  |
|
0552898 - Screw, Gearcase To Exhaust Housing [ More info ] Unavailable |
| #68 — 552898 — SCREW. MODELS WITH "M" SUFFIX ONLY (1 required per assembly) | ||
|
|
0552898 - Screw, Gearcase To Exhaust Housing [ More info ] Unavailable |
| #69 — 302865 — LOCKWASHER (1 required per assembly) | ||
  |
|
0302865 - Lock Washer [ More info ]
|
  |
|
0307708 - Steering worm Retaining Lock Washer [ More info ]
|
| #70 — 552993 — WASHER (1 required per assembly) | ||
  |
|
0552993 - WASHER [ More info ]
|
  |
|
0330266 - Washer [ More info ]
|
| #71 — 310406 — SCREW,GEARCASE,REAR. USE ONE 3852478 AND ONE 307161. USE ONE 3852478 AND ONE 307161 (1 required per assembly) | ||
  |
|
0310406 - See Pricebook [ More info ]
|
| #72 — 310594 — THRUST WASHER (1 required per assembly) | ||
  |
|
0310594 - Washer [ More info ]
|

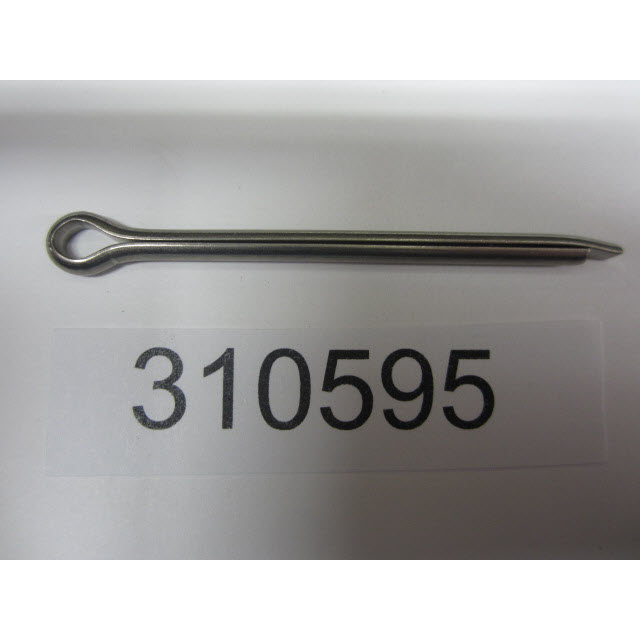

| #73 — 310595 — COTTER PIN (1 required per assembly) | ||
  |
|
0310595 - Cotter Pin [ More info ]
|
|
|
0310595 - Cotter Pin [ More info ]
|
| #74 — 310956 — DRIVE PIN (1 required per assembly) | ||
  |
|
0310956 - Drive Pin [ More info ]
|
|
|
0310956 - Drive Pin [ More info ]
|
| #75 — 379798 — PROPELLER NUT (1 required per assembly) | ||
  |
|
0379798 - Prop Nut [ More info ]
|
| #76 — 381296 — PROPELLER,14-1/4X10. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
  |
|
0381296 - Prop,14.25X10 [ More info ] Unavailable |
| #76 — 382676 — PROPELLER,14X11. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
|
|
0382676 - Aluminum Prop SD 11 [ More info ] Unavailable |
| #76 — 382017 — PROPELLER,14X14. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
  |
|
0382017 - Aluminum Prop Sd 12 [ More info ]
|
| #76 — 381185 — PROPELLER,14X14. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
  |
|
0381185 - Propeller 14X14 [ More info ]
|
| #76 — 381186 — PROPELLER,14X16. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
  |
|
0381186 - Stern Drive Prop 14 X 16 [ More info ]
|
| #76 — 381187 — PROPELLER,14X18. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
  |
|
0381187 - Aluminum Prop, 14x18 [ More info ]
|
| #76 — 383287 — PROPELLER,14X20. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
|
|
0383287 - Aluminum Prop, NLA [ More info ] Unavailable |
| #76 — 979896 — PROPELLER,13-1/4X20 2 BL BRNZ. OPTIONAL ITEM-225 HP ONLY (0 required per assembly) | ||
|
|
0979896 - L/P 75.00 [ More info ] Unavailable |
| #76 — 381464 — PROPELLER,13X18 2 BL BRNZ. OPTIONAL ITEM-225 HP ONLY (0 required per assembly) | ||
  |
|
0381464 - Thrust Bearing, NLA [ More info ] Unavailable |
| #76 — 172490 — PROPELLER,14X13-SST. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
|
|
0172490 - SS Sd Prop 14X13 [ More info ] Unavailable |
| #76 — 172491 — PROPELLER,14X15-SST. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
|
|
0172491 - SST SD 15 [ More info ] Unavailable |
| #76 — 172492 — PROPELLER,14X17-SST. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
  |
|
0172492 - 14 X 17 SS Propeller [ More info ] Unavailable |
| #76 — 172493 — PROPELLER,14X19-SST. OPTIONAL ITEM-ALL MODELS (0 required per assembly) | ||
  |
|
0172493 - SST SD 19 Inch [ More info ] Unavailable |
| #77 — 908229 — BUSHING. 120 & 140 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0908229 - Bushing [ More info ]
|
| #78 — 908230 — SCREEN,WATER INTAKE. 120 & 140 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0908230 - Screen [ More info ]
|
| #78 — 909018 — SCREEN,WATER INTAKE. 165 THROUGH 235 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0909018 - Water Intake Screen [ More info ]
|
| #79 — 908471 — PLATE,RUDDER TO GEARCASE. 120 & 140 HP MODELS ONLY (1 required per assembly) | ||
|
|
0908471 [ More info ] Unavailable Replaced by 0980968 |
  |
|
0980968 - Rudder Plate [ More info ]
|
| #79 — 90916 — PLATE,RUDDER TO GEARCASE. 165 THROUGH 235 HP MODELS ONLY (1 required per assembly) | ||
|
|
53-90916 - Ring - Retaining [ More info ]
|
| #80 — 306470 — LOCKWASHER (6 required per assembly) | ||
  |
|
0306470 - Lock Washer [ More info ]
|
| #81 — 310597 — GROMMET,WATER TUBE. 120 & 140 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0310597 - Grommet [ More info ]
|
| #81 — 909019 — GROMMET,WATER TUBE. 165 THROUGH 235 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0909019 - Water Tube Grommet [ More info ]
|
| #82 — 908702 — SCREW,RUDDER PIVOT (1 required per assembly) | ||
  |
|
0908702 - Screw, Rudder Pivot [ More info ]
|
| #83 — 306503 — SCREW,GEARCASE TO HOUSING (6 required per assembly) | ||
  |
|
|
| #84 — 302647 — CLAMP,SHIFT CABLE TO EXH HSG. 120 THROUGH 165 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0302647 - Clamp, NLA [ More info ] Unavailable |
| #85 — 908881 — WASHER,WATER TUBE. 120 & 140 HP MODELS ONLY (1 required per assembly) | ||
  |
|
0908881 - Water Tube Washer [ More info ]
|
