Mechanical Rack & Pinion Steering Kit -all Models Parts for 1976 OMC Stern Drive 190hp 990231M Stern Drive

Revise Search: All Years > 1976 > 190 hp > 990231M > Mechanical Rack & Pinion Steering Kit -all Models

|

Next »

NEED PARTS OR KITS?

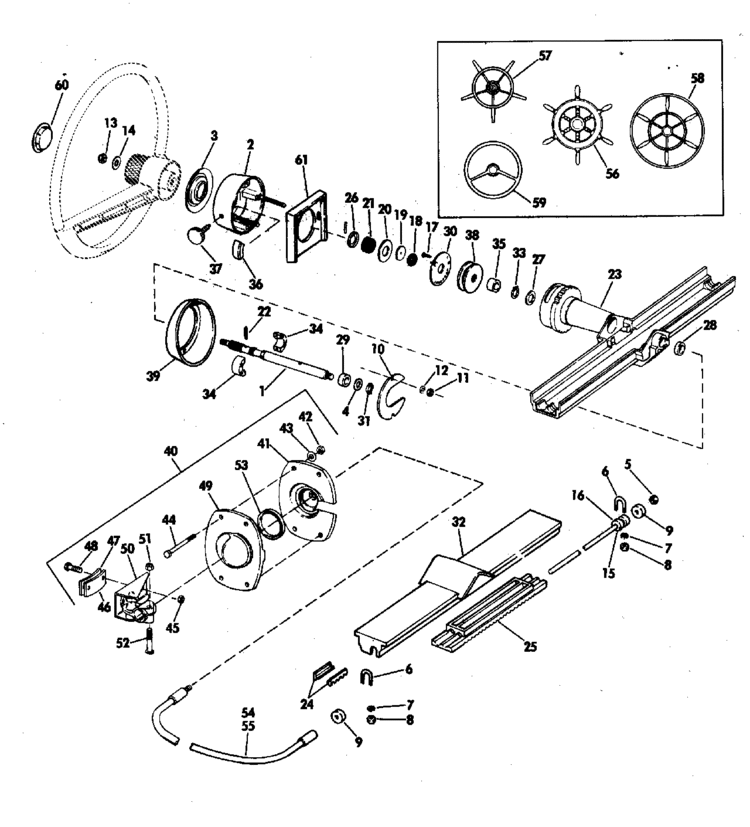

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#172308 — 172308 — HELM ASSY,CHROME. NOT SHOWN (1 required per assembly)

0172308 - Helm Assembly [ More info ]
Unavailable

#172422 — 172422 — HELM ASSY,BLACK. NOT SHOWN (1 required per assembly)

0172422 - Helm Assembly [ More info ]

$39.00 $23.71
4 In Stock.

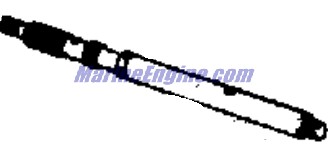

#1 — 171872 — SHAFT & PINION ASSEMBLY (1 required per assembly)

0171872 - Shaft [ More info ]

$39.00 $23.71
1 In Stock.

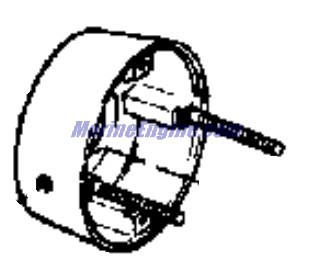

#2 — 172307 — BEZEL ASSY,CHROME (1 required per assembly)

0172307 - Helm Bezel [ More info ]

$12.99 $7.90
1 In Stock.

#2 — 172406 — BEZEL ASSY,BLACK (1 required per assembly)

0172406 - Steering Bezel [ More info ]
Unavailable

#3 — 121581 — LENS (1 required per assembly)

0121581 - Clear Lens [ More info ]

$7.99
1 In Stock.

#4 — 121589 — WASHER,END PLAY (1 required per assembly)

0121589 - Washer [ More info ]

$1.25 $0.76
10+ In Stock.

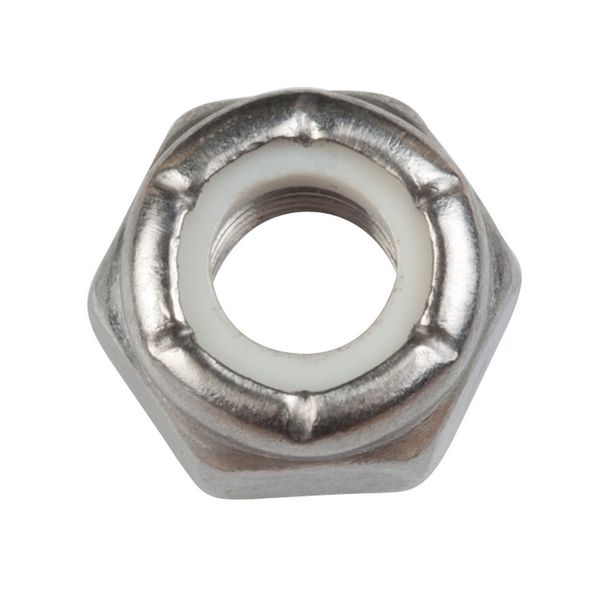

#5 — 121731 — NUT,CABLE TO HELM (2 required per assembly)

0121731 - Nut [ More info ]

$5.11 $2.00
10+ In Stock.

3852005 - Nut - Volvo Penta (3852005) [ More info ]

$4.10
Available to Order: Usually ships within 10 days.

18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]

$11.99 $7.13
Available to Order: Usually ships within 10 days.

18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]

$11.99 $7.13
Available to Order: Usually ships within 10 days.

0121731 - Nut [ More info ]

$5.11 $2.00
10+ In Stock.

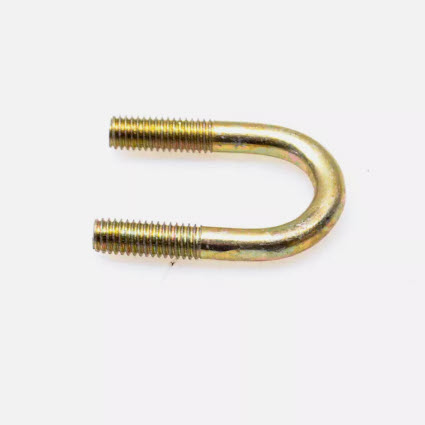

#6 — 121603 — "U" BOLT (2 required per assembly)

0121603 - U Bolt [ More info ]

$3.00 $1.82
10+ In Stock.

#7 — 120052 — WASHER,"U" BOLT (4 required per assembly)

0120052 - Lock Washer [ More info ]

$9.08
10+ In Stock.

#8 — 309485 — NUT,"U" BOLT (4 required per assembly)

0309485 - Follower Pin Nut [ More info ]

$11.72 $5.94
10+ In Stock.

#9 — 121607 — BUMPER (2 required per assembly)

0121607 - Bumper Tubulr [ More info ]

$4.00 $2.43
10+ In Stock.

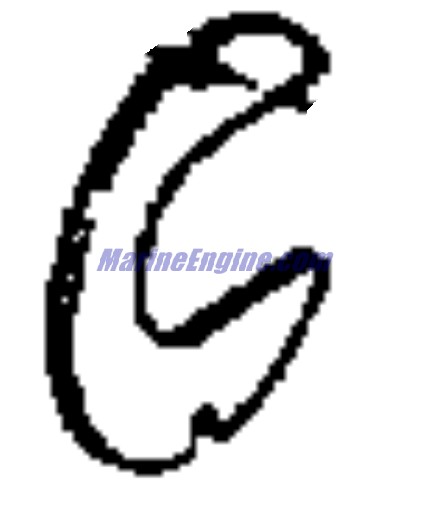

#10 — 121583 — PLATE,MOUNTING (1 required per assembly)

0121583 - Bracket [ More info ]
Unavailable

#11 — 306422 — NUT,BEZEL (1 required per assembly)

0306422 - Nut [ More info ]

$6.54 $4.30
10+ In Stock.

#12 — 120196 — WASHER,BEZEL (2 required per assembly)

0120196 - Washer [ More info ]

$1.83
10+ In Stock.

0309192 - Washer [ More info ]

$11.72 $8.56
10+ In Stock.

3852083 - Washer - Volvo Penta (3852083) [ More info ]

$6.30
Available to Order: Usually ships within 10 days.

#13 — 904880 — NUT,STEERING WHEEL (1 required per assembly)

0904880 - Locknut [ More info ]

$2.19 $1.34
10+ In Stock.

#14 — 121639 — WASHER,SPRING (1 required per assembly)

0121639 - Washer [ More info ]

$1.99 $1.22
10+ In Stock.

#15 — 172109 — GUIDE BAR ASSEMBLY (1 required per assembly)

0172109 - Guide Bar [ More info ]

$28.00
5 In Stock.

#16 — 121604 — STOP (1 required per assembly)

0121604 - Stop [ More info ]

$2.50
10+ In Stock.

#17 — 121605 — SCREW (1 required per assembly)

0121605 - Screw, Thrust Washer [ More info ]

$1.49 $0.91
10+ In Stock.

#18 — 121598 — GEAR,DRIVE (1 required per assembly)

0121598 - Drive Gear [ More info ]

$4.49 $2.74
10+ In Stock.

#19 — 121594 — GEAR,CLUSTER (1 required per assembly)

0121594 - Gear, Cluster [ More info ]

$8.99 $5.47
8 In Stock.

#20 — 121597 — GEAR,OUTPUT (1 required per assembly)

0121597 - Output Gear [ More info ]

$4.99 $3.04
10+ In Stock.

#21 — 121586 — SPRING,COIL (1 required per assembly)

0121586 - Coil Spring [ More info ]

$1.99 $1.22
2 In Stock.

#22 — 121642 — PIN,SPIROL (1 required per assembly)

0121642 - Spirol Pin [ More info ]

$5.29 $0.94
10 In Stock.

#23 — 121577 — HELM (1 required per assembly)

0121577 - Helm Bracket, NLA [ More info ]

$73.05
1 In Stock.

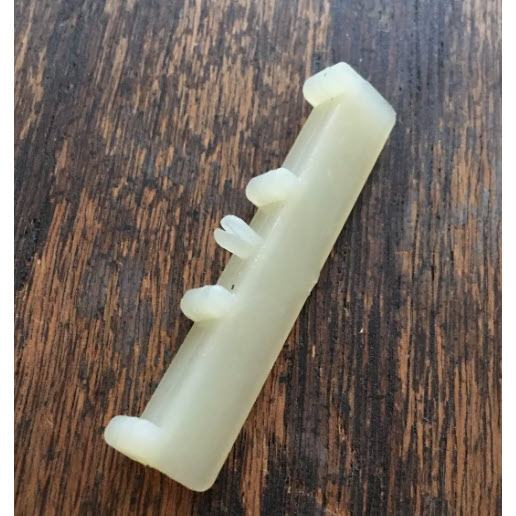

#24 — 121582 — PAD,WEAR (3 required per assembly)

0121582 - Wear Pad [ More info ]

$4.00 $2.43
9 In Stock.

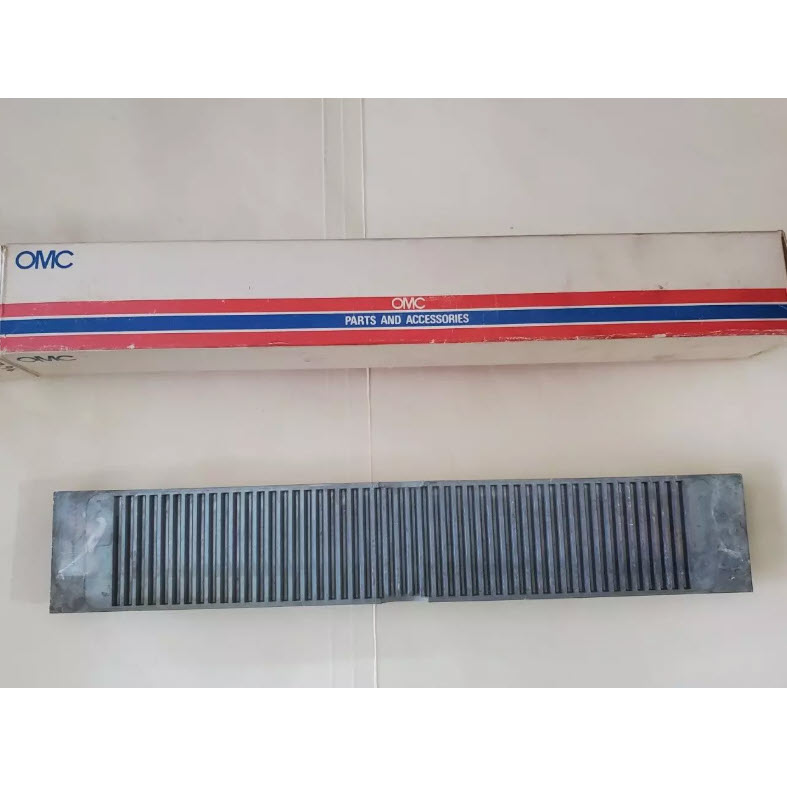

#25 — 121579 — RACK (1 required per assembly)

0121579 - Rack [ More info ]

$60.00
2 In Stock.

#26 — 121641 — WASHER,CUPPED (1 required per assembly)

0121641 - Washer [ More info ]

$1.25 $0.76
6 In Stock.

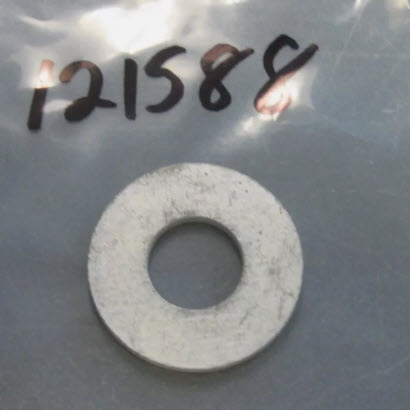

#27 — 121588 — WASHER,THRUST (1 required per assembly)

0121588 - Thrust Washer [ More info ]

$2.50
3 In Stock.

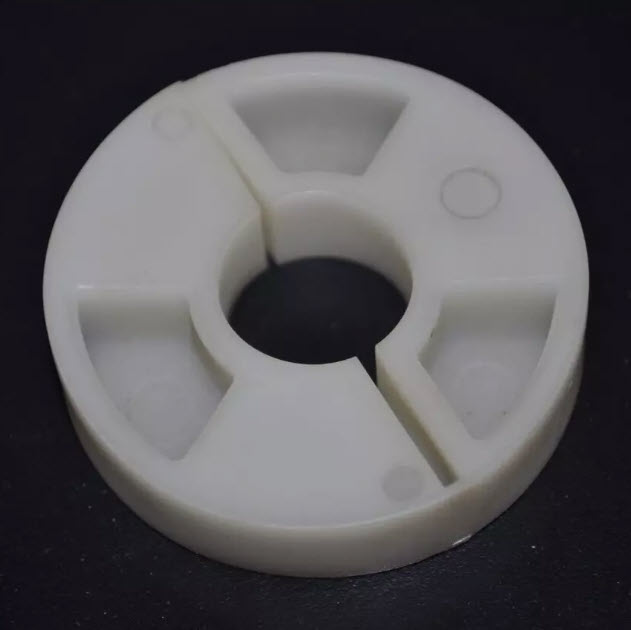

#28 — 121592 — BEARING,FRONT (1 required per assembly)

0121592 - CAM [ More info ]

$16.00
10+ In Stock.

#29 — 121590 — BEARING,NYLINER (1 required per assembly)

0121590 - Nylon Bushing [ More info ]

$3.99 $2.43
10+ In Stock.

#30 — 171871 — SUPPORT PLATE ASSY (1 required per assembly)

0171871 - Plate And Pin Assembly [ More info ]

$5.99 $3.65
4 In Stock.

#31 — 121599 — RETAINING RING (1 required per assembly)

0121599 - Retaining Ring [ More info ]

$1.25 $0.76
10+ In Stock.

#32 — 121580 — DUST COVER,SNAP ON (1 required per assembly)

0121580 - L/P 7.00 [ More info ]
Unavailable

#33 — 121591 — RING,RETAINING (1 required per assembly)

0121591 - Ring [ More info ]

$1.25 $0.76
10+ In Stock.

#121702 — 121702 — CLIP,CANOE. NOT SHOWN (2 required per assembly)

0121702 - Clip [ More info ]
Unavailable

#34 — 122018 — BEARING (2 required per assembly)

0122018 - Bearing [ More info ]

$1.50 $0.91
5 In Stock.

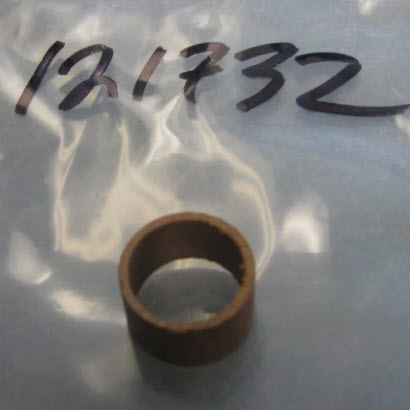

#35 — 121732 — SPACER (1 required per assembly)

0121732 - Spacer [ More info ]

$2.50
3 In Stock.

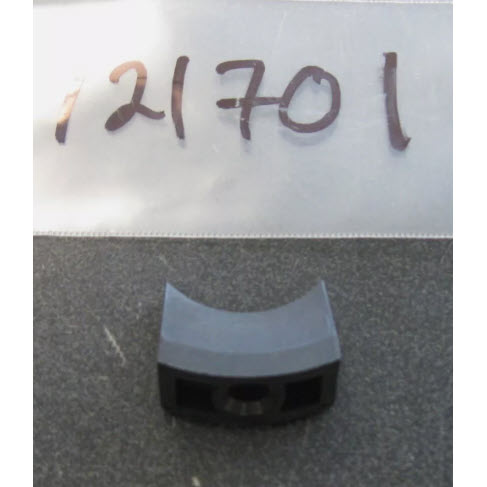

#36 — 121701 — SHOE,BRAKE (1 required per assembly)

0121701 - SHOE/BRAKE [ More info ]

$5.00
10 In Stock.

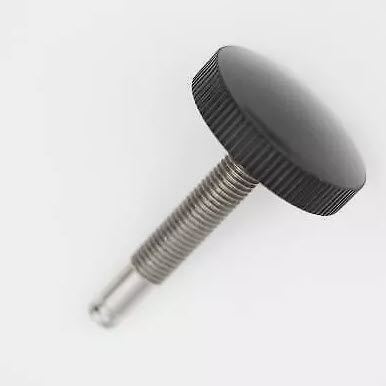

#37 — 121699 — SCREW,JACK (1 required per assembly)

0121699 - Screw, Jack [ More info ]

$2.00 $1.22
10+ In Stock.

#38 — 121700 — PULLEY,BRAKE (1 required per assembly)

0121700 - Pulley, Brake [ More info ]

$60.00
3 In Stock.

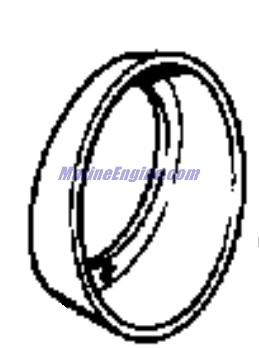

#39 — 172325 — ADAPTER KIT,CHROME 20 DEGREES (1 required per assembly)

0172325 - Bezel [ More info ]
Unavailable

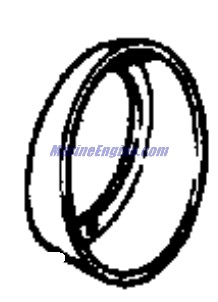

#39 — 172403 — ADAPTER KIT,BLACK 20 DEGREES (1 required per assembly)

0172403 - 20DEG Adaptor [ More info ]
Unavailable

#40 — 171909 — TERMINAL KIT & TRANSOM PLATE ASSEMBLY (1 required per assembly)

0171909 - Kit & Plate [ More info ]
Unavailable

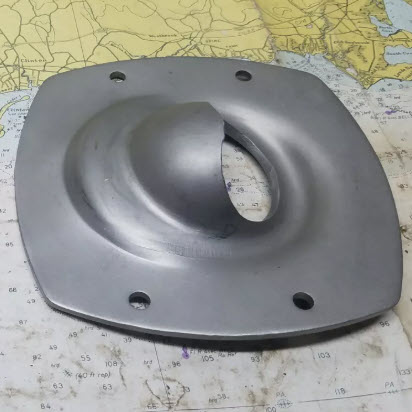

#41 — 121673 — TRANSOM PLATE,INNER (1 required per assembly)

0121673 - Plate - Inner, [ More info ]

$35.00
2 In Stock.

#42 — 301472 — NUT,SCREW,TRANSOM PLATE (4 required per assembly)

0301472 - Nut [ More info ]

$1.25
10+ In Stock.

0328740 - Nut [ More info ]

$5.40
10+ In Stock.

#43 — 304051 — WASHER,NUT,PLATE (4 required per assembly)

0304051 - Ignition Coil Mounting Washer [ More info ]

$2.65
10+ In Stock.

0328703 - Washer [ More info ]

$6.78
10+ In Stock.

3852193 - Washer, Volvo [ More info ]

$6.30
10+ In Stock.

0328703 - Washer [ More info ]

$6.78
10+ In Stock.

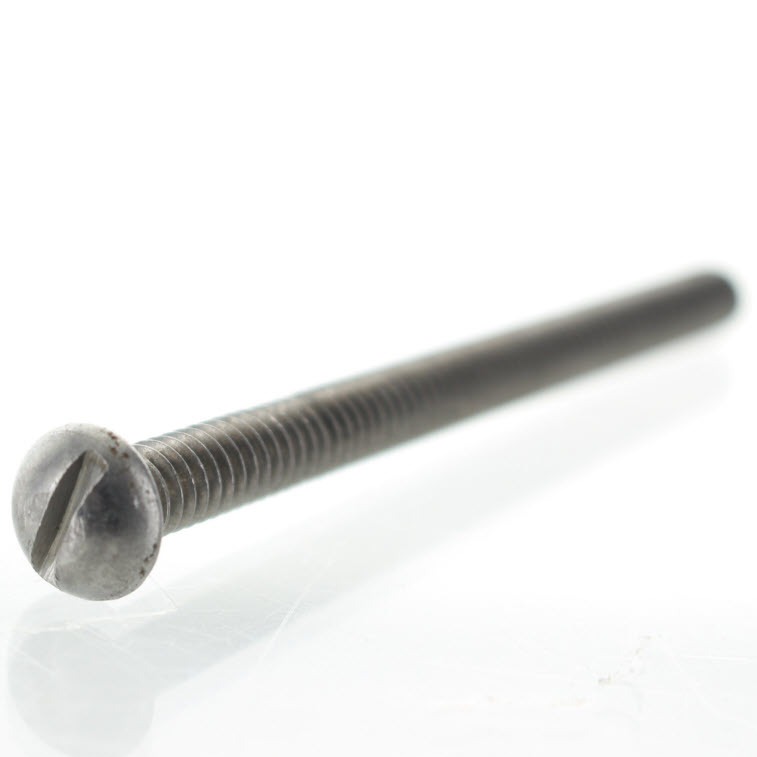

#44 — 121675 — SCREW,PLATE TO TRANSOM (4 required per assembly)

0121675 - Screw, Plate To Transom [ More info ]

$1.25 $0.76
10+ In Stock.

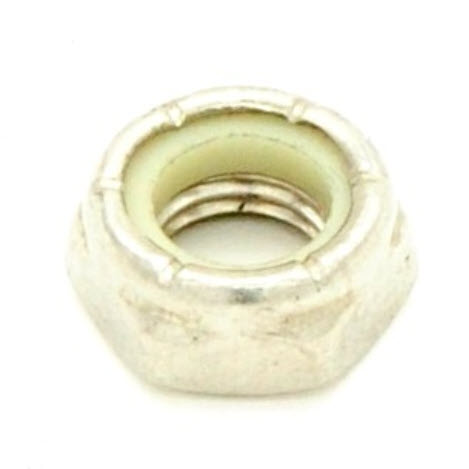

#45 — 121674 — STOP NUT,ELASTIC (2 required per assembly)

0121674 - Nut [ More info ]

$10.70
Available to Order: Usually ships within 10 days.

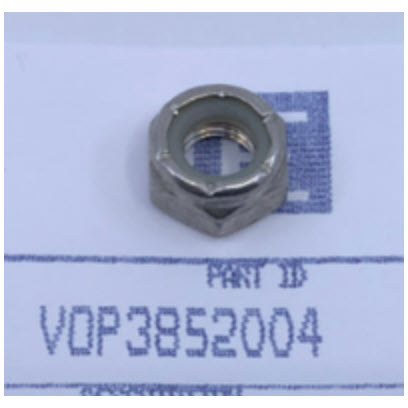

3852004 - Nut - Volvo Penta (3852004) [ More info ]

$7.30
Available to Order: Usually ships within 10 days.

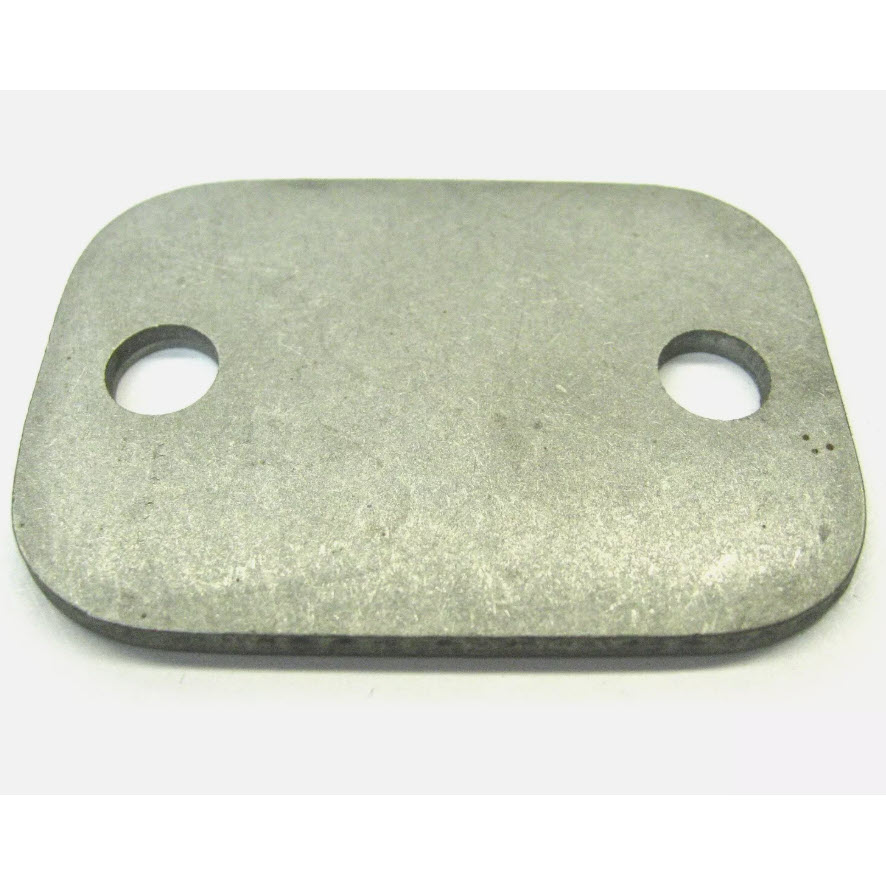

#46 — 121671 — FRONT PLATE (1 required per assembly)

0121671 - Front Plate [ More info ]

$10.99 $6.69
10+ In Stock.

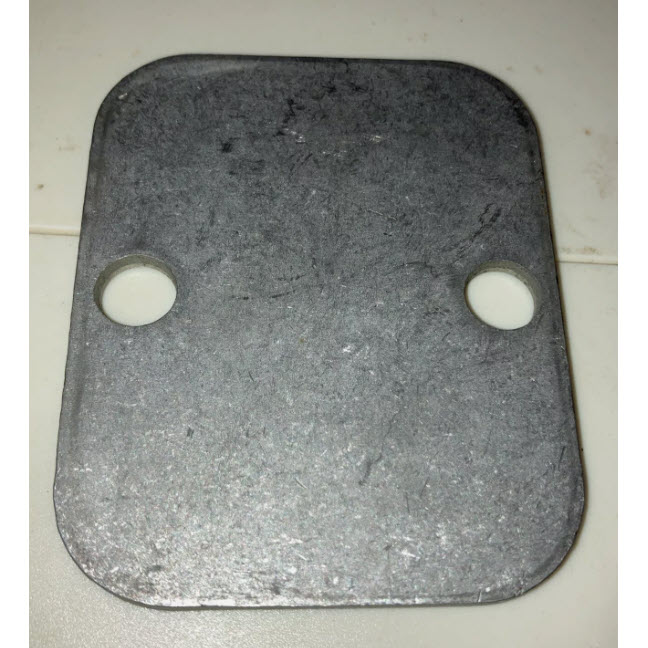

#47 — 121670 — BACK PLATE (1 required per assembly)

0121670 - Back Plate [ More info ]

$17.99 $10.94
10+ In Stock.

#48 — 908363 — SCREW,TERMINAL TO PLATES (2 required per assembly)

0908363 - Screw, Terminal To Plates [ More info ]

$1.25 $0.76
10+ In Stock.

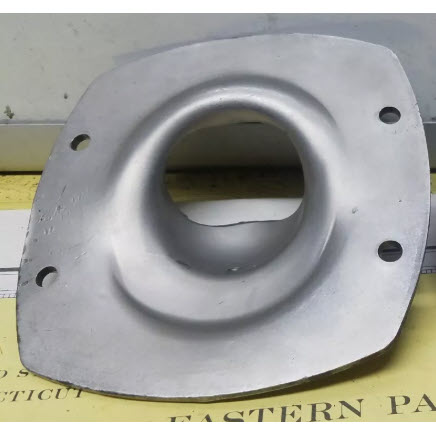

#49 — 121672 — TRANSOM PLATE,OUTER (1 required per assembly)

0121672 - Outer Plate [ More info ]

$35.00
4 In Stock.

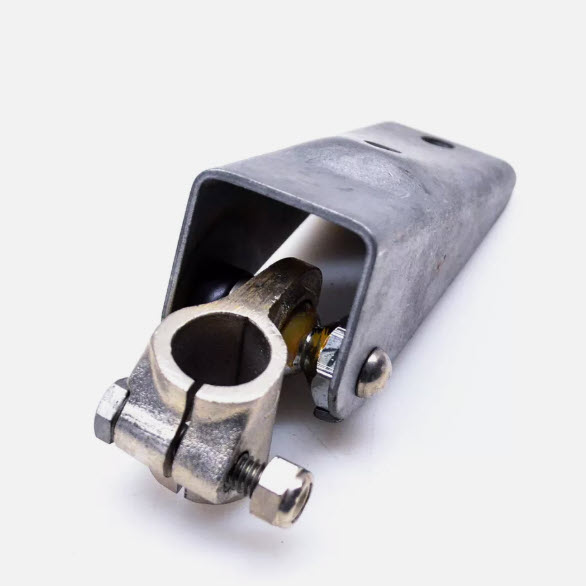

#50 — 171951 — CABLE TERMINAL ASSEMBLY (1 required per assembly)

0171951 - Connector [ More info ]

$124.99
6 In Stock.

#51 — 310702 — NUT,ELASTIC STOP (1 required per assembly)

0310702 - Nut [ More info ]

$1.25
10+ In Stock.

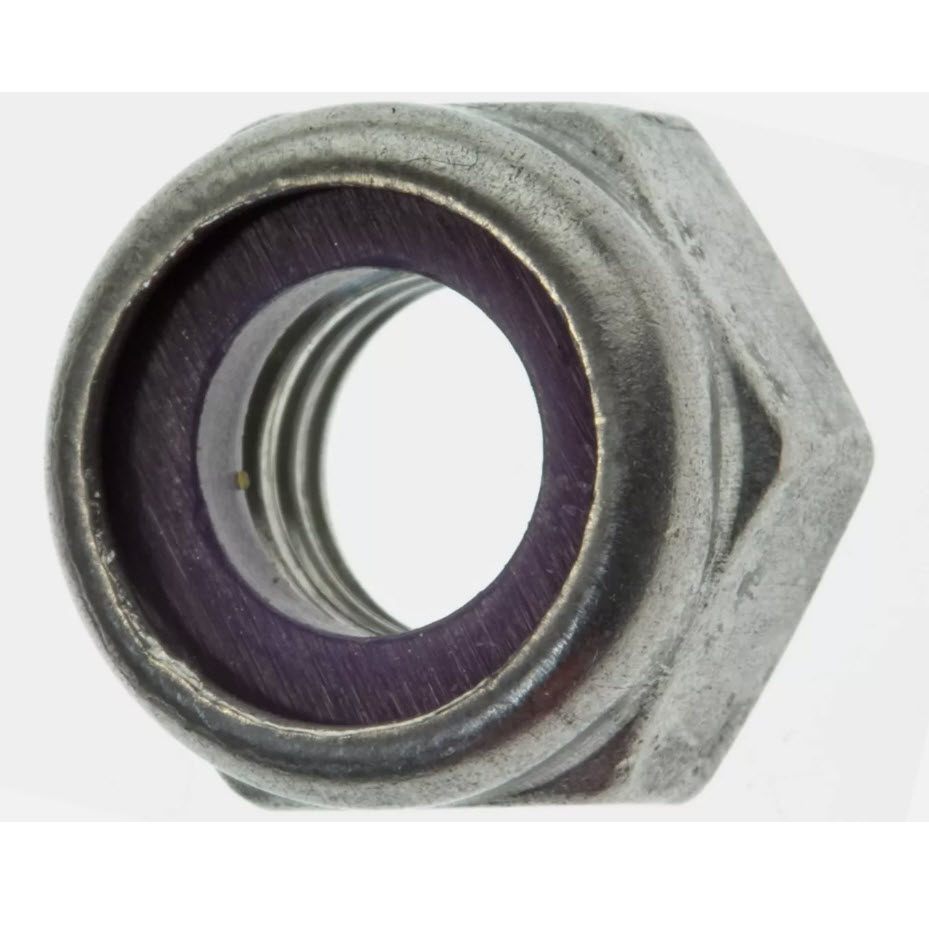

0363253 - NUT,LOCK-5/16 [ More info ]

$1.43
Available to Order: Usually ships within 10 days.

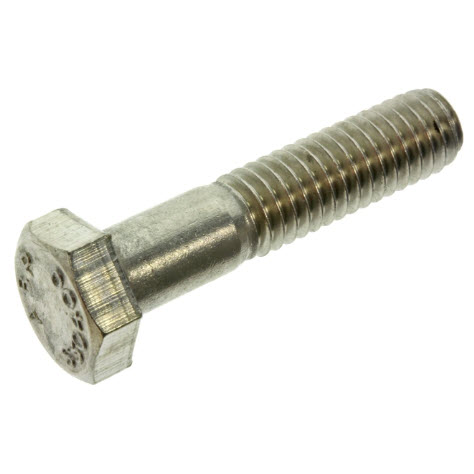

#52 — 306427 — BOLT (1 required per assembly)

0306427 - Bolt [ More info ]

$13.25 $4.13
10+ In Stock.

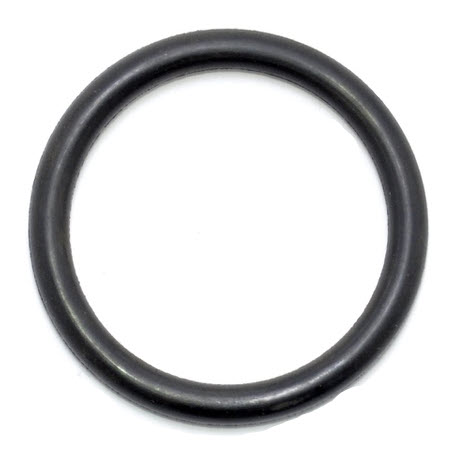

#53 — 121669 — SEAL (1 required per assembly)

0121669 - Seal [ More info ]

$20.00
4 In Stock.

#54 — 171910 — CABLE ASSEMBLY,10' TO. LAST 2 DIGITS INDICATE CABLE LENGTH IN FEET (0 required per assembly)

0171910 - Cable&CRTN AY 10FT [ More info ]
Unavailable

#171950 — 171950 — CABLE ASSEMBLY,50' (0 required per assembly)

0171950 - Cable&CRTN AY 50FT [ More info ]
Unavailable

#55 — 172002 — CABLE ASSY,DUAL STATION,22' (0 required per assembly)

0172002 - Cable [ More info ]
Unavailable

#55 — 172003 — CABLE ASSY,DUAL STATION,10' (0 required per assembly)

0172003 -10 Foot Dual Station Cable Assembly [ More info ]
Unavailable

#55 — 172004 — CABLE ASSY,DUAL STATION,12' (0 required per assembly)

0172004 -12 Foot Dual Station Cable Assembly [ More info ]
Unavailable

#55 — 172005 — CABLE ASSY,DUAL STATION,14' (0 required per assembly)

0172005 - 14 Foot Dual Station Cable Assembly [ More info ]
Unavailable

#55 — 172006 — CABLE ASSY,DUAL STATION,16' (0 required per assembly)

0172006 - Steering Cable [ More info ]
Unavailable

#55 — 172007 — CABLE ASSY,DUAL STATION,18' (0 required per assembly)

0172007 - Cable [ More info ]
Unavailable

#55 — 172008 — CABLE ASSY,DUAL STATION,20' (0 required per assembly)

0172008 - Steering Cable [ More info ]
Unavailable

#56 — 172337 — WOOD SHIP'S WHEEL (1 required per assembly)

0172337 - STEERING WHEEL [ More info ]
Unavailable

#57 — 172067 — CAPTAIN'S WHEEL,18" (1 required per assembly)

0172067 - STEERING WHEEL [ More info ]
Unavailable

#58 — 172287 — DESTROYER WHEEL (1 required per assembly)

0172287 - Destroyer Wheel [ More info ]
Unavailable

#59 — 980340 — STEERING WHEEL,BLACK (1 required per assembly)

0980340 - L/P 30.85 [ More info ]
Unavailable

#60 — 121609 — MEDALLION (1 required per assembly)

0121609 - Medallion [ More info ]

$12.99 $10.85
10+ In Stock.

#61 — 172424 — HELM PANEL ASSEMBLY (1 required per assembly)

0172424 - Bezel [ More info ]

$9.99
1 In Stock.
