Speedometer & Panel Assembly Optional Item-all Models Parts for 1974 OMC Stern Drive 120hp 990215R Stern Drive

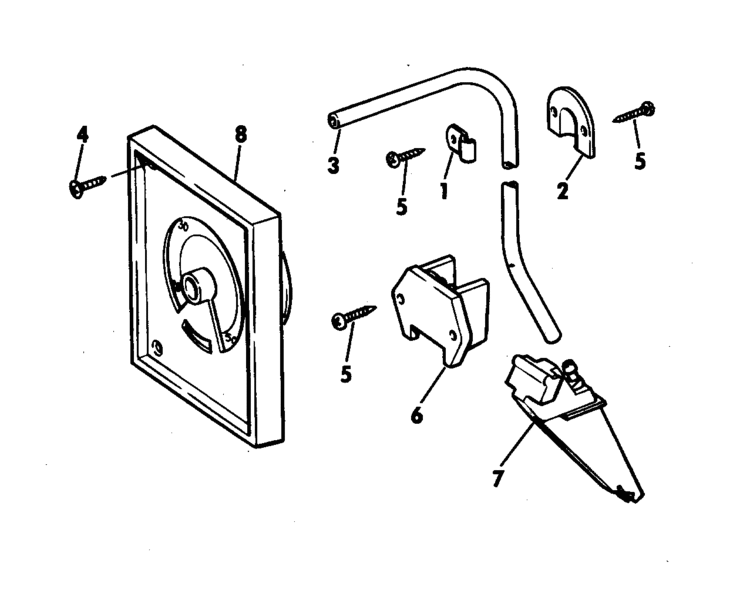

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #172425 — 172425 — SPEEDOMETER KIT, 50 MPH. NOT SHOWN (1 required per assembly) | ||
  |
|
0172425 - SPEEDOMETER (172425) [ More info ] Unavailable |
| #172500 — 172500 — SPEEDOMETER KIT, 70 MPH. NOT SHOWN (1 required per assembly) | ||
  |
|
0172500 - Speedometer (172500) [ More info ] Unavailable |
| #1 — 120001 — HOSE CLAMP (5 required per assembly) | ||
  |
|
0120001 - Clamp - Cable (120001) [ More info ]
|

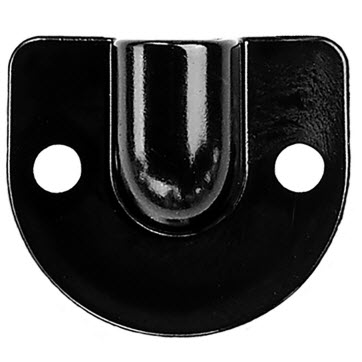

| #2 — 121828 — HOSE GUARD (1 required per assembly) | ||
  |
|
0121828 - Guard (121828) [ More info ]
|

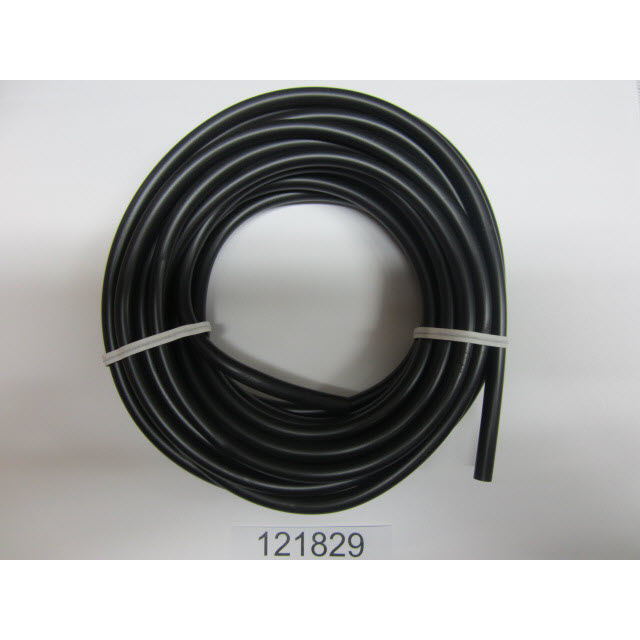

| #3 — 121829 — HOSE (1 required per assembly) | ||
  |
|
0121829 - Speedometer Hose 23 ft length (121829) [ More info ]
|
| #4 — 122295 — SCREW, MOUNTING PANEL (4 required per assembly) | ||
  |
|
0122295 - SCREW-MTG (122295) [ More info ] Unavailable |
| #5 — 310115 — SCREW (9 required per assembly) | ||
  |
|
0310115 - Screw, Clamp (310115) [ More info ]
|
| #6 — 975866 — IMPACT TUBE BRKT ASSY (1 required per assembly) | ||
  |
|
0975866 [ More info ] Unavailable Replaced by 0172875 |
  |
|
0172875 [ More info ] Unavailable Replaced by 0173623 |
  |
|

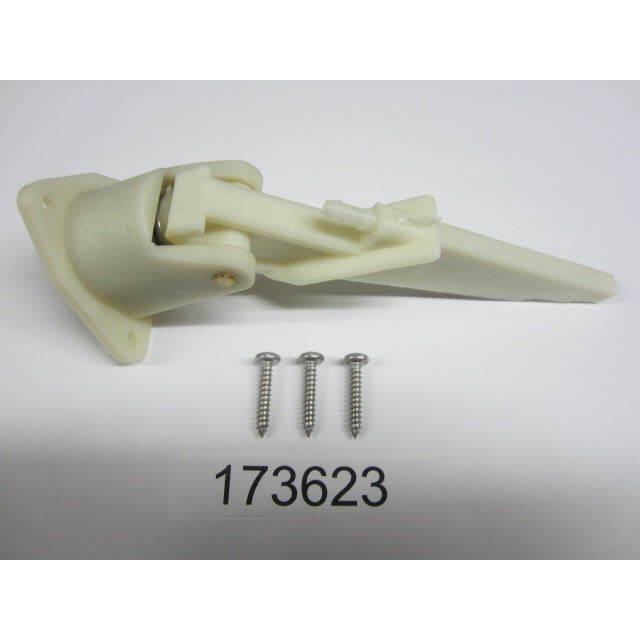

0173623 - Pitot Tube Kit (173623) [ More info ]
|
| #7 — 975867 — IMPACT TUBE ASSY (1 required per assembly) | ||
  |
|
0975867 [ More info ] Unavailable Replaced by 0172875 |
| #8 — 172457 — SPEEDOMETER & PANEL, 50 MPH (1 required per assembly) | ||
  |
|
0172457 - Speedometer and Panel Assembly (172457) [ More info ] Unavailable |
| #8 — 172503 — SPEEDOMETER & PANEL, 70 MPH (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
