Instrument Kit Assembly - Sun Shielded Optional Item-all Model Parts for 1974 OMC Stern Drive 120hp 990215R Stern Drive

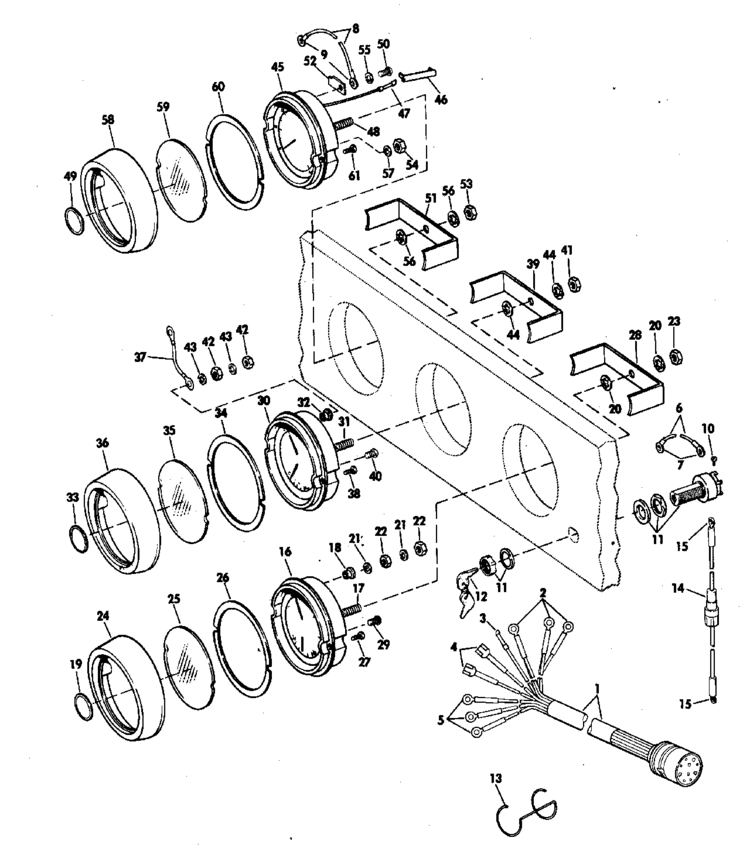

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 172290 — CABLE ASSEMBLY (1 required per assembly) | ||
  |
|
0172290 - Harness Assembly, NLA [ More info ] Unavailable |
| #2 — 204037 — RING TERMINAL (3 required per assembly) | ||
  |
|
0204037 [ More info ] Unavailable Replaced by 0510780 |
  |
|
0510780 - Ring Terminal [ More info ]
|
| #3 — 308808 — KNIFE DISCONNECT (1 required per assembly) | ||
  |
|
0308808 - Terminal [ More info ]
|
| #4 — 204034 — SPADE TERMINAL (2 required per assembly) | ||
  |
|
0204034 - Terminal -3000H-19A [ More info ]
|
| #5 — 204039 — RING TERMINAL (3 required per assembly) | ||
  |
|
0204039 - Ring Terminal [ More info ]
|
| #6 — 172148 — LEAD ASSEMBLY (2 required per assembly) | ||
  |
|
0172148 - Lead Assembly, Positive [ More info ] Unavailable |
| #7 — 510266 — RING TERMINAL (2 required per assembly) | ||
  |
|
0510266 - Terminal 41103 [ More info ]
|
| #8 — 172149 — LEAD ASSEMBLY (2 required per assembly) | ||
  |
|
0172149 - Lead Assembly [ More info ] Unavailable |
| #10 — 306559 — SCREW, IGNITION SWITCH (4 required per assembly) | ||
  |
|
0306559 - Screw, Ign. Switch Term [ More info ]
|
| #11 — 386545 — IGNITION SWITCH & KEY ASSY (1 required per assembly) | ||
  |
|
0386545 - Ignition Switch Kit - See Note On Detail Page [ More info ]
|
  |
|
MP39830 - Ignition Switch, 386545 [ More info ]
|
  |
|
MP39100 - Ignition Switch, 386545 [ More info ]
|
| #13 — 315182 — CLAMP, CABLE (1 required per assembly) | ||
  |
|
0315182 - Motor Cable Clamp [ More info ]
|
| #14 — 378334 — LEAD FUSE HOLDER ASSY (1 required per assembly) | ||
  |
|
0378334 - Fuse Holder [ More info ]
|
| #16 — 172074 — AMP FUEL GAUGE ASSY (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #17 — 122087 — STUD (1 required per assembly) | ||
  |
|
0122087 - STUD, [ More info ] Unavailable |
| #18 — 121649 — INSULATOR (2 required per assembly) | ||
  |
|
0121649 - Insulator [ More info ]
|
| #19 — 121720 — BUTTON (1 required per assembly) | ||
  |
|
0121720 - Button [ More info ] Unavailable |
| #20 — 306992 — LOCKWASHER (2 required per assembly) | ||
  |
|
0306992 - LockWasher [ More info ]
|
| #21 — 304141 — LOCKWASHER (9 required per assembly) | ||
  |
|
0304141 - LockWasher [ More info ]
|
| #22 — 309485 — NUT (8 required per assembly) | ||
  |
|
0309485 - Follower Pin Nut [ More info ]
|
| #23 — 304753 — NUT (1 required per assembly) | ||
  |
|
|
  |
|
0328741 - Spark Adjust Nut [ More info ]
|
| #24 — 121703 — BEZEL (1 required per assembly) | ||
  |
|
0121703 - Bezel [ More info ] Unavailable |
| #25 — 121704 — LENS (1 required per assembly) | ||
  |
|
0121704 - Lens - Gauge [ More info ] Unavailable |
| #26 — 121705 — SEAL (1 required per assembly) | ||
  |
|
0121705 - Seal [ More info ] Unavailable |
| #27 — 121706 — SCREW (2 required per assembly) | ||
  |
|
0121706 - L/P .25 [ More info ] Unavailable |
| #28 — 121710 — BRACKET (1 required per assembly) | ||
  |
|
0121710 - Bracket [ More info ]
|
| #29 — 313870 — SCREW (1 required per assembly) | ||
  |
|
0313870 - Screw [ More info ] Unavailable |
| #30 — 172083 — OIL PRESS/WATER TEMP GAUGE (1 required per assembly) | ||
  |
|
0172083 - Gauges, NLA [ More info ]
|
| #37 — 172058 — LEAD (1 required per assembly) | ||
  |
|
0172058 - Lead [ More info ] Unavailable |
| #45 — 172077 — TACHOMETER ASSEMBLY (1 required per assembly) | ||
  |
|
0172077 - L/P 57.50 [ More info ] Unavailable |
| #46 — 303806 — TUBING (1 required per assembly) | ||
  |
|
0303806 - Tubing [ More info ]
|
| #52 — 121708 — SWITCH BLADE (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #54 — 302437 — NUT (2 required per assembly) | ||
  |
|
|
| #57 — 307247 — LOCKWASHER (2 required per assembly) | ||
  |
|
0307247 - Washer [ More info ]
|
