Distributor Group 120 & 140 Hp Stern Drive Parts for 1974 OMC Stern Drive 120hp 990215FF Stern Drive

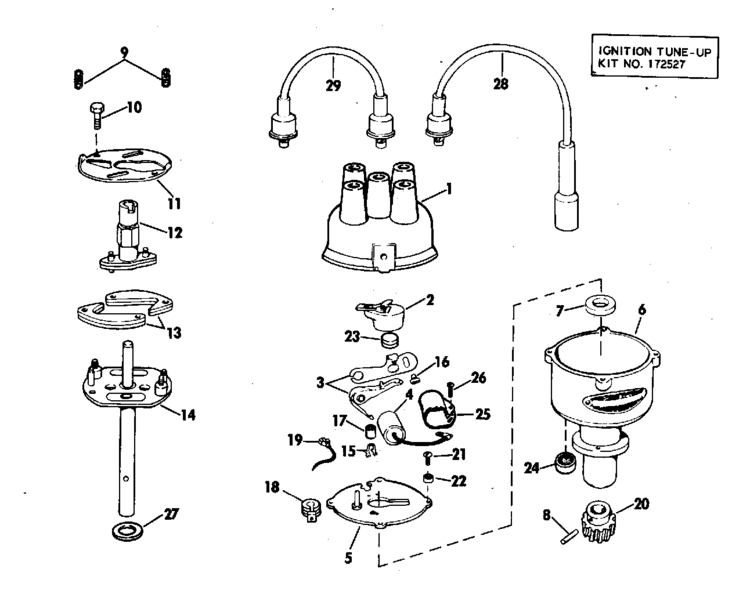

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #980500 — 980500 — DISTRIBUTOR ASSEMBLY. NOT SHOWN (1 required per assembly) | ||
  |
|
|
  |
|
0982351 [ More info ] Unavailable Replaced by 0987165 |
  |
|
0987165 - Distributor, NLA (987165) [ More info ] Unavailable |
| #1 — 380541 — CAP & BUTTON ASSY (1 required per assembly) | ||
  |
|

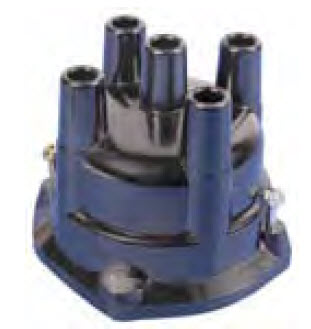

0380541 - Distributor Cap (380541) [ More info ]
|
  |
|
18-5385 - Distributor Cap, 380541, 393-9459T [ More info ]
|
  |
|

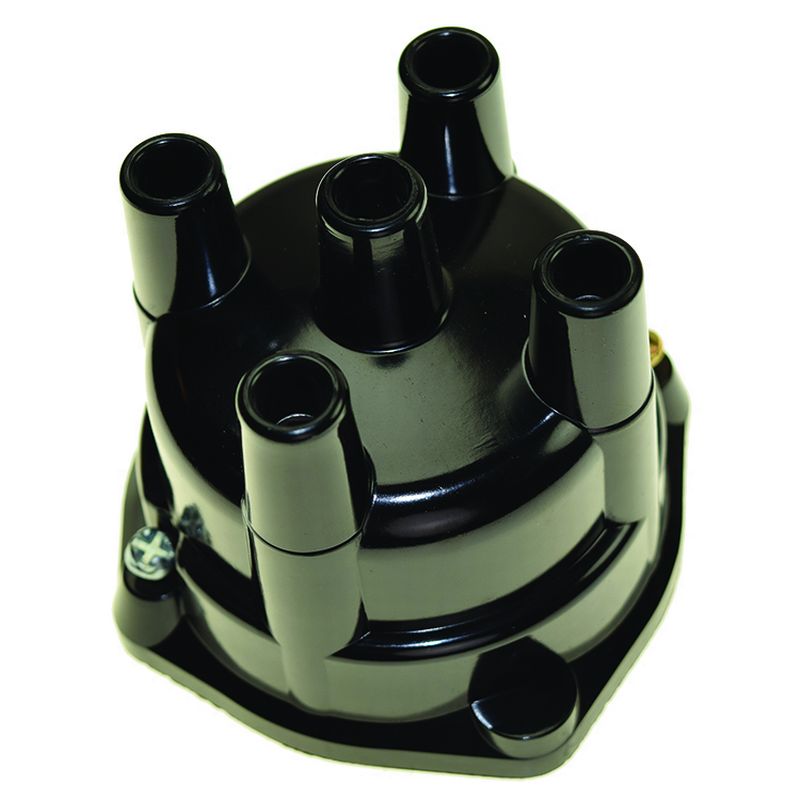

E64-0002 - Distributor Cap [ More info ]
|
| #2 — 384735 — ROTOR ASSEMBLY (1 required per assembly) | ||
  |
|
0384735 - Rotor (384735) [ More info ]
|
  |
|
18-5418 - Rotor 58217, 384735 [ More info ]
|
  |
|
E65-0003 - Rotor [ More info ]
|
| #3 — 380538 — CONTACT POINTS SET (1 required per assembly) | ||
  |
|
0380538 - Contact Point Set (380538) [ More info ] Unavailable |
  |
|
18-5311 - Point 380538, 34235 [ More info ]
|
| #4 — 380537 — CONDENSER ASSY (1 required per assembly) | ||
  |
|
0380537 - Condenser (380537) [ More info ] Unavailable |
  |
|
18-5345 - Condenser, 380537, 33662 [ More info ]
|
| #5 — 311705 — BREAKER PLATE (1 required per assembly) | ||
  |
|
0311705 - Point Plate, Delco (311705) [ More info ] Unavailable |
| #6 — 908104 — HOUSING, DISTRIBUTOR (1 required per assembly) | ||
  |
|
0908104 - Housing (908104) [ More info ] Unavailable |
| #7 — 316674 — OIL SEAL, HOUSING (1 required per assembly) | ||
  |
|
0316674 - Oil Seal (316674) [ More info ]
|
| #8 — 311702 — PIN, GEAR (1 required per assembly) | ||
  |
|
0311702 - Gear Pin (311702) [ More info ]
|
  |
|
0914733 [ More info ] Unavailable Replaced by 3854266 |
  |
|
3854266 - Gear Pin [ More info ]
|
| #9 — 316671 — SPRING, WEIGHT (2 required per assembly) | ||
  |
|
0316671 - SPRING (316671) [ More info ] Unavailable |
| #10 — 311718 — SCREW & LOCKWASHER, WEIGHT HOLD DOWN (2 required per assembly) | ||
  |
|
0311718 - Screw And Lockwasher, Weight Hold Down (311718) [ More info ]
|
| #11 — 311699 — PLATE, WEIGHT HOLD DOWN (1 required per assembly) | ||
  |
|
0311699 - Plate (311699) [ More info ] Unavailable |
| #12 — 384736 — CAM ASSEMBLY (1 required per assembly) | ||
  |
|
0384736 - CAM AY, (384736) [ More info ]
|
| #13 — 316672 — WEIGHT, DISTRIBUTOR (2 required per assembly) | ||
  |
|

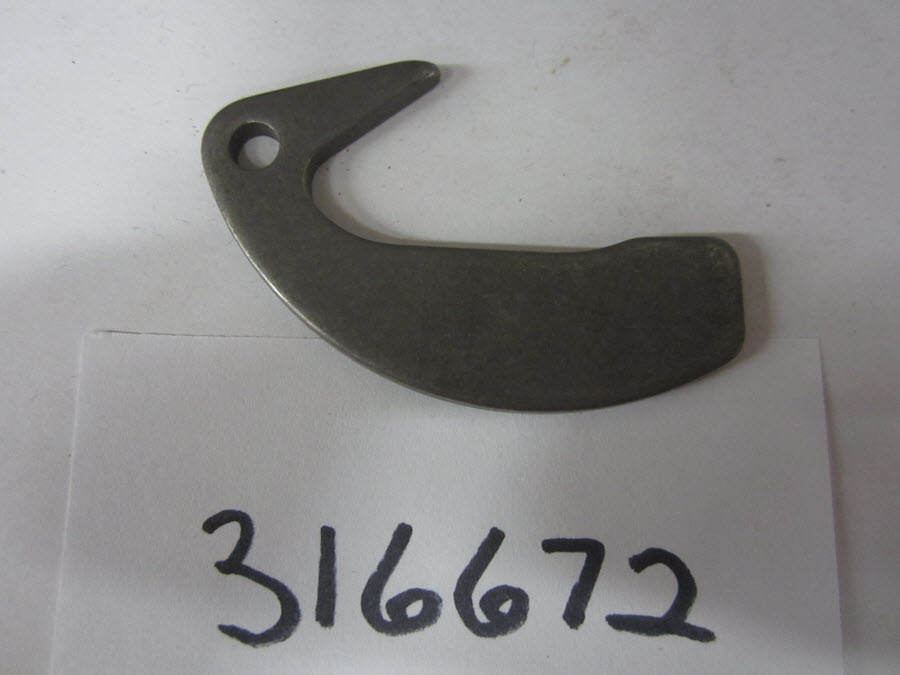

0316672 - Weight (316672) [ More info ] Unavailable |
| #14 — 384737 — MAIN SHAFT ASSEMBLY (1 required per assembly) | ||
  |
|
0384737 - Main Shaft Assembly (384737) [ More info ] Unavailable |
| #15 — 312307 — RETAINER, CAM LUBRICATOR (1 required per assembly) | ||
  |
|
0312307 - Retainer (312307) [ More info ]
|
| #16 — 311695 — SCREW, CONTACT ADJUSTING (1 required per assembly) | ||
  |
|
0311695 - Screw, Contact Adjusting (311695) [ More info ]
|
| #17 — 908608 — WICK, CAM LUBRICATOR (1 required per assembly) | ||
  |
|
0908608 - Wick (908608) [ More info ]
|
| #18 — 311693 — GROMMET (1 required per assembly) | ||
  |
|
0311693 - Grommet (311693) [ More info ]
|
| #19 — 311692 — LEAD, PRIMARY (1 required per assembly) | ||
  |
|
0311692 - Primary Lead Wire, NLA (311692) [ More info ] Unavailable |
| #20 — 311703 — GEAR, DISTRIBUTOR DRIVE (1 required per assembly) | ||
  |
|
0311703 - Gear, Distributor Drive, NLA (311703) [ More info ] Unavailable |
| #21 — 316673 — SCREW, BREAKER PLATE (4 required per assembly) | ||
  |
|
0316673 [ More info ] Unavailable Replaced by 0330133 |
  |
|
0330133 - Screw (330133) [ More info ]
|
| #22 — 908105 — RUBBER CUP, DISTR SHIELD (2 required per assembly) | ||
  |
|
0908105 - L/P 8.50 [ More info ] Unavailable |
| #23 — 908108 — WICK, ROTOR (1 required per assembly) | ||
  |
|
0908108 - WICK (908108) [ More info ]
|
| #24 — 980155 — SCREEN ASSY (1 required per assembly) | ||
  |
|
0980155 - Screen (980155) [ More info ]
|
| #25 — 908107 — BRACKET, CONDENSER (1 required per assembly) | ||
  |
|
0908107 - Bracket (908107) [ More info ]
|
| #26 — 908609 — SCREW, BRACKET (1 required per assembly) | ||
  |
|
0908609 - Screw, Bracket (908609) [ More info ]
|
| #27 — 908106 — WASHER, SHAFT (1 required per assembly) | ||
  |
|
0908106 - Washer (908106) [ More info ]
|

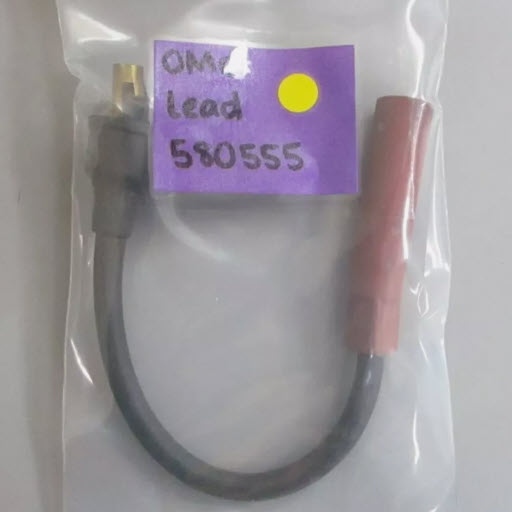

| #28 — 580555 — LEAD, #1 AND 2. MODELS WITH FF&R SUFFIX ONLY (2 required per assembly) | ||
  |
|
0580555 - Lead, #1 & 2 (580555) [ More info ]
|
| #28 — 580556 — LEADD, #3. MODELS WITH FF&R SUFFIX ONLY (1 required per assembly) | ||
  |
|

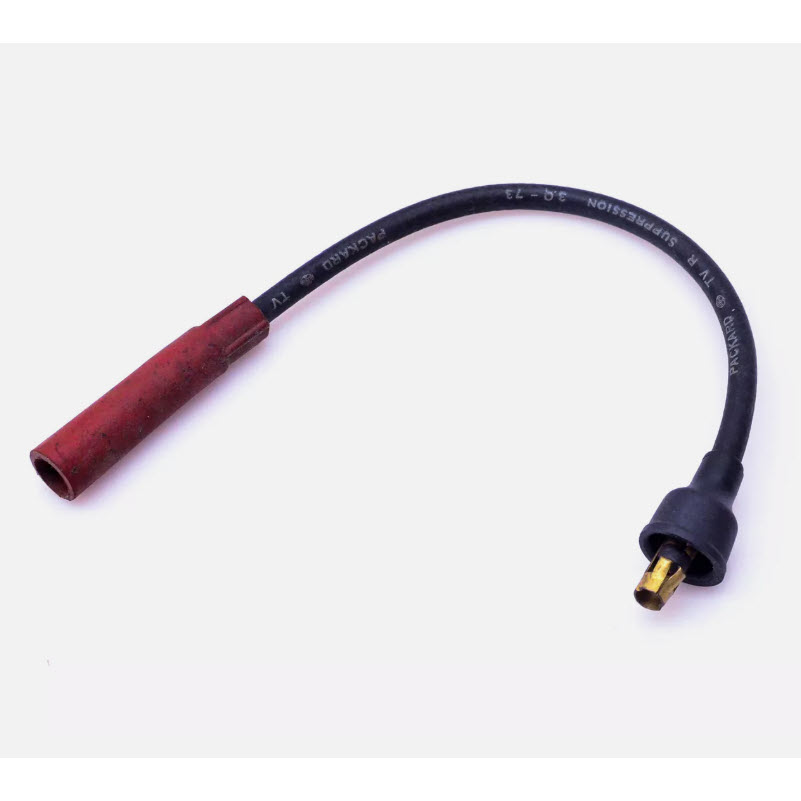

0580556 - Lead #3 (580556) [ More info ]
|
| #28 — 580557 — LEAD, #4. MODELS WITH FF&R SUFFIX ONLY (1 required per assembly) | ||
  |
|
0580557 - L/P 6.00 [ More info ] Unavailable |
| #28 — 979871 — LEAD, #1 AND 2. MODELS WITH R1 SUFFIX ONLY (2 required per assembly) | ||
  |
|
0979871 [ More info ] Unavailable Replaced by 0979872 |
  |
|
0979872 - Ignition Lead (979872) [ More info ]
|
| #28 — 979873 — LEAD, #4. MODELS WITH R1 SUFFIX ONLY (1 required per assembly) | ||
  |
|
0979873 - Lead Assembly (979873) [ More info ] Unavailable |
| #29 — 580558 — LEAD, COIL (1 required per assembly) | ||
  |
|
0580558 - Coil Lead (580558) [ More info ]
|
