Starter Solenoid & Cable Ass'y 120, 140 & 165 Without Selectrim Parts for 1974 OMC Stern Drive 120hp 990207R1 Stern Drive

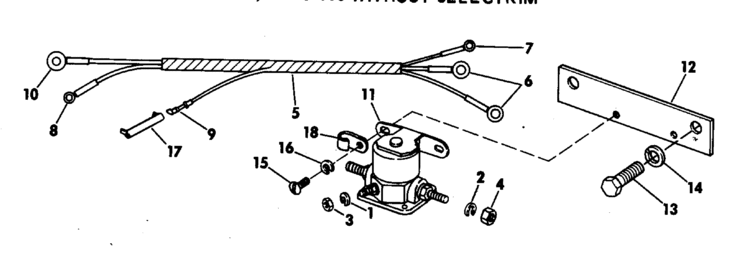

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #980424 — 980424 — STARTER SOLENOID & CABLE ASSEMBLY. NOT SHOWN (1 required per assembly) | ||
  |
|
0980424 - Starter Solenoid & Cable (980424) [ More info ]
|
| #1 — 120052 — LOCKWASHER (1 required per assembly) | ||
  |
|
0120052 - Lock Washer (120052) [ More info ]
|
| #2 — 306325 — LOCKWASHER (2 required per assembly) | ||
  |
|
0306325 - Lock Washer (306325) [ More info ]
|
| #3 — 306556 — NUT (1 required per assembly) | ||
  |
|
0306556 - Circuit Breaker Nut (306556) [ More info ]
|
| #4 — 306422 — NUT (2 required per assembly) | ||
  |
|
0306422 - Nut (306422) [ More info ]
|
| #5 — 980423 — CABLE ASSY, AUX STARTER (1 required per assembly) | ||
  |
|
0980423 - L/P 16.60 [ More info ] Unavailable |
| #6 — 203523 — TERMINAL (2 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #7 — 204036 — RING TERMINAL (1 required per assembly) | ||
  |
|
0204036 - Ring Terminal (204036) [ More info ]
|
| #8 — 204037 — RING TERMINAL (1 required per assembly) | ||
  |
|
0204037 [ More info ] Unavailable Replaced by 0510780 |
  |
|
0510780 - Ring Terminal (510780) [ More info ]
|
| #9 — 308808 — TERMINAL (1 required per assembly) | ||
  |
|
0308808 - Terminal (308808) [ More info ]
|
| #10 — 310502 — RING TERMINAL (1 required per assembly) | ||
  |
|
0310502 - Ring Terminal (310502) [ More info ]
|
| #11 — 979774 — SOLENOID ASSEMBLY (1 required per assembly) | ||
  |
|
0979774 - Solenoid (979774) [ More info ] Unavailable |
  |
|
18-5803 - Solenoid 979774 - 3 Post [ More info ]
|
  |
|
SW774 - Solenoid [ More info ]
|

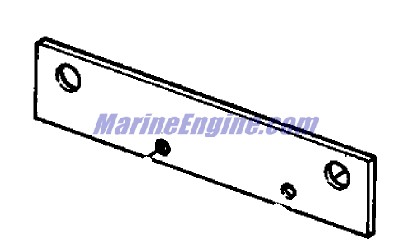

| #12 — 908723 — BRACKET, SOLENOID MOUNTING. 120, 140 HP (1 required per assembly) | ||
  |
|
0908723 - Plate (908723) [ More info ]
|
| #12 — 908185 — BRACKET, SOLENOID MOUNTING. 165 HP (1 required per assembly) | ||
  |
|
0908185 - Adaptor Plate (908185) [ More info ] Unavailable |
| #13 — 312316 — SCREW, BRACKET TO ENGINE. 120, 140 HP 165 HP (2 required per assembly) | ||
  |
|
0312316 - Screw (312316) [ More info ]
|
| #14 — 120177 — LOCKWASHER. 120, 140 HP 165 HP (2 required per assembly) | ||
  |
|
0120177 - Lock Washer (120177) [ More info ]
|
  |
|
3856736 - Washer Volvo Penta - Volvo Penta (3856736) [ More info ]
|
| #15 — 307907 — SCREW, AUX STARTER SOLENOID (2 required per assembly) | ||
  |
|
0307907 - Screw (307907) [ More info ]
|
| #16 — 306396 — LOCKWASHER, SOLENOID SCREW (2 required per assembly) | ||
  |
|
0306396 - Lock Washer (306396) [ More info ]
|
  |
|
3852053 - Screw, Volvo [ More info ]
|
| #17 — 303806 — SLEEVE, SOLENOID LEAD (1 required per assembly) | ||
  |
|
0303806 - Tubing (303806) [ More info ]
|
| #18 — 309041 — CLAMP, STARTER SOLENOID (1 required per assembly) | ||
  |
0309041 - Cable Clamp (309041) [ More info ] Unavailable |
|
  |
|
0330151 - J Clamp (330151) [ More info ]
|
