Cooling System Group 120 Hp Stern Drive Parts for 1974 OMC Stern Drive 120hp 990207R1 Stern Drive

Revise Search: All Years > 1974 > 120 hp > 990207R1 > Cooling System Group 120 Hp Stern Drive

NEED PARTS OR KITS?

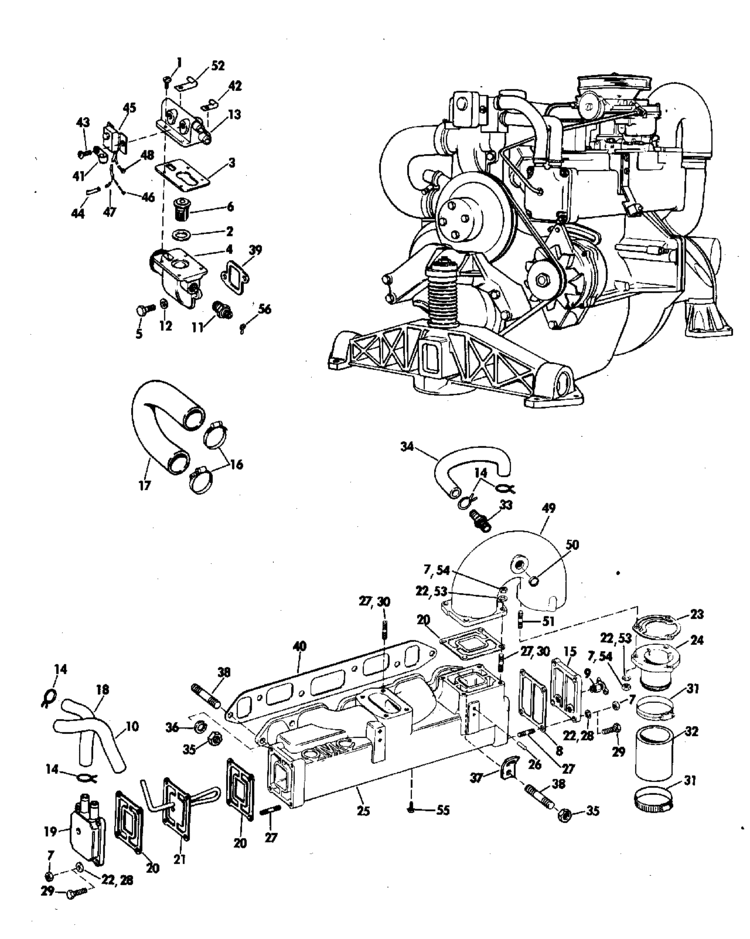

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1 — 316382 — SCREW (4 required per assembly)
		0316382 [ More info ] Unavailable Replaced by 0306010
		0306010 [ More info ] Unavailable Replaced by 0328724
		0328724 - Screw (328724) [ More info ] $15.12 10+ In Stock.
		3852115 - Screw, Volvo [ More info ] $7.50 Available to Order: Usually ships within 10 days.
		3852053 - Screw, Volvo [ More info ] $7.50 Available to Order: Usually ships within 10 days.

#2 — 310913 — GASKET, THERMOSTAT (1 required per assembly)

0310913 - Thermostat Housing Gasket (310913) [ More info ]

$6.88
10+ In Stock.

#3 — 314809 — GASKET, UPPER TO LOWER ASSY (1 required per assembly)

0314809 - Thermostat Housing Gasket (314809) [ More info ]

$5.15
10+ In Stock.

3852127 - Gasket, Volvo [ More info ]

$6.30
1 In Stock.

18-2858-9 - Gasket 314809 2-Pack [ More info ]

$8.07 $7.85
Available to Order: Usually ships within 10 days.

#4 — 383313 — HOUSING, THERMOSTAT ASSY (1 required per assembly)
		0383313 [ More info ] Unavailable Replaced by 0910303
		0910303 [ More info ] Unavailable Replaced by 0985959
		0985959 [ More info ] Unavailable Replaced by 0986868
		0986868 [ More info ] Unavailable Replaced by 0987533
		0987533 [ More info ] Unavailable Replaced by 3854254
		T-STAT HSG,NLA [ More info ] $109.99 2 In Stock.
		T-STAT HOUSING [ More info ] $103.00 $78.98 2 In Stock.

#5 — 306414 — SCREW (2 required per assembly)

HEXHD C SCREW [ More info ]

$4.23
10 In Stock.

#6 — 383307 — THERMOSTAT ASSEMBLY (1 required per assembly)

0383307 - Thermostat, 160 Degrees (383307) [ More info ]

$33.99 $27.83
10+ In Stock.

3856961 - Thermostat, Volvo [ More info ]

$37.90
Available to Order: Usually ships within 10 days.

18-3554 - Thermostat, 160 Degrees, 383307, 3856961 [ More info ]

$33.59 $33.17
10+ In Stock.

#7 — 306422 — NUT, STUD. MODELS WITH SUFFIX FF (15 required per assembly)

0306422 - Nut (306422) [ More info ]

$6.93 $4.56
10+ In Stock.

#8 — 907761 — GASKET, CAP TO MANIFOLD (1 required per assembly)

0907761 - Manifold Gasket (907761) [ More info ]

$6.88
10+ In Stock.

18-0114-1 - GASKET [ More info ]

$8.09 $6.84
Available to Order: Usually ships within 10 days.

#9 — 379757 — PETCOCK ASSY, WATER DRAIN (2 required per assembly)

PETCOCK,NLA [ More info ]
Unavailable

#10 — 311930 — HOSE, OUTLET (1 required per assembly)

HOSE [ More info ]

$24.99 $15.20
8 In Stock.

#11 — 171960 — SENDING UNIT, WATER TEMP (1 required per assembly)

0171960 - Water Temp Sending Unit (171960) [ More info ]

$31.91 $31.35
Available to Order: Usually ships within 10 days.

18-5898 - Sender, 97258A1, 171960 [ More info ]

$26.00
10 In Stock.

#12 — 306405 — WASHER (2 required per assembly)

0306405 - Washer (306405) [ More info ]

$6.74 $1.19
10+ In Stock.

3852058 - Washer - Volvo Penta (3852058) [ More info ]

$2.40
1 In Stock.

#13 — 314811 — HOUSING ASSY, UPPER (1 required per assembly)

910281 T-STAT HSG [ More info ]

$100.00
3 In Stock.

T-STAT HSG,NLA [ More info ]

$100.00
1 In Stock.

#14 — 307899 — CLAMP (6 required per assembly)

0307899 - Hose Clamp (307899) [ More info ]

$1.49 $1.25
9 In Stock.

#15 — 907763 — CAP, EXH MANIFOLD REAR (1 required per assembly)

0907763 [ More info ]
Unavailable
Replaced by 0980972

0980972 - L/P 120.84 [ More info ]
Unavailable

#16 — 311076 — CLAMP (2 required per assembly)

0311076 - Hose Clamp (311076) [ More info ]

$3.88
Available to Order: Usually ships within 10 days.

3863438 - Hose Clamp [ More info ]

$3.20
1 In Stock.

#17 — 311075 — HOSE (1 required per assembly)

0311075 - L/P 33.01 [ More info ]
Unavailable

#18 — 311554 — HOSE, THERMOSTAT HOUSING (1 required per assembly)

0311554 - L/P 13.34 [ More info ]
Unavailable

#19 — 311550 — CAP, MANIFOLD (1 required per assembly)
		0311550 [ More info ] Unavailable Replaced by 0910280
		END CAP [ More info ] $79.99 2 In Stock.
		END PLATE,NLA [ More info ] $99.99 $67.89 Available to Order: Usually ships within 10 days.

#20 — 311121 — GASKET, CAP TO MANIFOLD (3 required per assembly)

0311121 - Cap to Manifold Gasket (311121) [ More info ]

$5.15
10+ In Stock.

#21 — 380446 — HEAT EXCHANGER ASSY (1 required per assembly)

0380446 - Heat Exchanger (380446) [ More info ]

$64.89
10+ In Stock.

CHOKE STOVE [ More info ]

$88.00 $67.48
4 In Stock.

#22 — 301250 — WASHER, STUD. MODELS WITH SUFFIX FF (15 required per assembly)

0301250 - Washer (301250) [ More info ]

$8.43 $2.62
10+ In Stock.

#23 — 907764 — GASKET (1 required per assembly)
		0907764 - Elbow Adapter Gasket (907764) [ More info ] $4.31 $3.60 10+ In Stock.
		GSK,907764 [ More info ] 10 In Stock.
		778144 - Gasket - BRP [ More info ] $8.89 Available to Order: Usually ships within 10 days.

#24 — 907765 — ADAPTER, ELBOW TO HOSE (1 required per assembly)

OUTLET,EXHAUST [ More info ]

$79.99
2 In Stock.

OMC OUTLET FITTING [ More info ]

$86.00 $65.94
3 In Stock.

#25 — 979729 — MANIFOLD & STUD ASSY. MODELS WITH SUFFIX FF (1 required per assembly)
		0979729 [ More info ] Unavailable Replaced by 0981462
		0981462 - L/P 304.99 [ More info ] Unavailable
		OMC MANI,120HP (53#) [ More info ] $840.00 $644.11 2 In Stock.

#25 — 980459 — MANIFOLD & STUD ASSY. MODELS WITH SUFFIX R, R1 (1 required per assembly)

0980459 [ More info ]
Unavailable
Replaced by 0981462

#26 — 907799 — PIN (1 required per assembly)

0907799 - L/P 4.07 [ More info ]
Unavailable

#27 — 310870 — STUD (16 required per assembly)

0310870 - Stud (310870) [ More info ]

$16.99
10+ In Stock.

#28 — 306470 — LOCKWASHER, SCREW. MODELS WITH SUFFIX R, R1 (8 required per assembly)

0306470 - Lock Washer (306470) [ More info ]

$6.93 $3.52
10+ In Stock.

#29 — 552940 — SCREW, END CAP. MODELS WITH SUFFIX R, R1 (8 required per assembly)

0552940 - Screw (552940) [ More info ]

$9.63 $6.33
10+ In Stock.

#31 — 310894 — CLAMP, HOSE TO ADAPTER (2 required per assembly)

0310894 - Screw Clamp (310894) [ More info ]

$4.39 $3.66
10+ In Stock.

#32 — 907762 — HOSE, EXHAUST. MODELS WITH SUFFIX FF (1 required per assembly)

HOSE,SEE NOTE BELOW,NLA [ More info ]

$49.99
1 In Stock.

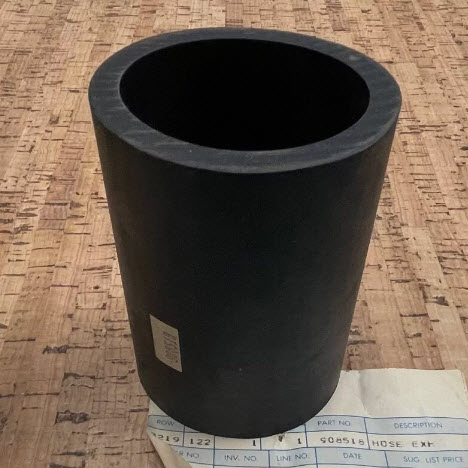

#32 — 908518 — HOSE, EXHAUST. MODELS WITH SUFFIX R, R1 (1 required per assembly)

HOSE [ More info ]

$30.00
2 In Stock.

#33 — 310904 — NIPPLE, ELBOW (1 required per assembly)

0310904 - Nipple (310904) [ More info ]

$8.99 $5.47
10+ In Stock.

#34 — 907806 — HOSE, INTER HOUSING (1 required per assembly)

0907806 [ More info ]
Unavailable
Replaced by 0909750

0909750 - Inter Housing Hose (909750) [ More info ]

$41.99 $25.54
8 In Stock.

#35 — 552938 — NUT, MANIFOLD TO ENGINE (6 required per assembly)

0552938 - Nut (552938) [ More info ]

$8.43
10+ In Stock.

#36 — 120177 — LOCKWASHER, MANIFOLD (5 required per assembly)

0120177 - Lock Washer (120177) [ More info ]

$6.93 $5.07
10+ In Stock.

3856736 - Washer Volvo Penta - Volvo Penta (3856736) [ More info ]

$2.10
Available to Order: Usually ships within 10 days.

#37 — 311111 — LIFT, BRACKET, PORT (1 required per assembly)

0311111 - L/P 10.23 [ More info ]
Unavailable

#38 — 310968 — STUD, MANIFOLD, FRONT AND REAR (6 required per assembly)

3852093 [ More info ]

$3.07
10+ In Stock.

STUD [ More info ]

$15.99 $13.36
10+ In Stock.

#39 — 3789161 — GASKET, HOUSING. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly)

[ More info ]
Unavailable

#40 — 311068 — GASKET, MANIFOLD TO HEAD (1 required per assembly)

0311068 - Exhaust Manifold Gasket (311068) [ More info ]

$27.79 $25.02
Available to Order: Usually ships within 10 days.

18-28961 - Gasket - Exhaust Manifold OMC311068 [ More info ]

$13.99 $13.88
Available to Order: Usually ships within 10 days.

3853304 - Manifold Gasket - Head [ More info ]

$17.49 $15.74
Available to Order: Usually ships within 10 days.

#41 — 310493 — CLAMP, VOLTAGE REG LEADS (1 required per assembly)

0310493 - CLAMP [ More info ]

$2.25
10+ In Stock.

0310441 - J-Clamp (310441) [ More info ]

$4.52 $2.97
10+ In Stock.

#42 — 309322 — CLAMP, THERMOSTAT HSG (1 required per assembly)
		0309322 [ More info ] Unavailable Replaced by 0309041
		0309041 [ More info ] Unavailable Replaced by 0330151
$CLAMP \'J\' 0330151$		0330151 - J Clamp (330151) [ More info ] $3.32 10+ In Stock.
