Anti-corrosion Anode Kit 120, 140, 165, 170, 190, 225 & 245 Parts for 1974 OMC Stern Drive 120hp 990207R1 Stern Drive

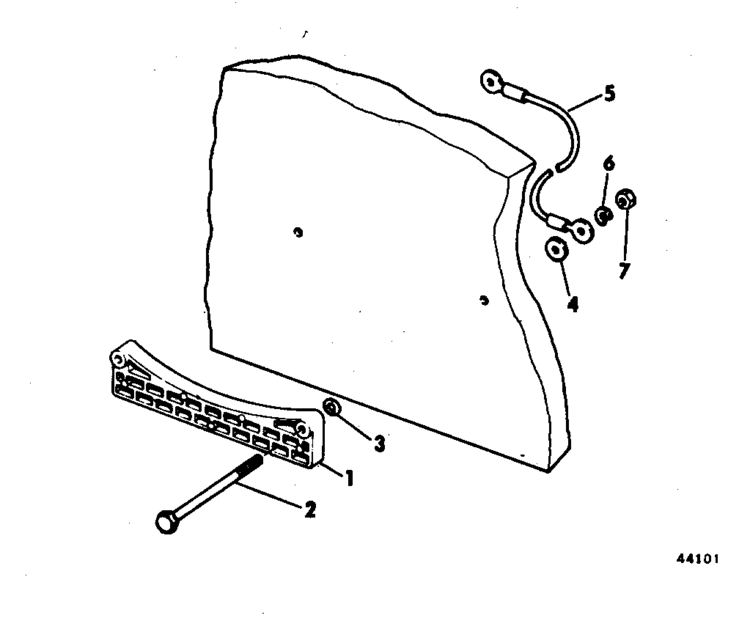

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

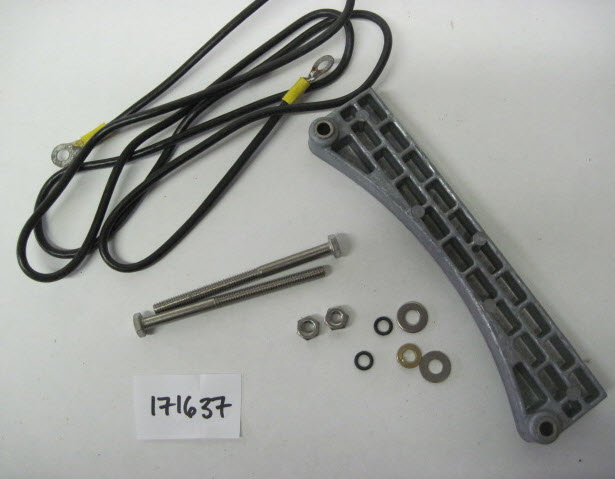

| #171637 — 171637 — ANTI-CORROSION ANODE KIT. NOT SHOWN (1 required per assembly) | ||
  |
|
0171637 - Anode Kit (171637) [ More info ]
|

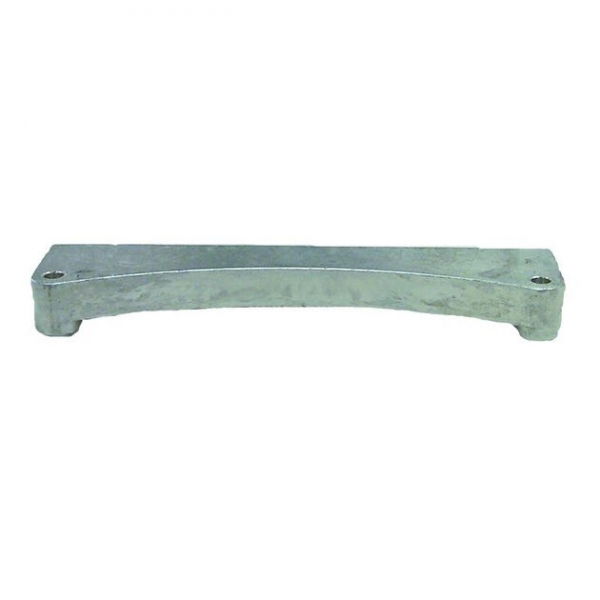

| #1 — 976669 — ANODE (1 required per assembly) | ||
  |
|
0976669 - Anode, Zinc (976669) [ More info ]
|

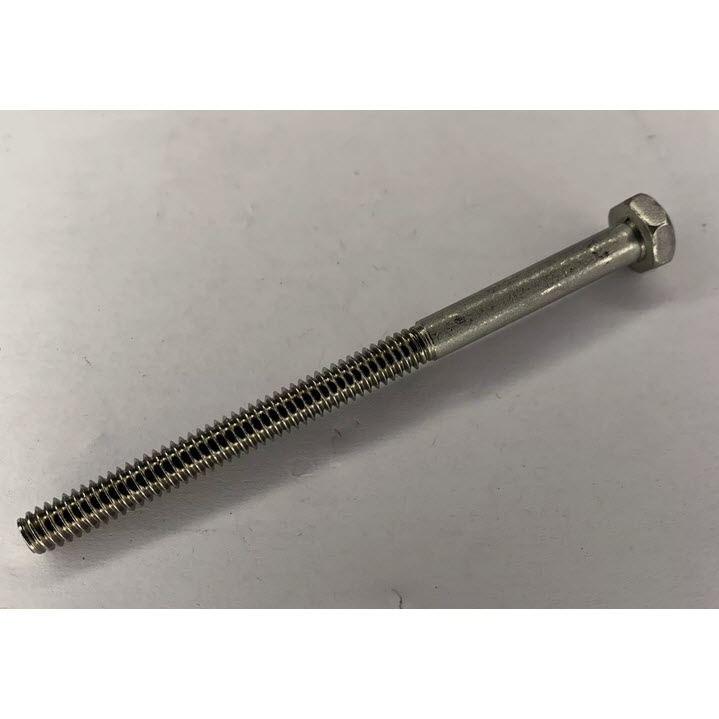

| #2 — 121192 — SCREW, TRANSOM TO ANODE (2 required per assembly) | ||
  |
|
0121192 - Screw (121192) [ More info ]
|

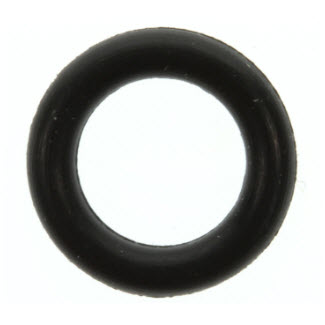

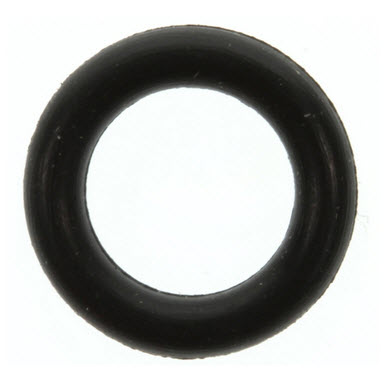

| #3 — 900224 — ''O'' RING, ANODE SEAL (2 required per assembly) | ||
  |
|
|
  |
|
0305739 - O-ring - Nipple (305739) [ More info ]
|

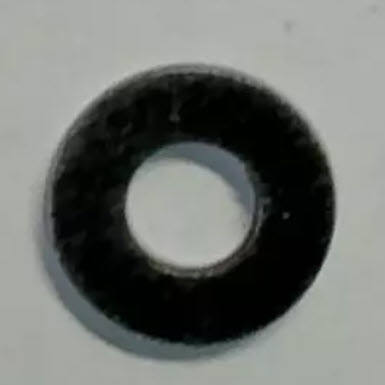

| #4 — 309487 — WASHER, SCREW, ANODE (2 required per assembly) | ||
  |
|
0309487 - Washer (309487) [ More info ]
|
| #5 — 171639 — ANODE LEAD (1 required per assembly) | ||
  |
|
0171639 - Ground Lead (171639) [ More info ] Unavailable |
| #6 — 306396 — LOCKWASHER (2 required per assembly) | ||
  |
|
0306396 - Lock Washer (306396) [ More info ]
|
  |
|
3852053 - Screw, Volvo [ More info ]
|
| #7 — 301472 — NUT (2 required per assembly) | ||
  |
|
0301472 - Nut (301472) [ More info ]
|
  |
|
0328740 - Nut (328740) [ More info ]
|
