Engine Mount Group 225 & 245 Hp Stern Drive Parts for 1973 OMC Stern Drive 245hp 990212F Stern Drive

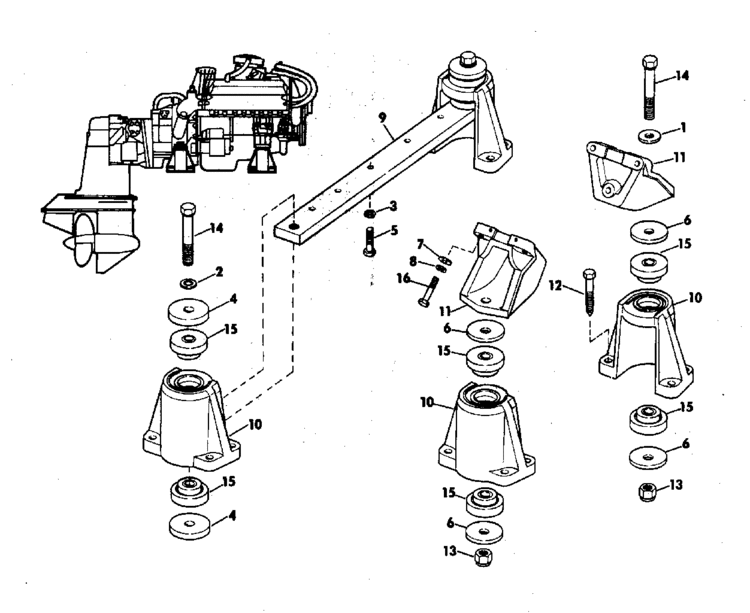

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

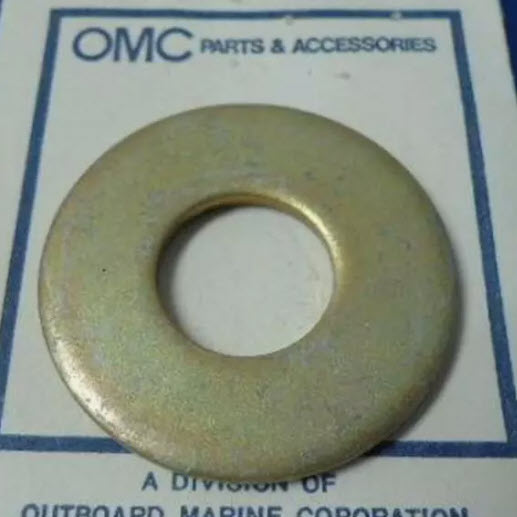

| #1 — 908197 — WASHER, MOUNT SCREW (2 required per assembly) | ||
  |
|
0908197 - Washer (908197) [ More info ] Unavailable |
| #2 — 310856 — LOCKWASHER, MOUNT, UPPER (2 required per assembly) | ||
  |
|
0310856 - LockWasher (310856) [ More info ]
|
  |
|
3852090 - L/P 1.99 [ More info ] Unavailable |
  |
|

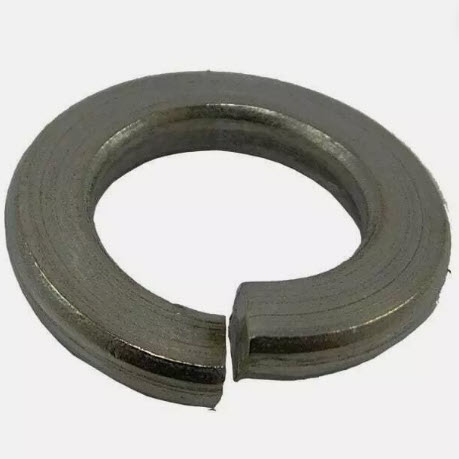

60113765 - Spring Washer [ More info ]
|
| #3 — 120177 — LOCKWASHER, LATERAL TO ADAPTOR (5 required per assembly) | ||
  |
|
0120177 - Lock Washer (120177) [ More info ]
|
  |
|
3856736 - Washer Volvo Penta - Volvo Penta (3856736) [ More info ]
|
| #4 — 908115 — WASHER, UPPER & LOWER MOUNT (4 required per assembly) | ||
  |
|
0908115 - Washer (908115) [ More info ]
|
| #5 — 308963 — SCREW, LATERAL TO ADAPTOR (5 required per assembly) | ||
  |
|

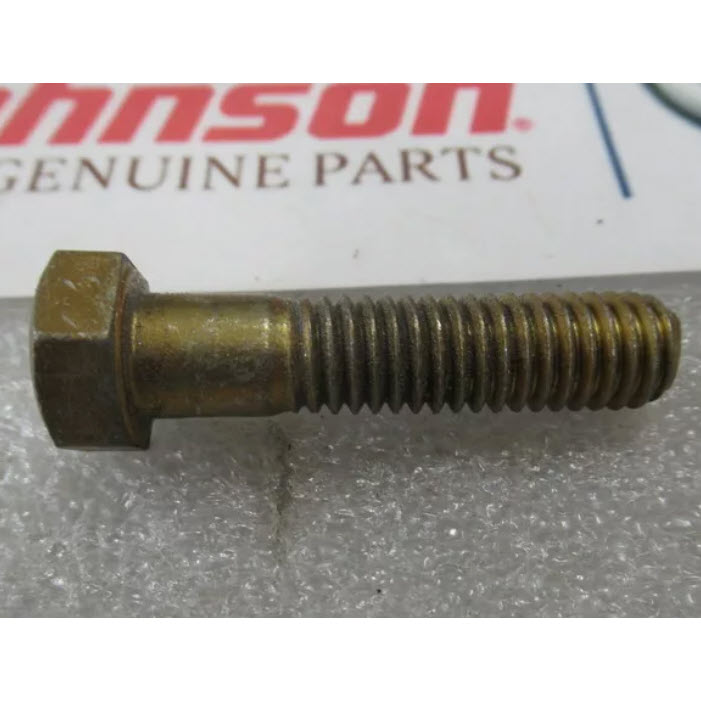

0308963 - Screw, Bracket (308963) [ More info ]
|
| #6 — 908114 — WASHER, FRONT MOUNT (4 required per assembly) | ||
  |
|

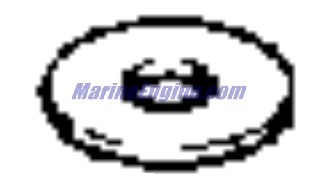

0908114 [ More info ] Unavailable Replaced by 3852433 |
  |
|
NLA [ More info ] Unavailable |
  |
|

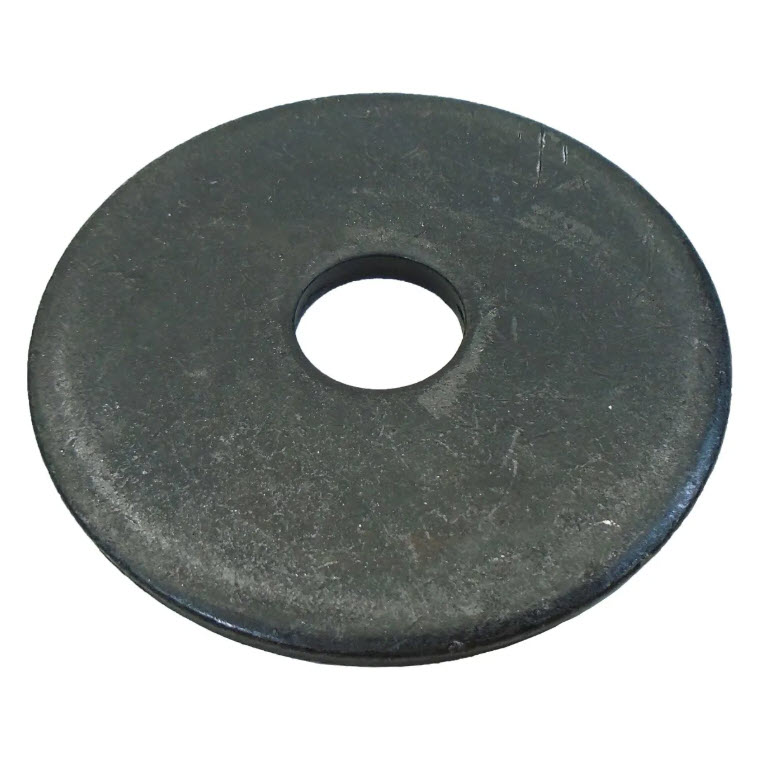

60114010 - Washer(V2) - Volvo Penta (60114010) [ More info ]
|
| #8 — 306405 — WASHER, BRACKETS TO ENGINE (6 required per assembly) | ||
  |
|
0306405 - Washer (306405) [ More info ]
|
  |
|
3852058 - Washer - Volvo Penta (3852058) [ More info ]
|
| #9 — 908116 — REAR LATERAL, ADAPTOR TO MOUNTS (1 required per assembly) | ||
  |
|
0908116 - L/P 76.65 [ More info ] Unavailable |
| #10 — 908117 — BASE, MOUNT. OPTIONAL MOUNT BASE (P/N 908596) WHICH IS 2" SHORTER THAN (4 required per assembly) | ||
  |
|

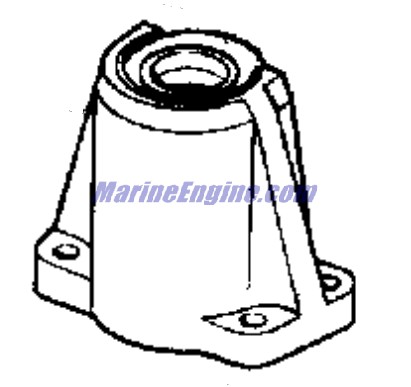

0908117 - Mount Base Assembly (908117) [ More info ] Unavailable |

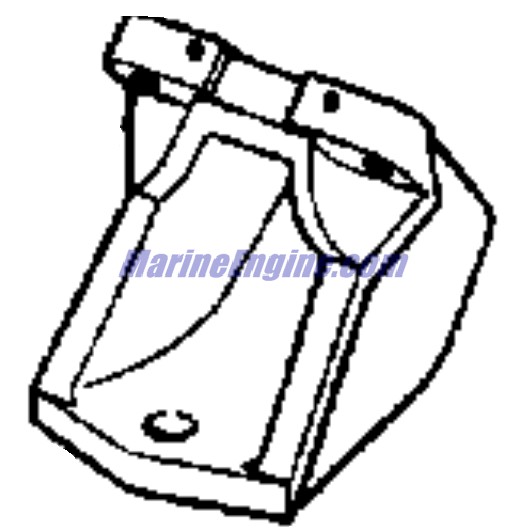

| #11 — 908118 — BRACKET, ENGINE TO MOUNT (2 required per assembly) | ||
  |
|
0908118 - BRACKET [ More info ] Unavailable |
| #12 — 908212 — LAG SCREW (16 required per assembly) | ||
  |
|
0908212 - L/P 1.94 [ More info ] Unavailable |
| #13 — 907858 — LOCKNUT, MOUNT SCREW (2 required per assembly) | ||
  |
|
0907858 - Lock Nut (907858) [ More info ]
|

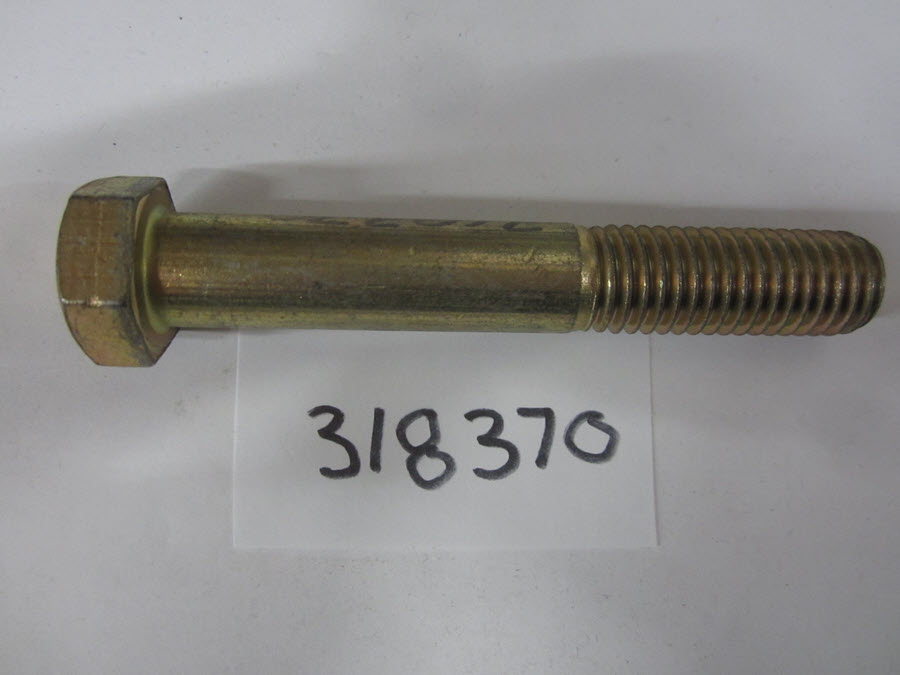

| #14 — 318370 — SCREW, RUBBER MOUNT (4 required per assembly) | ||
  |
|
0318370 - Screw, Rubber Mount (318370) [ More info ]
|
| #15 — 980159 — RUBBER MOUNT ASSY (8 required per assembly) | ||
  |
|
0980159 - Rubber Mount, NLA (980159) [ More info ]
|
| #16 — 908543 — SCREW, BRACKETS TO ENGINE (6 required per assembly) | ||
  |
|
0908543 - Screw, Bracket To Engine, Front (908543) [ More info ] Unavailable |
