Instrument Kit Assembly - Sun Shielded Opt Item - All Models Parts for 1973 OMC Stern Drive 225hp 990211S Stern Drive

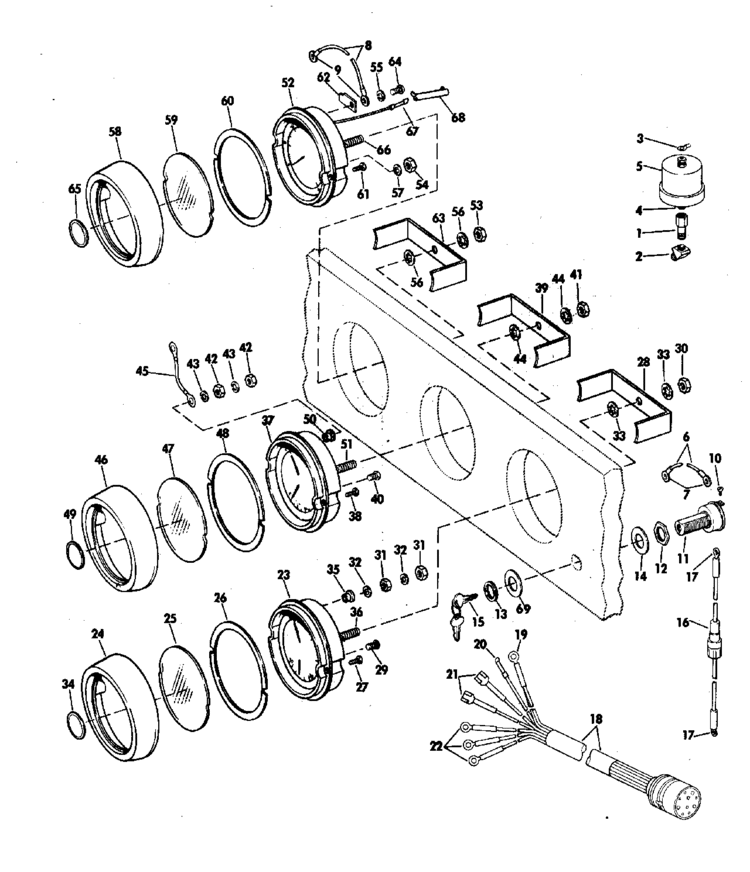

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 121687 — FITTING, BLOCK TO UNIT (1 required per assembly) | ||
  |
|
0121687 - Fitting, (121687) [ More info ]
|
| #2 — 121688 — ADAPTER, BLOCK TO UNIT (1 required per assembly) | ||
  |
|
0121688 - Adapter Fitting (121688) [ More info ]
|
  |
|
0914038 [ More info ] Unavailable Replaced by 3852968 |
  |
|
3852968 [ More info ] Unavailable Replaced by 3855776 |
  |
|
NLA [ More info ] Unavailable |
  |
|
3855776 - ADAPTOR Volvo Penta (3855776) [ More info ]
|
| #3 — 121689 — TERMINAL, OIL PRESSURE UNIT (4 required per assembly) | ||
  |
|
0121689 - Terminal (121689) [ More info ]
|
| #4 — 121891 — ELBOW, EXT TO OIL UNIT (1 required per assembly) | ||
  |
|
0121891 - Elbow (121891) [ More info ]
|
| #5 — 172127 — SENDING UNIT ASSEMBLY (1 required per assembly) | ||
  |
0172127 - Sender (172127) [ More info ] Unavailable |
|
  |
|
0982650 [ More info ] Unavailable Replaced by 3853800 |
  |
|
3853800 - L/P 25.09 [ More info ] Unavailable |
  |
|
18-5899 - Sender, 982650, 815425T [ More info ]
|
| #6 — 172148 — LEAD ASSEMBLY (2 required per assembly) | ||
  |
|
0172148 - Lead Assembly, Positive (172148) [ More info ] Unavailable |
| #7 — 510266 — RING TERMINAL (2 required per assembly) | ||
  |
|
0510266 - Terminal 41103 (510266) [ More info ]
|
| #8 — 172149 — LEAD ASSEMBLY (2 required per assembly) | ||
  |
|
0172149 - Lead Assembly (172149) [ More info ] Unavailable |
| #10 — 306559 — SCREW, IGNITION SWITCH (4 required per assembly) | ||
  |
|
0306559 - Screw, Ign. Switch Term (306559) [ More info ]
|
| #11 — 378238 — IGNITION SWITCH & KEY ASSY (1 required per assembly) | ||
  |
0378238 - Ignition Switch (378238) [ More info ] Unavailable |
|
  |
|
0386545 - Ignition Switch Kit - See Note On Detail Page (386545) [ More info ]
|
  |
|
MP39830 - Ignition Switch, 386545 [ More info ]
|
  |
|
MP39100 - Ignition Switch, 386545 [ More info ]
|
| #12 — 304644 — NUT (1 required per assembly) | ||
  |
|
0304644 - Nut (304644) [ More info ]
|
| #13 — 204366 — FACE NUT (1 required per assembly) | ||
  |
|
0204366 - Face Nut (204366) [ More info ]
|
| #14 — 309893 — WASHER (1 required per assembly) | ||
  |
|
0309893 - Washer (309893) [ More info ]
|
| #16 — 378334 — LEAD FUSE HOLDER ASSY (1 required per assembly) | ||
  |
|
0378334 - Fuse Holder (378334) [ More info ]
|
| #17 — 204039 — RING TERMINAL (1 required per assembly) | ||
  |
|
0204039 - Ring Terminal (204039) [ More info ]
|
| #18 — 979924 — CABLE ASSEMBLY (1 required per assembly) | ||
  |
|
0979924 - L/P 294.93 [ More info ] Unavailable |
| #19 — 204036 — RING TERMINAL (1 required per assembly) | ||
  |
|
0204036 - Ring Terminal (204036) [ More info ]
|
| #20 — 308808 — KNIFE DISCONNECT (1 required per assembly) | ||
  |
|
0308808 - Terminal (308808) [ More info ]
|
| #21 — 204034 — SLIDE ON TERMINAL (2 required per assembly) | ||
  |
|
0204034 - Terminal -3000H-19A (204034) [ More info ]
|
| #23 — 172074 — AMP FUEL GAUGE ASSY (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #24 — 121703 — BEZEL (1 required per assembly) | ||
  |
|
0121703 - Bezel (121703) [ More info ] Unavailable |
| #25 — 121704 — LENS (1 required per assembly) | ||
  |
|
0121704 - Lens - Gauge (121704) [ More info ] Unavailable |
| #26 — 121705 — SEAL (1 required per assembly) | ||
  |
|
0121705 - Seal (121705) [ More info ] Unavailable |
| #27 — 121706 — SCREW (2 required per assembly) | ||
  |
|
0121706 - L/P .25 [ More info ] Unavailable |
| #28 — 121710 — BRACKET (1 required per assembly) | ||
  |
|
0121710 - Bracket (121710) [ More info ]
|
| #29 — 121788 — SCREW (1 required per assembly) | ||
  |
|
0121788 - Screw (121788) [ More info ] Unavailable |
| #30 — 304753 — NUT (1 required per assembly) | ||
  |
|
0304753 - Nut (304753) [ More info ]
|
  |
|
0328741 - Spark Adjust Nut (328741) [ More info ]
|
| #31 — 309485 — NUT (8 required per assembly) | ||
  |
|
0309485 - Follower Pin Nut (309485) [ More info ]
|
| #32 — 304141 — LOCKWASHER (9 required per assembly) | ||
  |
|
0304141 - LockWasher (304141) [ More info ]
|
| #33 — 306992 — LOCKWASHER (2 required per assembly) | ||
  |
|
0306992 - LockWasher (306992) [ More info ]
|
| #34 — 121720 — BUTTON (1 required per assembly) | ||
  |
|
0121720 - Button (121720) [ More info ] Unavailable |
| #35 — 121649 — INSULATOR (2 required per assembly) | ||
  |
|
0121649 - Insulator (121649) [ More info ]
|
| #36 — 122087 — STUD (1 required per assembly) | ||
  |
|
0122087 - STUD, (122087) [ More info ] Unavailable |
| #37 — 172083 — OIL PRESS/WATER TEMP GAUGE (1 required per assembly) | ||
  |
|
0172083 - Gauges, NLA (172083) [ More info ]
|
| #45 — 172058 — LEAD (1 required per assembly) | ||
  |
|
0172058 - Lead (172058) [ More info ] Unavailable |
| #52 — 172077 — TACHOMETER ASSEMBLY (1 required per assembly) | ||
  |
|
0172077 - L/P 57.50 [ More info ] Unavailable |
| #54 — 302437 — NUT (2 required per assembly) | ||
  |
|
0302437 - Nut (302437) [ More info ]
|
| #57 — 307247 — LOCKWASHER (2 required per assembly) | ||
  |
|
0307247 - Washer (307247) [ More info ]
|
| #62 — 121708 — SWITCH BLADE (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #68 — 303806 — TUBING (1 required per assembly) | ||
  |
|
0303806 - Tubing (303806) [ More info ]
|
