Tilt Motor Group 100, 120, 140, 165, 225 & 245 Hp Parts for 1973 OMC Stern Drive 225hp 990211F Stern Drive

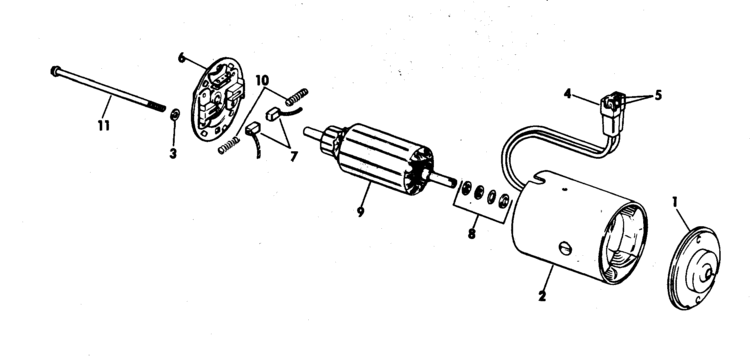

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #382138 — 382138 — TILT MOTOR ASSEMBLY. NOT SHOWN (1 required per assembly) | ||
  |
|
0382138 - Tilt Motor (382138) [ More info ]
|
  |
|
18-6754 - Tilt Motor 382138 [ More info ]
|
  |
|
6209 - Tilt Trim Motor, OMC [ More info ]
|

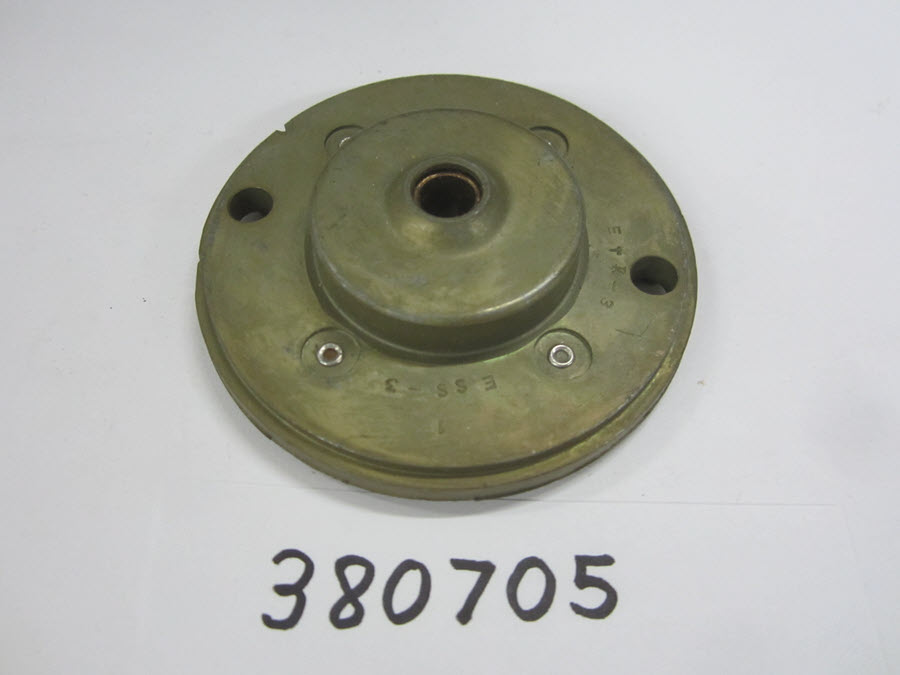

| #1 — 380705 — HEAD ASSY, DRIVE END (1 required per assembly) | ||
  |
|
0380705 - Head (380705) [ More info ]
|
| #2 — 382444 — FRAME & FIELD COIL ASSEMBLY (1 required per assembly) | ||
  |
|
0382444 - Frame & Fld. (382444) [ More info ]
|

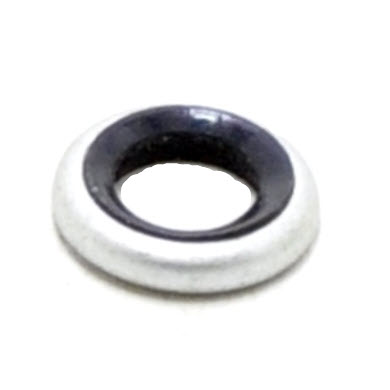

| #3 — 312013 — SEAL, WASHER (2 required per assembly) | ||
  |
|
WASHER,NLA [ More info ]
|
| #4 — 510472 — HOUSING (1 required per assembly) | ||
  |
|
0510472 - Terminal 480116-2 (510472) [ More info ]
|

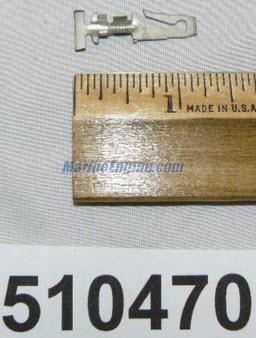

| #5 — 510470 — TERMINAL (2 required per assembly) | ||
  |
|
0510470 - Terminal (510470) [ More info ]
|

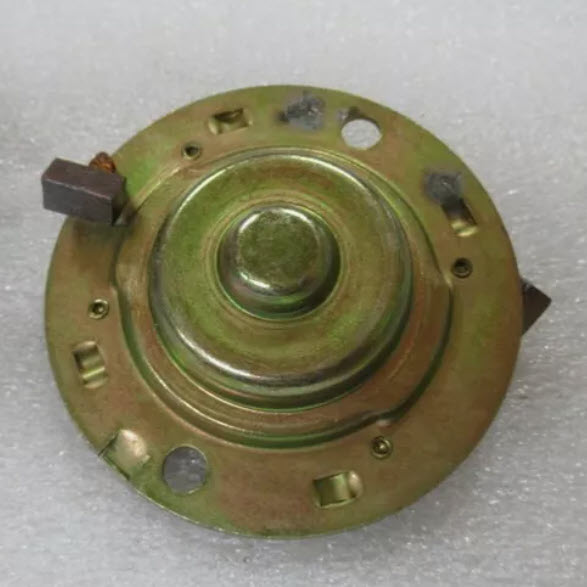

| #6 — 382545 — HEAD ASSY, COMMUTATOR END (1 required per assembly) | ||
  |
|
HEAD #0075, [ More info ]
|
| #7 — 380706 — BRUSH SET (1 required per assembly) | ||
  |
|
0380706 [ More info ] Unavailable Replaced by 0982310 |
  |
|
|

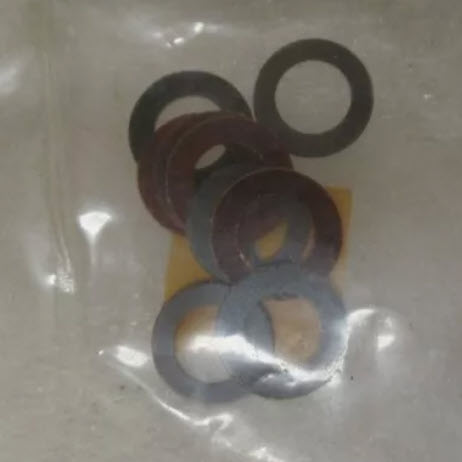

| #8 — 380752 — THRUST WASHER & SPACER PACKAGE (1 required per assembly) | ||
  |
|
WASHER/SPACER KIT,NLA [ More info ]
|

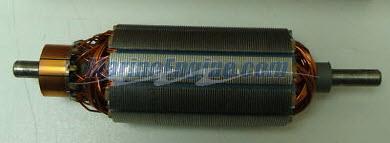

| #9 — 382544 — ARMATURE ASSEMBLY (1 required per assembly) | ||
  |
|
0382544 - Armature (382544) [ More info ]
|
| #10 — 380751 — SPRING SET (1 required per assembly) | ||
  |
|
|
  |
|
SPRING SET 00745 [ More info ]
|

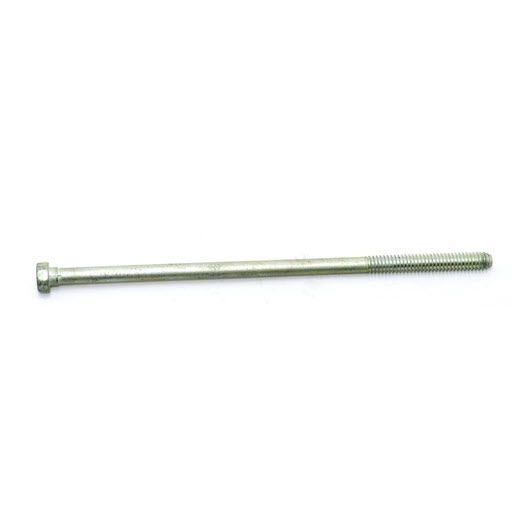

| #11 — 383402 — THRU BOLT PACKAGE (1 required per assembly) | ||
  |
|
0383402 - Thru Bolt Package (383402) [ More info ]
|
