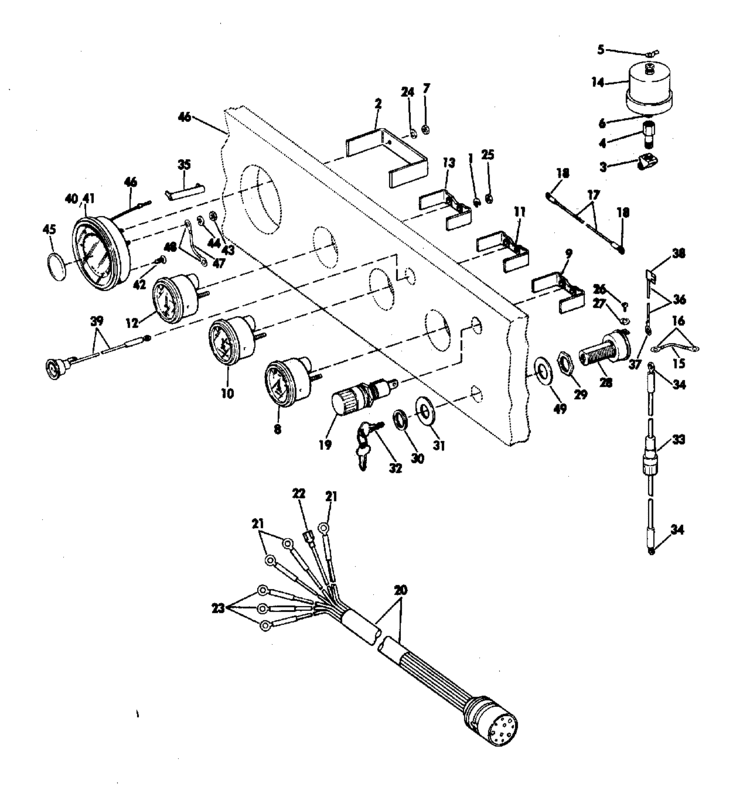

Instrument Kit Assembly Ring Bezel Optional Item - All Model Parts for 1973 OMC Stern Drive 225hp 990211F Stern Drive
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 120052 — LOCKWASHER, AMMETER TERMINAL (0 required per assembly) | ||
  |
|
0120052 - Lock Washer (120052) [ More info ]
|
| #3 — 121687 — FITTING, BLOCK TO UNIT (1 required per assembly) | ||
  |
|
|
| #4 — 121688 — ADAPTER, BLOCK TO UNIT (1 required per assembly) | ||
  |
|
|
  |
|
0914038 [ More info ] Unavailable Replaced by 3852968 |
  |
|
3852968 [ More info ] Unavailable Replaced by 3855776 |
  |
|
NLA [ More info ] Unavailable |
  |
|
3855776 - ADAPTOR Volvo Penta (3855776) [ More info ]
|
| #5 — 121689 — TERMINAL, OIL PRESSURE UNIT (0 required per assembly) | ||
  |
|
|
| #6 — 121891 — ELBOW, EXT TO OIL UNIT (1 required per assembly) | ||
  |
|
|
| #7 — 133079 — NUT, TACHOMETER BRACKET (2 required per assembly) | ||
  |
|
0133079 - Nut (133079) [ More info ]
|
| #8 — 171957 — OIL PRESSURE GAUGE ASSY (1 required per assembly) | ||
  |
|
0171957 - L/P 20.61 [ More info ] Unavailable |
| #9 — 380485 — BRACKET, MOUNTING (1 required per assembly) | ||
  |
|
0380485 - Bracket Assembly (380485) [ More info ]
|
| #10 — 171958 — WATER TEMPERATURE GAUGE ASSEMBLY (1 required per assembly) | ||
  |
|
0171958 [ More info ] Unavailable Replaced by 0172735 |
  |
|
0172735 - L/P 22.00 [ More info ] Unavailable |
| #12 — 380444 — AMMETER (1 required per assembly) | ||
  |
|
0380444 - Amp Gauge Als (380444) [ More info ]
|
| #14 — 172127 — SENDING UNIT ASSEMBLY (1 required per assembly) | ||
  |
|
0172127 [ More info ] Unavailable Replaced by 0982650 |
  |
|
0982650 [ More info ] Unavailable Replaced by 3853800 |
  |
|
3853800 - L/P 25.09 [ More info ] Unavailable |
  |
|
18-5899 - Sender, 982650, 815425T [ More info ]
|
| #15 — 172148 — LEAD ASSEMBLY, GAUGE TO SWITCH (0 required per assembly) | ||
  |
|
0172148 - L/P 3.60 [ More info ] Unavailable |
| #16 — 510266 — RING TERMINAL (2 required per assembly) | ||
  |
|
0510266 - Terminal 41103 (510266) [ More info ]
|
| #17 — 172149 — LEAD ASSEMBLY, GROUND (0 required per assembly) | ||
  |
|
0172149 - L/P 1.90 [ More info ] Unavailable |
| #19 — 172410 — FUSE HOLDER ASSEMBLY (1 required per assembly) | ||
  |
|
0172410 - FUSE HOLDER [ More info ] Unavailable |
| #20 — 172433 — CABLE ASSEMBLY, ON MODELS W/OIL PRESSURE GAUG E (1 required per assembly) | ||
  |
|
0172433 - Cable Assembly (172433) [ More info ] Unavailable |
| #20 — 979924 — CABLE ASSEMBLY, ON MODELS W/OIL PRESSURE LIGH T (1 required per assembly) | ||
  |
|
0979924 - L/P 294.93 [ More info ] Unavailable |
| #21 — 204036 — RING TERMINAL, USED ON MODELS W/OIL GAUGE (0 required per assembly) | ||
  |
|
0204036 - Ring Terminal (204036) [ More info ]
|
| #21 — 204034 — SPADE TERMINAL, USED ON MODELS W/OIL LIGHT (2 required per assembly) | ||
  |
|
0204034 - Terminal -3000H-19A (204034) [ More info ]
|
| #22 — 308808 — SPADE TERMINAL (1 required per assembly) | ||
  |
|
0308808 - Terminal (308808) [ More info ]
|
| #23 — 204039 — RING TERMINAL (3 required per assembly) | ||
  |
|
TERM.-41124 [ More info ]
|
| #25 — 306556 — NUT (0 required per assembly) | ||
  |
|
0306556 - Circuit Breaker Nut (306556) [ More info ]
|
| #26 — 306559 — SCREW, IGNITION SWITCH (4 required per assembly) | ||
  |
|
0306559 - Screw, Ign. Switch Term (306559) [ More info ]
|
| #27 — 306991 — LOCKWASHER, IGNITION SWITCH (2 required per assembly) | ||
  |
|
0306991 - LockWasher (306991) [ More info ] Unavailable |
| #28 — 378238 — SWITCH & KEY ASSEMBLY, IGNITION (1 required per assembly) | ||
  |
|
0378238 [ More info ] Unavailable Replaced by 0386545 |
  |
|
0386545 - Ignition Switch Kit - See Note On Detail Page (386545) [ More info ]
|
  |
|
MP39830 - Ignition Switch, 386545 [ More info ]
|
  |
|
MP39100 - Ignition Switch, 386545 [ More info ]
|
| #29 — 304644 — NUT (1 required per assembly) | ||
  |
|
0304644 - Nut (304644) [ More info ]
|
| #30 — 204366 — FACE NUT (1 required per assembly) | ||
  |
|
0204366 - Face Nut (204366) [ More info ]
|
| #31 — 309893 — WASHER (1 required per assembly) | ||
  |
|
0309893 - Washer (309893) [ More info ]
|
| #33 — 378334 — LEAD & FUSE HOLDER ASSY (1 required per assembly) | ||
  |
|
0378334 - Fuse Holder (378334) [ More info ]
|
| #35 — 303806 — COVER, KNIFE DISCONNECT (1 required per assembly) | ||
  |
|
|
| #36 — 279177 — LEAD ASSEMBLY, SWITCH TO TILT FUSE (1 required per assembly) | ||
  |
|
0279177 - L/P 5.25 [ More info ] Unavailable |
| #37 — 204037 — RING TERMINAL (1 required per assembly) | ||
  |
|
0204037 [ More info ] Unavailable Replaced by 0510780 |
  |
|
TERM. 40724 [ More info ]
|
| #39 — 379852 — INDICATOR LIGHT (1 required per assembly) | ||
  |
|
0379852 - INDCATE OIL LIGHT [ More info ] Unavailable |
| #40 — 172051 — TACHOMETER ASSY (1 required per assembly) | ||
  |
|
0172051 - L/P 174.00 [ More info ] Unavailable |
| #41 — 172045 — TACHOMETER (1 required per assembly) | ||
  |
|
0172045 - TACH [ More info ] Unavailable |
| #42 — 121354 — SCREW, BACKPLATE TO CASE (2 required per assembly) | ||
  |
|
0121354 - L/P .20 [ More info ] Unavailable |
| #45 — 121720 — TRIM BUTTON (1 required per assembly) | ||
  |
|
0121720 - BUTTON [ More info ] Unavailable |
| #171759 — 171759 — CASE ASSY. NOT SHOWN (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #47 — 172140 — GROUND WIRE ASSY (1 required per assembly) | ||
  |
|
0172140 - L/P 1.00 [ More info ] Unavailable |
