Remote Control Assembly - Single Lever Optional Item - All Models Parts for 1973 OMC Stern Drive 225hp 990211F Stern Drive

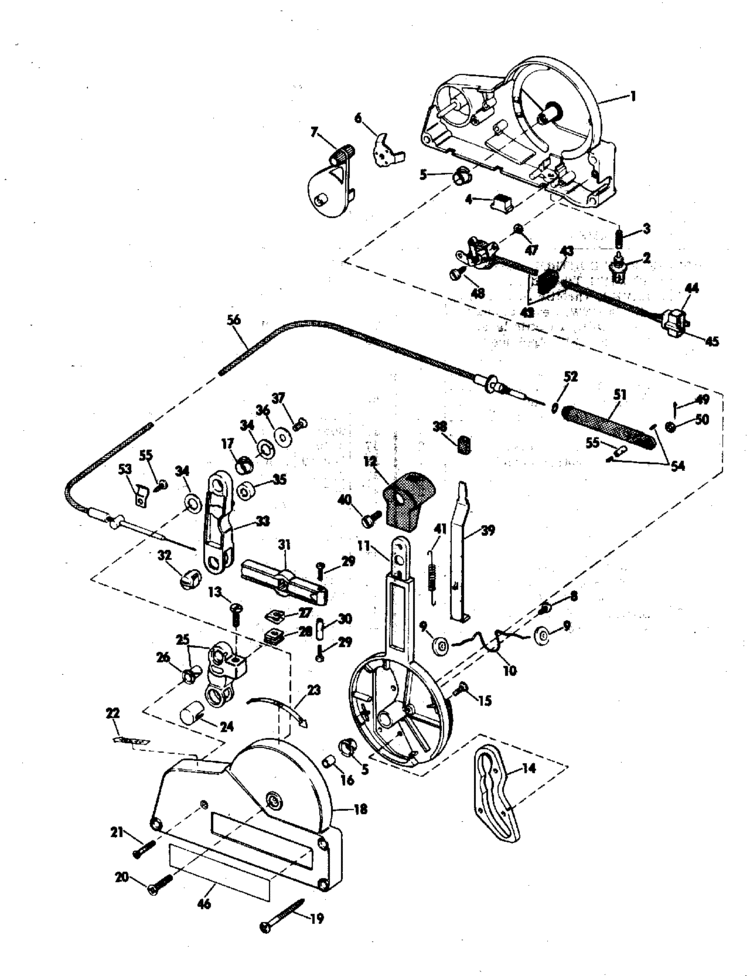

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #979898 — 979898 — REMOTE CONTROL ASSY, BLACK. NOT SHOWN (1 required per assembly) | ||
 |
|
0979898 - L/P 419.94 [ More info ] Unavailable |

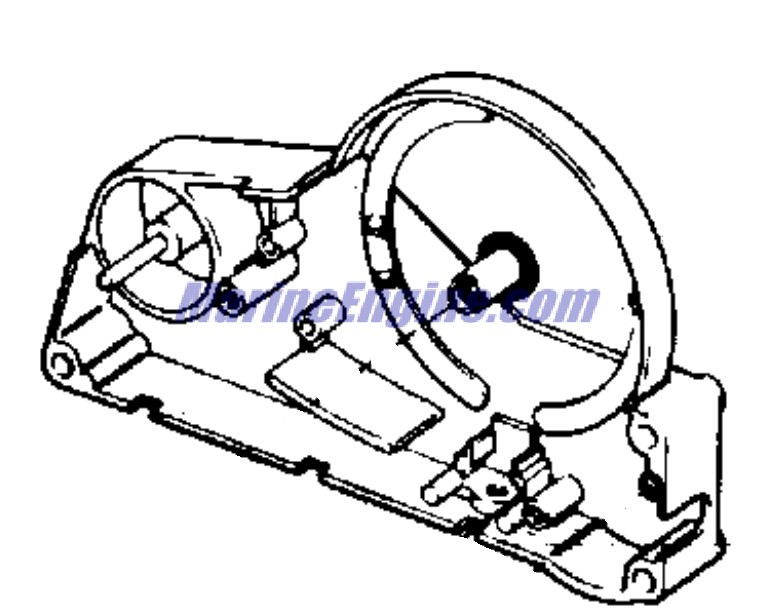

| #1 — 384608 — HOUSING & PIN, LEFT HALF (1 required per assembly) | ||
  |
|
0384608 - Control Housing [ More info ]
|

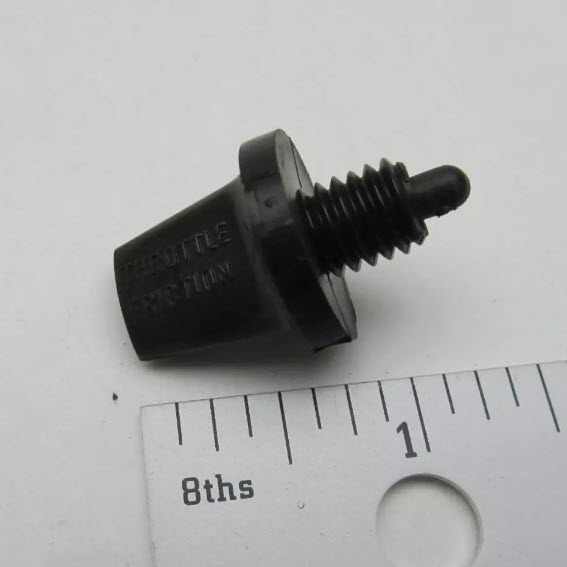

| #2 — 309060 — SCREW, THROTTLE FRICTION (1 required per assembly) | ||
  |
|
0309060 - Throttle Friction Screw [ More info ]
|

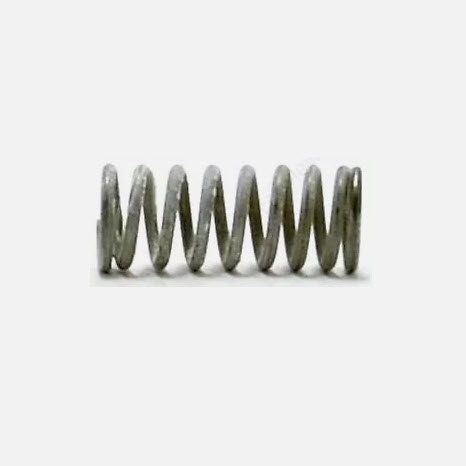

| #3 — 308514 — SPRING, THROTTLE FRICTION DETENT (1 required per assembly) | ||
  |
|
0308514 - Throttle Friction Detent Spring [ More info ]
|

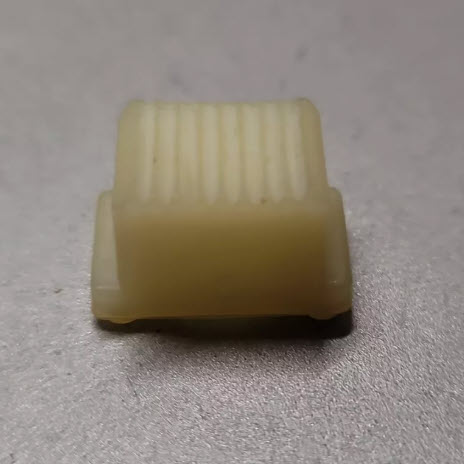

| #4 — 308515 — DETENT, THROTTLE FRICTION (1 required per assembly) | ||
  |
|
0308515 - Detent [ More info ]
|

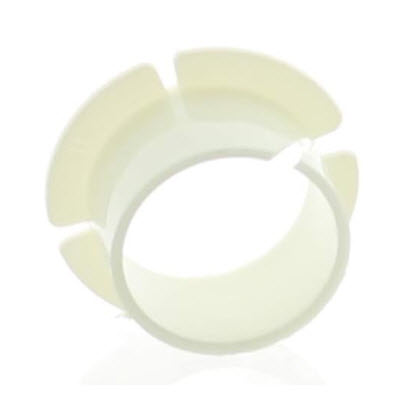

| #5 — 308532 — BUSHING, LEVER (2 required per assembly) | ||
  |
|
0308532 - Bushing [ More info ]
|

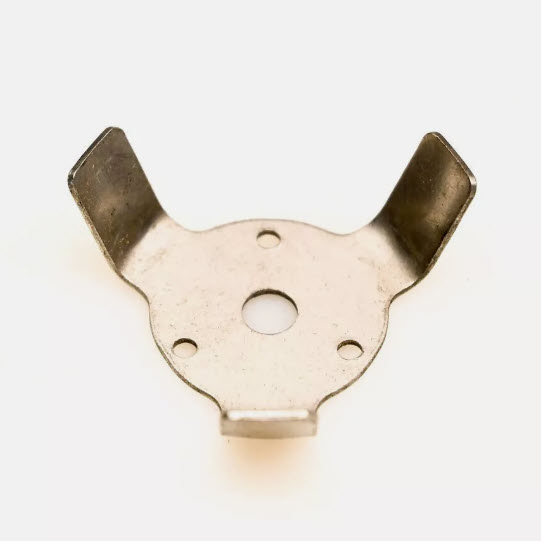

| #6 — 310699 — SPRING, IDLE LEVER (1 required per assembly) | ||
  |
|
0310699 - Spring [ More info ]
|

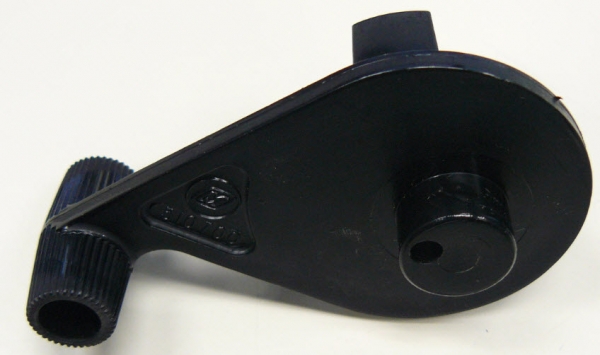

| #7 — 310700 — LEVER, IDLE ADJUSTMENT (1 required per assembly) | ||
  |
|
0310700 - Idle Adjustment Lever [ More info ]
|

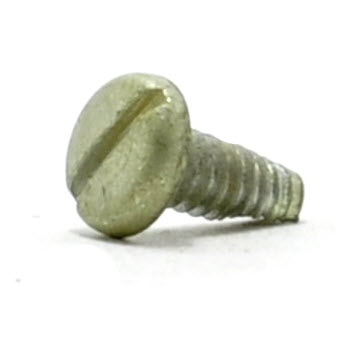

| #8 — 309072 — SCREW, SELF TAPPING (1 required per assembly) | ||
  |
|
|

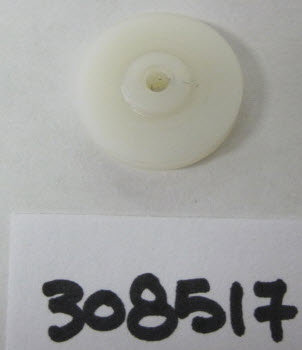

| #9 — 308517 — ROLLER, LEVER TO HOUSING (2 required per assembly) | ||
  |
|
0308517 - Spring to Housing Roller [ More info ]
|

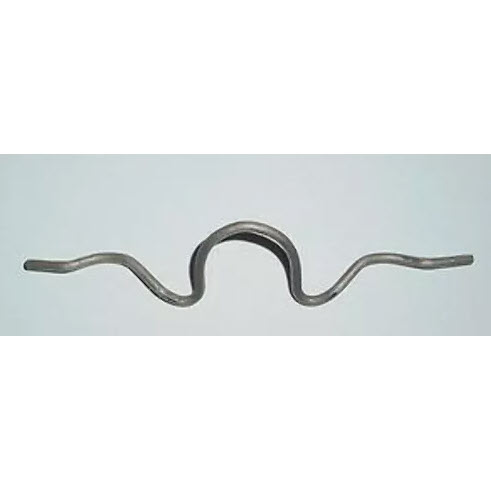

| #10 — 308513 — SPRING, ROLLER (1 required per assembly) | ||
  |
|
0308513 - Roller Spring [ More info ]
|

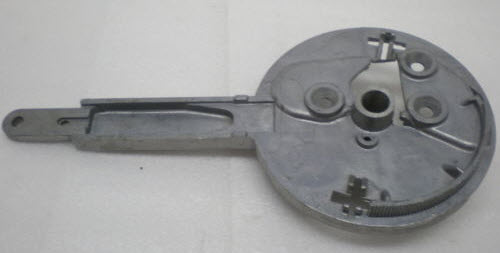

| #11 — 311622 — LEVER, CONTROL HOUSING (1 required per assembly) | ||
  |
|
|
| #12 — 311617 — KNOB, LEVER (1 required per assembly) | ||
  |
|
0311617 - Knob, NLA [ More info ]
|

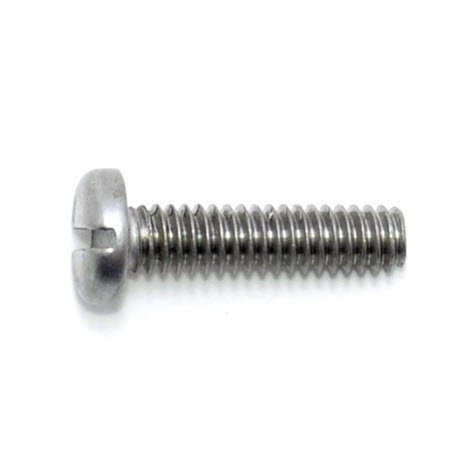

| #13 — 313776 — SCREW, LINK (1 required per assembly) | ||
  |
|
0313776 - Screw, Knob To Link [ More info ]
|

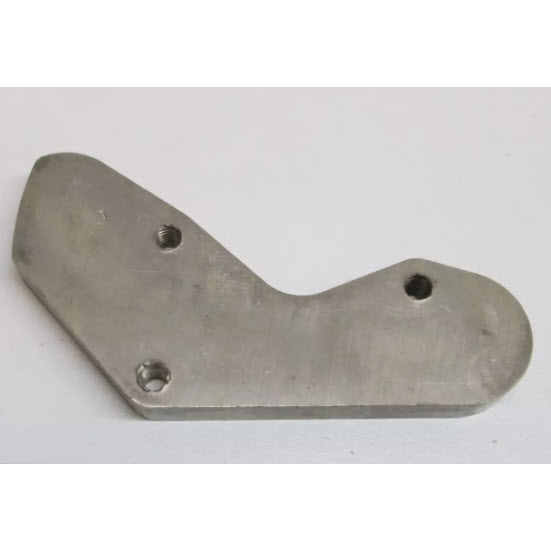

| #14 — 310745 — CAM, LEVER (1 required per assembly) | ||
  |
|
|
| #15 — 310747 — SCREW, CAM TO LEVER (3 required per assembly) | ||
  |
|
0310747 - Screw, Cam To Lever [ More info ]
|
| #16 — 308530 — SPACER, CONTROL HOUSING (1 required per assembly) | ||
  |
|
0308530 - Spacer [ More info ]
|
| #17 — 310691 — BUSHING, LEVER (1 required per assembly) | ||
  |
|
0310691 - Lever Bushing [ More info ]
|

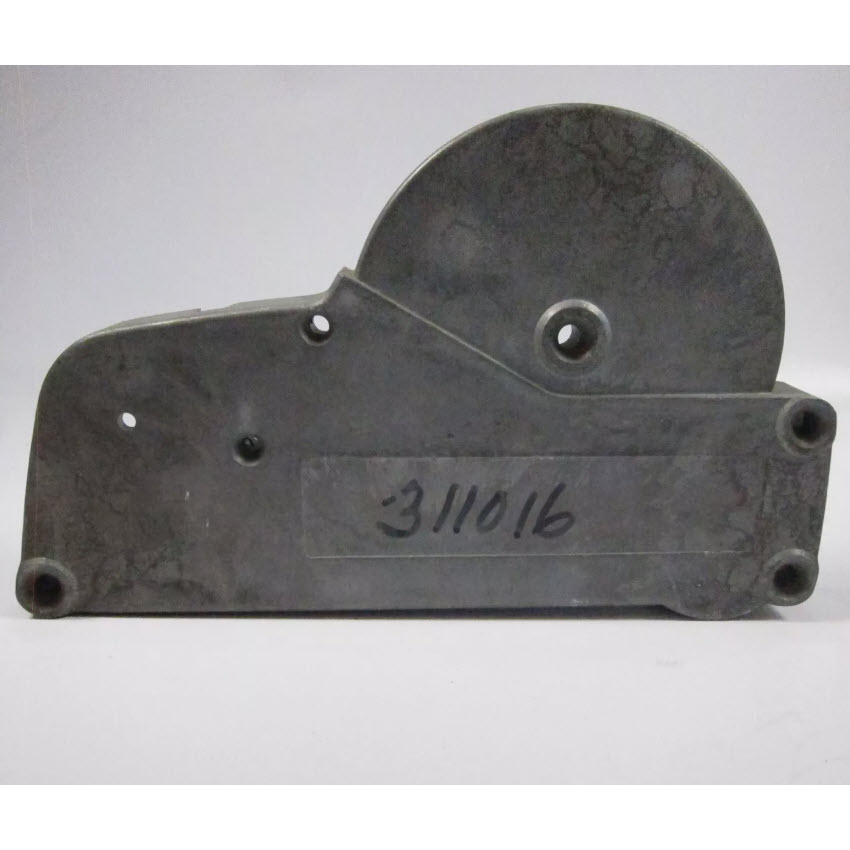

| #18 — 311016 — HOUSING, CABLE HALF (1 required per assembly) | ||
  |
|
|

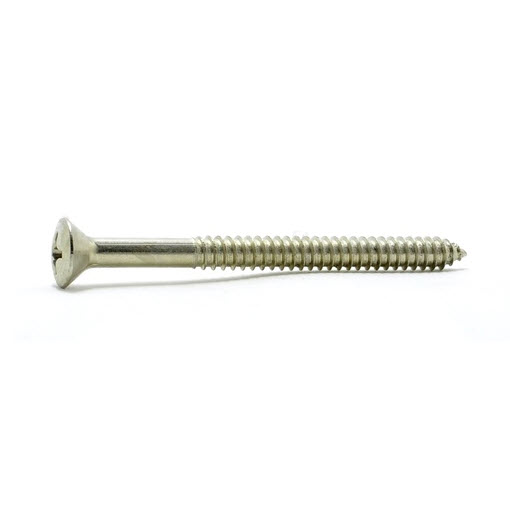

| #19 — 308056 — SCREW. DUAL INSTALLATION, ORDER THREE (3) PART NO. 308827 SCREW (3 required per assembly) | ||
  |
|
0308056 - Screw, Control Mountiing [ More info ]
|

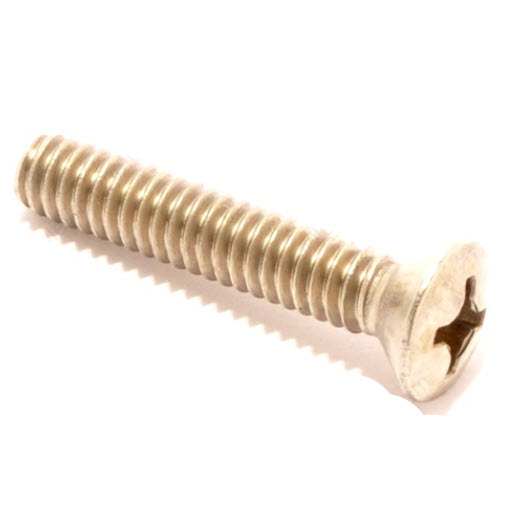

| #20 — 308527 — SCREW, PIVOT (1 required per assembly) | ||
  |
|
0308527 - Screw, Access Cover To Housing [ More info ]
|

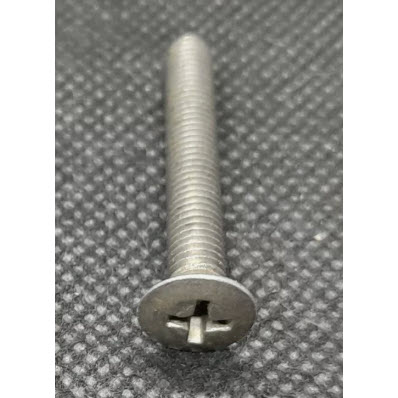

| #21 — 308518 — SCREW, CONTROL HOUSING (2 required per assembly) | ||
  |
|
0308518 - Screw, Control Housing [ More info ]
|
| #22 — 907947 — TRANSFER, IDLE ADJUSTMENT (1 required per assembly) | ||
|
|
0907947 - L/P 3.40 [ More info ] Unavailable |
| #23 — 907943 — TRANSFER, SHIFT HOUSING (1 required per assembly) | ||
  |
|
0907943 - Transfer [ More info ] Unavailable |

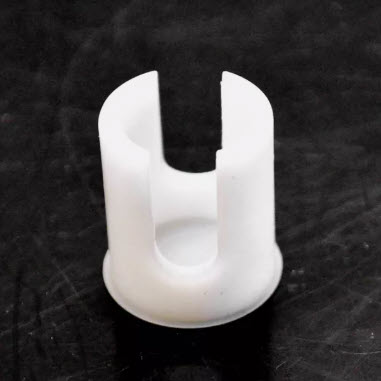

| #24 — 308511 — PIN, LOCK, CABLE TO LINK (1 required per assembly) | ||
  |
|
0308511 - Lock Pin [ More info ]
|

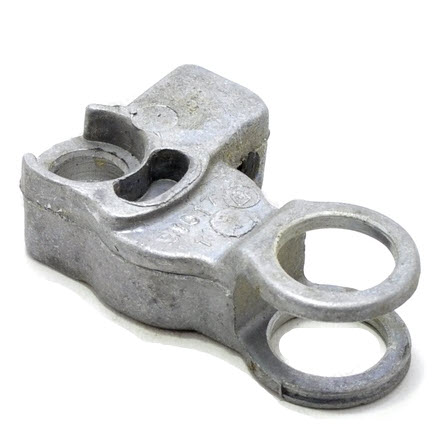

| #25 — 311017 — LINK, IDLE ADJUSTMENT (1 required per assembly) | ||
  |
|
0311017 - Idle Adjustment Link [ More info ]
|

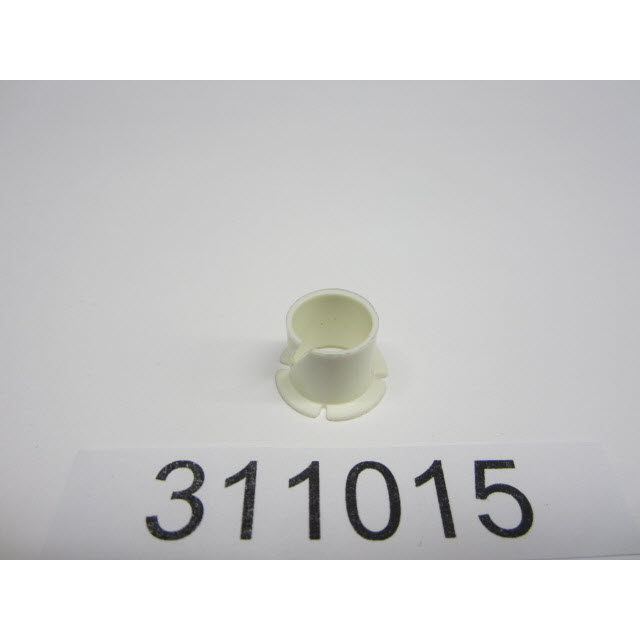

| #26 — 311015 — BUSHING, IDLE ADJUSTMENT (1 required per assembly) | ||
  |
|
0311015 - Bushing [ More info ]
|
  |
|

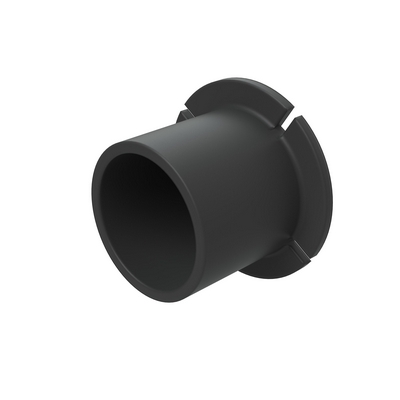

3852094 - Bushing, Volvo [ More info ]
|

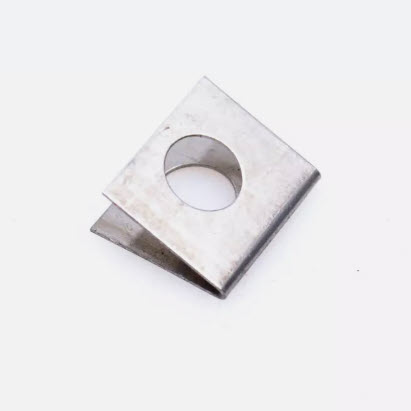

| #27 — 308045 — SPRING, IDLE ADJ RETAINER (1 required per assembly) | ||
  |
|
0308045 - Idle Adjustment Retainer Spring [ More info ]
|

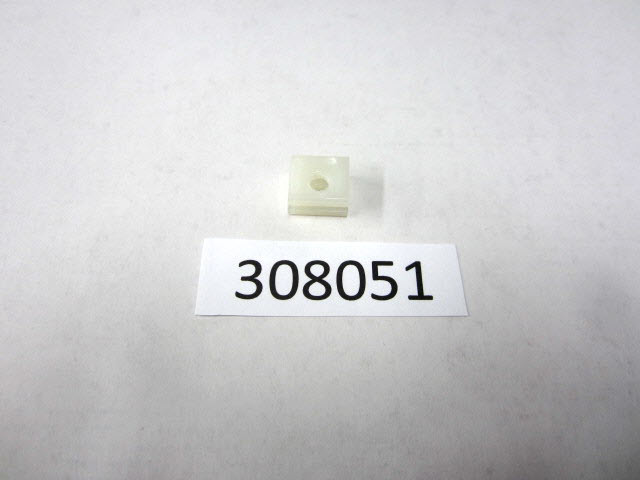

| #28 — 308051 — RETAINER, IDLE ADJUSTMENT (1 required per assembly) | ||
  |
|
0308051 - Idle Adjustment Retainer [ More info ]
|
| #29 — 308037 — SCREW, CLAMP (2 required per assembly) | ||
|
|
0308037 - Screw, Clamp [ More info ]
|
  |
|
0173506 - Screw - Clamp [ More info ]
|

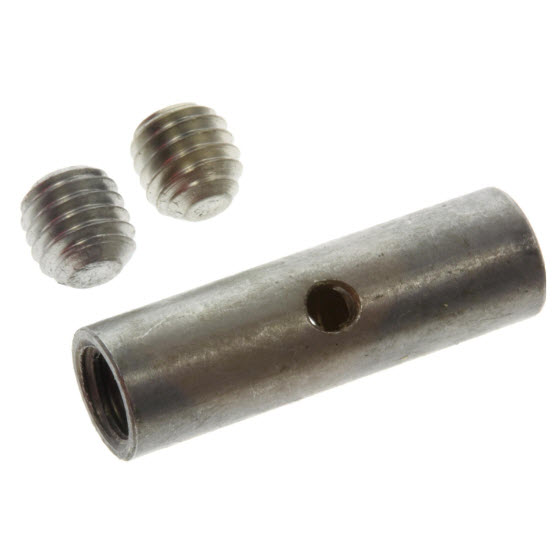

| #30 — 308036 — CLAMP, CABLE, CASING GUIDE (1 required per assembly) | ||
  |
|
0308036 - Clamp - Cable - Casing Guide [ More info ]
|

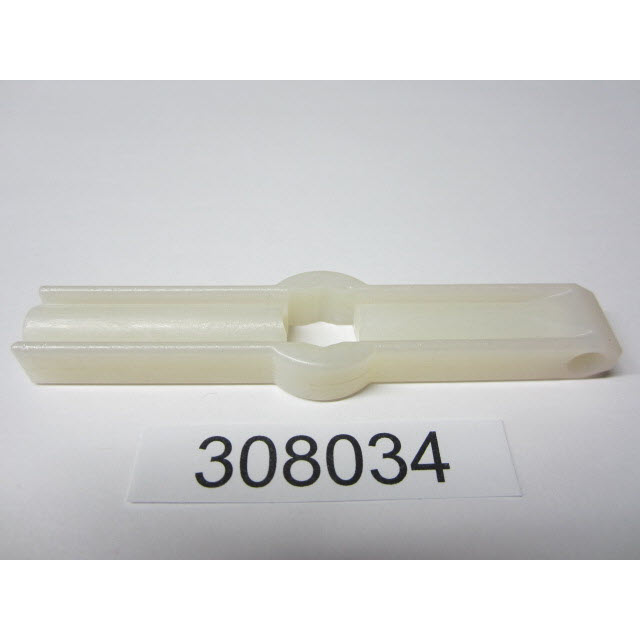

| #31 — 308034 — GUIDE, CASING (1 required per assembly) | ||
  |
|
0308034 - Casing Guide [ More info ]
|

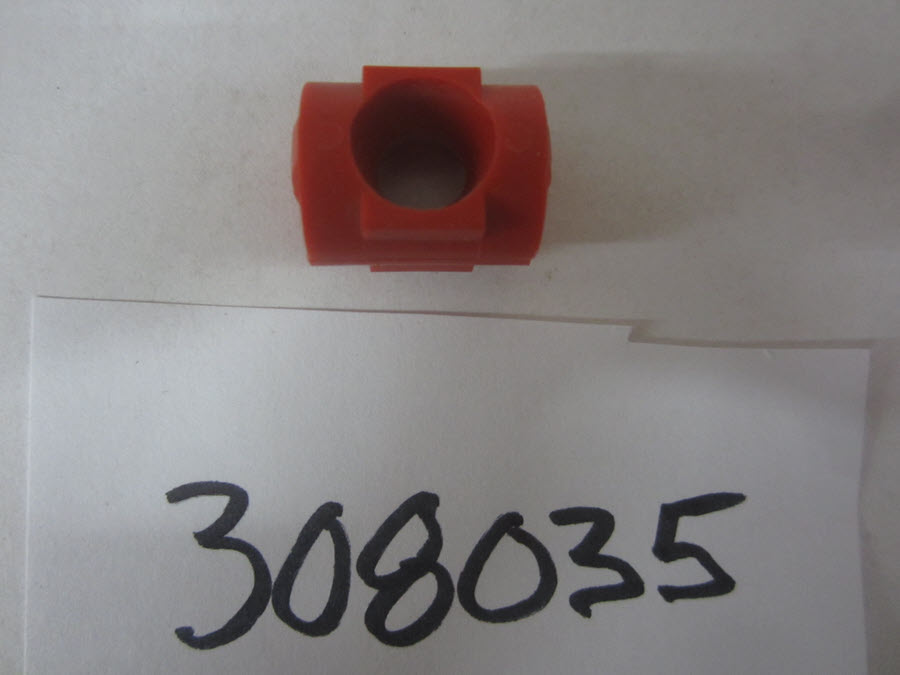

| #32 — 308035 — INSERT, CASING GUIDE (1 required per assembly) | ||
  |
|
0308035 - Insert [ More info ]
|

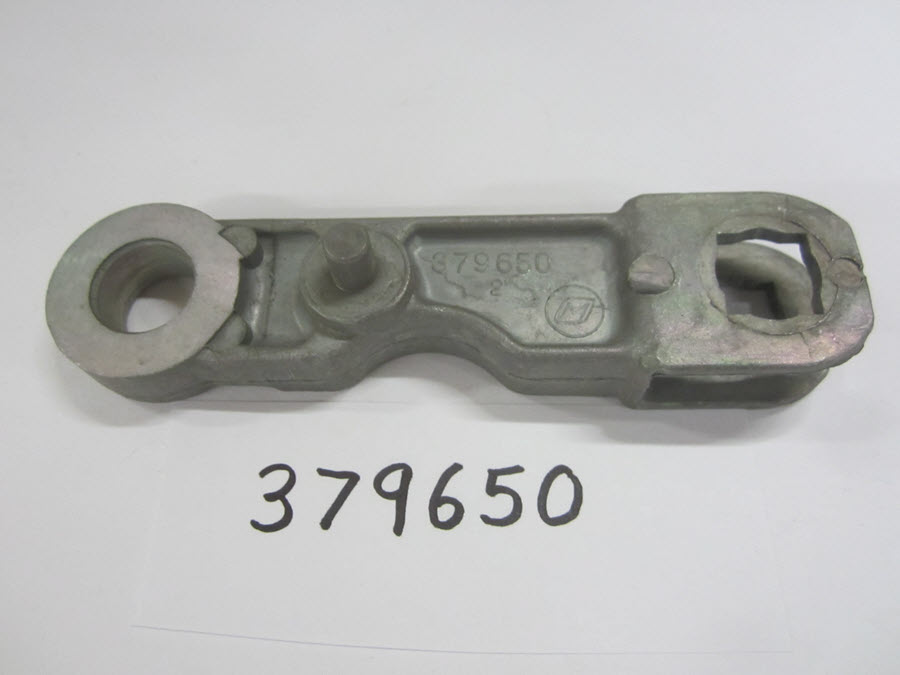

| #33 — 379650 — LINK (1 required per assembly) | ||
  |
|
|

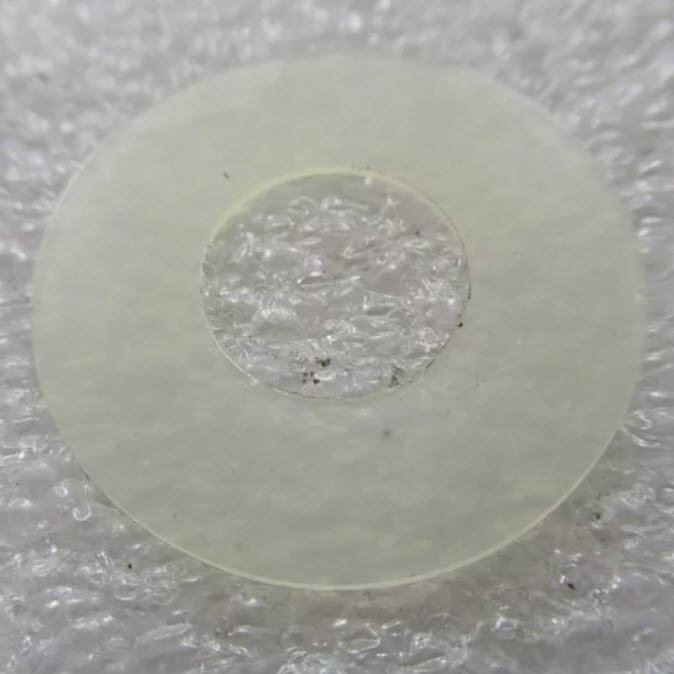

| #34 — 310689 — WASHER, CASING GUIDE LINK (2 required per assembly) | ||
  |
|
0310689 - Washer [ More info ]
|

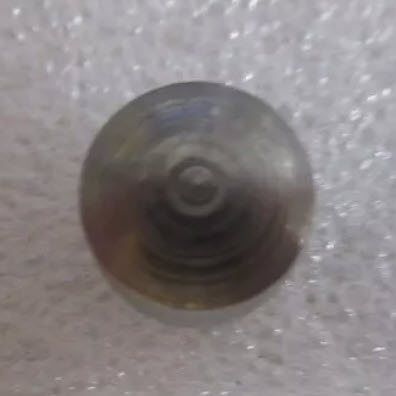

| #35 — 310693 — ROLLER, CONTROL LEVER (1 required per assembly) | ||
  |
|
0310693 - Throttle Lever Roller [ More info ]
|

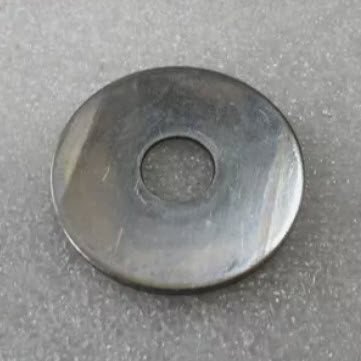

| #36 — 310690 — WASHER, LINK (1 required per assembly) | ||
  |
|
0310690 - Washer [ More info ]
|

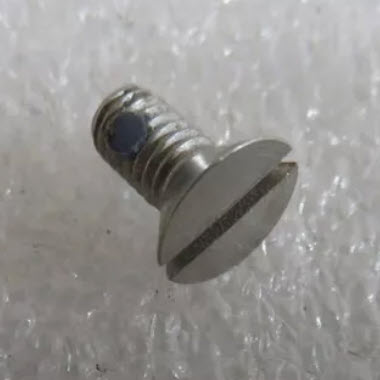

| #37 — 310692 — SCREW, LINK TO HOUSING (1 required per assembly) | ||
  |
|
0310692 - Screw, Link To Housing [ More info ]
|

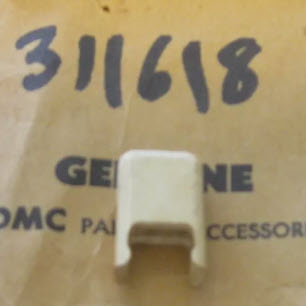

| #38 — 311618 — CAP (1 required per assembly) | ||
  |
|
0311618 - Locking Lever Cap [ More info ]
|

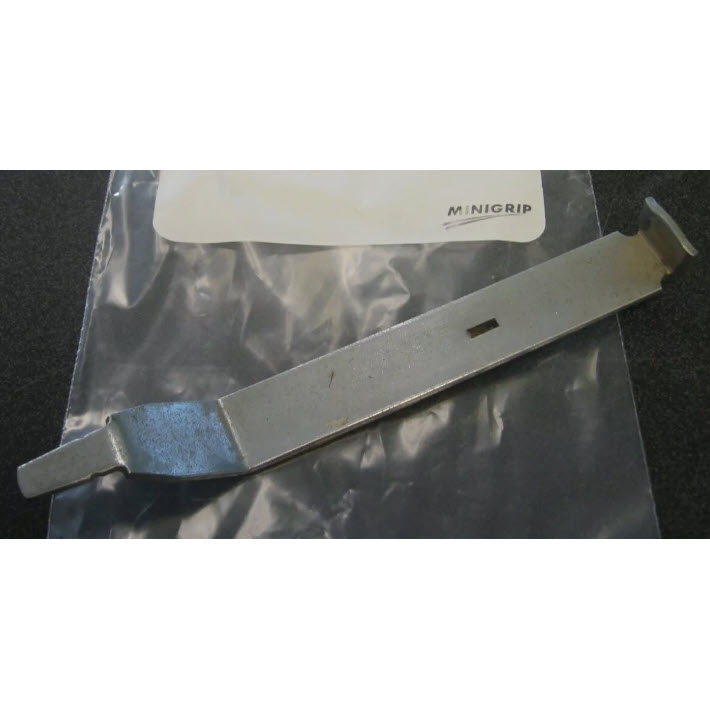

| #39 — 311619 — LEVER (1 required per assembly) | ||
  |
|
|
| #40 — 311621 — SCREW, KNOB (1 required per assembly) | ||
|
|
0311621 - Screw, Knob [ More info ]
|

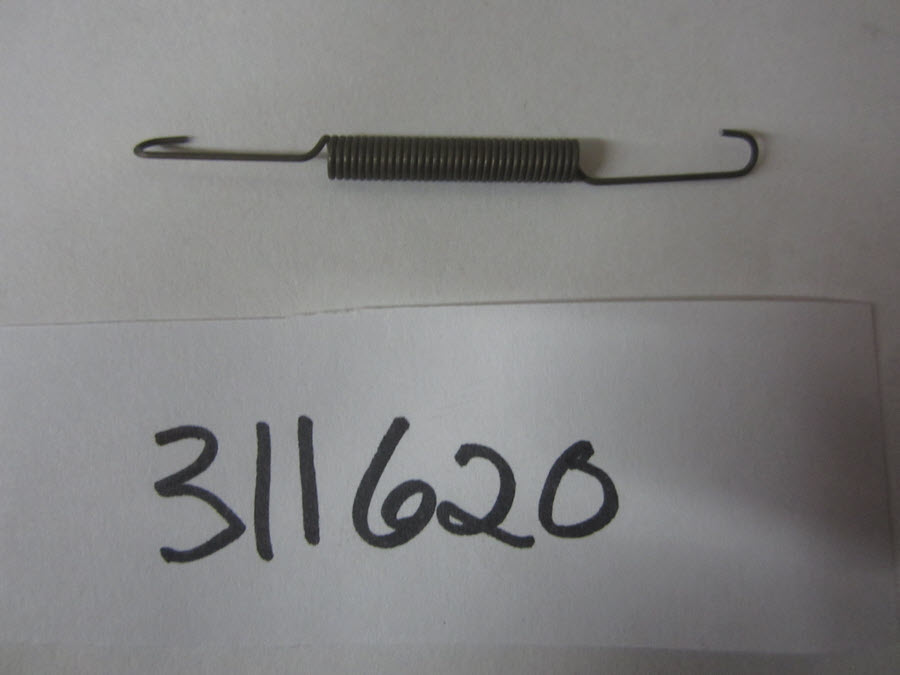

| #41 — 311620 — SPRING, LOCKING LEVER (1 required per assembly) | ||
  |
|
0311620 - Reverse Lock Spring [ More info ]
|

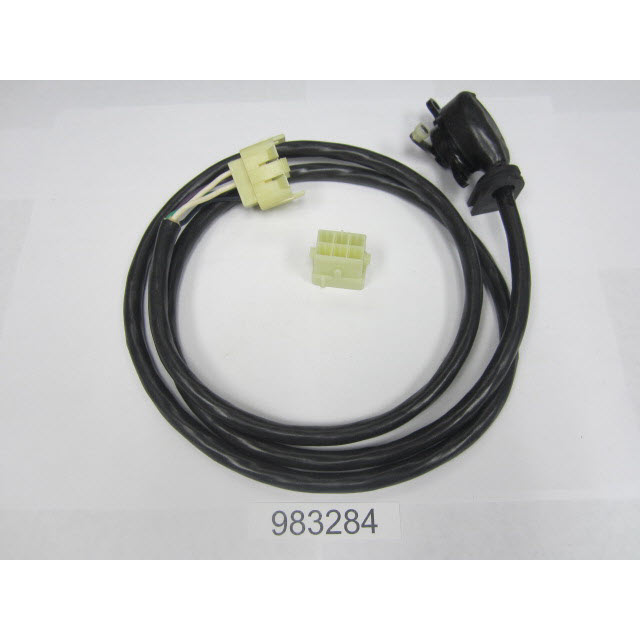

| #42 — 383375 — SWITCH AND CABLE ASSY (1 required per assembly) | ||
|
|
0383375 - Switch And Connector [ More info ]
|
  |
|
0983284 - Switch And Connector [ More info ]
|

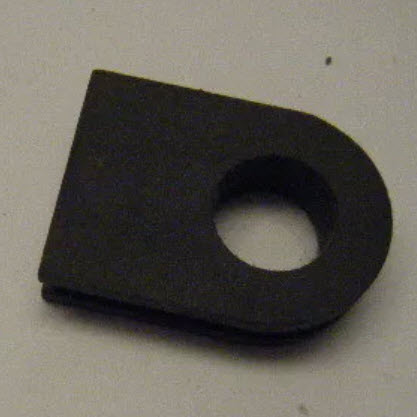

| #43 — 307994 — GROMMET (1 required per assembly) | ||
  |
|
0307994 - Grommet [ More info ]
|
| #44 — 311741 — CONNECTOR (1 required per assembly) | ||
  |
|
0311741 - CONNECTOR [ More info ]
|
| #45 — 310523 — TERMINAL (5 required per assembly) | ||
  |
|
0310523 - Terminal [ More info ]
|
| #46 — 907945 — TRANSFER (2 required per assembly) | ||
|
|
0907945 - L/P 5.87 [ More info ] Unavailable |
| #47 — 315602 — SPACER, SWITCH (2 required per assembly) | ||
  |
|
0315602 - Spacer [ More info ]
|
| #48 — 315011 — SCREW (2 required per assembly) | ||
  |
|
0315011 - Screw, Switch To Housing [ More info ]
|
| #49 — 305650 — COTTER PIN (1 required per assembly) | ||
  |
|
0305650 - Cotter Pin [ More info ]
|
  |
|

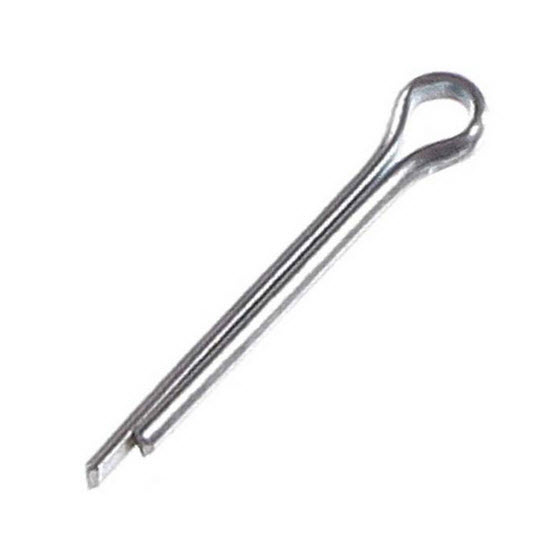

3852052 - Cotter Pin - Volvo Penta (3852052) [ More info ]
|
| #50 — 303887 — WASHER (1 required per assembly) | ||
  |
|
0303887 - Washer [ More info ]
|
| #51 — 385956 — CASING GUIDE & "O" RING ASSEMBLY (1 required per assembly) | ||
  |
|
0385956 - Guide & O-Ring [ More info ]
|
| #52 — 307063 — "O" RING (1 required per assembly) | ||
  |
|
0307063 - O-ring - Casing Guide [ More info ]
|

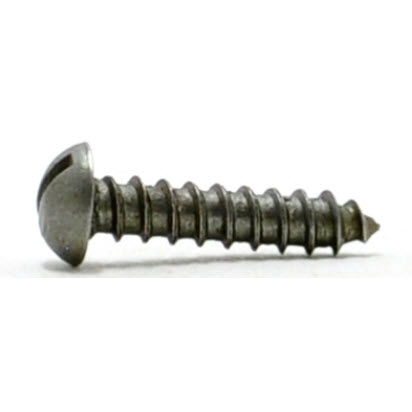

| #53 — 310115 — SCREW (5 required per assembly) | ||
  |
|
0310115 - Screw, Clamp [ More info ]
|
| #54 — 385958 — CLAMP & SET SCREW (1 required per assembly) | ||
  |
|
0385958 - Clamp and Set Screw [ More info ]
|

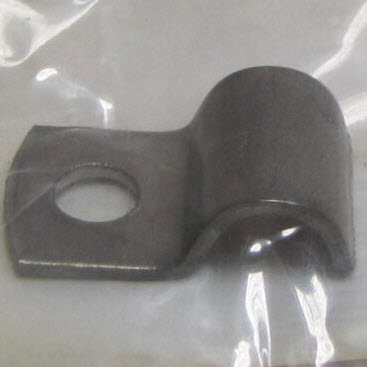

| #55 — 120001 — CLAMP (5 required per assembly) | ||
  |
|
0120001 - Clamp - Cable [ More info ]
|
