Tilt Solenoid & Cable Group 225 & 245 Hp Stern Drive Parts for 1973 OMC Stern Drive 165hp 990210S Stern Drive

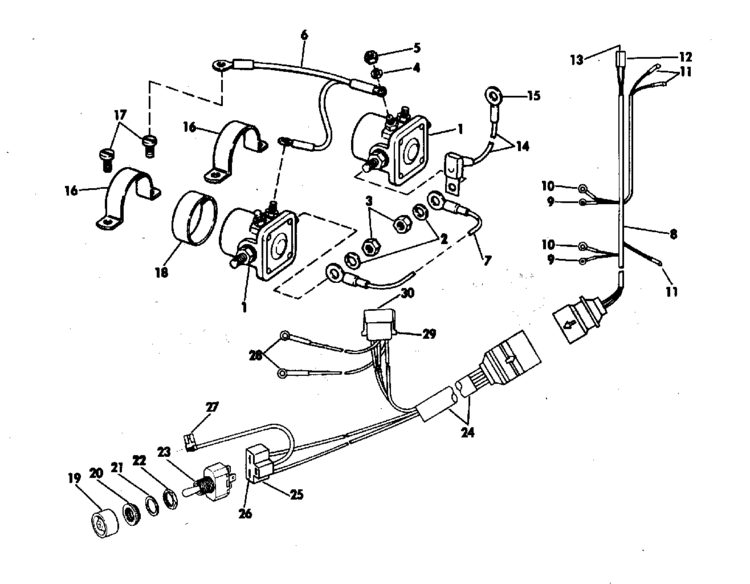

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #979767 — 979767 — TILT SOLENOID & CABLE ASSEMBLY. NOT SHOWN (1 required per assembly) | ||
  |
|
0979767 - L/P 96.50 [ More info ] Unavailable |
| #1 — 383622 — SOLENOID ASSEMBLY (2 required per assembly) | ||
  |
|
0383622 [ More info ] Unavailable Replaced by 0395419 |
  |
0395419 - Solenoid (395419) [ More info ] Unavailable |
|
  |
|
0582708 [ More info ] Unavailable Replaced by 0586180 |
  |
|
0586180 - Starter Solenoid (586180) [ More info ]
|
  |
|
18-5808 - Solenoid, 586180 [ More info ]
|
  |
|
SW622 - Solenoid [ More info ]
|
| #2 — 306325 — LOCKWASHER (4 required per assembly) | ||
  |
|
0306325 - Lock Washer (306325) [ More info ]
|
| #3 — 306422 — NUT (4 required per assembly) | ||
  |
|
0306422 - Nut (306422) [ More info ]
|
| #4 — 120052 — LOCKWASHER (4 required per assembly) | ||
  |
|
0120052 - Lock Washer (120052) [ More info ]
|
| #5 — 306556 — NUT (4 required per assembly) | ||
  |
|
0306556 - Circuit Breaker Nut (306556) [ More info ]
|
| #6 — 380354 — LEAD ASSEMBLY, GROUND (1 required per assembly) | ||
  |
|
0380354 - WIRE LEAD (380354) [ More info ] Unavailable |
| #7 — 383421 — LEAD ASSY, POSITIVE (1 required per assembly) | ||
  |
|
0383421 - Trim Solenoid Lead Assembly (383421) [ More info ]
|
  |
|
0981890 - Trim Solenoid Lead (981890) [ More info ] Unavailable |

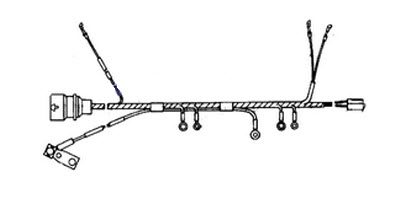

| #8 — 979765 — CABLE ASSY, TILT SOLENOIDS (1 required per assembly) | ||
  |
|
0979765 - Tilt & Trim Harness (979765) [ More info ] Unavailable |
| #9 — 204036 — RING TERMINAL (2 required per assembly) | ||
  |
|
0204036 - Ring Terminal (204036) [ More info ]
|
| #10 — 204053 — RING TERMINAL (2 required per assembly) | ||
  |
|
0204053 - Ring Terminal (204053) [ More info ] Unavailable |
| #11 — 308808 — KNIFE DISCONNECT (3 required per assembly) | ||
  |
|
0308808 - Terminal (308808) [ More info ]
|
| #12 — 510471 — HOUSING, CONNECTOR (1 required per assembly) | ||
  |
|
0510471 - Terminal Housing (510471) [ More info ]
|
| #13 — 510469 — TERMINAL (2 required per assembly) | ||
  |
|
0510469 - Terminal (510469) [ More info ]
|

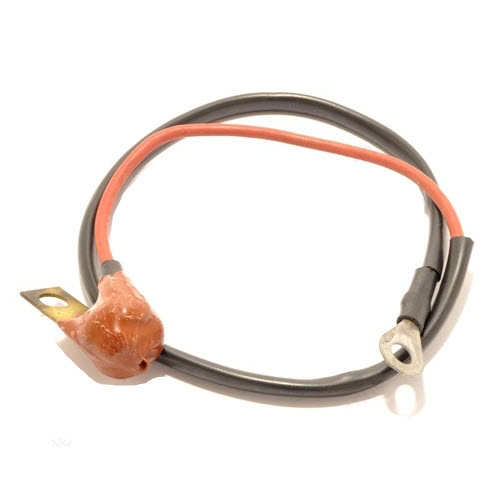

| #14 — 383420 — FUSE LEAD ASSY (1 required per assembly) | ||
  |
|
0383420 - Fuse & Lead (383420) [ More info ]
|

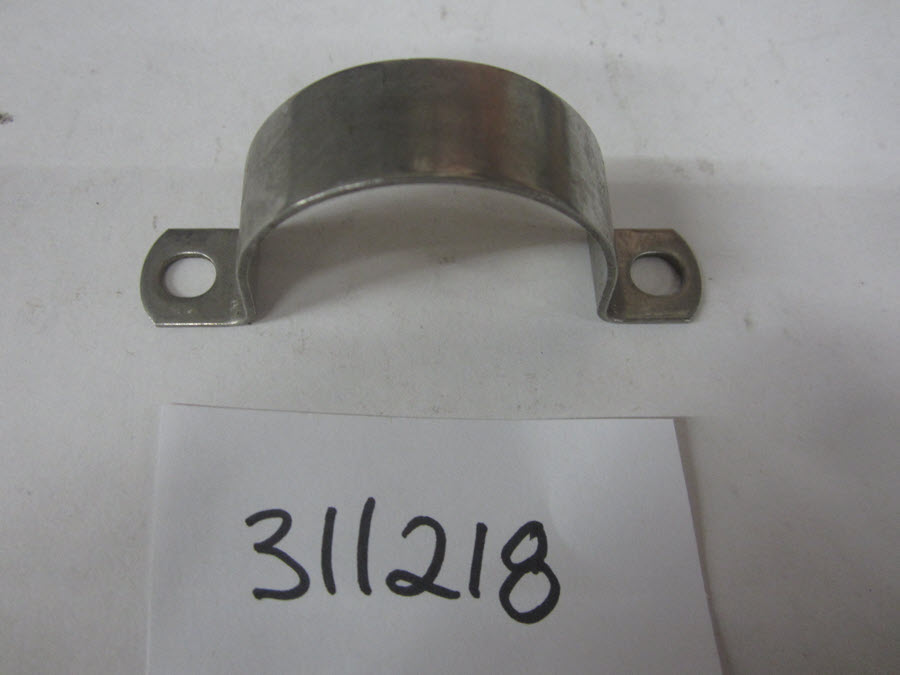

| #16 — 311218 — CLAMP (2 required per assembly) | ||
  |
0311218 - Solenoid Clamp (311218) [ More info ] Unavailable |
|
  |
|
0330112 - Clamp - Solenoid Mounting (330112) [ More info ]
|
| #17 — 303311 — SCREW (4 required per assembly) | ||
  |
|
0303311 - Screw - Clamp Bracket (303311) [ More info ]
|
| #18 — 311217 — SLEEVE (1 required per assembly) | ||
  |
|
0311217 - Solenoid Sleeve (311217) [ More info ]
|
| #19 — 310781 — COVER, TILT SWITCH (1 required per assembly) | ||
  |
|
0310781 - Switch Cover (310781) [ More info ]
|
| #20 — 310782 — NUT, KNURLED (1 required per assembly) | ||
  |
|
0310782 - Nut (310782) [ More info ]
|
| #21 — 900696 — WASHER (1 required per assembly) | ||
  |
|
0900696 - Washer (900696) [ More info ]
|
| #22 — 900185 — NUT, HEX (1 required per assembly) | ||
  |
|
0900185 - Choke Switch Nut (900185) [ More info ]
|
| #23 — 976443 — SWITCH, POWER TILT (1 required per assembly) | ||
  |
|
0976443 - Switch, Power Tilt (976443) [ More info ]
|
| #24 — 979766 — CABLE ASSY, INST TO TILT CABLE (1 required per assembly) | ||
  |
|
0979766 - L/P 51.32 [ More info ] Unavailable |

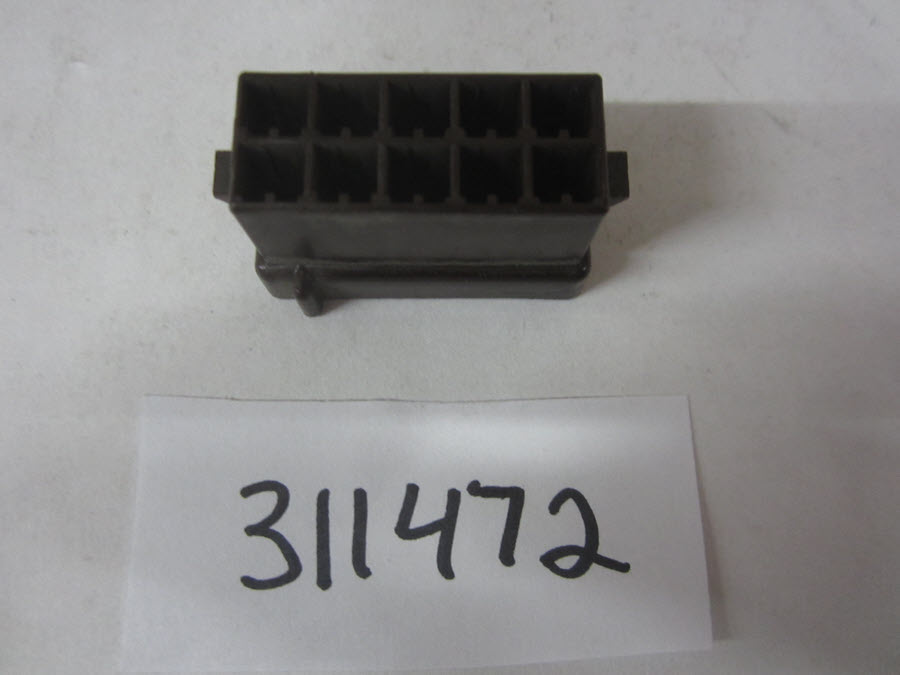

| #25 — 311472 — CONNECTOR (1 required per assembly) | ||
  |
|
0311472 - Ring Terminal (311472) [ More info ]
|
| #26 — 309433 — TERMINAL, HOUSING (3 required per assembly) | ||
  |
|
0309433 - Housing Terminal (309433) [ More info ]
|
| #27 — 309437 — TERMINAL, FLAG (1 required per assembly) | ||
  |
|
0309437 - Flag Terminal (309437) [ More info ]
|
| #28 — 204037 — TERMINAL, RING (2 required per assembly) | ||
  |
|
0204037 [ More info ] Unavailable Replaced by 0510780 |
  |
|
0510780 - Ring Terminal (510780) [ More info ]
|
| #30 — 310680 — TERMINAL, HOUSING (5 required per assembly) | ||
  |
|
0310680 - Housing Terminal (310680) [ More info ]
|
