Distributor Group 225 & 245 Stern Drive Parts for 1973 OMC Stern Drive 165hp 990210S Stern Drive

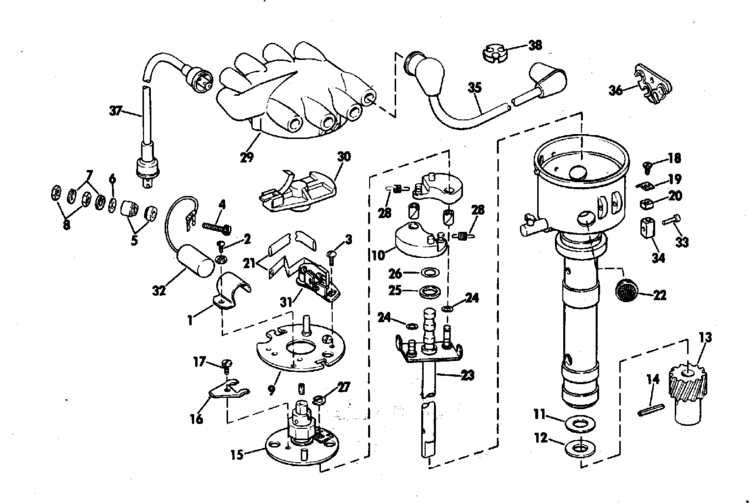

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #381775 — 381775 — DISTRIBUTOR ASSEMBLY. NOT SHOWN (1 required per assembly) | ||
  |
|
0381775 - L/P 234.65 [ More info ] Unavailable |
| #1 — 313122 — BRACKET, CONDENSER MTG (1 required per assembly) | ||
  |
|
0313122 - Bracket (313122) [ More info ]
|
| #2 — 313123 — SCREW, CONDENSER BRACKET (1 required per assembly) | ||
  |
|
0313123 - Screw, Condenser Bracket (313123) [ More info ]
|
| #3 — 313124 — SCREW, CONTACT POINT ADJ (1 required per assembly) | ||
  |
|
0313124 - Screw, Contact Point Adjusting (313124) [ More info ]
|
| #4 — 313125 — SCREW, PRIMARY TERMINAL (1 required per assembly) | ||
  |
|
0313125 - Screw, Primary Terminal (313125) [ More info ]
|
| #5 — 313126 — INSULATOR, PRIMARY TERM. (2 required per assembly) | ||
  |
|
|
| #6 — 313127 — WASHER, PRIMARY TERMINAL (1 required per assembly) | ||
  |
|
0313127 - Washer (313127) [ More info ]
|

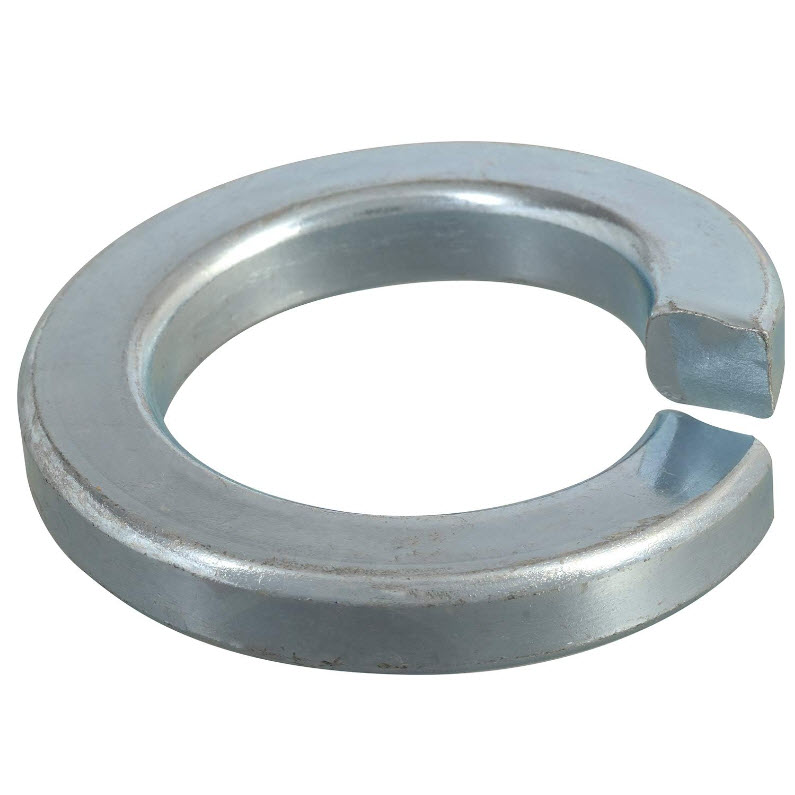

| #7 — 313128 — LKWASH, PRIMARY TERM. (2 required per assembly) | ||
  |
|
0313128 - LockWasher (313128) [ More info ]
|
| #8 — 313129 — HEX NUT, PRIMARY TERMINAL (2 required per assembly) | ||
  |
|
0313129 - Nut (313129) [ More info ]
|
| #9 — 313130 — PLATE, CIRCUIT BREAKER (1 required per assembly) | ||
  |
|
0313130 - L/P 37.10 [ More info ] Unavailable |

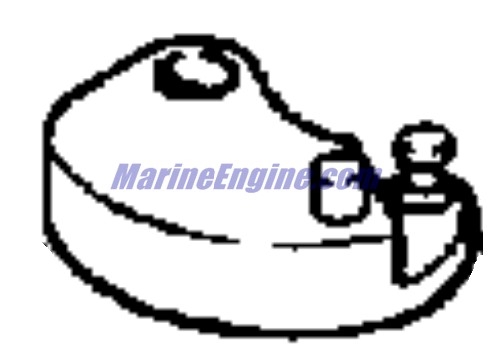

| #10 — 313131 — WEIGHT, GOVERNOR R.H. (2 required per assembly) | ||
  |
|
0313131 - WEIGHT [ More info ] Unavailable |
| #11 — 313132 — THRUST WASHER (1 required per assembly) | ||
  |
|
0313132 - WASHER [ More info ] Unavailable |

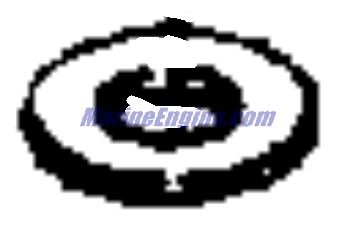

| #12 — 313133 — THRUST WASHER, BRONZE (1 required per assembly) | ||
  |
|
0313133 - Washer (313133) [ More info ]
|

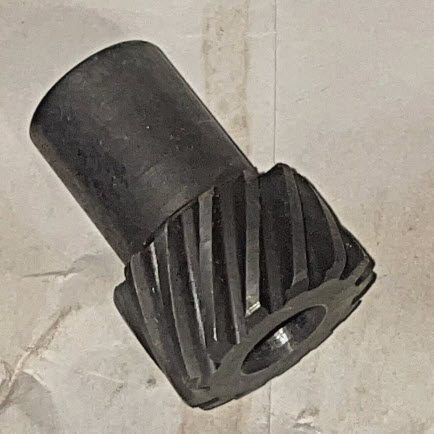

| #13 — 313134 — GEAR, DISTRIBUTOR DRIVEN (1 required per assembly) | ||
  |
|
0313134 - Gear, Distributor Driven (313134) [ More info ]
|
| #14 — 313135 — ROLL PIN, GEAR (1 required per assembly) | ||
  |
|
0313135 - Roll Pin (313135) [ More info ]
|

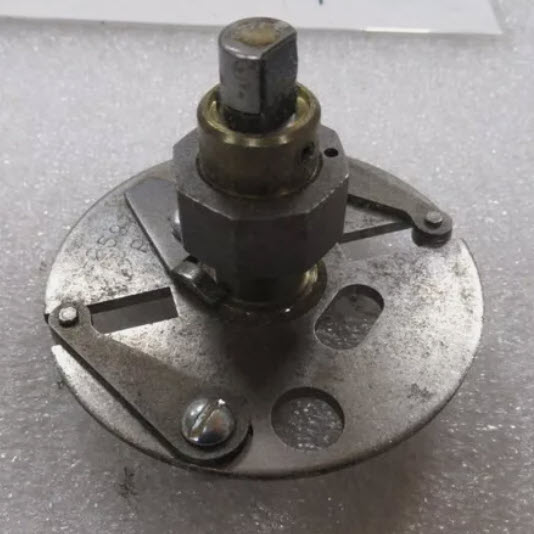

| #15 — 382897 — ADVANCE PLATE & CAM (1 required per assembly) | ||
  |
|
0382897 - Plate & Cam Assembly (382897) [ More info ]
|

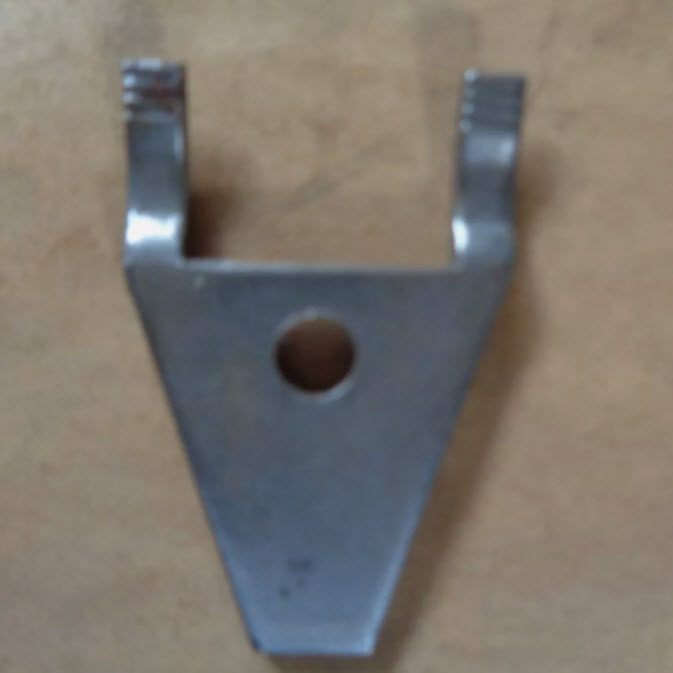

| #16 — 313143 — CLAMP, CAM HOLDDOWN (1 required per assembly) | ||
  |
|
0313143 - Distributor Hold Down Clamp (313143) [ More info ]
|
| #17 — 313144 — SCREW, CLAMP (1 required per assembly) | ||
  |
|
0313144 - Screw, Clamp (313144) [ More info ]
|

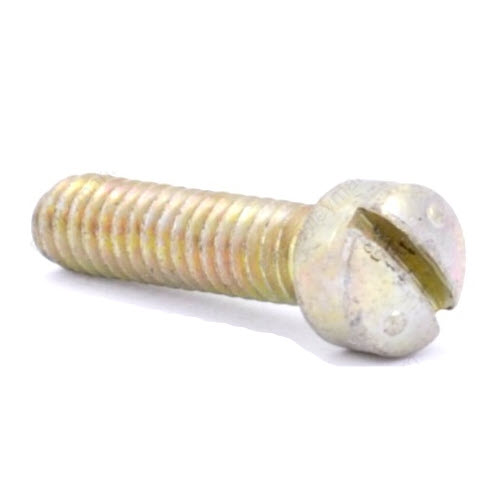

| #18 — 130988 — SCREW, CAP ATTACHING (2 required per assembly) | ||
  |
|
|
| #19 — 313140 — CLIP, CAP ATTACHING (2 required per assembly) | ||
  |
|
0313140 - Distributor Cap Clip (313140) [ More info ]
|

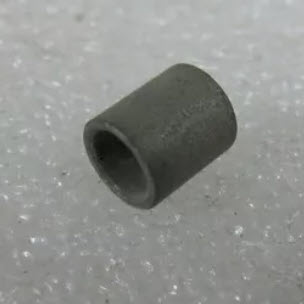

| #20 — 316142 — SPACER, SWIVEL TO CLIP (2 required per assembly) | ||
  |
|
0316142 - Spacer (316142) [ More info ]
|

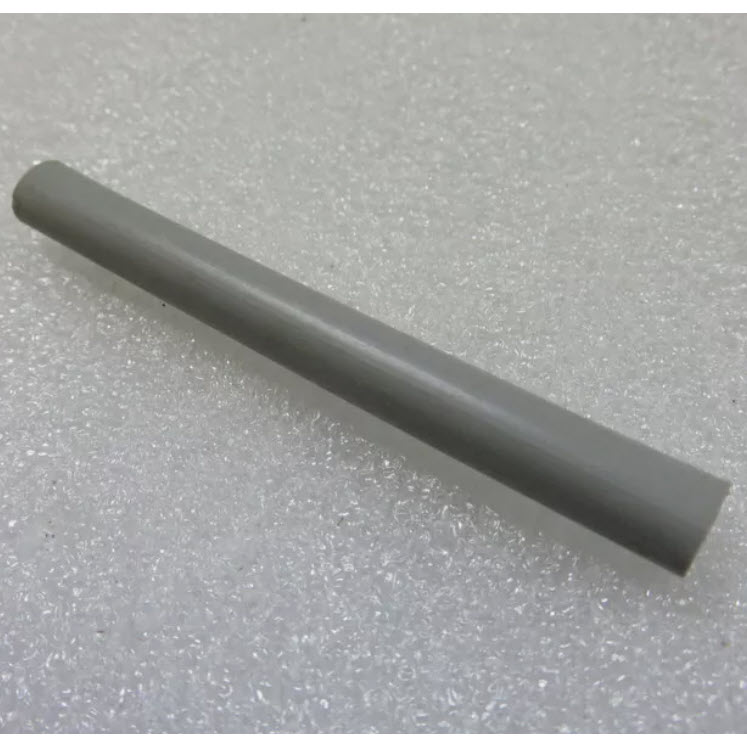

| #21 — 313142 — LEAD, POINTS TO PRIMARY TERMINAL (1 required per assembly) | ||
  |
|
0313142 - Lead Cover (313142) [ More info ]
|

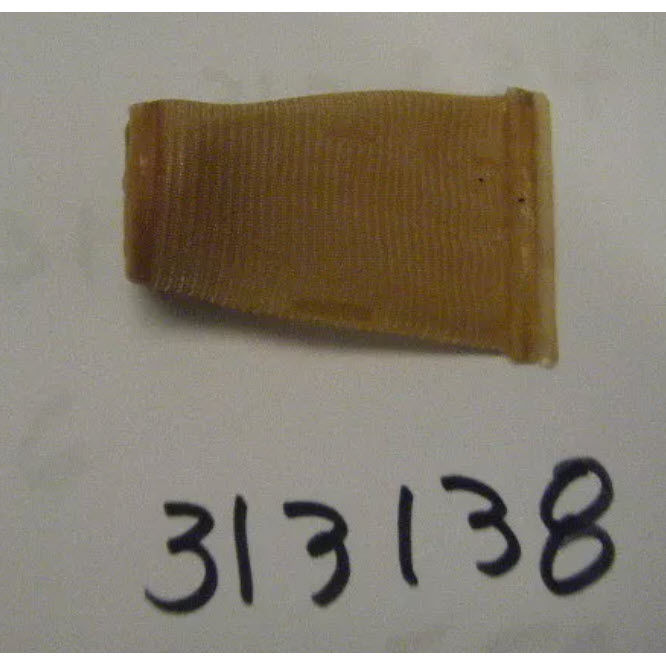

| #22 — 313138 — SCREEN, VENTILATION (1 required per assembly) | ||
  |
|
|

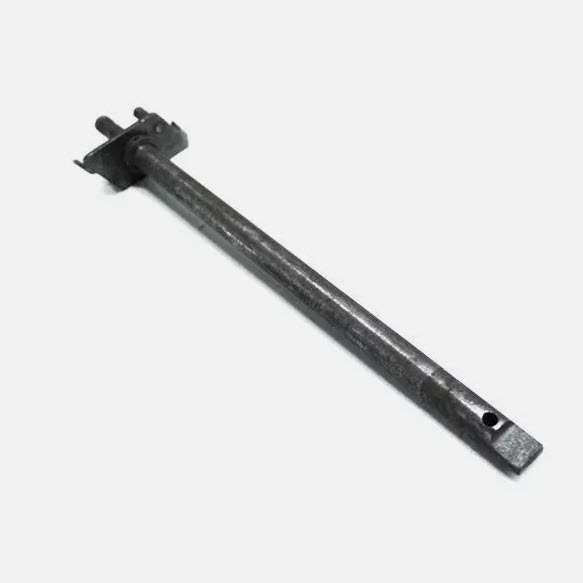

| #23 — 382137 — MAIN SHAFT ASSEMBLY (1 required per assembly) | ||
  |
|
0382137 - Distributor Shaft (382137) [ More info ]
|
| #24 — 313145 — WASHER, WEIGHT POSTS (2 required per assembly) | ||
  |
|
0313145 - Washer (313145) [ More info ]
|

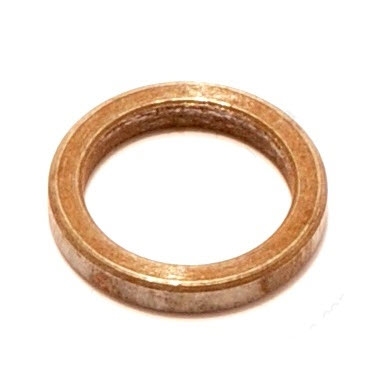

| #25 — 313146 — WASHER, MAIN SHAFT, LOWER (1 required per assembly) | ||
  |
|
0313146 - Washer (313146) [ More info ]
|
| #26 — 313147 — WASHER, MAIN SHAFT, UPPER (1 required per assembly) | ||
  |
|
0313147 - L/P 1.25 [ More info ] Unavailable |
| #27 — 313148 — RETAINER, WEIGHT TO POST (2 required per assembly) | ||
  |
|
0313148 - L/P .95 [ More info ] Unavailable |
| #28 — 313149 — SPRING, ADVANCE WEIGHT (PAINTED BLUE) (1 required per assembly) | ||
  |
|
SPRING,BLUE CODED,NLA [ More info ] Unavailable |
| #28 — 313150 — SPRING, ADVANCE WEIGHT (PAINTED GREEN) (1 required per assembly) | ||
  |
|
|

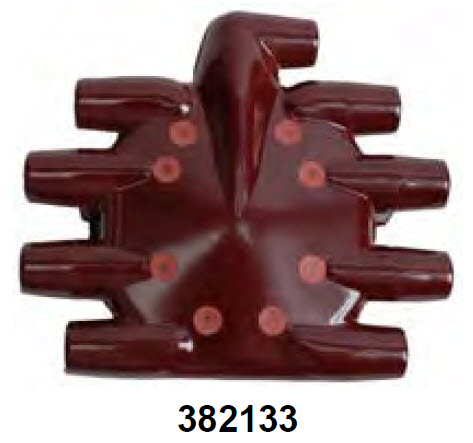

| #29 — 382133 — DISTRIBUTOR CAP ASSSY (1 required per assembly) | ||
  |
|
DISTRIBUTOR CAP, [ More info ]
|
  |
|
841244 - Distributor Cap, Volvo [ More info ]
|
  |
|

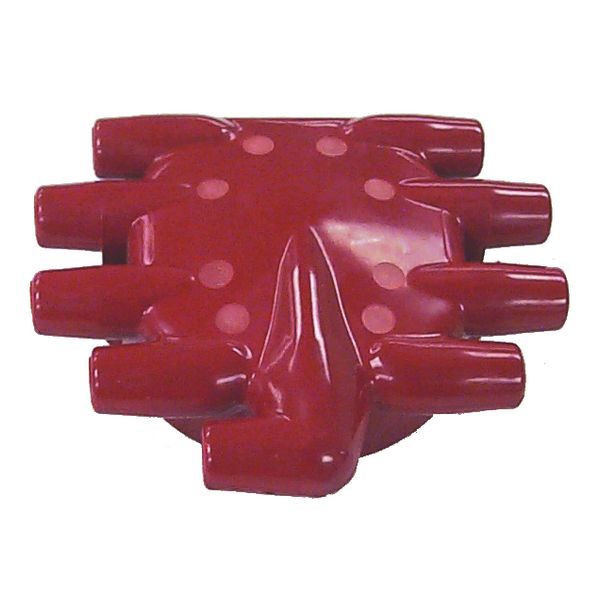

18-5375 - Mallory Flat Cap [ More info ]
|
| #30 — 382134 — ROTOR ASSEMBLY (1 required per assembly) | ||
  |
|
0382134 [ More info ] Unavailable Replaced by 0982342 |
  |
|
|
  |
|
18-5411 - Rotor, Mallory Flat [ More info ]
|

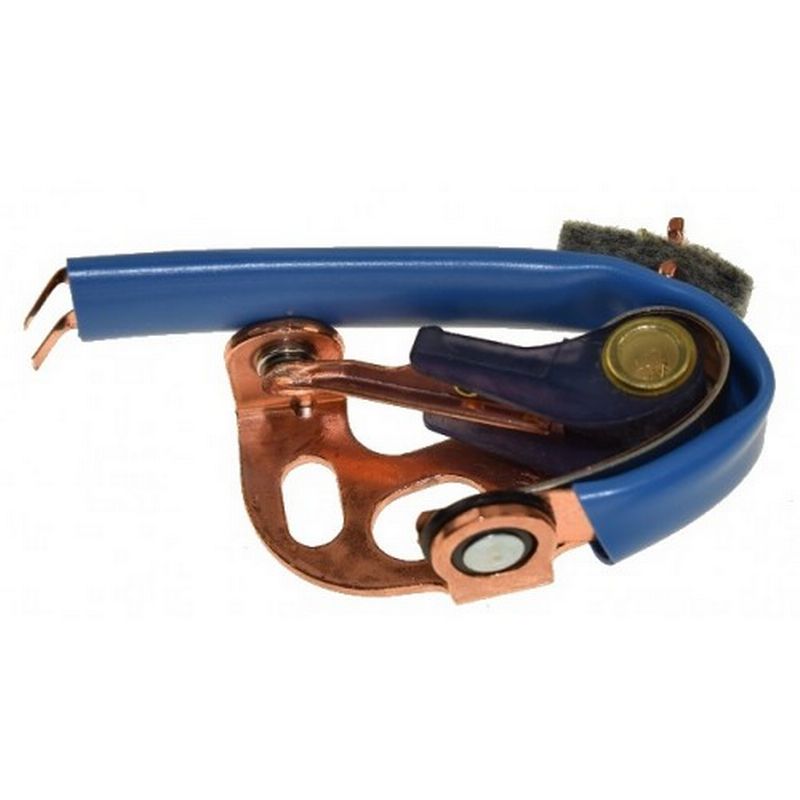

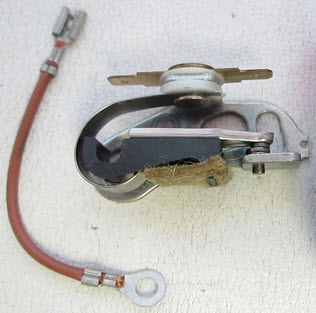

| #31 — 382135 — CONTACT POINT SET (1 required per assembly) | ||
  |
|
POINT SET W/LEAD,NLA [ More info ]
|
  |
|

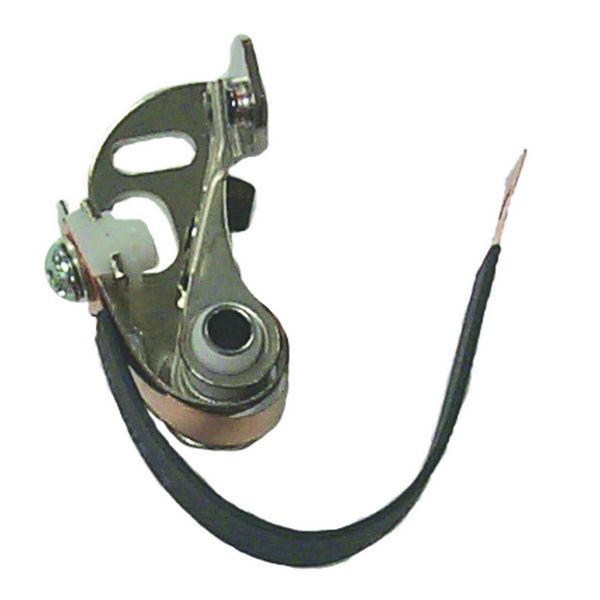

18-5314 - Point Set, 382135, 391-5090 [ More info ]
|
  |
|
CONTACT SET(18-5314) [ More info ]
|

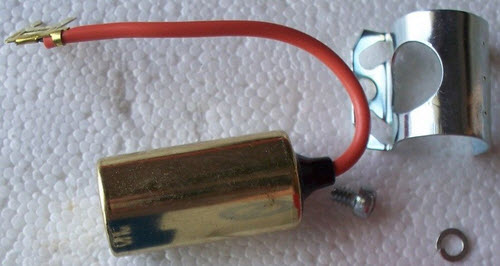

| #32 — 382136 — CONDENSER ASSEMBLY (1 required per assembly) | ||
  |
|
0382136 - Condenser (382136) [ More info ]
|
  |
|
18-5338 - Condenser 391-5092 [ More info ]
|
  |
|

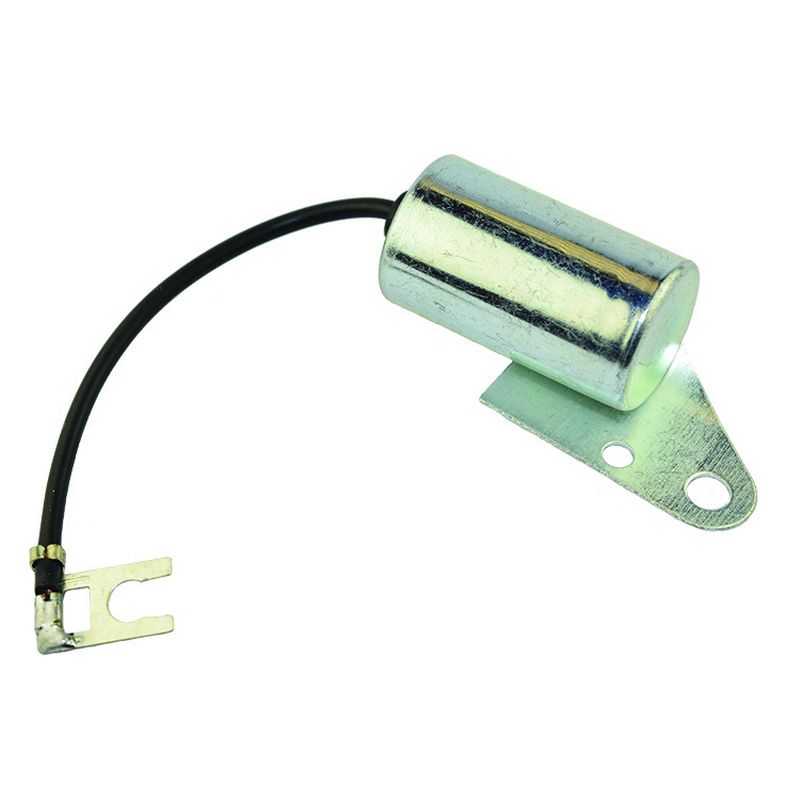

E66-0010 - Condenser [ More info ]
|

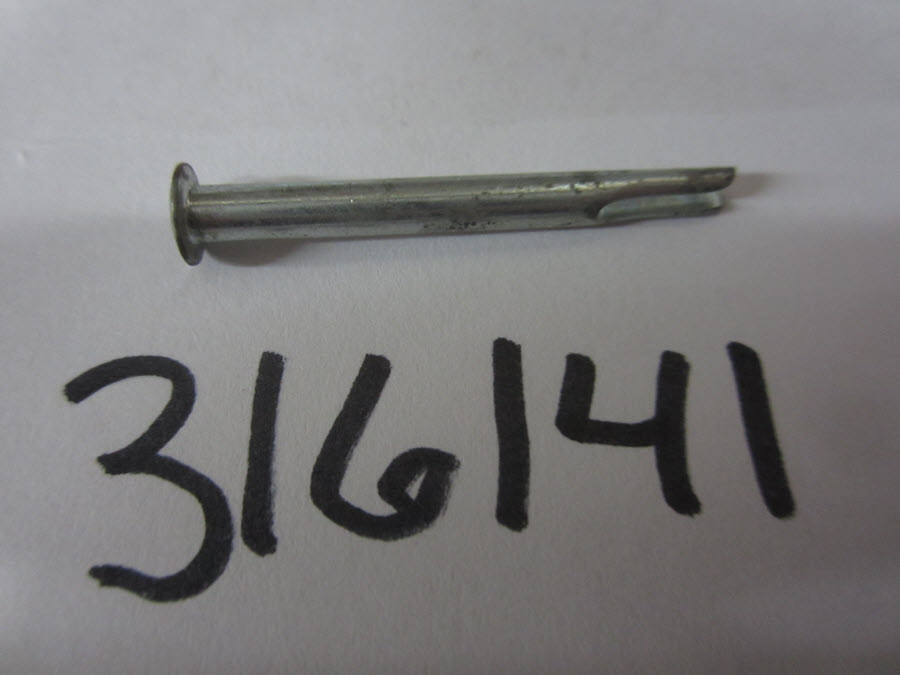

| #33 — 316141 — RIVET, SWIVEL (2 required per assembly) | ||
  |
|
0316141 - Rivet, Swivel (316141) [ More info ]
|

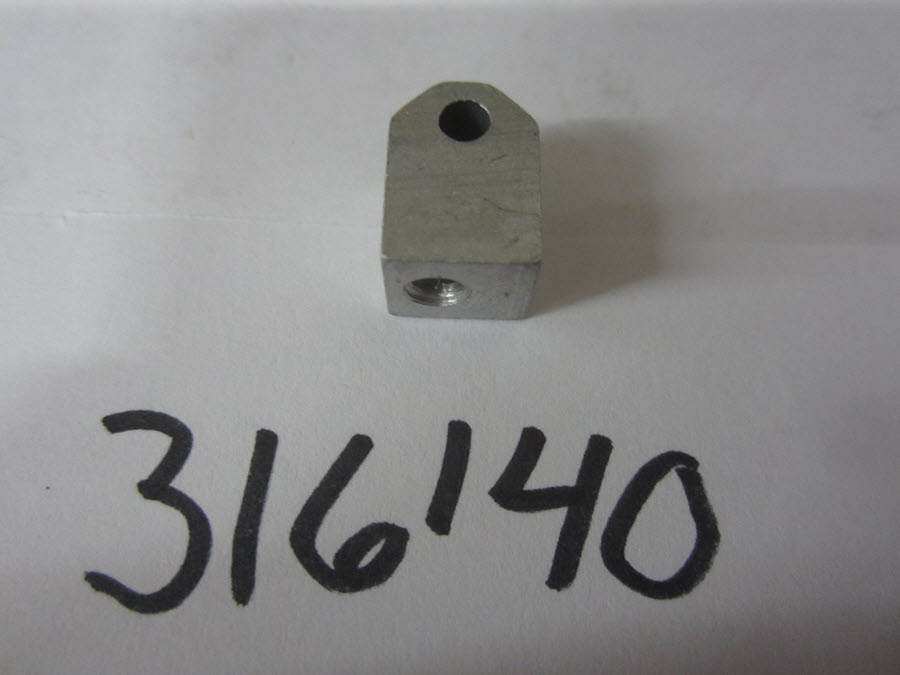

| #34 — 316140 — SWIVEL (2 required per assembly) | ||
  |
|
0316140 - Swivel (316140) [ More info ]
|
| #35 — 979755 — LEAD ASSY, SPARK PLUG #1 & 3 (2 required per assembly) | ||
  |
|
0979755 - L/P 17.60 [ More info ] Unavailable |

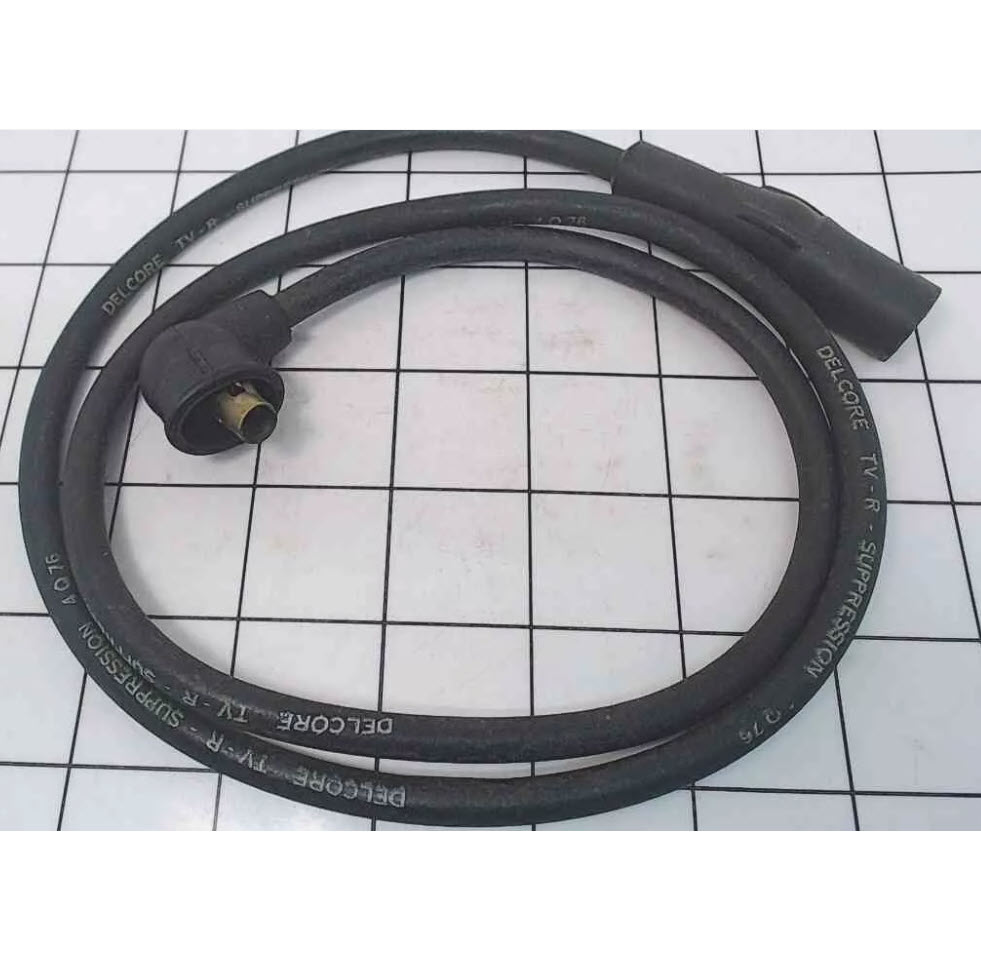

| #35 — 979756 — LEAD ASSY, SPARK PLUG #2 (1 required per assembly) | ||
  |
|
|

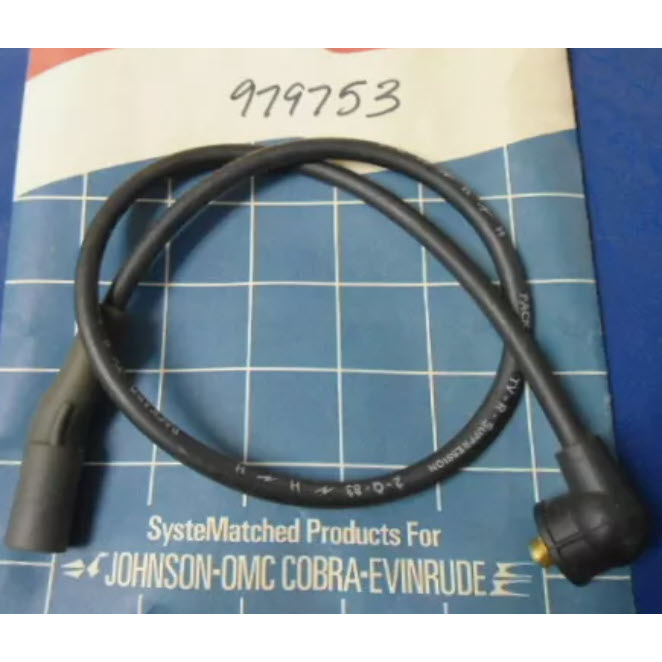

| #35 — 979753 — LEAD ASSY, SPARK PLUG #5, #6 (2 required per assembly) | ||
  |
|
0979753 - L/P 4.20 [ More info ] Unavailable |
| #35 — 979754 — LEAD ASSY, SPARK PLUG #4 (1 required per assembly) | ||
  |
|
0979754 - L/P 9.05 [ More info ] Unavailable |
| #35 — 979752 — LEAD ASSY, SPARK PLUG #7, #8 (2 required per assembly) | ||
  |
|
0979752 - L/P 12.20 [ More info ] Unavailable |

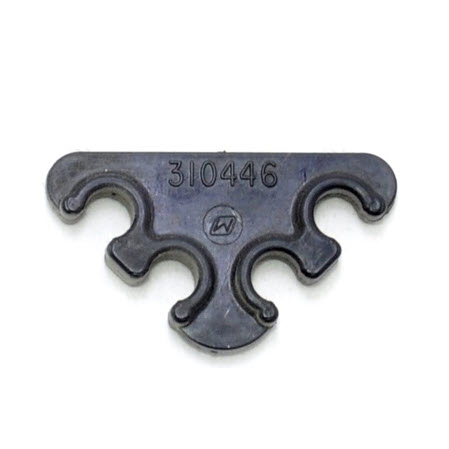

| #36 — 310446 — RETAINER, IGNITION LEADS (2 required per assembly) | ||
  |
|
0310446 -Wire Holder (310446) [ More info ]
|
| #37 — 580558 — LEAD ASSY, DIST TO COIL (1 required per assembly) | ||
  |
|
0580558 - Coil Lead (580558) [ More info ]
|
| #38 — 907942 — RETAINER, IGNITION LEADS (2 required per assembly) | ||
  |
|
0907942 - Retainer (907942) [ More info ]
|
