Engine Mount Group 165 Hp With Selectrim Parts for 1973 OMC Stern Drive 165hp 990210F Stern Drive

Revise Search: All Years > 1973 > 165 hp > 990210F > Engine Mount Group 165 Hp With Selectrim

NEED PARTS OR KITS?

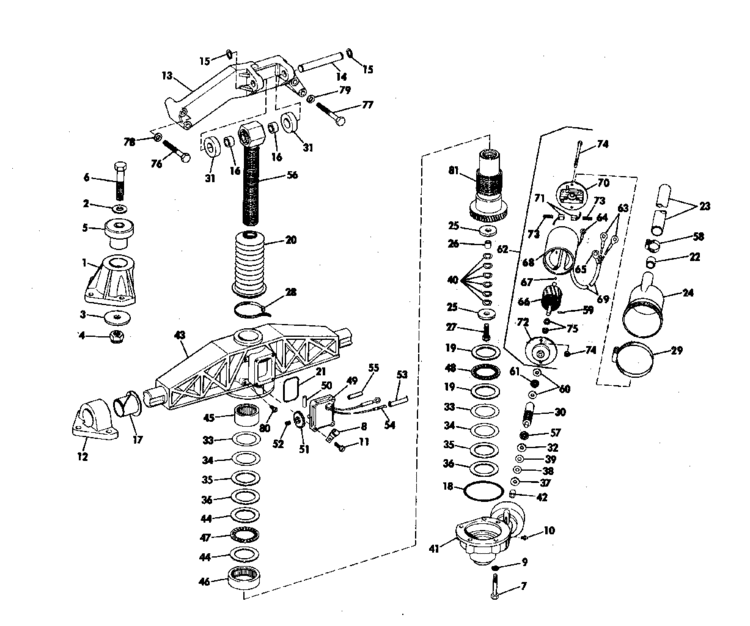

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1 — 907829 — BRACKET, REAR (2 required per assembly)

0907829 - L/P 4.64 [ More info ]
Unavailable

#2 — 907838 — WASHER (2 required per assembly)

0907838 - Washer (907838) [ More info ]

$1.25 $0.76
10+ In Stock.

#3 — 907857 — WASHER (2 required per assembly)
		3852428 [ More info ] $4.00 1 In Stock.
		NLA [ More info ] Unavailable
		60114009 - Washer - Volvo Penta (60114009) [ More info ] $6.20 Available to Order: Usually ships within 10 days.

#4 — 907858 — NUT (2 required per assembly)

0907858 - Lock Nut (907858) [ More info ]

$2.20 $1.84
7 In Stock.

#5 — 979722 — RUBBER MOUNT (2 required per assembly)

0979722 - L/P 44.15 [ More info ]
Unavailable

#6 — 317573 — SCREW (2 required per assembly)

0317573 - Screw (317573) [ More info ]
Unavailable

#7 — 306500 — SCREW, TRUNNION HOUSING (5 required per assembly)

0306500 - Screw (306500) [ More info ]

$8.43
6 In Stock.

#8 — 310441 — CLAMP, LEADS SENDING UNIT (1 required per assembly)

0310441 - J-Clamp (310441) [ More info ]

$4.52 $2.97
10+ In Stock.

#9 — 311388 — LOCKWASHER, SCREW HOUSING (5 required per assembly)

WASHER [ More info ]

$1.50 $0.91
10+ In Stock.

#10 — 313607 — LUBRICATION FITTING (1 required per assembly)

0313607 - Lube Fitting (313607) [ More info ]

$10.23 $6.74
10+ In Stock.

3852121 - Fitting, Volvo [ More info ]

$9.30
Available to Order: Usually ships within 10 days.

#11 — 510397 — SCREW, SENDING UNIT COVER (4 required per assembly)

0510397 - Screw (510397) [ More info ]

$5.99 $5.00
10+ In Stock.

#12 — 907746 — PILLOW BLOCK, TRUNNION HOUSING (2 required per assembly)

0907746 - Pillow Block (907746) [ More info ]
Unavailable

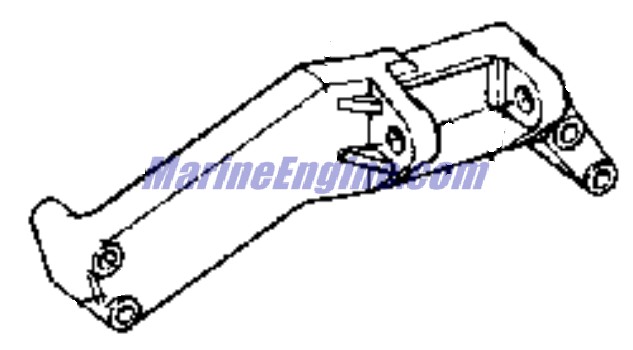

#13 — 907888 — BRACKET, ENGINE, FRONT (1 required per assembly)

0907888 - Bracket (907888) [ More info ]
Unavailable

#14 — 907759 — SHAFT, FRONT MOUNT (1 required per assembly)

Part [ More info ]

$8.50
2 In Stock.

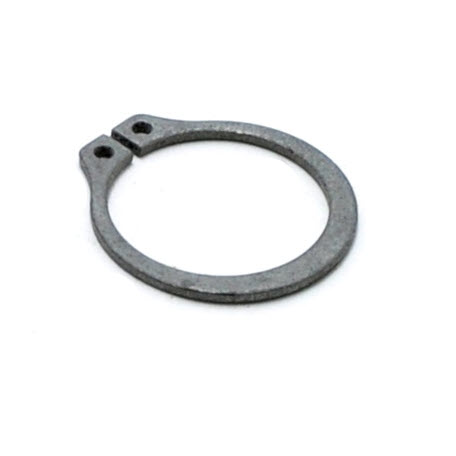

#15 — 907760 — RETAINING RING, SHAFT (2 required per assembly)

0907760 - Retaining Ring Shaft (907760) [ More info ]

$1.50 $0.91
10+ In Stock.

#16 — 907766 — SPACER, FRONT MOUNT (2 required per assembly)

0907766 - Spacer (907766) [ More info ]

$3.00 $1.82
9 In Stock.

#17 — 907769 — BUSHING, PILLOW BLOCK (2 required per assembly)

0907769 - Bushing; Pillow Block/Trunnion Housing (907769) [ More info ]

$5.99
10+ In Stock.

#18 — 907770 — O-RING, TRUNNION HOUSING (1 required per assembly)

0907770 - O-Ring - Trunnion Housing (907770) [ More info ]

$5.49 $3.34
10+ In Stock.

#19 — 907791 — WASHER, TRUNNION HOUSING (2 required per assembly)

THRUST WASHER [ More info ]

$11.99 $7.30
1 In Stock.

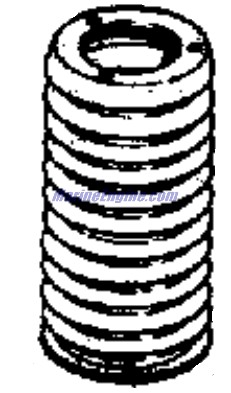

#20 — 907795 — BOOT, JACK SCREW (1 required per assembly)

0907795 - L/P 28.85 [ More info ]
Unavailable

#21 — 907817 — O-RING, SENDING UNIT (1 required per assembly)

0907817 - O-Ring - Sending Unit (907817) [ More info ]

$3.99 $2.43
10+ In Stock.

#22 — 907819 — TUBE, BOOT TRIM MOTOR (1 required per assembly)

TUBE,NLA [ More info ]

$3.10
2 In Stock.

#23 — 907820 — HOSE, MOTOR LEADS (1 required per assembly)

0907820 - Hose (907820) [ More info ]

$7.00 $4.26
1 In Stock.

#24 — 907821 — BOOT, PROTECTIVE MOTOR (1 required per assembly)

BOOT [ More info ]

$24.00
1 In Stock.

#25 — 907826 — WASHER, UPPER & LOWER (2 required per assembly)

0907826 [ More info ]
Unavailable
Replaced by 3852422

3852422 - Washer [ More info ]

$4.49 $2.74
10+ In Stock.

#26 — 907828 — SPACER, STOP SCREW (1 required per assembly)

0907828 - Spacer (907828) [ More info ]

$3.00 $1.82
10+ In Stock.

#27 — 907832 — SCREW, BUMPER STOP (1 required per assembly)

SCREW [ More info ]

$1.50 $0.91
10+ In Stock.

#28 — 907833 — TIE STRAP, BOOT (1 required per assembly)

0907833 - Tie Strap (907833) [ More info ]

$0.43
Available to Order: Usually ships within 10 days.

#29 — 980021 — CLAMP, BOOT TO TRIM MOTOR (1 required per assembly)

0980021 - L/P 3.31 [ More info ]
Unavailable

#30 — 907835 — WORM GEAR, TILT TRIM (1 required per assembly)

0907835 - WORM SHAFT (907835) [ More info ]
Unavailable

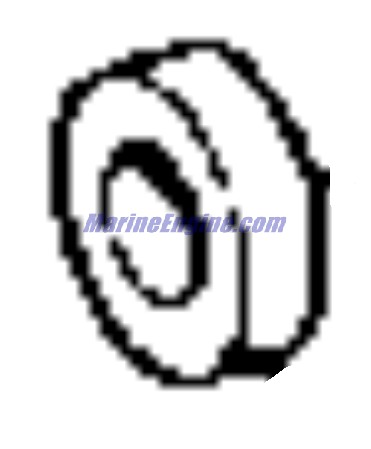

#31 — 907854 — SPACER, FRONT MOUNT (2 required per assembly)

0907854 - Spacer (907854) [ More info ]

$3.00 $1.82
10+ In Stock.

#32 — 907837 — WASHER, WORM GEAR (1 required per assembly)

THRUST WASHER,NLA [ More info ]

$18.69 $11.37
5 In Stock.

#33 — 907925 — SHIM, .002" (0 required per assembly)

0907925 - Shim 002 (907925) [ More info ]

$5.00 $3.04
8 In Stock.

#34 — 907926 — SHIM, .003" (0 required per assembly)

0907926 - Shim 003 (907926) [ More info ]

$5.00 $3.04
10+ In Stock.

#35 — 907927 — SHIM, .004" (0 required per assembly)

0907927 - Shim 004 (907927) [ More info ]

$4.00 $2.43
10+ In Stock.

#36 — 907928 — SHIM, .010" (0 required per assembly)

0907928 - Shim 010 (907928) [ More info ]

$4.00 $2.43
10+ In Stock.

#37 — 907929 — SHIM, .002" (0 required per assembly)

0907929 - Shim 002 (907929) [ More info ]

$5.00 $3.04
10+ In Stock.

#38 — 907930 — SHIM, .003" (0 required per assembly)

0907930 - Shim 003 (907930) [ More info ]

$5.00 $3.04
6 In Stock.

#39 — 907931 — SHIM, .004" (0 required per assembly)

0907931 - Shim 004 (907931) [ More info ]

$4.00 $2.43
10+ In Stock.

#40 — 907966 — WASHER, BUMPER STOP (6 required per assembly)

0907966 - Spring Washer (907966) [ More info ]

$1.50 $0.91
10+ In Stock.

#41 — 979715 — TRUNNION HOUSING, LOWER (1 required per assembly)

TRUNION HSG,NLA [ More info ]
Unavailable

#42 — 907836 — BUSHING (1 required per assembly)

0907836 - Bushing (907836) [ More info ]

$2.00 $1.22
10+ In Stock.

#43 — 979724 — TRUNNION HOUSING & BRG ASSEMBLY (1 required per assembly)

0979724 [ More info ]
Unavailable
Replaced by 0981671

0981671 - Trunnion Housing (981671) [ More info ]

$79.00 $48.03
2 In Stock.

#45 — 979769 — NEEDLE BEARING ASSY (1 required per assembly)

0979769 - Needle Bearing Assembly (979769) [ More info ]

$24.99 $15.20
10+ In Stock.

#46 — 979770 — NEEDLE BEARING ASSY (1 required per assembly)

0979770 - L/P 20.77 [ More info ]
Unavailable

#47 — 979771 — BEARING ASSY, THRUST (1 required per assembly)

0979771 [ More info ]
Unavailable
Replaced by 0397537

0397537 - Thrust Bearing (397537) [ More info ]

$33.74 $27.62
3 In Stock.

#49 — 979792 — SENDING UNIT ASSEMBLY (1 required per assembly)

SENDING UNIT,NLA [ More info ]

$39.00 $23.71
6 In Stock.

#50 — 316198 — HEAT SHRINK TUBE (1 required per assembly)

0316198 - Tubing (316198) [ More info ]

$1.38 $0.84
10+ In Stock.

#51 — 907815 — GEAR (1 required per assembly)

0907815 - Gear, Sending Unit (907815) [ More info ]

$8.00 $4.86
10+ In Stock.

#52 — 907816 — CLUTCH RING (1 required per assembly)

0907816 - Clutch Ring (907816) [ More info ]

$4.00 $2.43
10+ In Stock.

#53 — 303806 — TUBING (1 required per assembly)

TUBING [ More info ]

$11.99
10+ In Stock.

#54 — 308808 — TERMINAL (1 required per assembly)

0308808 - Terminal (308808) [ More info ]

$8.43 $5.55
10+ In Stock.

#55 — 908615 — HEAT SHRINK TUBE (1 required per assembly)

0908615 - L/P .53 [ More info ]
Unavailable

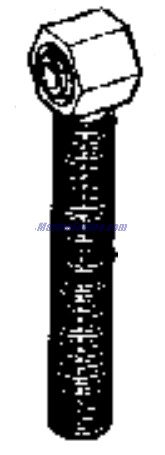

#56 — 979796 — JACK SCREW & FRONT MOUNT (1 required per assembly)

0979796 - Jack Screw & Front Mount (979796) [ More info ]

$4.00 $2.43
1 In Stock.

#57 — 979798 — BEARING (1 required per assembly)

BEARING [ More info ]

$20.00
2 In Stock.

#58 — 979803 — CLAMP, HOSE TILT MOTOR (1 required per assembly)

0979803 - Hose Clamp (979803) [ More info ]

$3.31 $0.58
10+ In Stock.

#59 — 317134 — SPIRAL PIN (1 required per assembly)

0317134 - Spirol Pin (317134) [ More info ]

$5.99 $3.65
10+ In Stock.

#62 — 979768 — MOTOR ASSEMBLY (1 required per assembly)
		0979768 [ More info ] Unavailable Replaced by 0982073
		MOTOR AY, TRIM,NLA [ More info ] $149.99 2 In Stock.
		6211 - Tilt & Trim Motor, 982073, 983318 [ More info ] $241.97 1 In Stock.
