Dual Steering Kit Optional Item - All Models Parts for 1973 OMC Stern Drive 140hp 990217F Stern Drive

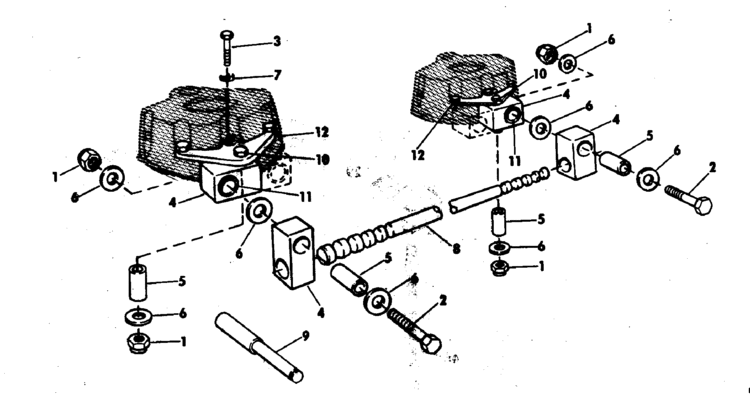

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

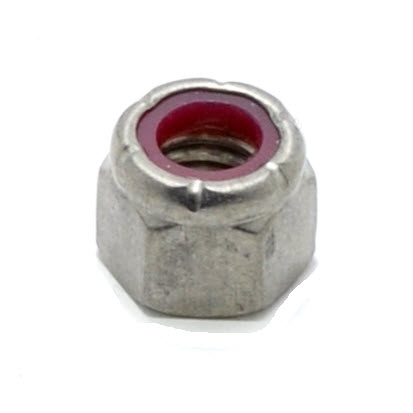

| #1 — 313990 — STOP NUT (4 required per assembly) | ||
  |
|
0313990 - Nut (313990) [ More info ]
|

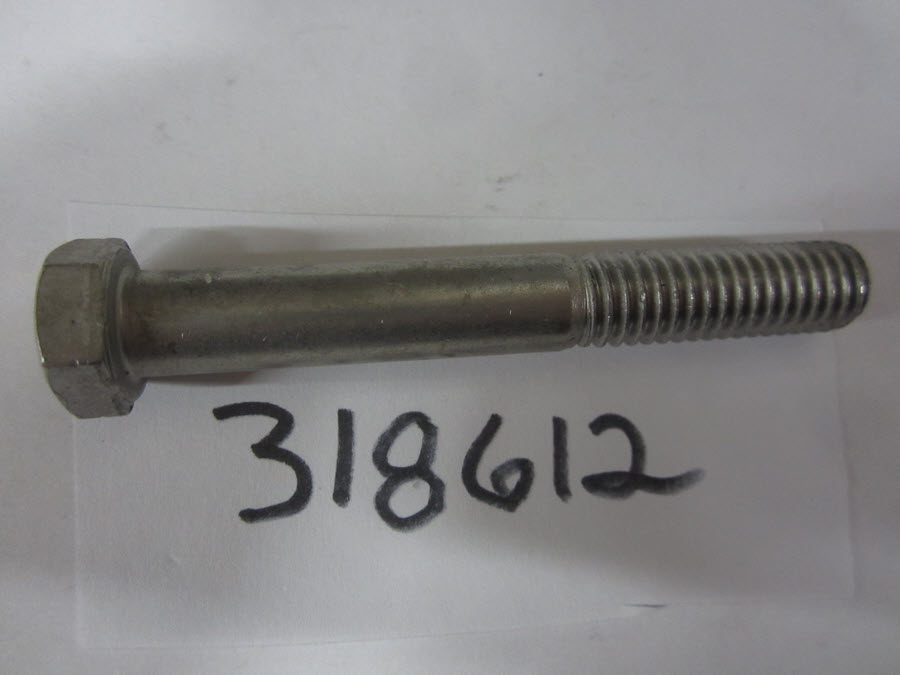

| #2 — 318612 — SCREW, UNION TO TIE BAR (2 required per assembly) | ||
  |
|
0318612 - Screw (2-3/4 Inch Long) (318612) [ More info ]
|

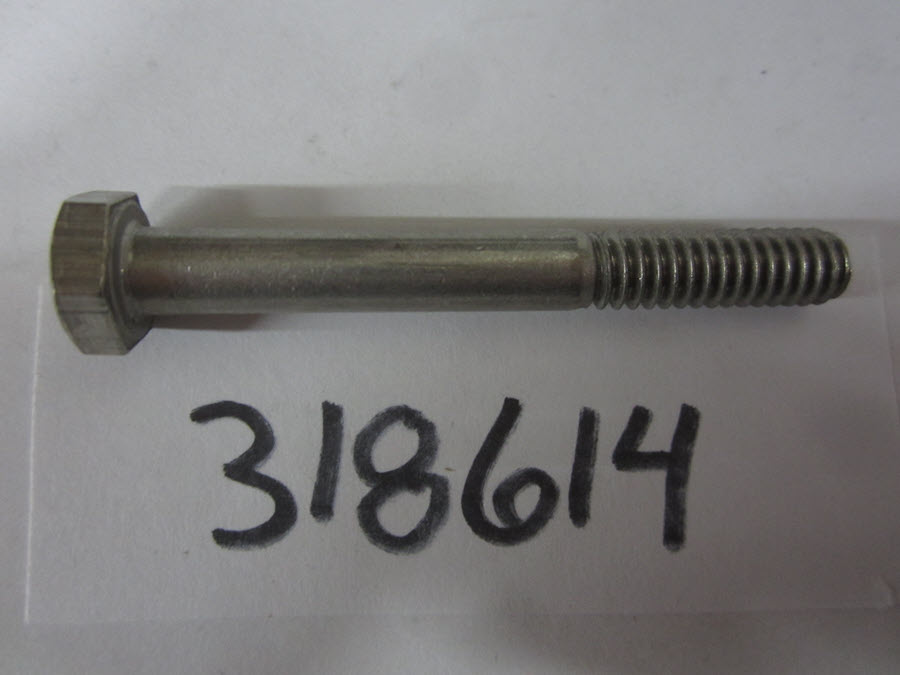

| #3 — 318614 — SCREW, BRACKET TO COVER (6 required per assembly) | ||
  |
|
0318614 - Screw, Bracket To Cover (318614) [ More info ]
|

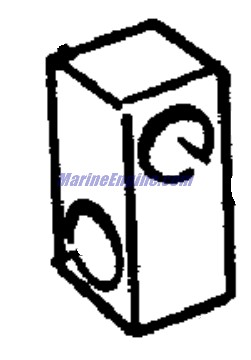

| #4 — 908395 — UNION (4 required per assembly) | ||
  |
|
0908395 - Union (908395) [ More info ]
|
| #5 — 908396 — SPACER (4 required per assembly) | ||
  |
|
SLEEVE,NLA [ More info ]
|

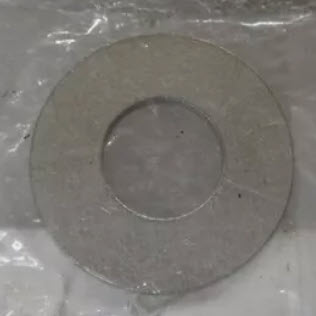

| #6 — 908398 — WASHER (10 required per assembly) | ||
  |
|
0908398 - Washer (908398) [ More info ]
|
| #7 — 908399 — RETAINER, SCREW (6 required per assembly) | ||
  |
|
0908399 - Retainer (908399) [ More info ] Unavailable |
| #8 — 908401 — TIE BAR (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #9 — 908414 — SPACER SHAFT (1 required per assembly) | ||
  |
|
0908414 [ More info ] Unavailable Replaced by 0908890 |
  |
|
0908890 - Spacer Shaft (908890) [ More info ]
|

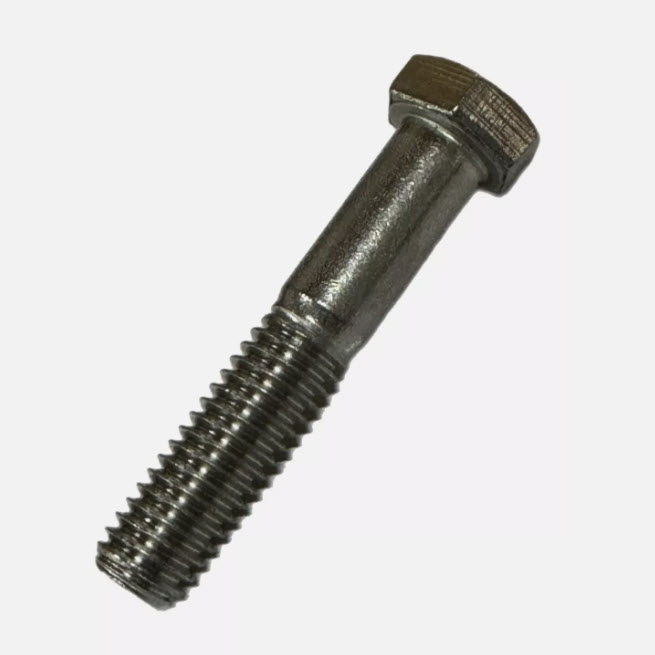

| #10 — 318611 — SCREW, BRACKET TO UNION (2 required per assembly) | ||
  |
|
0318611 - Screw, Lever To Bracket (318611) [ More info ]
|
| #11 — 908397 — SHAFT, PIVOT (2 required per assembly) | ||
  |
|
0908397 - Shaft (908397) [ More info ] Unavailable |
| #12 — 908400 — BRACKET (2 required per assembly) | ||
  |
|
0908400 - L/P 18.90 [ More info ] Unavailable |
