Cooling & Oiling Group 225 & 245 Hp Stern Drive Parts for 1973 OMC Stern Drive 140hp 990216F Stern Drive
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 9422297 — NUT, OIL PAN BAFFLE. 245 HP ONLY PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (5 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #2 — 3702366 — VALVE, PRESSURE REGULATOR. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #4 — 180075 — SCREW & LOCKWASHER, OIL PAN, 5/16-18 X 9/16". PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (4 required per assembly) | ||
  |
|
0180075 - - [ More info ] Unavailable |
| #4 — 3817006 — SCREW & LOCKWASHER, OIL PAN, 1/4-20 X 7/16". PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (14 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #5 — 3887151 — SEAL, FRONT. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
3887151 - Wiring Harness Modul(V2) - Volvo Penta (3887151) [ More info ]
|
| #6 — 3931599 — GASKET SET, OIL PAN. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
 |
|
CUM3931599 - PUMP,INJECTION BOSCH [ More info ] Unavailable |
| #9 — 3764113 — PICKUP SCREEN AND PIPE. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #11 — 133043 — BOLT, OIL PUMP COVER, 1/4-20 X 3/4". PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (4 required per assembly) | ||
  |
|
0133043 - - [ More info ] Unavailable |
| #12 — 9421423 — WASHER, COVER BOLT. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (4 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #16 — 3814903 — SPRING, VALVE. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #17 — 3755820 — PULLEY, CRANKSHAFT. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #18 — 3739422 — WASHER, PLAIN, 7/16". PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #19 — 136857 — LOCKWASHER, 7/16". PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
0136857 - - [ More info ] Unavailable |
| #20 — 9428643 — BOLT, DAMPENER ASSEMBLY, 7/16"-20 X 2-1/2". PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #21 — 3701777 — GASKET, THERMOSTAT ASSY.. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #22 — 3754587 — GASKET, PUMP TO BLOCK. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (2 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #23 — 454908 — BOLT, WATER PUMP,LWR. RIGHT. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #24 — 454467 — BOLT, WATER PUMP, LOWER LEFT. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #26 — 980477 — WATER PUMP ASSY. (1 required per assembly) | ||
  |
|
0980477 [ More info ] Unavailable Replaced by 0985429 |
  |
|
0985429 [ More info ] Unavailable Replaced by 3853850 |
  |
|
NLA [ More info ] Unavailable |
  |
|
3853850 - Circulation Pump Volvo Penta - Volvo Penta (3853850) [ More info ]
|
  |
|
18-3599-2 - Circulating Water Pump, Small Block Chevy [ More info ]
|
| #27 — 444746 — PLUG, 1/2-14. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
[ More info ] Unavailable |
| #29 — 103677 — STOP, VALVE SPRING. PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS (1 required per assembly) | ||
  |
|
0103677 - - [ More info ] Unavailable |
| #30 — 317552 — WASHER, STUD (12 required per assembly) | ||
  |
|
0317552 [ More info ] Unavailable Replaced by 0120177 |
  |
|
0120177 - Lock Washer (120177) [ More info ]
|
  |
|
3856736 - Washer Volvo Penta - Volvo Penta (3856736) [ More info ]
|
| #31 — 306405 — WASHER, THERMOSTAT HOUSING (2 required per assembly) | ||
  |
|
0306405 - Washer (306405) [ More info ]
|
  |
|
3852058 - Washer - Volvo Penta (3852058) [ More info ]
|
| #32 — 306422 — NUT, MANIFOLD STUD (12 required per assembly) | ||
  |
|
0306422 - Nut (306422) [ More info ]
|

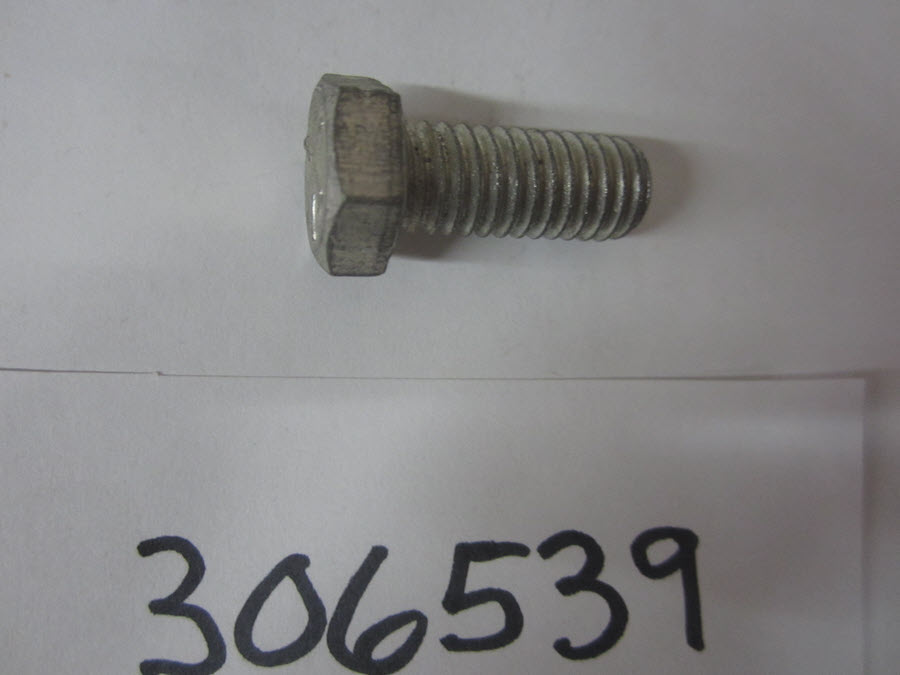

| #33 — 306539 — SCREW, THERMO. HSG. TO MANF (2 required per assembly) | ||
  |
|
0306539 - CapScrew (306539) [ More info ]
|
| #34 — 306861 — SCREW, WATER PUMP PULLEY (4 required per assembly) | ||
  |
|
0306861 - Bolt (306861) [ More info ]
|
| #35 — 306325 — LK'WASH., WATER PUMP PULLEY (4 required per assembly) | ||
  |
|
0306325 - Lock Washer (306325) [ More info ]
|
| #36 — 307899 — CLAMP, HOSE (12 required per assembly) | ||
  |
|
0307899 - Hose Clamp (307899) [ More info ]
|
| #37 — 310894 — CLAMP, ELBOW (0 required per assembly) | ||
  |
|
0310894 - Screw Clamp (310894) [ More info ]
|
| #38 — 310904 — NIPPLE, ELBOW (2 required per assembly) | ||
  |
|
0310904 - Nipple (310904) [ More info ]
|
| #39 — 311046 — BELT, ALTERNATOR (1 required per assembly) | ||
  |
|
0311046 - Alternator Belt (311046) [ More info ]
|
  |
|
966981 - V-Belt, Volvo [ More info ]
|
  |
|
18-15440 - V-Belt, 57-49213A1 [ More info ]
|
| #40 — 310968 — STUD, MFLD TO BLOCK (12 required per assembly) | ||
  |
|
|
  |
|
|
| #42 — 384528 — OIL PAN ASSY (1 required per assembly) | ||
  |
|
0384528 [ More info ] Unavailable Replaced by 0980969 |
  |
|
|
| #43 — 311076 — CLAMP, HOSE TO PUMP (2 required per assembly) | ||
  |
|
0311076 - Hose Clamp (311076) [ More info ]
|
  |
|
3863438 - Hose Clamp [ More info ]
|
| #44 — 379957 — PETCOCK ASSEMBLY (2 required per assembly) | ||
  |
|
0379957 - Petcock, Water Drain (379957) [ More info ]
|
  |
|
18-4218 - Drain 22-16951A1 [ More info ]
|

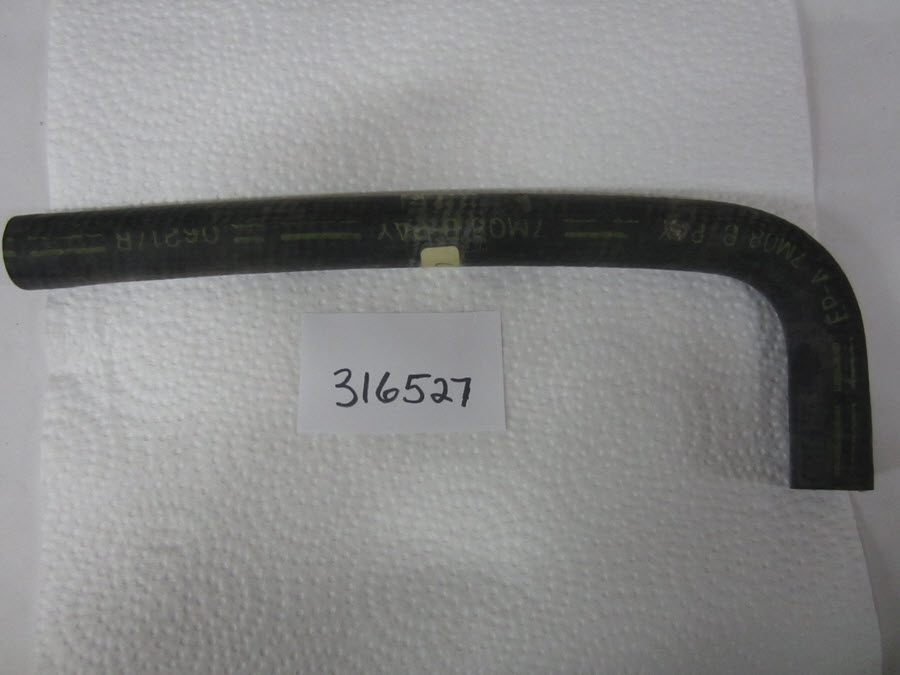

| #45 — 316527 — HOSE, INTER. HSG. TO ELBOW (2 required per assembly) | ||
  |
|
0316527 - Intermediate Housing Hose (316527) [ More info ]
|

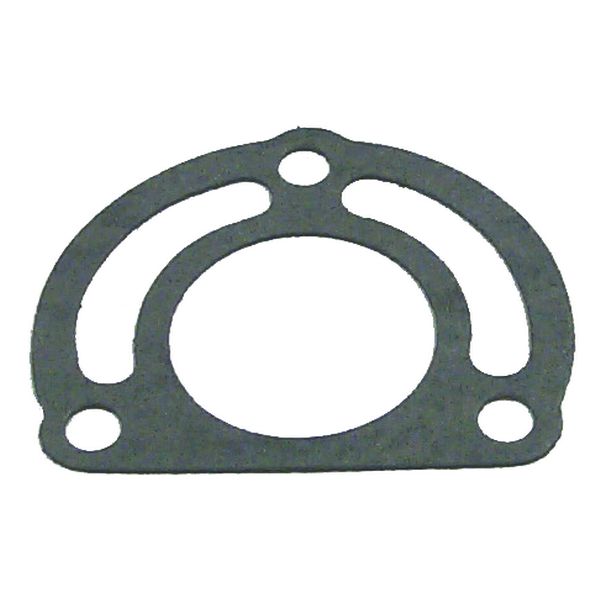

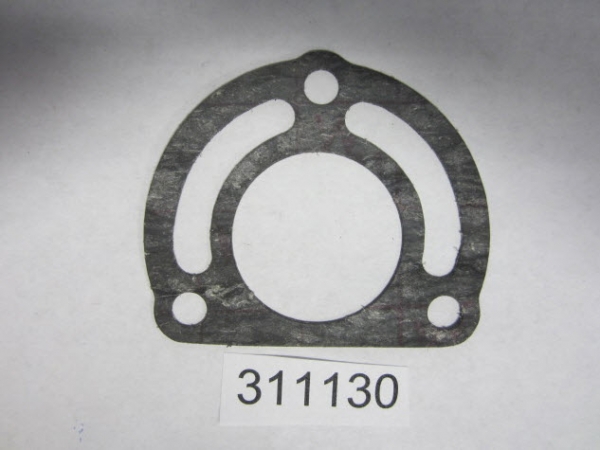

| #46 — 311130 — GASKET, CAP TO MANIFOLD (2 required per assembly) | ||
  |
|
GASKET,NLA [ More info ]
|
  |
|
GSK 311130 [ More info ] 10+ In Stock. |
| #47 — 907775 — GASKET, ELBOW TO MANIFOLD (2 required per assembly) | ||
  |
|
0907775 - Elbow to Manifold Gasket (907775) [ More info ]
|
| #48 — 312148 — CAP, EXHAUST MANIFOLD (2 required per assembly) | ||
  |
|
|
  |
|
|
| #49 — 907776 — ELBOW, EXHAUST MANF., PORT (1 required per assembly) | ||
  |
|
0907776 [ More info ] Unavailable Replaced by 0981281 |
  |
|
|
  |
|
OMC ELBOW,981281 (9#) [ More info ]
|
| #50 — 907777 — ELBOW, EXHAUST MANF., STBD. (1 required per assembly) | ||
  |
|
0907777 [ More info ] Unavailable Replaced by 0981281 |
| #51 — 171960 — SENDING UNIT, WATER TEMP (1 required per assembly) | ||
  |
|
0171960 - Water Temp Sending Unit (171960) [ More info ]
|
  |
|
18-5898 - Sender, 97258A1, 171960 [ More info ]
|
| #52 — 379948 — SWITCH, OIL PRESSURE (1 required per assembly) | ||
  |
|
0379948 - SWITCH [ More info ] Unavailable |
  |
|
3852215 - Sensor, Volvo [ More info ]
|
  |
|
18-5894 - Oil Pressure Light Switch [ More info ]
|
| #53 — 121689 — TERMINAL, SENDING UNIT (1 required per assembly) | ||
  |
|
|
| #55 — 309322 — CLAMP, OIL TUBE (1 required per assembly) | ||
  |
|
0309322 [ More info ] Unavailable Replaced by 0309041 |
  |
|
0309041 [ More info ] Unavailable Replaced by 0330151 |
  |
|
0330151 - J Clamp (330151) [ More info ]
|
| #56 — 312781 — HOSE, HOUSING TO WATER PUMP (1 required per assembly) | ||
  |
|
|
  |
|
18-71337 - Hose, 32-87108, 32-806825 [ More info ]
|
| #57 — 979760 — EXHAUST MANIFOLD, PORT (1 required per assembly) | ||
  |
|
0979760 - MANIFOLD PORT [ More info ] Unavailable |
  |
|
OMC MANI,PORT (26#) [ More info ]
|
| #58 — 310870 — STUD, MANIFOLD (6 required per assembly) | ||
  |
|
0310870 - Stud (310870) [ More info ]
|
| #59 — 907847 — WASHER, ELBOW OIL DRAIN PAN (1 required per assembly) | ||
  |
|
0907847 [ More info ] Unavailable Replaced by 0909632 |
  |
|
0909632 - O-Ring - Oil Drain Elbow (909632) [ More info ]
|

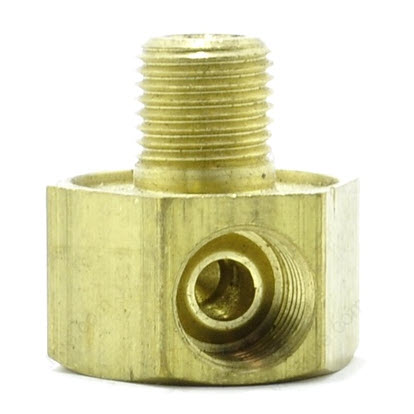

| #60 — 907848 — ELBOW, OIL DRAIN PAN (1 required per assembly) | ||
  |
|
0907848 - Oil Drain Elbow (907848) [ More info ]
|

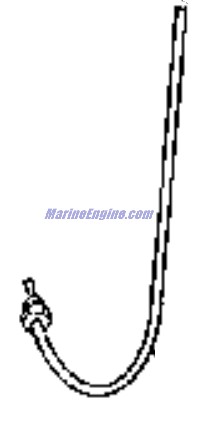

| #61 — 979818 — OIL LINE ASSY, C'CASE DRAIN (1 required per assembly) | ||
  |
|
0979818 - DIP STICK TUBE [ More info ] Unavailable |

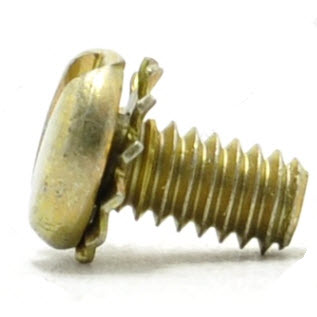

| #62 — 303311 — SCREW, OIL TUBE CLAMP (1 required per assembly) | ||
  |
|
0303311 - Screw - Clamp Bracket (303311) [ More info ]
|

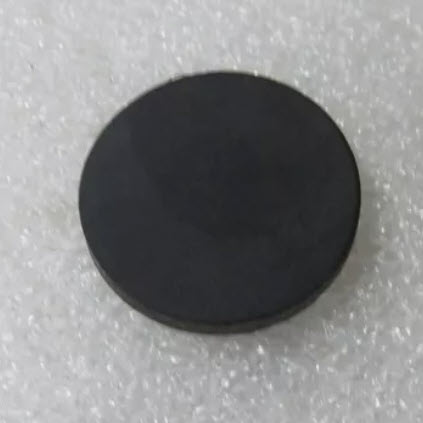

| #63 — 907845 — SEAL, CLAMP OIL DRAIN TUBE (1 required per assembly) | ||
  |
|
0907845 - Seal (907845) [ More info ]
|
  |
|
|
| #65 — 979761 — EXH MANIFOLD, STBD. (1 required per assembly) | ||
  |
|
0979761 - L/P 334.08 [ More info ] Unavailable |
  |
|
OMC MANI,STDB (26#) [ More info ]
|
| #67 — 310928 — CLAMP, OIL TUBE TO MANF. (1 required per assembly) | ||
  |
|
0310928 - Clamp - Cable (310928) [ More info ]
|
|
|
3852092 - Clamp, Volvo [ More info ]
|

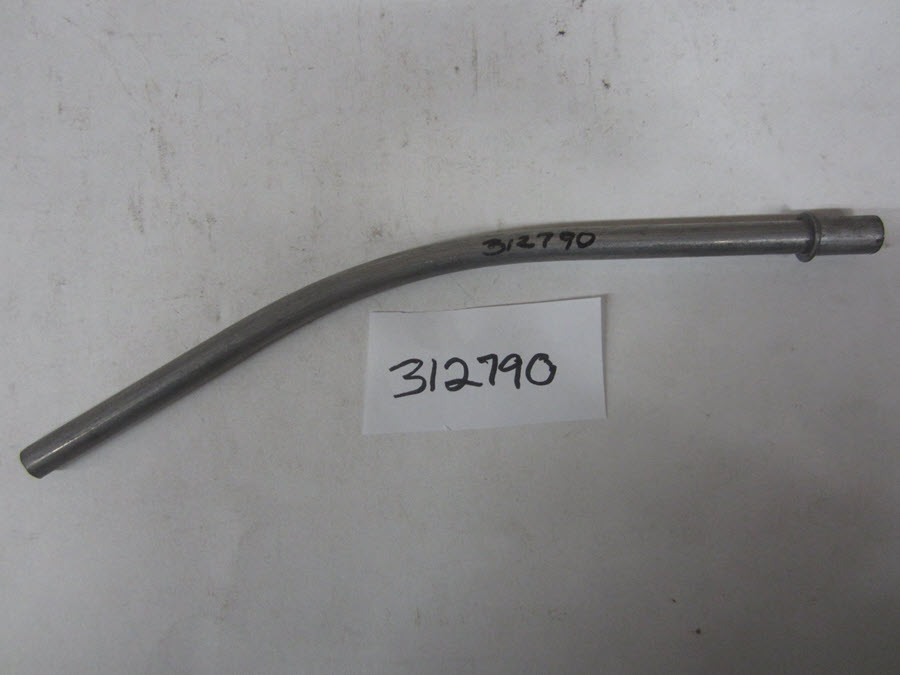

| #68 — 312790 — TUBE, OIL LEVEL GAUGE (1 required per assembly) | ||
  |
|
0312790 - Tube (312790) [ More info ]
|
| #69 — 316382 — SCREW, UPPER TO LOWER HSG (4 required per assembly) | ||
  |
|
0316382 [ More info ] Unavailable Replaced by 0306010 |
  |
|
0306010 [ More info ] Unavailable Replaced by 0328724 |
  |
|
0328724 - Screw (328724) [ More info ]
|
  |
|
3852115 - Screw, Volvo [ More info ]
|
  |
|
3852053 - Screw, Volvo [ More info ]
|
| #70 — 314810 — THERMOSTAT HSG, UPPER (1 required per assembly) | ||
  |
|
0314810 - Upper Thermostat Housing (314810) [ More info ]
|
| #71 — 314809 — GASKET, UPPER TO LOWER HSG (1 required per assembly) | ||
  |
|
0314809 - Thermostat Housing Gasket (314809) [ More info ]
|
  |
|
3852127 - Gasket, Volvo [ More info ]
|
  |
|
18-2858-9 - Gasket 314809 2-Pack [ More info ]
|
| #72 — 310913 — GASKET, THERMOSTAT (1 required per assembly) | ||
  |
|
0310913 - Thermostat Housing Gasket (310913) [ More info ]
|
| #73 — 383323 — THERMOSTAT HSG, LOWER (1 required per assembly) | ||
  |
|
THERMO HOUSING,NLA [ More info ]
|
| #74 — 303806 — SLEEVE, REGULATOR LEADS (1 required per assembly) | ||
  |
|
|
| #76 — 306865 — SCREW, CRANKSHAFT PULLEY (3 required per assembly) | ||
  |
|
0306865 - Screw, Crankshaft Pulley (306865) [ More info ]
|
| #77 — 383440 — VOLTAGE REGULATOR & CABLE ASSEMBLY (1 required per assembly) | ||
  |
|
|
  |
|
18-5711 - Regulator 383440 [ More info ]
|
| #78 — 308808 — TERMINAL (1 required per assembly) | ||
  |
|
0308808 - Terminal (308808) [ More info ]
|
| #79 — 204036 — RING TERMINAL (1 required per assembly) | ||
  |
|
0204036 - Ring Terminal (204036) [ More info ]
|
| #80 — 383307 — THERMOSTAT (1 required per assembly) | ||
  |
|
0383307 - Thermostat, 160 Degrees (383307) [ More info ]
|
  |
|
3856961 - Thermostat, Volvo [ More info ]
|
  |
|
18-3554 - Thermostat, 160 Degrees, 383307, 3856961 [ More info ]
|
| #81 — 307920 — SCREW, REGULATOR TO HOUSING (2 required per assembly) | ||
  |
|
0307920 - Screw, Retainer (307920) [ More info ]
|
| #84 — 907887 — NUT, MANIFOLD STUD (12 required per assembly) | ||
  |
|
0907887 - Nut (907887) [ More info ]
|
| #85 — 306407 — WASHER, EXHAUST OUTLET. 245 HP ONLY (6 required per assembly) | ||
  |
|
0306407 - Washer (306407) [ More info ]
|
|
|
3852059 - Washer(V2) - Volvo Penta (3852059) [ More info ]
|

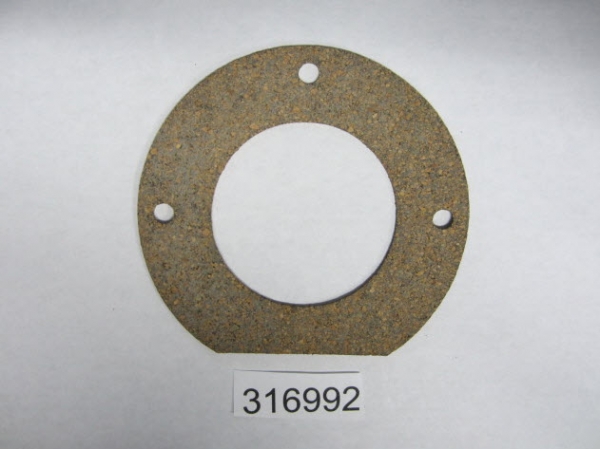

| #87 — 316992 — GASKET, EXHAUST OUTLET. 245 HP ONLY (2 required per assembly) | ||
  |
|
0316992 - Exhaust Outlet Gasket (316992) [ More info ]
|
| #88 — 901788 — SCREW, EXHAUST OUTLET. 245 HP ONLY (6 required per assembly) | ||
  |
|
0901788 - Screw, Exhaust Outlet (901788) [ More info ]
|

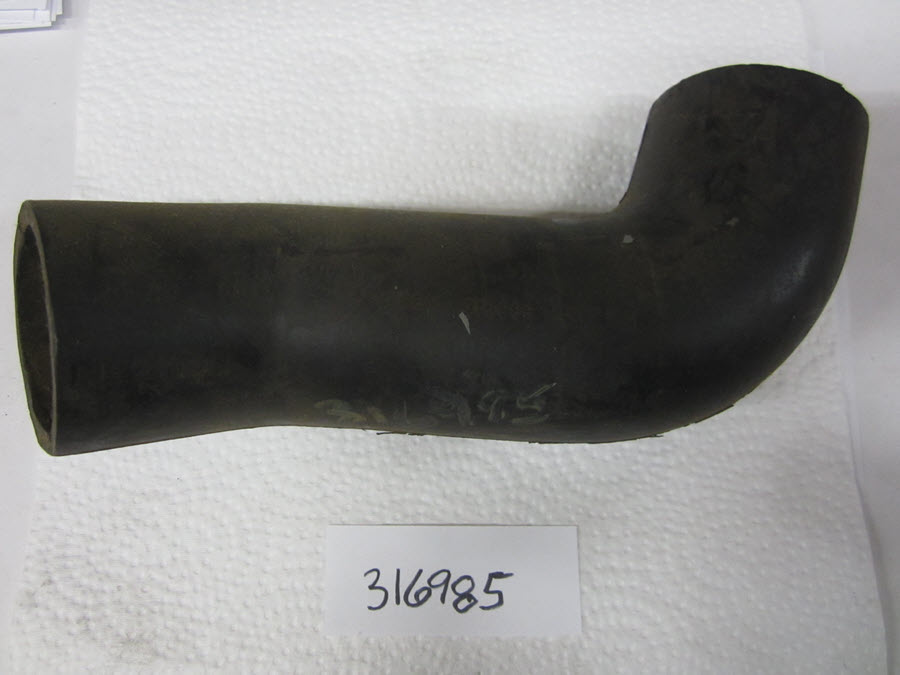

| #89 — 316985 — HOSE, EXHAUST ELBOW PORT. 245 HP ONLY (1 required per assembly) | ||
  |
|
|

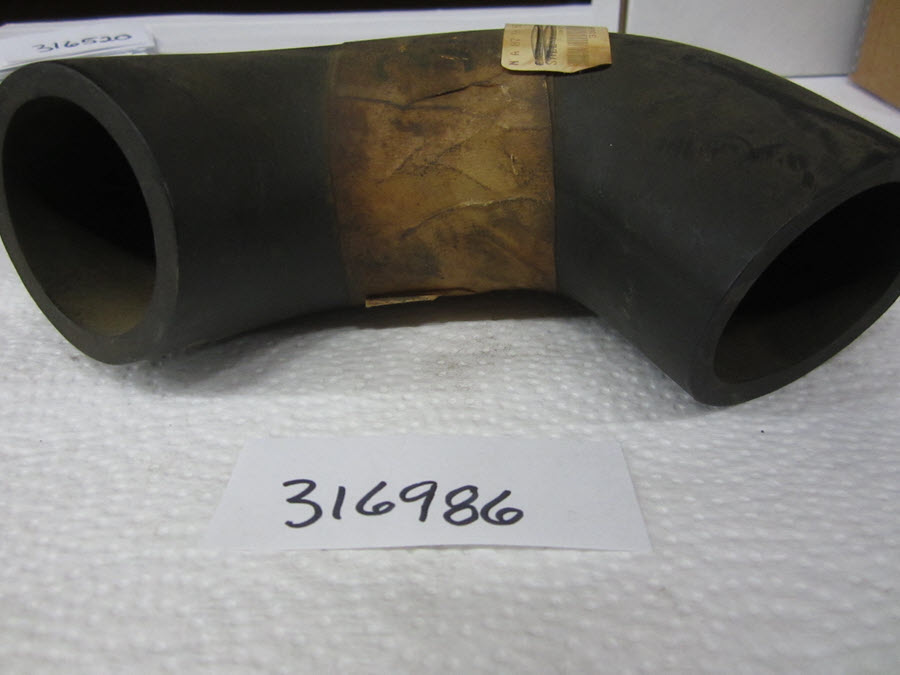

| #89 — 316986 — HOSE, EXHAUST ELBOW STBD.. 245 HP ONLY (1 required per assembly) | ||
  |
|
0316986 -Hose (316986) [ More info ]
|

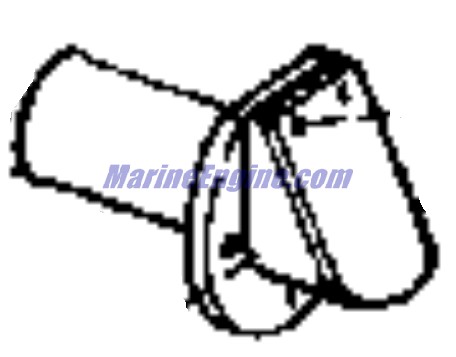

| #90 — 384877 — EXH. OUTLET ASSY. 245 HP ONLY (2 required per assembly) | ||
  |
|
0384877 - Exhaust & Flap (384877) [ More info ] Unavailable |
| #91 — 908043 — STRAP, FLAP RETAINER. 245 HP ONLY (1 required per assembly) | ||
  |
|
0908043 - Strap (908043) [ More info ]
|
| #92 — 908044 — FLAP, EXH. OUTLET. 245 HP ONLY (1 required per assembly) | ||
  |
|
0908044 - Flap (908044) [ More info ]
|
| #93 — 908045 — SCREW, STRAP TO FLAP. 245 HP ONLY (2 required per assembly) | ||
  |
|
0908045 - Screw (908045) [ More info ]
|
| #94 — 900402 — LOCKNUT, EXHAUST OUTLET. 245 HP ONLY (6 required per assembly) | ||
  |
|
0900402 [ More info ] Unavailable Replaced by 3852420 |
  |
|
|
| #95 — 301250 — WASHER, MANIFOLD STUD. 245 HP ONLY (12 required per assembly) | ||
  |
|
0301250 - Washer (301250) [ More info ]
|
