Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Drive Shaft Housing Assembly

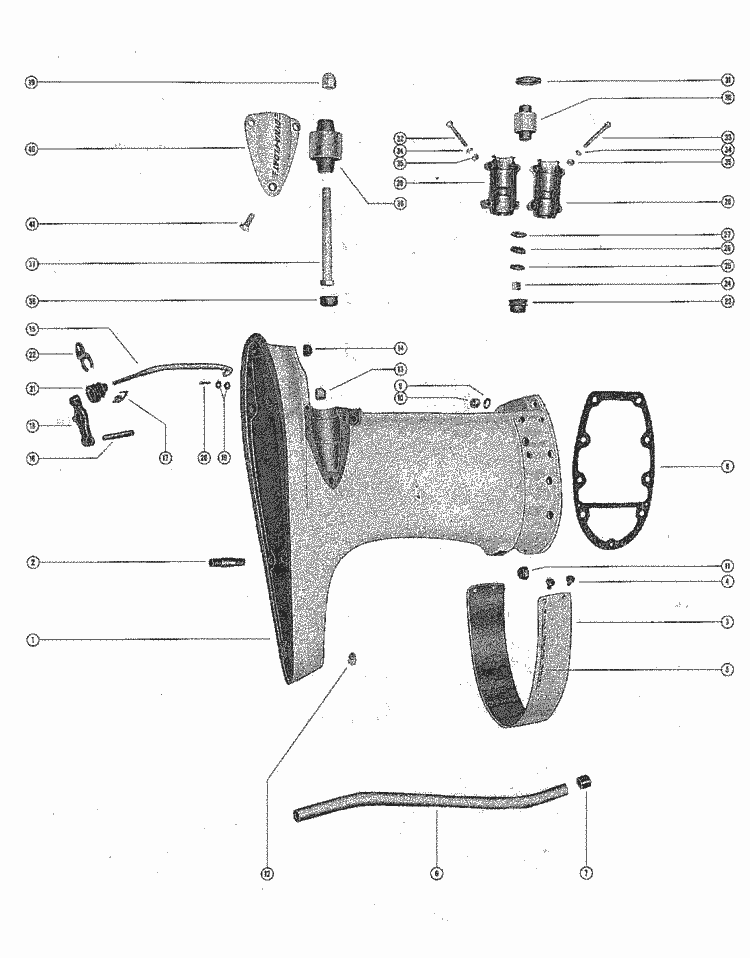

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1540-2384A 2 | DRIVE SHAFT HOUSING ASSEMBLY (1,1 required per assembly) |
 |
|
1540-2384A 2 - DRIVE SHAFT HSG NLA [ More info ] Unavailable |
| #2 | 16-56295 | STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2,2 required per assembly) |
|
|
16-56295 - Stud - Priced Individually [ More info ]
|
| #3 | -35638A 1 | COVER, TRIM - DRIVE SHAFT HOUSING (1,1 required per assembly) |
|
|
35638A 1 - COVER ASSY NLA [ More info ] Unavailable |
| #4 | 10-30742 | SCREW, TRIM COVER TO DRIVE SHAFT HOUSING (4,4 required per assembly) |
|
|
10-30742 - Screw - Priced Individually, NLA [ More info ]
|
| #5 | 37-31022 | DECAL,"FULL GEAR SHIFT"-STARBOARD (1,1 required per assembly) |
|
|
37-31022 - DECAL NLA [ More info ] Unavailable |
| #5 | 37-31023 | DECAL,"FULL GEAR SHIFT"-PORT (1,1 required per assembly) |
|
|
37-31023 - DECAL NLA [ More info ] Unavailable |
| #6 | 32-30722 | TUBE, WATER INLET (1,1 required per assembly) |
|
|
32-30722 - TUBE NLA [ More info ] Unavailable |
| #7 | 26-26207 | SEAL, RUBBER - WATER INLET TUBE (1,1 required per assembly) |
|
|
26-26207 - Seal, NLA [ More info ]
|

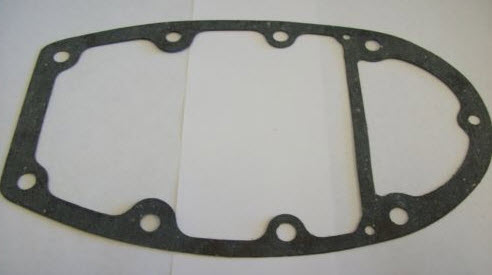

| #8 | 27-26198 | GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL (1,1 required per assembly) |
  |
|
27-26198 - Drive Shaft Housing To Bottom Cowl Gasket [ More info ]
|
| #9 | 12-20086 | WASHER, POWERHEAD STUDS (2,2 required per assembly) |
|
|
12-20086 - Washer, (.390 X .620 X .060) [ More info ]
|
| #10 | 11-34863 | NUT, POWERHEAD STUDS (2,2 required per assembly) |
|
|
11-34863 - 11-34863 - NUT (.375-24) [ More info ] Unavailable Replaced by 11-826709113 |
  |
|
11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636 |
|
|
11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726 |
|
|
11-8M0204726 - NUT-BRASS @3 [ More info ] Unavailable |
| #11 | 11-23161 | NUT, POWERHEAD STUDS (6,6 required per assembly) |
  |
|
11-23161 - Nut (3/8X24) [ More info ]
|
| #12 | 19-29850 | PLUG, PLASTIC - WATER PICK-UP SCREW HOLE (1,1 required per assembly) |
|
|
19-29850 - Plug, NLA [ More info ]
|

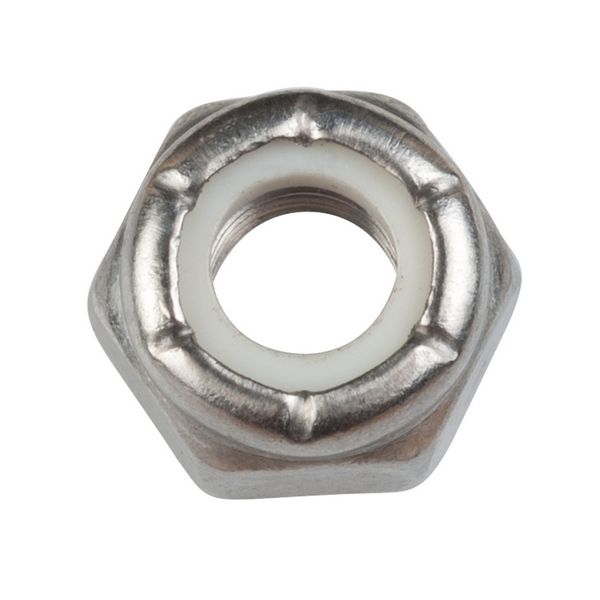

| #13 | 11-34933 | NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (4,4 required per assembly) |
  |
|
11-34933 - 11-34933 - NUT (.437-20) Sta [ More info ] Unavailable Replaced by -8M0204653 |
|
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
|
| #14 | 11-29489 | NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (1,1 required per assembly) |
|
|
11-29489 - Nut, Gear Hosuing Studs [ More info ]
|
| #15 | -30721 | ROD, PUSH - REVEERSE LOCK (1,1 required per assembly) |
|
|
30721 - Push Rod [ More info ]
|
| #16 | 17-30615 | PIN, REVERSE LOCK LEVER (1,1 required per assembly) |
|
|
17-30615 - Pin, Reverse Lock Lever,NLA [ More info ]
|

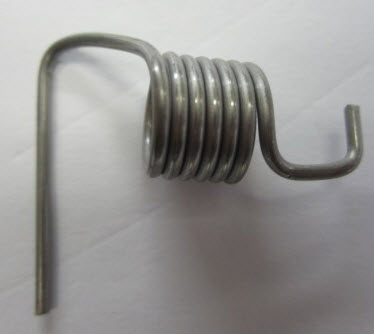

| #17 | 24-30618 | SPRING, TENSION - PUSH ROD (1,1 required per assembly) |
  |
|
24-30618 - Spring, Tension - Push Rod,NLA [ More info ]
|
| #18 | -52920 | LEVER, REVERSE LOCK (1,1 required per assembly) |
|
|
|
| #19 | 12-20546 | WAHSER, PUSH ROD (2,2 required per assembly) |
|
|
12-20546 - Washer, (.330 X .500 X .060) [ More info ]
|
| #20 | 18-25191 | COTTER PIN, PUSH ROD TO REVERSE LOCK (1,1 required per assembly) |
|
|
18-25191 - Cotter Pin - Priced Individually [ More info ]
|
| #21 | -30614 | BOOT, RUBBER - PUSH ROD (1,1 required per assembly) |
|
|
30614 - BOOT NLA [ More info ] Unavailable |
| #22 | -31039 | RETAINER, PUSH ROD RUBBER BOOT (1,1 required per assembly) |
|
|
31039 - RETAINER NLA [ More info ] Unavailable |
| #23 | -25305 | CAP, RUBBER - UPPER MOUNT BOLT NUT (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405679 AND BELOW |
|
|
25305 - CAP @10 NLA [ More info ] Unavailable |
| #25 | 12-30514 | WASHER, UPPER MOUNT BOLT (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405679 AND BELOW |
|
|
12-30514 - WASHER NLA [ More info ] Unavailable |
| #26 | 12-30516 | WASHER, RUBBER - UPPER MOUNT BOLT (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405679 AND BELOW |
|
|
12-30516 - Washer, Rubber - Upper Mount Bolt, NLA [ More info ]
|
| #27 | 12-30515 | WASHER, UPPPER MOUNT BOLT (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405679 AND BELOW |
|
|
12-30515 - Washer, Upper Mount Bolt, NLA [ More info ]
|
| #28 | -26218 | COVER, UPPER MOUNT - OUTSIDE HALF (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405679 AND BELOW |
|
|
26218 - Upper Mount Cover [ More info ]
|
| #29 | -26217 | COVER, UPPER MOUNT - INSIDE HALF (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405679 AND BELOW |
|
|
26217 - Upper Mount Cover [ More info ]
|
| #30 | -30513 | MOUNT, RUBBER - UPPER (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405679 AND BELOW |
|
|
30513 - Mount, NLA [ More info ]
|
| #23 | -31264 | CAP, RUBBER - UPPER MOUNT BOLT NUT (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405680 AND UP |
|
|
31264 - Cap, NLA [ More info ]
|
| #25 | 12-31263 | WASHER, UPPER MOUNT BOLT (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405680 AND UP |
|
|
12-31263 - Washer - Priced Individually [ More info ]
|
| #26 | 12-31261 | WASHER, RUBBER - UPPER MOUNT BOLT (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405680 AND UP |
|
|
12-31261 - Washer, Rubber - Upper Mount Bolt, NLA [ More info ]
|
| #27 | 12-31262 | WASHER, UPPER MOUNT BOLT (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405680 AND UP |
|
|
12-31262 - Washer, Upper Mount Bolt, NLA [ More info ]
|
| #28 | -31260 | COVER, UPPER MOUNT - OUTSIDE HALF (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405680 AND UP |
|
|
31260 - Cover, NLA [ More info ]
|

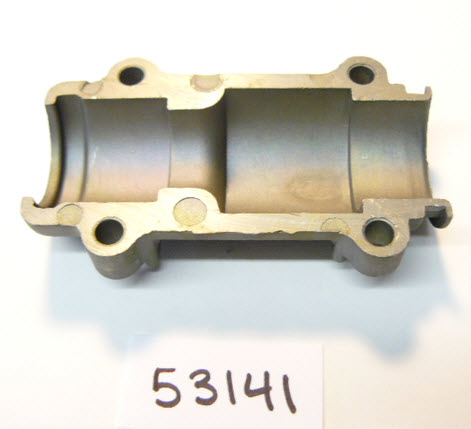

| #29 | -53141 | COVER, UPPER MOUNT - INSIDE HALF (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405680 AND UP |
  |
|
53141 - Upper Mount Cover [ More info ]
|
| #30 | -31256 | MOUNT, RUBBER - UPPER (2,2 required per assembly) USE ON ENGINES FROM SERIAL #1405680 AND UP |
|
|
31256 - 31256 - MOUNT [ More info ] Unavailable Replaced by -37398 |
|
|
37398 - 37398 - MOUNT [ More info ] Unavailable Replaced by -75296 |
  |
|
|

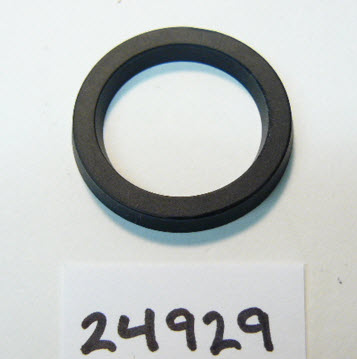

| #31 | -24929 | PACKING,"U" CUP (2,2 required per assembly) |
  |
|
24929 - U Cup Packing, NLA [ More info ]
|

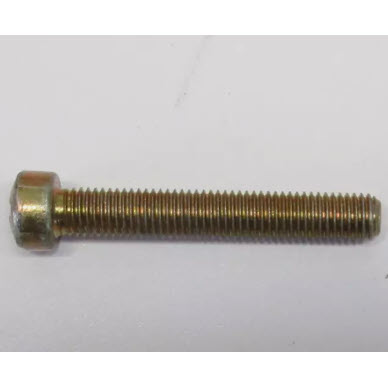

| #32 | 10-20012 | SCREW, UPPER MOUNT COVER (1 5/8") (4,4 required per assembly) |
  |
|
10-20012 - Screw - Priced Individually [ More info ]
|
| #33 | 10-28775 | SCREW, UPPER MOUNT COVER (2 1/4") (4,4 required per assembly) |
|
|
10-28775 - Screw, NLA [ More info ]
|
| #34 | 12-29245 | WASHER, UPPER MOUNT COVER SCREWS (8,8 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #35 | 11-35888 | NUT, UPPER MOUNT COVER SCREWS (8,8 required per assembly) |
  |
|
11-35888 - Nut (1/4-28) [ More info ]
|
  |
|
18-3722 - Lock Nut, 121731, 11-35888 [ More info ]
|
| #36 | -25067 | BUMPER, RUBBER - MOUNTING SCREW (2,2 required per assembly) |
|
|
25067 - Bumper, NLA [ More info ]
|

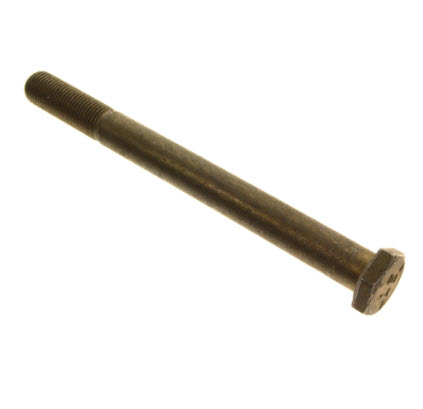

| #37 | 10-75284 | SCREW, UPPER MOUNT (5 1/2") (2,2 required per assembly) |
  |
|
10-75284 - Screw [ More info ]
|
| #38 | -30512 | MOUNT, RUBBER - LOWER (2,2 required per assembly) |
|
|
30512 - Mount, NLA [ More info ]
|
| #39 | 11-25096 | NUT, MOUNTING SCREW (2,2 required per assembly) |
  |
|
11-25096 - Nut, Mount Screw [ More info ]
|
| #40 | -26336 | COVER, LOWER MOUNT - PORT SIDE (1,1 required per assembly) |
|
|
26336 - Lower Mount Cover [ More info ]
|
| #40 | -26337 | COVER, LOWER MOUNT - STARBOARD SIDE (1,1 required per assembly) |
|
|
26337 - Lower Mount Cover [ More info ]
|
| #41 | 10-29256 | SCREW, LOWER MOUNT COVER FASTENING (6,6 required per assembly) |
  |
|
10-29256 - Screw - Priced Individually [ More info ]
|
