Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Distributor Vertical Linkage & Ignition Coils

Revise Search: All Models > Model 800 80 HP (6 Cylinder) > 1398630 - 1566239 ( ) > Distributor Vertical Linkage & Ignition Coils

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

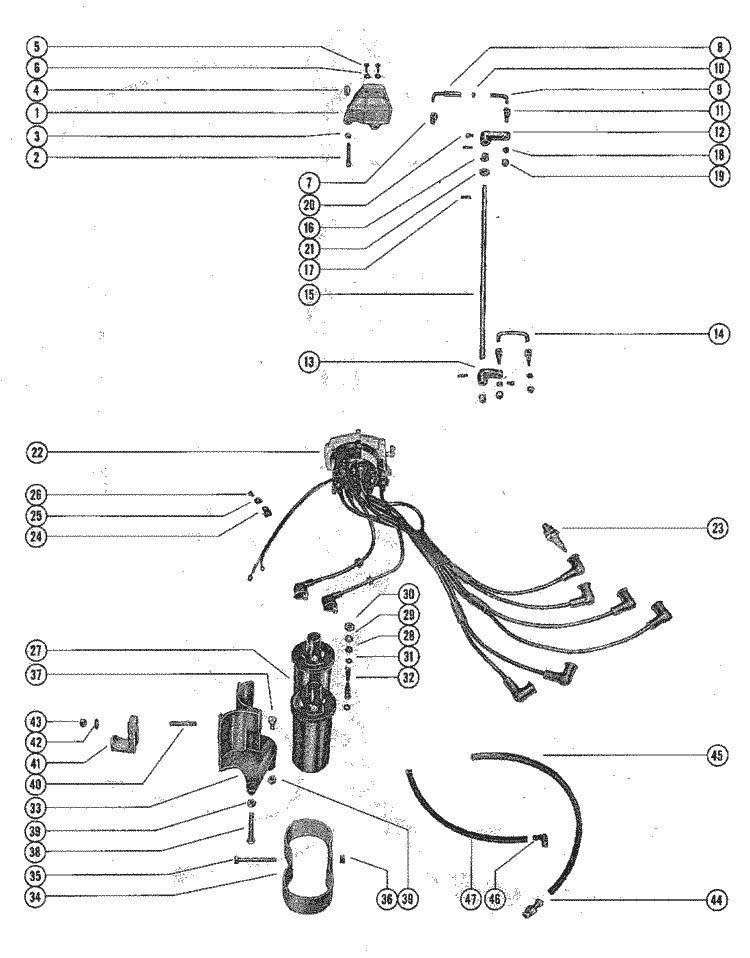

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	-30585	BRACKET, STOP (1,1 required per assembly)
		30585 - Bracket [ More info ] $1.60 3 In Stock.
		55805 - Stop Bracket, NLA [ More info ] $10.00 10+ In Stock.
#2	10-24228	SCREW, STOP BRACKET ADJUSTING (3,3 required per assembly)
		10-24228 - Screw, NLA [ More info ] $2.63 6 In Stock.
#3	11-20890	NUT, STOP BRACKET ADJUSTING SCREW (3,3 required per assembly)
		11-20890 - Nut (1/4 x20) [ More info ] $1.60 10 In Stock.

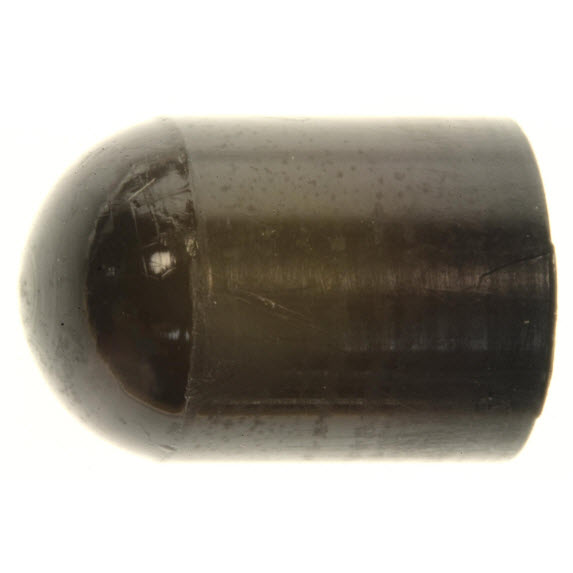

#4	-26852	CAP, NYLON - ADJUSTING SCREW (3,3 required per assembly)
		26852 - Nylon Cap [ More info ] $3.80 10 In Stock.
#5	10-28636	SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (2,2 required per assembly)
		10-28636 - Screw - Priced Individually [ More info ] $1.70 10+ In Stock.
#6	12-20533	WASHER, STOP BRACKET FASTENING SCREW (2,2 required per assembly)
		12-20533 - Washer, 9/16 Inch O.D. [ More info ] $1.40 Available to Order: Usually ships within 10 days.
#7	-27947	SWIVEL, LINKAGE - ECONOMIZER COLLAR (1,1 required per assembly)
		27947 - Swivel [ More info ] $6.00 10+ In Stock.
#8	-25996A 1	SWIVEL AND LINK ROD ASSEMBLY (1,1 required per assembly)
		25996A 1 - Link Rod Assembly [ More info ] $10.00 10+ In Stock.

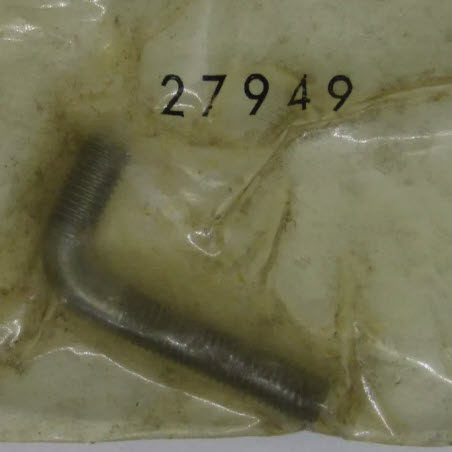

#9	-27949	ROD, LINK - UPPER (1,1 required per assembly)
		27949 - Link Rod, NLA [ More info ] $2.50 10+ In Stock.
#10	11-25168	NUT, UPPER LINK ROD ADJUSTING (1,1 required per assembly)
		11-25168 - Nut (1/4-28) NLA [ More info ] $1.59 10+ In Stock.

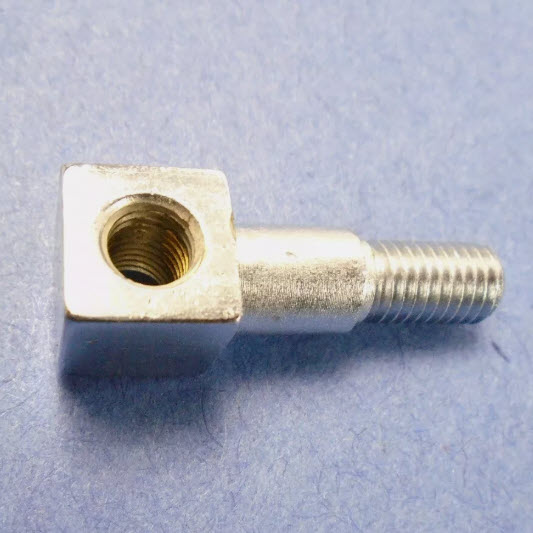

#11	-27948	SWIVEL, UPPER AND LOWER LINK RODS (3,3 required per assembly)
		27948 - Swivel [ More info ] $8.44 10+ In Stock.
#12	-30582	LEVER, LINKAGE - UPPER (1,1 required per assembly)
		30582 - Lever, NLA [ More info ] $5.00 7 In Stock.
#13	-30619	LEVER, LINKAGE - LOWER (1,1 required per assembly)
		30619 - Lever [ More info ] $5.00 7 In Stock.
#14	-30623	ROD, LINK - LOWER (1,1 required per assembly)
		30623 - Link, NLA [ More info ] $1.25 6 In Stock.
#15	-30629	SHAFT, VERTICAL (1,1 required per assembly)
		30629 - SHAFT NLA [ More info ] Unavailable
#16	23-26954	BUSHING, NYLON - VERTICAL SHFT (2,2 required per assembly)
		23-26954 - Bushing [ More info ] $5.70 Available to Order: Usually ships within 10 days.
#17	17-25319	ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS (3,3 required per assembly)
		17-25319 - Pin, (.125 X 0.75 Inches) [ More info ] $4.90 10+ In Stock.
#18	12-29245	WASHER, UPPER AND LOWER SWIVEL (3,3 required per assembly)
		12-29245 - Washer [ More info ] $0.80 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
		18-4275 - SS Washer [ More info ] $0.79 $0.76 1 In Stock.
#19	11-20361	NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET (3,3 required per assembly)
		11-20361 - 11-20361 - NUT (.250-28) [ More info ] Unavailable Replaced by 11-8267089
		11-826708 9 - Nut - Priced Individually [ More info ] $1.40 Available to Order: Usually ships within 10 days.
		18-3722 - Lock Nut, 121731, 11-35888 [ More info ] $2.29 $0.25 10+ In Stock.
#20	10-25781	SCREW, SET - LINKAGE LEVER (2,2 required per assembly)
		10-25781 - SCREW @5 NLA [ More info ] Unavailable
#21	12-20553	WASHER, VERTICAL SHAFT - CENTER (1,1 required per assembly)
		12-20553 - Washer - Priced Individually [ More info ] $1.40 10+ In Stock.
#22	393-1282A17	DISTRIBUTOR ASSEMBLY, COMPLETE (1,1 required per assembly)
		393-1282A17 - DISTRIBUTOR NLA [ More info ] Unavailable
#23	33-30578	SPARK PLUG (J4J) (6,6 required per assembly)
		33-30578 - 33-30578 - SPARK PLUG @10 [ More info ] Unavailable Replaced by 33-813413

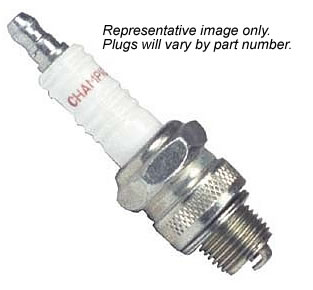

		33-813413 - NGK B7S @10 [ More info ] Unavailable

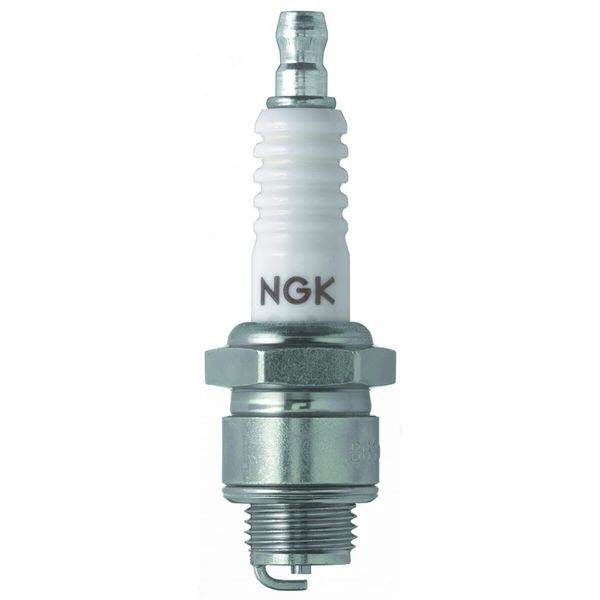

		B7S - NGK Spark Plug, 3710 [ More info ] $3.28 $3.21 Available to Order: Usually ships within 10 days.
		J6C - Champion Spark Plug ( #823) [ More info ] $5.03 10+ In Stock.
#24	54-24836	CLIP, DISTRIBUTOR PRIMARY GROUND LEAD (1/4-6) (1,1 required per assembly)
		54-24836 - Clip - Priced Individually [ More info ] $4.00 3 In Stock.
#25	-22789	"D" WASHER, GROUND LEAD CLIP SCREW (1,1 required per assembly)
		22789 - 22789 - D WASHER [ More info ] Unavailable Replaced by -69205
		69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#26	10-69014	SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE (1,1 required per assembly)
		10-69014 - Screw Note: Priced Individually [ More info ] $1.29 10+ In Stock.
		10-807754 - 10-807754 - SCREW (#10-24 x . [ More info ] Unavailable Replaced by -8M0113176
		108M0113176 - Screw - Priced Individually [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#27	-32193A 2	COIL, IGNITION (2,2 required per assembly)
		32193A 2 - 32193A 2 - COIL ASSEMBLY [ More info ] Unavailable Replaced by 392-806529A 1

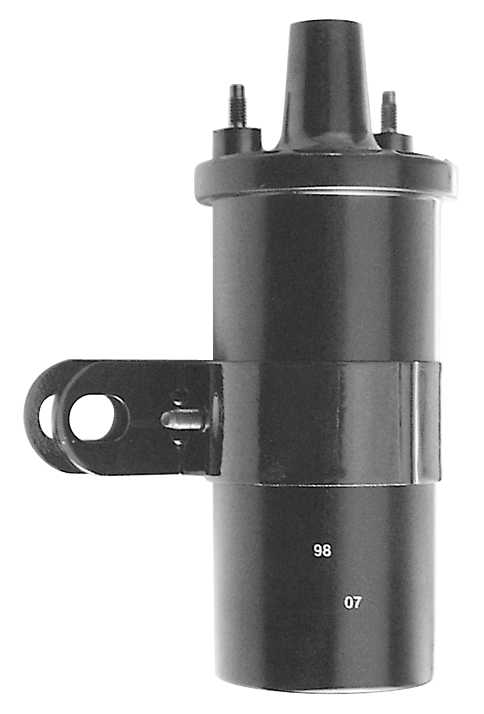

		392-806529A 1 - 392-806529A 1 - COIL ASSEMBLY Ign [ More info ] Unavailable Replaced by -898253T24
		898253T24 - Coil [ More info ] $72.67 $71.78 10+ In Stock.
		18-5433 - Coil, 392-806529A1 [ More info ] $46.80 10+ In Stock.
		3852217 - Ignition Coil [ More info ] $74.49 $60.99 10+ In Stock.

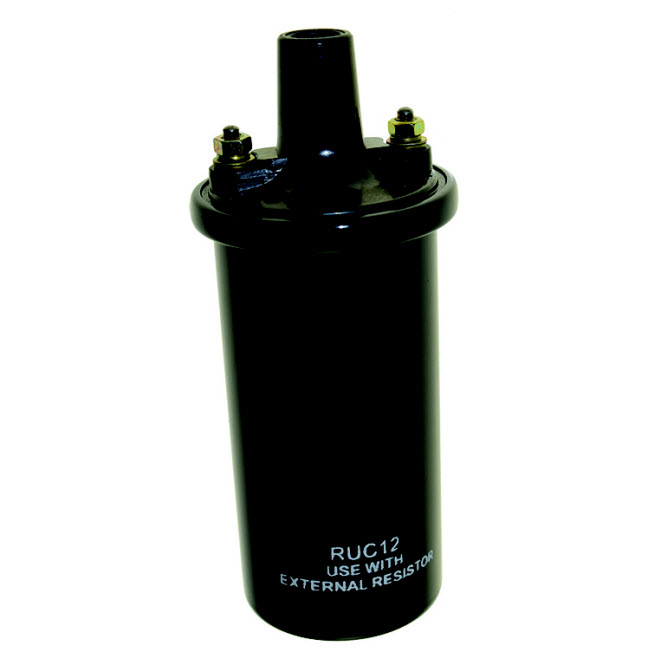

		E18-0004 - Ignition Coil [ More info ] $49.27 $45.94 Available to Order: Usually ships within 10 days.
#28	13-20554	LOCKWASHER, IGNITION COIL TERMINALS (4,4 required per assembly)
		13-20554 - Washer, NLA [ More info ] $3.00 5 In Stock.
#29	13-26996	LOCKWASHER, IGNITION COIL TERMINALS (4,4 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#30	11-68219	NUT, IGNITION COIL TERMINALS (4,4 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.90 10+ In Stock.

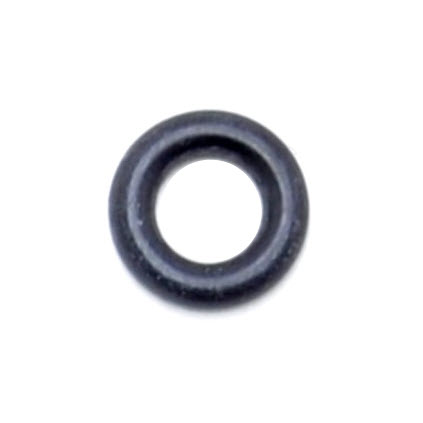

#31	25-26543	"O" RING, IGNITION COIL (2,2 required per assembly)
		25-26543 - O-Ring - Priced Individually [ More info ] $3.10 $1.74 10+ In Stock.
#32	-28922	JUMPER, COIL TO COIL (1,1 required per assembly)
		28922 - Jumper Lead, NLA [ More info ] $2.50 5 In Stock.
#33	-26514	BRACKET, COIL FASTENING (1,1 required per assembly)
		26514 - Bracket, NLA [ More info ] $8.00 3 In Stock.
#34	-26512	BAND, COIL BRACKET (1,1 required per assembly)
		26512 - BAND NLA [ More info ] Unavailable
#35	10-26889	SCREW, COIL BAND TO BRACKET (1,1 required per assembly)
		10-26889 - Screw, NLA [ More info ] $1.25 10+ In Stock.
#36	11-20184	NUT, COIL BAND SCREW (1,1 required per assembly)
		11-20184 - Nut, (1/4-28x7/32) [ More info ] $1.50 10+ In Stock.
		118M0207775 - NUT Note: Priced Individually [ More info ] $9.30 Available to Order: Usually ships within 10 days.
#37	10-20784	SCREW, COIL BRACKET TO BOTTOM COWL (1 1/2") (1,1 required per assembly)
		10-20784 - Screw, NLA [ More info ] $1.59 10+ In Stock.

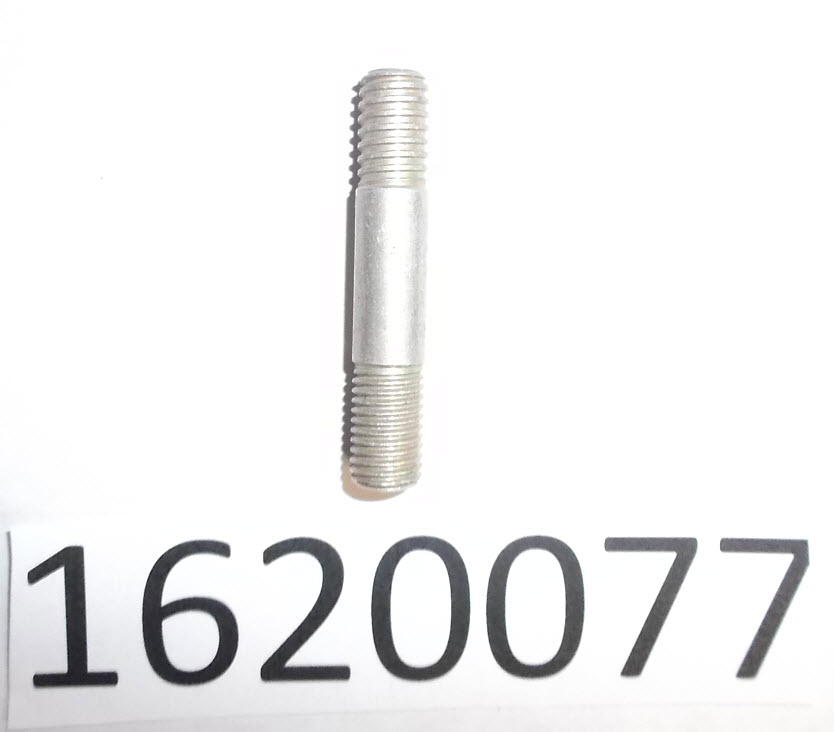

#40	16-20077	STUD, COIL BRACKET TO SUPPORT (1,1 required per assembly)
		16-20077 - Stud, NLA [ More info ] $2.00 1 In Stock.
#41	-30238	SUPPORT, EXTERNAL WIRING HARNESS (1,1 required per assembly)
		30238 - Support, NLA [ More info ] $2.50 10+ In Stock.
#42	12-20084	WASHER, COIL BRACKET STUD (1,1 required per assembly)
		12-20084 - Washer, (.328 X .562 X .062) [ More info ] $2.73 10+ In Stock.
#43	11-25594	NUT, COIL BRACKEET STUD (1,1 required per assembly)
		11-25594 - 11-25594 - NUT (.9375-24) [ More info ] Unavailable Replaced by 11-862902
		11-862902 - Nut, (.312-24) [ More info ] $2.30 3 In Stock.
#44	22-29111	CONNECTOR, DISTRIBUTOR VENT TUBE (1,1 required per assembly)
		22-29111 - 22-29111 - CONNECTOR [ More info ] Unavailable Replaced by 22-291111
		22-291111 - 22-291111 - ->291112 [ More info ] Unavailable Replaced by -291112
		22-29111 2 - Fitting [ More info ] $9.20 Available to Order: Usually ships within 10 days.
#45	32-99127109	HOSE, VENT - DISTRIBUTOR TO CONNECTOR (13") (1,1 required per assembly)
		32-99127109 - 32-99127109 - LINE (57.00 Inche [ More info ] Unavailable Replaced by 32-830756109
		32-830756109 - 32-830756109 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0047428
		32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355
		32-8M0108355 - Hose, 57 Inch [ More info ] $50.33 4 In Stock.
#46	22-99664	ELBOW, DISTRIBUTOR VENT TUBE (1,1 required per assembly)
		22-99664 - 22-99664 - ELBOW [ More info ] Unavailable Replaced by 22-996641
		22-996641 - 22-996641 - ->996642 [ More info ] Unavailable Replaced by -996642
		22-99664 2 - Elbow [ More info ] $2.60 3 In Stock.
