Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Bottom Cowl Assembly

Revise Search: All Models > Model 800 80 HP (6 Cylinder) > 1398630 - 1566239 ( ) > Bottom Cowl Assembly

NEED PARTS OR KITS?

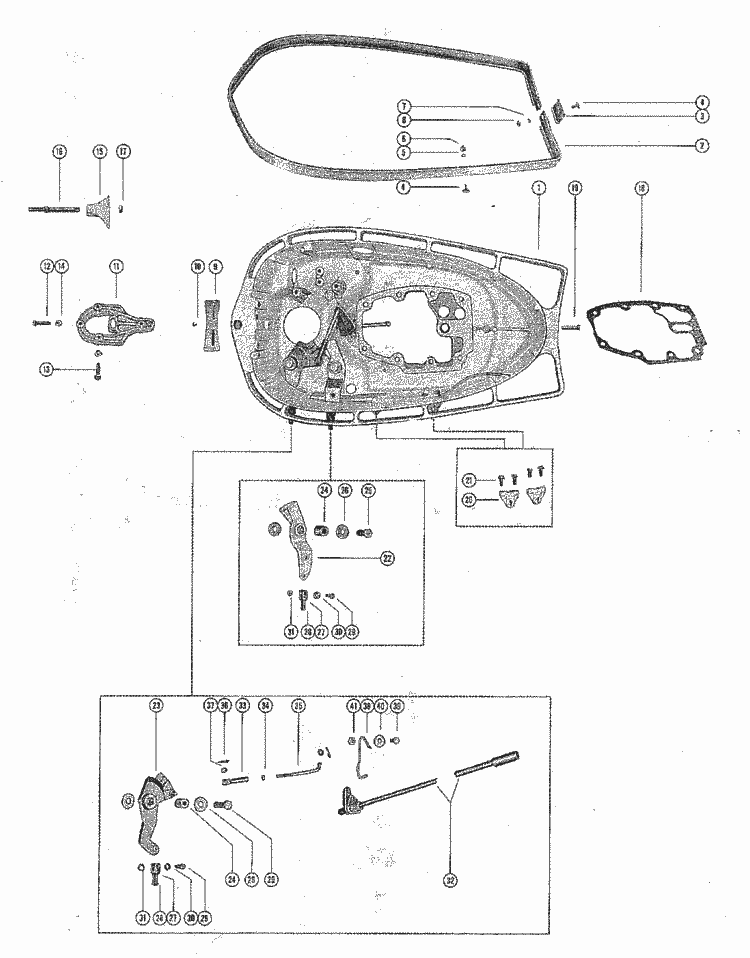

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	19-31469	PLUG, HOLE - BOTTOM COWL (TO PLUG 3/4" HOLE IN BOTTOM COWL) (,1 required per assembly)
		19-31469 - Plug, NLA [ More info ] $1.50 8 In Stock.
#	37-30860	DECAL, BOTTOM COWL ("8 H.P. SIX") PORT (1,1 required per assembly)
		37-30860 - DECAL NLA [ More info ] Unavailable
#	37-30861	DECAL, BOTTOM COWL ("80 H.P. SIX") STARBOARD (1,1 required per assembly)
		37-30861 - DECAL NLA [ More info ] Unavailable
#1	186-1781A 2	BOTTOM COWL ASSEMBLY (1,1 required per assembly)
		186-1781A 2 - BOTTOM COWL NLA [ More info ] Unavailable
#2	-29997A 1	TRIM MOULDING ASSEMBLY (1,1 required per assembly)
		29997A 1 - MOULDING ASSY NLA [ More info ] Unavailable
#3	-29998	SPLICER, TRIM MOULDING - REAR (1,1 required per assembly)
		29998 - Splicer, NLA [ More info ] $2.00 10+ In Stock.
#4	10-29226	SCREW, DECORATIVE - MOULDING TO BOTTOM COWL (5,5 required per assembly)
		10-29226 - SCREW @5 NLA [ More info ] Unavailable
#5	12-24671	WASHER, FIBER - MOULDING FASTENING SCREW (4,4 required per assembly)
		12-24671 - Washer, Fiber, NLA [ More info ] $1.25 7 In Stock.
#6	11-29225	NUT, NYLON CAP - MOULDING FASTENING SCREW (4,4 required per assembly)
		11-29225 - NUT @2 NLA [ More info ] Unavailable
#7	13-26995	LOCKWASHER, MOULDING FASTENING SCREW (1,1 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] $1.10 $0.62 10+ In Stock.
#8	11-26419	NUT, BRASS - MOULDING FASTENING SCREW (1,1 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.60 10+ In Stock.
#9	-30005	BAFFLE, BOTTOM COWL (1,1 required per assembly)
		30005 - Baffle, NLA [ More info ] $1.50 3 In Stock.
#10	10-21106	SCREW, BAFFLE TO BOTTOM COWL (3,3 required per assembly)
		10-21106 - Screw, NLA [ More info ] $1.59 10+ In Stock.
#11	-30768	BRACKET, RECTIFIER MOUNTING (1,1 required per assembly)
		30768 - Bracket, NLA [ More info ] $10.00 10+ In Stock.
#12	10-21091	SCREW, BRACKET TO BOTTOM COWL (1 1/8") (1,1 required per assembly)
		10-21091 - Screw, NLA [ More info ] $1.79 10+ In Stock.
#13	10-22421	SCREW, BRACKET TO BOTTOM COWL (1 1/4") (2,2 required per assembly)
		10-22421 - 10-22421 - SCREW @25 [ More info ] Unavailable Replaced by 10-56500
		10-56500 - Screw, NLA [ More info ] $2.80 10+ In Stock.
#14	11-20184	NUT, RECTIFIER BRACKET MOUNTING SCREW (3,3 required per assembly)
		11-20184 - Nut, (1/4-28x7/32) [ More info ] $1.50 10+ In Stock.
		118M0207775 - NUT Note: Priced Individually [ More info ] $9.30 Available to Order: Usually ships within 10 days.
#15	-30003	BRACKET, PIVOT PIN TO BOTTOM COWL (1,1 required per assembly)
		30003 - Bracket, NLA [ More info ] $7.00 5 In Stock.
#16	17-30004	PIN, PIVOT - BOTTOM COWL (1,1 required per assembly)
		17-30004 - PIVOT PIN NLA [ More info ] Unavailable
#17	11-20696	NUT, PIVOT PIN FASTENING (1,1 required per assembly)
		11-20696 - Nut, NLA [ More info ] $7.99 10+ In Stock.

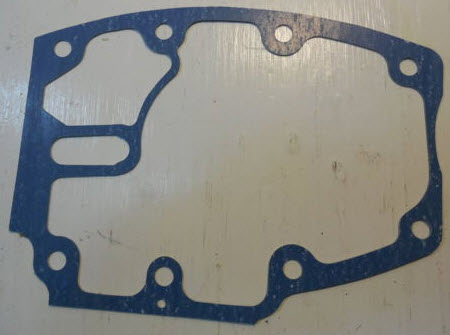

#18	27-29914	GASKET, POWERHEAD TO BOTTOM COWL (1,1 required per assembly)
		27-29914 - Powerhead To Bottom Cowl Gasket [ More info ] $19.99 10+ In Stock.
#19	10-21504	SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING (1,1 required per assembly) IF REPLACEMENT IS REQUIRED ON THIS SCREW, CHECK LENGTH OF SCREW BEFORE REPLACING, AS ENGINES WERE PRODUCED WITH TWO DIFFERENT LENGTH SCREWS, SUCH AS, C-10-24963 (7/8" LONG) AND C-10-21504 (1 1/4" LONG).
		10-21504 - SCREW @5 NLA [ More info ] Unavailable
#20	-20557	BRACKET, CABLE END ANCHOR (2,2 required per assembly)
		20557 - Cable and Anchor Bracket, NLA [ More info ] $13.99 10+ In Stock.
#21	10-29200	SCREW, ANCHOR BRAKCET TO BOTTOM COWL (4,4 required per assembly)
		10-29200 - Screw, NLA [ More info ] $4.99 10+ In Stock.
#22	-29532	LEVER, THROTTLE CONTROL (1,1 required per assembly)
		29532 - Lever [ More info ] $6.00 10+ In Stock.
#23	-30612	LEVER, SHIFT CONTROL (1,1 required per assembly)
		30612 - Lever, NLA [ More info ] $7.00 9 In Stock.

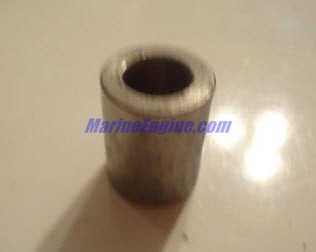

#24	23-29529	BUSHING, THROTTLE AND SHIFT LEVER (2,2 required per assembly)
		23-29529 - Bushing, NLA [ More info ] $6.00 1 In Stock.
#25	10-30620	SCREW, THROTTLE AND SHIFT LEVER FASTENING (2,2 required per assembly)
		10-30620 - 10-30620 - SCREW [ More info ] Unavailable Replaced by 10-47273
		10-47273 - Screw, NLA [ More info ] $1.25 10+ In Stock.

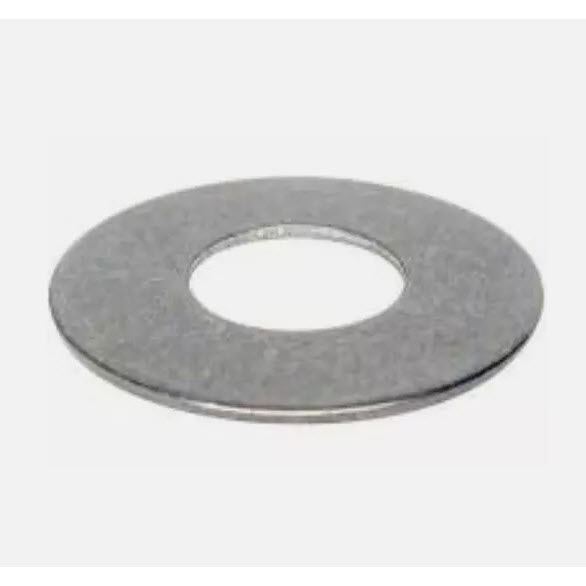

#26	12-29395	WASHER, THROTTLE AND SHIFT LEVER FASTENING SCREW (4,4 required per assembly)
		12-29395 - 12-29395 - WASHER (.390 x 1. [ More info ] Unavailable Replaced by 12-8M0042641

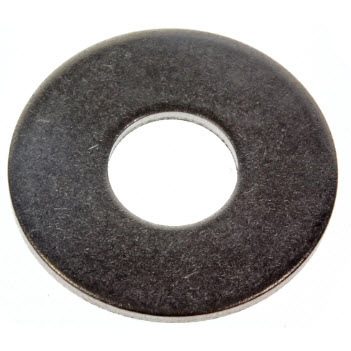

		12-8M0042641 - Washer [ More info ] $1.60 Available to Order: Usually ships within 10 days.

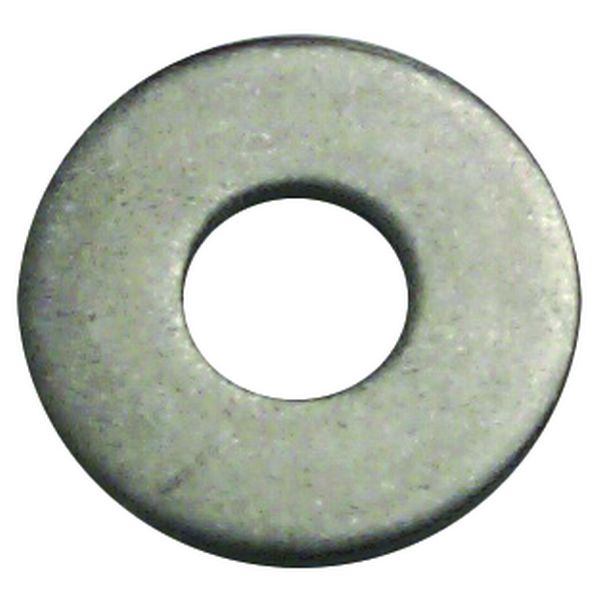

		18-4267-9 - Washer, 12-29395, 2PK [ More info ] $2.99 $2.52 4 In Stock.

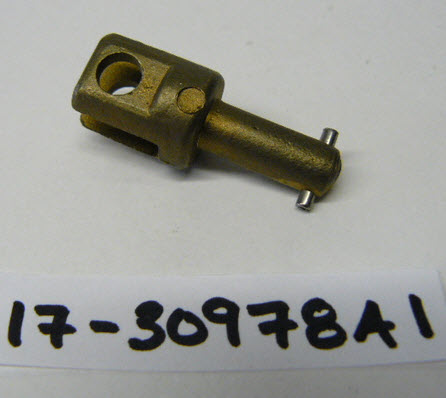

#27	17-30978A 1	PIN ASSEMBLY, CLEVIS YOKE (2,2 required per assembly)
		17-30978A 1 - Pin Assembly, Clevis Yoke,NLA [ More info ] $26.99 9 In Stock.
#28	17-23928	ROLL PIN, CLEVIS YOKE PIN (2,2 required per assembly)
		17-23928 - 17-23928 - PIN [ More info ] Unavailable Replaced by 17-239281
		17-23928 1 - Pin -roll - Priced Individually [ More info ] $4.20 $2.35 10+ In Stock.
#29	10-20584	SCREW, CLEVIS PIN FASTENING (2,2 required per assembly)
		10-20584 - Screw, NLA [ More info ] $7.99 10+ In Stock.
#30	13-29402	WASHER, WAVE - PIN FASTENING SCREW (2,2 required per assembly)
		13-29402 - Wave Washer - Priced Individually [ More info ] $1.70 10+ In Stock.
#31	11-29488	NUT, PIN FASTENING SCREW (2,2 required per assembly)
		11-29488 - Nut, (#10-32) [ More info ] $3.25 8 In Stock.
		11-826709106 - Nut, (#10-32) Stainless Steel [ More info ] $4.50 2 In Stock.
		11-8M0204718 - NUT [ More info ] $4.50 Available to Order: Usually ships within 10 days.
#32	-30789A 1	SHIFT SHAFT ASSEMBLY, UPPER (1,1 required per assembly)
		30789A 1 - SHAFT ASSY NLA [ More info ] Unavailable
#33	-27714	ROD (SLEEVE), SHIFT CONTROL END (1,1 required per assembly)
		27714 - Sleeve [ More info ] $4.00 9 In Stock.
#34	11-25168	NUT, SHIFT SHAFT END ADJUSTING (1,1 required per assembly)
		11-25168 - Nut (1/4-28) NLA [ More info ] $1.59 10+ In Stock.
#35	-30630	ROD, LINK - SHIFT SHAFT END (1,1 required per assembly)
		30630 - Link Rod [ More info ] $2.00 10+ In Stock.
#36	18-20180	COTTER PIN, LINK ROD TO SHIFT SHAFT (2,2 required per assembly)
		18-20180 - 18-20180 - PIN-COTTER @5 [ More info ] Unavailable Replaced by 18-21071

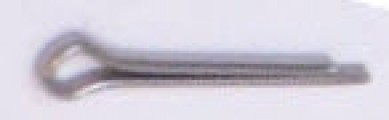

		18-21071 - Cotter Pin - Priced Individually [ More info ] $1.49 4 In Stock.

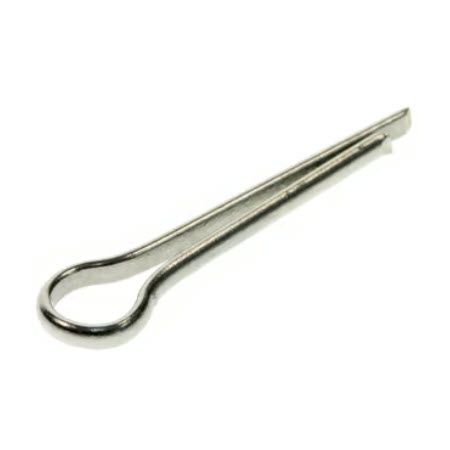

		18-21071 1 - Cotter Pin - Priced Individually [ More info ] $3.60 10+ In Stock.
#37	12-20583	WASHER, LINK ROD (2,2 required per assembly)
		12-20583 - Washer - Priced Individually [ More info ] $1.40 10+ In Stock.
#38	24-30621	SPRING, DETENT (1,1 required per assembly)
		24-30621 - Spring, Detent - Shift Shaft,NLA [ More info ] $6.00 10+ In Stock.
#39	10-20776	SCREW, DETENT SPRING TO BOTTOM COWL (1,1 required per assembly)
		10-20776 - Screw - Priced Individually [ More info ] $0.21 10+ In Stock.
		10-98256 - Screw [ More info ] $1.10 $0.45 10+ In Stock.
#40	12-20346	WASHER, DETENT SPRING SCREW (1,1 required per assembly)
		12-20346 - Washer, 3/4 O.D. [ More info ] $1.29 1 In Stock.
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.70 8 In Stock.
