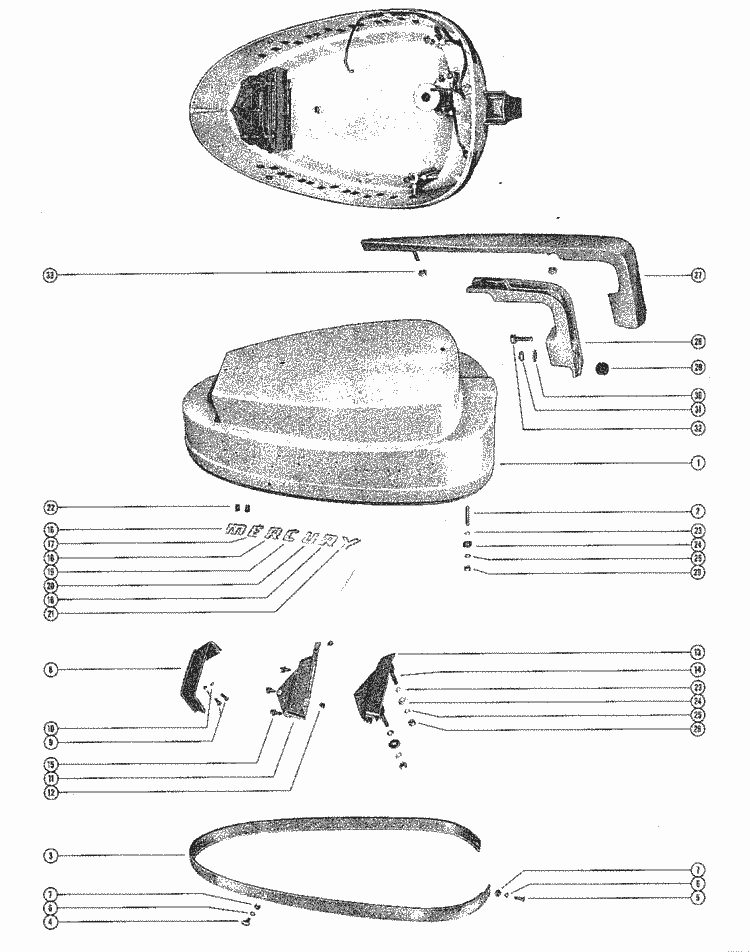

Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Top Cowl Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | -29940 | LETTER, SET - PORT (TOP COWL) (1,1 required per assembly) |
 |
|
29940 - 29940 - LETTERS SET [ More info ] Unavailable Replaced by 37-46023A1 |
|
|
37-46023A1 - DECAL SET NLA [ More info ] Unavailable |
| # | -29939 | LETTERS, SET - STARBOARD (TOP COWL) (1,1 required per assembly) |
|
|
29939 - 29939 - LETTERS SET [ More info ] Unavailable Replaced by 37-46023A1 |
| # | -29939 E | LETTER "E" - STARBOARD (1,1 required per assembly) |
|
|
29939 E - LETTER E NLA [ More info ] Unavailable |
| #1 | 182-1680A 2 | TOP COWL ASSEMBLY (1,1 required per assembly) |
|
|
182-1680A 2 - TOP COWL NLA [ More info ] Unavailable |
| #2 | 16-20353 | STUD, FRONT - TOP COWL TO CRANKCASEE (2,2 required per assembly) |
|
|
16-20353 - Stud - Priced Individually [ More info ]
|
| #3 | -29980A 1 | TRIM MOULDING ASSEMBLY - TOP COWL (1,1 required per assembly) |
|
|
29980A 1 - MOULDING ASSY NLA [ More info ] Unavailable |
| #4 | 10-29226 | SCREW, DECORATIVE - MOULDING TO TOP COWL (2,2 required per assembly) |
|
|
10-29226 - SCREW @5 NLA [ More info ] Unavailable |
| #5 | 10-29227 | SCREW, BRASS - MOULDING TO TOP COWL (2,2 required per assembly) |
  |
|

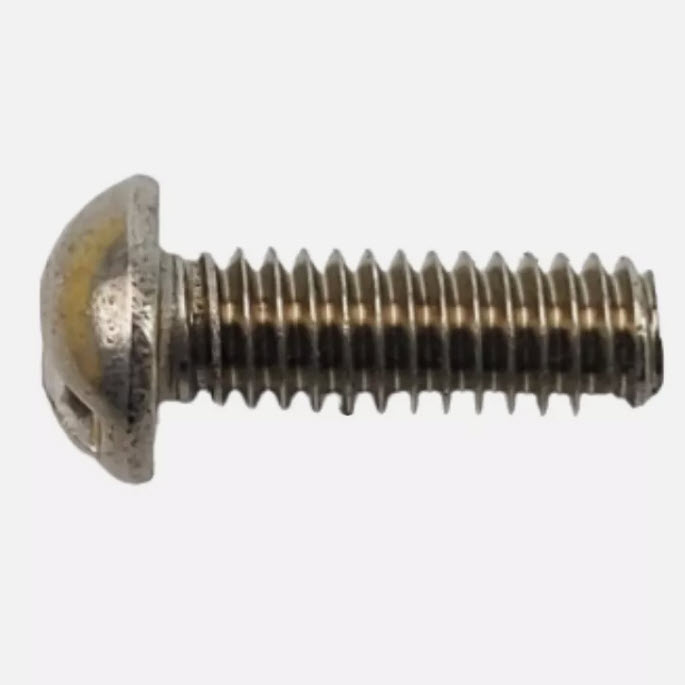

10-29227 - Screw [ More info ]
|
| #6 | 13-26995 | LOCKWASHER, MOULDING FASTENING SCREW (4,4 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ]
|
| #7 | 11-26419 | NUT, MOULDING FASTENING SCREW (4,4 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #8 | -30010 | REVEAL, AIR INTAKE (1,1 required per assembly) |
|
|
30010 - 30010 - REVEAL [ More info ] Unavailable Replaced by -30302 |
|
|
30302 - 30302 - REVEAL [ More info ] Unavailable Replaced by -31476 |
|
|
31476 - REVEAL NLA [ More info ] Unavailable |
| #9 | 10-30405 | SCREW, REVEAL TO TOP COWL (2,2 required per assembly) |
|
|
10-30405 - SCREW NLA [ More info ] Unavailable |
| #10 | 13-26996 | LOCKWASHER, REVEAL TO TOP COWL FASTENING SCREW (2,2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #11 | -29947 | SCREEN, VENT - TOP COWL (1,1 required per assembly) |
|
|
29947 - 29947 - SCREEN [ More info ] Unavailable Replaced by -31475 |
|
|
31475 - Screen, NLA [ More info ]
|
| #12 | 10-29221 | SCREW, VENT SCREEN TO TOP COWL (2,2 required per assembly) |
|
|
10-29221 - 10-29221 - SCREW @5 [ More info ] Unavailable Replaced by 10-26668 |
|
|
10-26668 - Screw, NLA [ More info ]
|
| #13 | -29981A 1 | PLATE ASSEMBLY - COWL MOUNTING (1,1 required per assembly) |
|
|
29981A 1 - Plate Assembly [ More info ]
|
| #15 | 10-29282 | SCREW, PLATE ASSEMBLY TO TOP COWL (3,3 required per assembly) |
|
|
10-29282 - SCREW @5 NLA [ More info ] Unavailable |
| #16 | -29939M | LETTER "M" - STARBORARD (1,1 required per assembly) |
|
|
29939M - LETTER M NLA [ More info ] Unavailable |
| #18 | -29939 R | LETTER "R" - STARBOARD (2,2 required per assembly) |
|
|
29939 R - LETTER R NLA [ More info ] Unavailable |
| #19 | -29939 C | LETTER "C" - STARBOARD (1,1 required per assembly) |
|
|
29939 C - LETTER C NLA [ More info ] Unavailable |
| #20 | -29939 U | LETTER "U" - STARBOARD (1,1 required per assembly) |
|
|
29939 U - LETTER U NLA [ More info ] Unavailable |
| #21 | -29939 Y | LETTER "Y" - STARBOARD (1,1 required per assembly) |
|
|
29939 Y - LETTER Y NLA [ More info ] Unavailable |
| #16 | -29940M | LETTER "M" - PORT (1,1 required per assembly) |
|
|
29940M - LETTER M NLA [ More info ] Unavailable |
| #17 | -29940 E | LETTER "E" - PORT (1,1 required per assembly) |
|
|
29940 E - LETTER E NLA [ More info ] Unavailable |
| #18 | -29940 R | LETTER "R" - PORT (2,2 required per assembly) |
|
|
29940 R - LETTER R NLA [ More info ] Unavailable |
| #19 | -29940 C | LETTER "C" - PORT (1,1 required per assembly) |
|
|
29940 C - LETTER C NLA [ More info ] Unavailable |
| #20 | -29940 U | LETTER "U" - PORT (1,1 required per assembly) |
|
|
29940 U - LETTER U NLA [ More info ] Unavailable |
| #21 | -29940 Y | LETTER "Y" - PORT (1,1 required per assembly) |
|
|
29940 Y - LETTER Y NLA [ More info ] Unavailable |
| #22 | 53-30022 | FASTENER, LETTER TO TOP COWL (28,28 required per assembly) |
|
|
53-30022 - Fastener, NLA [ More info ]
|
| #23 | 12-20028 | WASHER, TOP COWL STUD (1/16") (4,4 required per assembly) |
|
|
12-20028 - Washer, (.265 X .437 X .060) [ More info ]
|
| #24 | 12-20346 | WASHER, TOP COWL STUD (3/4" OD) (4,4 required per assembly) |
|
|
12-20346 - Washer, 3/4 O.D. [ More info ]
|
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #25 | 12-20583 | WASHER, TOP COWL STUD 91/32") (AR,AR required per assembly) |
|
|
12-20583 - Washer - Priced Individually [ More info ]
|
| #26 | 11-20361 | NUT, TOP COWL FASTENING (4,4 required per assembly) |
  |
|

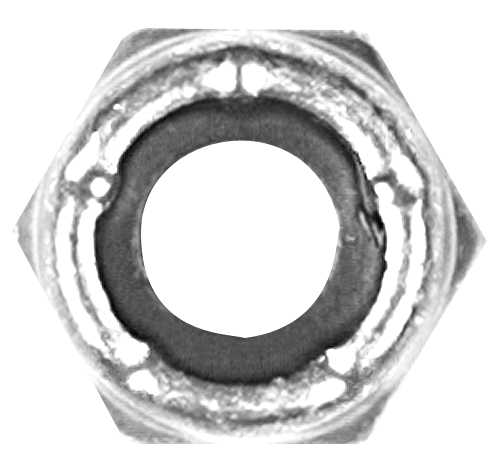

11-20361 - 11-20361 - NUT (.250-28) [ More info ] Unavailable Replaced by 11-8267089 |
  |
|

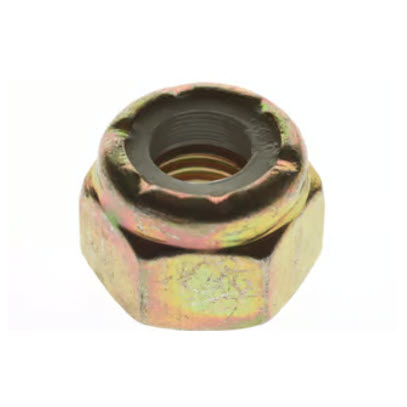

11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722 - Lock Nut, 121731, 11-35888 [ More info ]
|
| #27 | -29938 | HANDLE, CHROME - TOP COWL (1,1 required per assembly) |
|
|
29938 - 29938 - HANDLE [ More info ] Unavailable Replaced by -31463 |
|
|
31463 - HANDLE NLA [ More info ] Unavailable |
| #28 | -29946A 1 | HANDLE, INSIDE - TOP COWL (1,1 required per assembly) |
|
|
29946A 1 - 29946A 1 - HANDLE ASSY [ More info ] Unavailable Replaced by -31487 |
|
|
31487 - Handle, NLA [ More info ]
|
| #29 | -29413 | BUTTON, BUMPER - TOP COWL HANDLE (1,1 required per assembly) |
|
|
29413 - BUMPER NLA [ More info ] Unavailable |
| #30 | 12-29245 | WASHER, CHROME HANDLE TO INSIDE HANDLE STUD (1,1 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #31 | 11-20586 | NUT, CHROME HANDLE TO INSIDE HANDLE FASTENING (1,1 required per assembly) |
  |
|

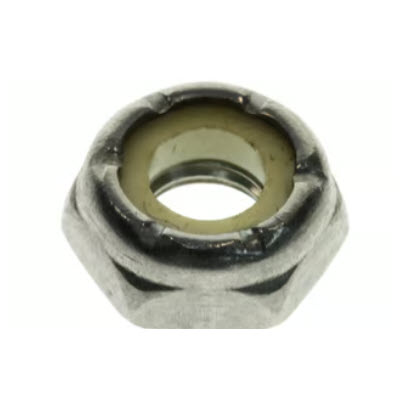

11-20586 - Nut, (.250-28) [ More info ]
|
  |
|

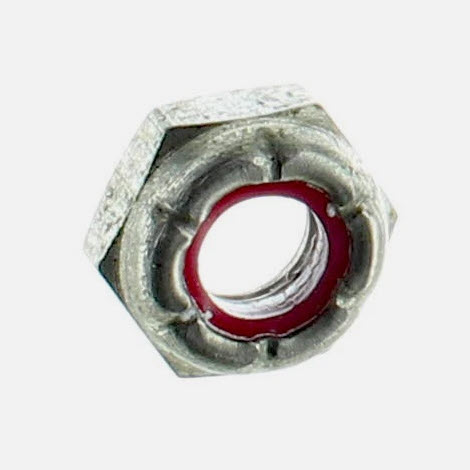

11-35045 - 11-35045 - NUT (.250-28) [ More info ] Unavailable Replaced by 11-826709109 |
  |
|

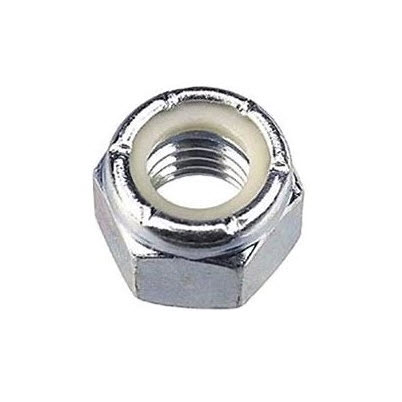

11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #32 | 10-29199 | SCREW, FRONT - HANDLE TO TOP COWL (1") (1,1 required per assembly) |
|
|
10-29199 - SCREW @5 NLA [ More info ] Unavailable |
