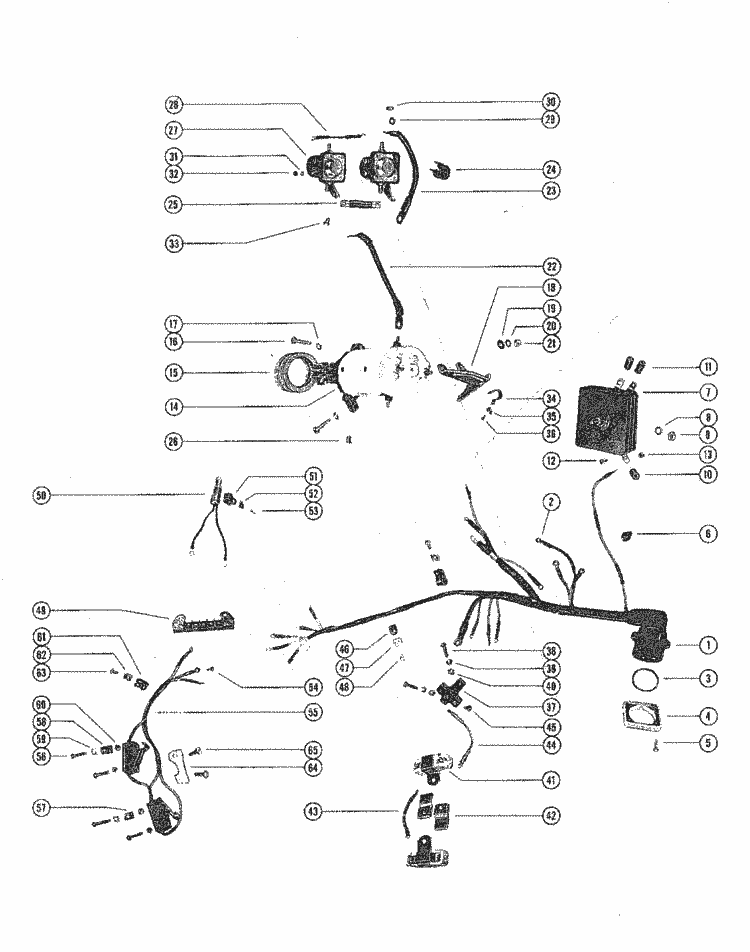

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	37-29903	DECAL, TERMINAL BLOCK COLOR LEADS (1,1 required per assembly)
		37-29903 - DECAL,NLA [ More info ] Unavailable
#	-29773	SWITCH, FORWARD OR REVERSE (2,2 required per assembly)
		29773 - Switch [ More info ] $32.00 10+ In Stock.
#	12-20346	WASHER, RESISTOR TO TRANSFER PORT COVER SCREW (1,1 required per assembly)
		12-20346 - Washer, 3/4 O.D. [ More info ] Unavailable

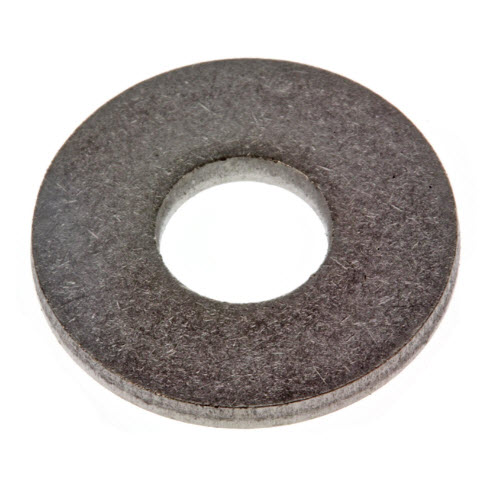

		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.70 10+ In Stock.
#	24-29709	SPRING, FORWARD OR REVERSE SWITCH (2,2 required per assembly)
		24-29709 - Spring, Forward Or Reverse Switch,NLA [ More info ] $2.50 10+ In Stock.
#1	-29999	WIRING HARNESS, INTERNAL (1,1 required per assembly)
		29999 - Wiring Harness, NLA [ More info ] Unavailable
#2	-30050	TERMINAL, HARNESS AND MERCURY SWITCH LEADS (AR,AR required per assembly)
		30050 - Terminal, NLA [ More info ] Unavailable
#3	24-28975	SPRING, GARTER - INTERNAL WIRING HARNESS (1,1 required per assembly)
		24-28975 - Spring, Garter - Harness,NLA [ More info ] $8.76 10+ In Stock.
#4	-26079	PLATE, WIRING HARNESS TO BOTTOM COWL (1,1 required per assembly)

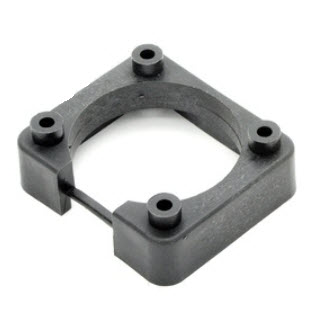

		26079 - Wiring Harness Plate [ More info ] $5.54 5 In Stock.

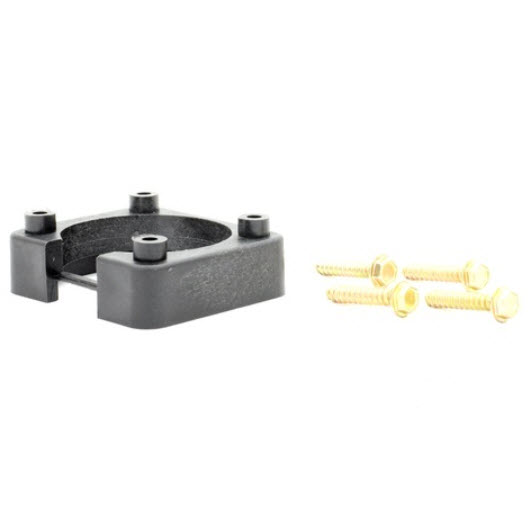

		26079A 2 - Plate Kit [ More info ] $19.50 Available to Order: Usually ships within 10 days.
#5	10-26128	SCREW, HARNESS PLATE FASTENING (4,4 required per assembly)
		10-26128 - SCREW Note: Priced Individually [ More info ] Unavailable
		10-45893 - Screw - Priced Individually, NLA [ More info ] $3.38 10+ In Stock.
#6	54-22783	"S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL (2,2 required per assembly)
		54-22783 - Clip, NLA [ More info ] Unavailable
#7	-29691	RECTIFIER ASSEMBLY (1,1 required per assembly)
		29691 - Rectifier [ More info ] Unavailable

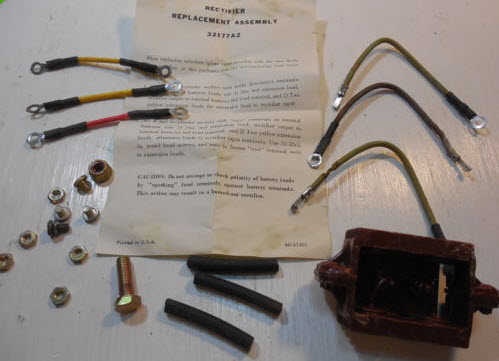

		32177A 2 - Rectifier Assembly , NLA [ More info ] $59.99 4 In Stock.
#8	13-26993	LOCKWASHER, RECTIFIER MOUNTING SCREW (1,1 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $0.99 10+ In Stock.
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#9	11-21929	NUT, RECTIFIER MOUNTING SCREW (1,1 required per assembly)
		11-21929 - Nut, NLA [ More info ] $1.25 10+ In Stock.
#10	32-28052	SLEEVE, RUBBER - RECTIFIER HARNESS LEAD (1,1 required per assembly)
		32-28052 - Tubing, NLA [ More info ] Unavailable
#11	32-28373	SLEEVE, RUBBER - RECTIFIER STATOR LEAD (2,2 required per assembly)
		32-28373 - SLEEVE,NLA [ More info ] Unavailable
#13	11-29488	NUT, HARNESS AND STATOR LEADS FASTENING SCREW (3,3 required per assembly)
		11-29488 - Nut, (#10-32) [ More info ] $3.61 1 In Stock.
		11-826709106 - Nut, (#10-32) Stainless Steel [ More info ] $4.50 3 In Stock.
		11-8M0204718 - NUT [ More info ] $4.50 Available to Order: Usually ships within 10 days.
#14	50-30418	STARTER MOTOR ASSEMBLY (1,1 required per assembly)
		50-30418 - 50-30418 - NLA [ More info ] Unavailable Replaced by 50-48720
		50-48720 - Part,NLA [ More info ] Unavailable
#15	15-29876A1	SHIM, STARTER MOTOR TO CRANKCASE FLANGE (.030) (AR,AR required per assembly)
#16	10-22698	SCREW, STARTER MOTOR TO CRANKCASE FLANGE (2,2 required per assembly)
		10-22698 - Screw - Priced Individually, NLA [ More info ] $1.50 10+ In Stock.
#18	-29930	BRACKET, SUPPORT - STARTER MOTOR (1,1 required per assembly)
		29930 - Bracket [ More info ] Unavailable
		38747 - Bracket, NLA [ More info ] $20.00 8 In Stock.
#19	12-24664	WASHER, THRU BOLT - BRACKET TO STARTER MOTOR (1,1 required per assembly)
		12-24664 - Washer, (M4 X 20) [ More info ] $1.30 $0.74 10+ In Stock.
#20	13-26992	LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR (2,2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#21	11-20890	NUT, THRU BOLT - BRACKET TO STARTER MOTOR (2,2 required per assembly)
		11-20890 - Nut (1/4 x20) [ More info ] $1.60 7 In Stock.
#22	-26511	CABLE, WIRE - STARTER TO UPPER STARTER SOLENOID (1,1 required per assembly)
		26511 - Jumper Cable, NLA [ More info ] $4.00 3 In Stock.
#23	-25596	CABLE, WIRE - STARTER TO LOWER STARTER SOLENOID (1,1 required per assembly)
		25596 - Wire [ More info ] Unavailable
		54651 - Jumper Wire [ More info ] Unavailable
		84-93389A12 - Cable Assembly, NLA [ More info ] Unavailable
#24	54-20534	CLAMP, LOWER CABLE - STARTER TO SOLENOID (1,1 required per assembly)
		54-20534 - CLIP,NLA [ More info ] Unavailable
#25	-30070	JUMPER, SOLENOID TO SOLENOID (1,1 required per assembly)
		30070 - Jumper, NLA [ More info ] Unavailable
#26	10-29197	SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR (1,1 required per assembly)
		10-29197 - Screw/LockWasher [ More info ] Unavailable
		10-69035 - Screw/LockWasher [ More info ] $1.70 $1.44 9 In Stock.
#27	-31478	SOLENOID, STARTER (2,2 required per assembly)
		31478 - Starter Solenoid [ More info ] Unavailable

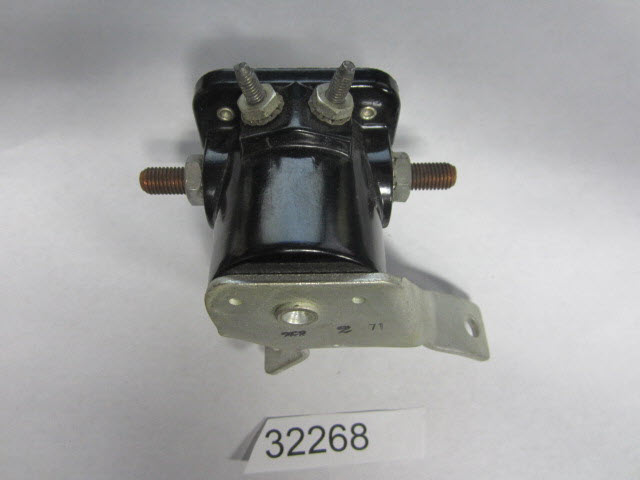

		32268 - Starter Solenoid, NLA [ More info ] Unavailable
#28	-28922	JUMPER, LEAD - SOLENOID TO SOLENOID (1,1 required per assembly)
		28922 - Jumper Lead, NLA [ More info ] $2.50 4 In Stock.
#30	11-20083	NUT, SOLENOID TERMINAL (5/16") (4,4 required per assembly)
		11-20083 - Nut, Starter Solenoid Terminal (5/16X24) [ More info ] $1.22 10+ In Stock.
		11-22053 - Nut (5/16x24) [ More info ] $2.50 10+ In Stock.
#32	11-20645	NUT, SOLENOID TERMINAL (#10) (4,4 required per assembly)
		11-20645 - Nut,(10X32) [ More info ] $0.21 10+ In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.90 10+ In Stock.
#33	10-29238	SCREW, SOLENOID TO STARTER MOTOR (4,4 required per assembly)
		10-29238 - Screw, NLA [ More info ] Unavailable
#34	54-23567	CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET (1,1 required per assembly)
		54-23567 - Clip [ More info ] $5.60 $1.12 10+ In Stock.
#35	-22789	"D" WASHER, HARNESS CLAMP (1,1 required per assembly)
		22789 - C Washer - Priced Individually [ More info ] Unavailable
		69205 - C Washer [ More info ] Unavailable
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#36	10-26548	SCREW, HARNESS CLAMP FASTENING (2,2 required per assembly)
		10-26548 - Screw - Priced Individually [ More info ] Unavailable
		10-62568 - Screw - Priced Individually [ More info ] $1.10 10+ In Stock.
#37	-29714	BLOCK, TERMINAL - UPPER FUEL PUMP PAD (1,1 required per assembly)
		29714 - Terminal Bl, NLA [ More info ] $1.25 10+ In Stock.
#38	10-22245	SCREW, TERMINAL BLOCK FASTENING (2,2 required per assembly)
		10-22245 - SCREW,NLA [ More info ] Unavailable
#39	13-26996	LOCKWASHER, TERMINAL BLOCK FASTENING SCREW (2,2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#40	12-26014	WASHER, TERMINAL BLOCK FASTENING SCREW (2,2 required per assembly)
		12-26014 - Washer, NLA [ More info ] $5.50 10+ In Stock.
#41	393-1572	RESISTOR (2,2 required per assembly)

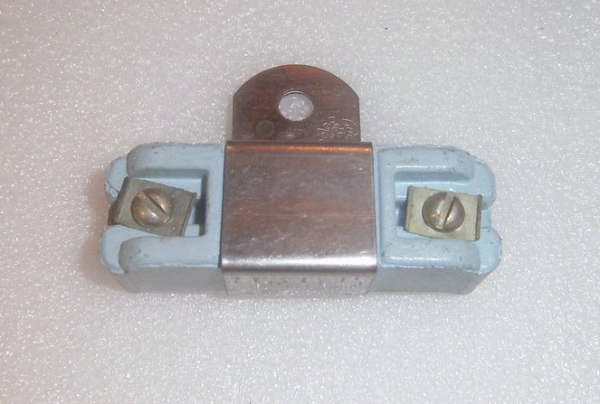

		393-1572 - Resistor, NLA [ More info ] Unavailable
#42	-28966	SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW (1,1 required per assembly)
		28966 - Snubber [ More info ] Unavailable
		30449 - Snubber, NLA [ More info ] $5.00 2 In Stock.
#42	-30449	SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW (1,1 required per assembly)
#43	-29112	JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERMINAL BLOCK (3,3 required per assembly)
		29112 - Jumper, NLA [ More info ] $2.63 1 In Stock.
#44	-30020	JUMPER, RESISTOR TO TERMINAL BLOCK (1,1 required per assembly)
		30020 - JUMPER,NLA [ More info ] Unavailable
#45	10-29852	SCREW, HARNESS AND JUMPERS TO TERMINAL BLOCK (3,3 required per assembly)
		10-29852 - SCREW Note: Priced Individually [ More info ] Unavailable
		10-35400 - Screw - Priced Individually, NLA [ More info ] Unavailable
#46	54-22740	CLIP, WIRING HARNESS TO CRANKCASE FLANGE (1,1 required per assembly)
		54-22740 - Clip [ More info ] $4.90 Available to Order: Usually ships within 10 days.
#48	10-30009	SCREW, HARNESS CLIP FASTENING (2,2 required per assembly)
		10-30009 - Screw - Priced Individually [ More info ] $0.35 10+ In Stock.
		10-69014 - Screw Note: Priced Individually [ More info ] $1.29 10+ In Stock.
		10-807754 - Screw - Priced Individually [ More info ] Unavailable
		108M0113176 - Screw - Priced Individually [ More info ] $1.10 3 In Stock.
#49	-29765A 1	TERMINAL BLOCK ASSEMBLY - EXHAUST COVER (1,1 required per assembly)
		29765A 1 - BLOCK ASSY,NLA [ More info ] Unavailable
#50	-30000	SWITCH, MERCURY (1,1 required per assembly)
		30000 - MERCURY Switch [ More info ] Unavailable
		33385A 1 - Switch Assembly [ More info ] $54.43 3 In Stock.
		58124A 1 - Switch Assembly, NLA [ More info ] $48.99 10+ In Stock.
#51	54-22875	CLAMP, MERCURY SWITCH (1,1 required per assembly)
		54-22875 - Clip - Priced Individually [ More info ] $4.90 2 In Stock.
#53	10-20401	SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER (1,1 required per assembly)

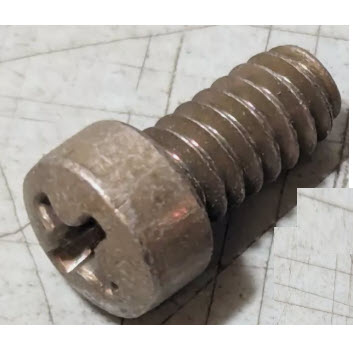

		10-20401 - Screw [ More info ] $1.67 10+ In Stock.
#55	-29726	SWITCH AND HARNESS ASSEMBLY, FORWARD AND REVERSE (1,1 required per assembly)
		29726 - Harness Assembly, NLA [ More info ] Unavailable
#56	10-24219	SCREW, SWITCH AND HARNESS TO GUIDE RACK BRACKET (4,4 required per assembly)
		10-24219 - SCREW,NLA [ More info ] Unavailable
#57	54-25231	CLIP, REVERSE SWITCH LEAD (1/8-3) (1,1 required per assembly)
		54-25231 - Clip, NLA [ More info ] Unavailable
#58	54-29721	CLIP, FORWARD SWITCH LEAD (1/4-3) (1,1 required per assembly)
		54-29721 - CLIP,NLA [ More info ] Unavailable
#59	-29789	"D" WASHER, FORWARD AND REVERSE LEAD CLIP (2,2 required per assembly)
		29789 - C Washer - Priced Individually [ More info ] Unavailable
#60	11-20437	NUT, SWITCH AND HARNESS FASTENING SCREW (4,4 required per assembly)
		11-20437 - Nut [ More info ] $1.60 7 In Stock.
#61	54-24836	CLIP, SWITCH AND HARNESS LEAD (1,1 required per assembly)
		54-24836 - Clip - Priced Individually [ More info ] $4.00 Available to Order: Usually ships within 10 days.
#64	-29631	CAM, ACTUATOR - FORWARD AND REVERSE SWITCH (1,1 required per assembly)
		29631 - Cam, NLA [ More info ] $2.00 10+ In Stock.
#65	10-29722	SCREW, ACTUATOR CAM TO PILOT ASSEMBLY (2,2 required per assembly)
		10-29722 - Screw, NLA [ More info ] $1.99 10+ In Stock.
