Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Flywheel Assembly & Stator

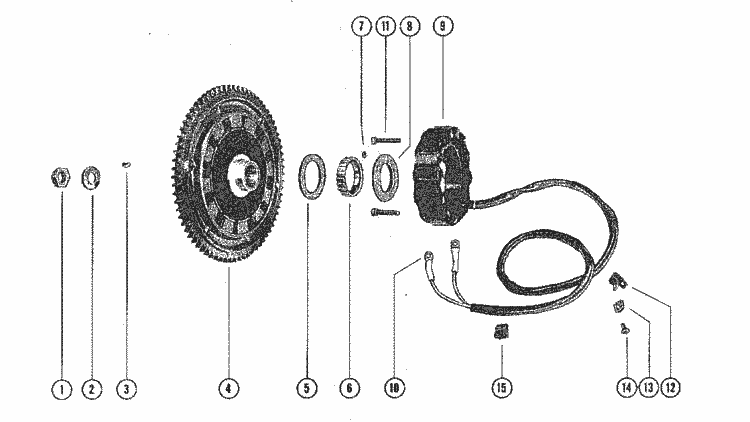

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 11-22339 | NUT, FLYWHEEL (1,1 required per assembly) |
  |
|
11-22339 - NUT (.625-18) [ More info ] Unavailable |
  |
|
18-3713 - Nut, 11-22339 [ More info ]
|
| #2 | 112-26617 | WASHER, FLYWHEEL NUT (1,1 required per assembly) |
 |
|
12-26617 - WASHER NLA [ More info ] Unavailable |
| #3 | 28-30250 | KEY, FLYWHEEL DRIVE (1,1 required per assembly) |
|
|
28-30250 - 28-30250 - KEY [ More info ] Unavailable Replaced by 28-45554 |
|
|
28-45554 - Key, NLA [ More info ]
|
| #4 | 213-1683A 2 | FLYWHEEL ASSEMBLY (1,1 required per assembly) |
|
|
213-1683A 2 - FLYWHEEL NLA [ More info ] Unavailable |
| #5 | -29788 | FLANGE, FLYWHEEL PULLEY (1,1 required per assembly) |
|
|
29788 - Flywheel Pulley Flange, NLA [ More info ]
|
| #6 | -30306 | PULLEY, FLYWHEEL (1,1 required per assembly) |
  |
|
30306 - Flywheel Pulley, NLA [ More info ]
|
| #7 | 17-26618 | PIN, DOWEL - PULLEY TO FLYWHEEL (1,1 required per assembly) |
|
|
17-26618 - Pin -Dowel, NLA [ More info ]
|
| #8 | -29787 | HUB, FLYWHEEL PULLEY (1,1 required per assembly) |
  |
|
29787 - Flywheel Pulley Hub, NLA [ More info ]
|
| #9 | 398-1697 | STATOR, ALTERNATOR (1,1 required per assembly) |
|
|
398-1697 - 398-1697 - STATOR [ More info ] Unavailable Replaced by 398-2035 |
|
|
398-2035 - STATOR NLA [ More info ] Unavailable |
| #10 | -30050 | TERMINAL, STATOR LEAD WIRE (2,2 required per assembly) |
|
|
30050 - TERMINAL NLA [ More info ] Unavailable |
| #11 | 10-29283 | SCREW, STATOR TO UPPER END CAP (4,4 required per assembly) |
|
|
10-29283 - Screw, NLA [ More info ]
|
| #12 | 54-26550 | CLIP, STATOR LEAD TO EXHAUST COVER (1,1 required per assembly) |
|
|
|
| #13 | -22789 | "D" WASHER, CLIP FASTENING SCREW (1,1 required per assembly) |
|
|
22789 - 22789 - D WASHER [ More info ] Unavailable Replaced by -69205 |
  |
|
69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613 |
|
|
8M0084613 - Washer [ More info ]
|
| #14 | 10-30009 | SCREW, STATOR LEAD CLIP FASTENING (1,1 required per assembly) |
|
|
10-30009 - Screw - Priced Individually [ More info ]
|
|
|
10-69014 - Screw Note: Priced Individually [ More info ]
|
  |
|
10-807754 - 10-807754 - SCREW (#10-24 x . [ More info ] Unavailable Replaced by -8M0113176 |
|
|
108M0113176 - Screw - Priced Individually [ More info ]
|
| #15 | 54-22783 | "S" CLIP, STATOR LEAD TO BOTTOM COWL (3,3 required per assembly) |
|
|
54-22783 - CLIP NLA [ More info ] Unavailable |
