Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Drive Shaft Housing Assembly

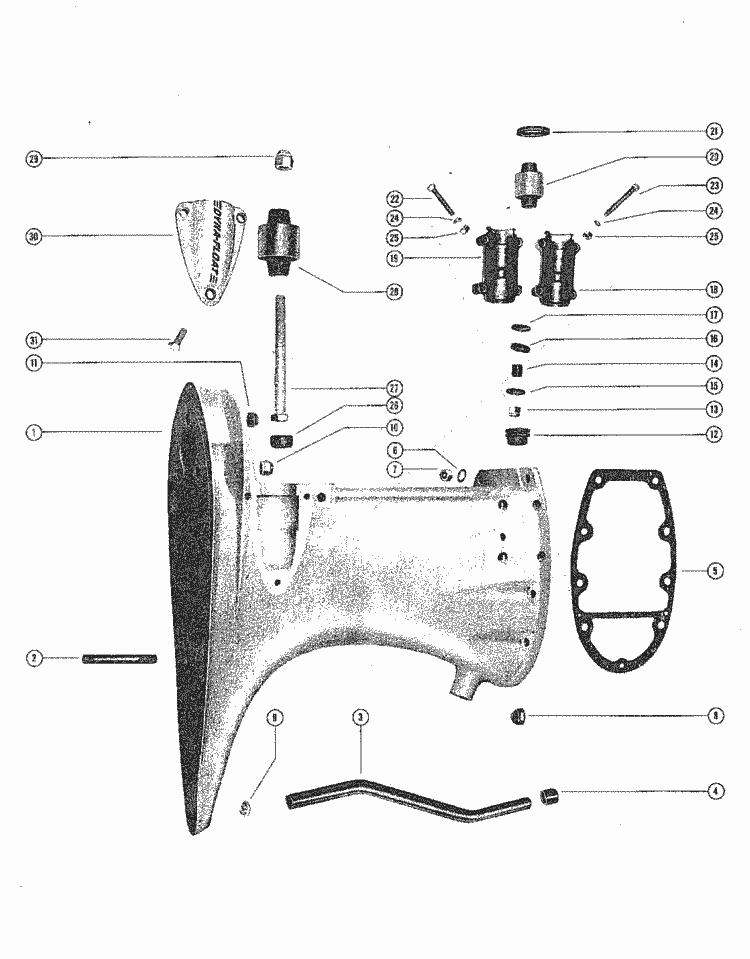

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1529-1745A 2 | DRIVE SHAFT HOUSING ASSEMBLY (1, required per assembly) |
 |
|
1529-1745A 2 - DRIVE SHAFT HSG NLA [ More info ] Unavailable |
| #1 | 1533-1749A 1 | DRIVE SHAFT HOUSING ASSEMLBY (,1 required per assembly) |
|
|
1533-1749A 1 - DRIVE SHAFT HSG NLA [ More info ] Unavailable |
| #2 | 16-29080 | STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2,2 required per assembly) |
|
|
16-29080 - 16-29080 - STUD [ More info ] Unavailable Replaced by 16-46911 |
|
|
|
| #3 | 32-29678 | TUBE, WATER INLET (1, required per assembly) |
|
|
32-29678 - TUBE NLA [ More info ] Unavailable |
| #3 | 32-29679 | TUBE, WATER INLET (1,1 required per assembly) |
|
|
32-29679 - TUBE NLA [ More info ] Unavailable |
| #4 | 26-26207 | SEAL, RUBBER - WATER INLET TUBE (1,1 required per assembly) |
|
|
26-26207 - Seal, NLA [ More info ]
|
| #5 | 27-26198 | GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL (1,1 required per assembly) |
  |
|
27-26198 - Drive Shaft Housing To Bottom Cowl Gasket [ More info ]
|
| #6 | 12-20086 | WASHER, POWERHEAD STUDS (2,2 required per assembly) |
|
|
12-20086 - Washer, (.390 X .620 X .060) [ More info ]
|
| #7 | 11-20509 | NUT, POWERHEAD STUDS (2,2 required per assembly) |
|
|
11-20509 - 11-20509 - NUT [ More info ] Unavailable Replaced by 11-34863 |
|
|
11-34863 - 11-34863 - NUT (.375-24) [ More info ] Unavailable Replaced by 11-826709113 |
  |
|
11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636 |
|
|
11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726 |
|
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #8 | 11-23161 | NUT, POWERHEAD STUDS (6,6 required per assembly) |
  |
|
11-23161 - Nut (3/8X24) [ More info ]
|
| #9 | 19-29850 | PLUG, PLASTIC - WATER PICK-UP SCREW HOLE (1,1 required per assembly) |
|
|
19-29850 - Plug, NLA [ More info ]
|
| #10 | 11-22178 | NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (4,4 required per assembly) |
|
|
11-22178 - 11-22178 - NUT AT 10 [ More info ] Unavailable Replaced by 11-34933 |
  |
|
11-34933 - 11-34933 - NUT (.437-20) Sta [ More info ] Unavailable Replaced by -8M0204653 |
|
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
|
| #11 | 11-29489 | NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (1,1 required per assembly) |
|
|
11-29489 - Nut, Gear Hosuing Studs [ More info ]
|
| #12 | -25305 | CAP, RUBBER - UPPER MOUNT BOLT NUT (2,2 required per assembly) |
|
|
25305 - CAP @10 NLA [ More info ] Unavailable |
| #14 | 23-27725 | SPACER, UPPER MOUNT BOLT (2,2 required per assembly) |
|
|
23-27725 - BUSHING NLA [ More info ] Unavailable |
| #14 | 23-30465 | SPACER, UPPER MOUNT BOLT (NOT REQUIRED WITH 30513 MOUNT) (2,2 required per assembly) |
|
|
23-30465 - SPACER NLA [ More info ] Unavailable |
| #15 | 12-30475 | WASHER, UPPER MOUNT BOLT (2,2 required per assembly) |
|
|
12-30475 - Washer, Upper Mount Bolt, NLA [ More info ]
|
| #15 | 12-30514 | WASHER, UPPER MOUNT BOLT (,2 required per assembly) |
|
|
12-30514 - WASHER NLA [ More info ] Unavailable |
| #16 | 12-27726 | WASHER, RUBBER - UPPER MOUNT BOLT (2,2 required per assembly) |
|
|
12-27726 - Washer, Rubber, NLA [ More info ]
|
| #16 | 12-30516 | WASHER, RUBBER - UPPER MOUNT BOLT (,2 required per assembly) |
|
|
12-30516 - Washer, Rubber - Upper Mount Bolt, NLA [ More info ]
|
| #17 | 12-27727 | WASHER, UPPER MOUNT BOLT (2,2 required per assembly) |
|
|
12-27727 - Washer (37/64 I.d.) [ More info ]
|
| #17 | 12-30515 | WASHER, UPPER MOUNT BOLT (,1 required per assembly) |
|
|
12-30515 - Washer, Upper Mount Bolt, NLA [ More info ]
|
| #18 | -26218 | COVER, UPPER MOUNT - OUTSIDE HALF (2,2 required per assembly) |
|
|
26218 - Upper Mount Cover [ More info ]
|
| #19 | -26217 | COVER, UPPER MOUNT - INSIDE HALF (2,2 required per assembly) |
|
|
26217 - Upper Mount Cover [ More info ]
|
| #20 | -30464 | MOUNT, RUBBER - UPPER (2,2 required per assembly) |
|
|
30464 - MOUNT NLA [ More info ] Unavailable |
| #20 | -30513 | MOUNT, RUBBER - UPPER (,2 required per assembly) |
|
|
30513 - Mount, NLA [ More info ]
|
| #21 | -24929 | PACKING, "U" CUP (2,2 required per assembly) |
  |
|
24929 - U Cup Packing, NLA [ More info ]
|
| #22 | 10-28773 | SCREW, UPPER MOUNT COVER (1 5/8") (4,4 required per assembly) |
|
|
10-28773 - Screw - Priced Individually [ More info ]
|
  |
|
10-20012 - Screw - Priced Individually [ More info ]
|
| #23 | 10-28775 | SCREW, UPPER MOUNT COVER (2 1/4") (2,2 required per assembly) |
|
|
10-28775 - Screw, NLA [ More info ]
|
| #23 | 10-29389 | SCREW, UPPER MOUNT COVER (1 7/8") (2,2 required per assembly) |
|
|
10-29389 - Screw, NLA [ More info ]
|
| #24 | 12-29245 | WASHER, UPPER MOUNT COVER SCREW (8,8 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #25 | 11-29322 | NUT, UPPER MOUNT COVER SCREW (8,8 required per assembly) |
|
|
11-29322 - 11-29322 - NUT @10 [ More info ] Unavailable Replaced by 11-46886 |
|
|
11-46886 - 11-46886 - NUT @25 [ More info ] Unavailable Replaced by 11-35888 |
  |
|
11-35888 - Nut (1/4-28) [ More info ]
|
  |
|
18-3722 - Lock Nut, 121731, 11-35888 [ More info ]
|
| #26 | -25067 | BUMPER, RUBBER - MOUNTING SCREW (2,2 required per assembly) |
|
|
25067 - Bumper, NLA [ More info ]
|
| #27 | 10-24874 | SCREW, LOWER MOUNT (5 1/2") (2,2 required per assembly) |
|
|
10-24874 - Screw, NLA [ More info ]
|
| #27 | 10-30452 | SCREW, LOWER MOUNT (5 1/2") (2,2 required per assembly) |
|
|
10-30452 - 10-30452 - SCREW [ More info ] Unavailable Replaced by 10-49318 |
|
|
10-49318 - 10-49318 - SCREW [ More info ] Unavailable Replaced by 10-75284 |
  |
|
10-75284 - Screw [ More info ]
|
| #28 | -30134 | MOUNT, RUBBER - LOWER (2,2 required per assembly) |
|
|
30134 - Mount, NLA [ More info ]
|
| #28 | -30512 | MOUNT, RUBBER - LOWER (,2 required per assembly) |
|
|
30512 - Mount, NLA [ More info ]
|
| #29 | 11-25096 | NUT, MOUNTING SCREW (2,2 required per assembly) |
  |
|
11-25096 - Nut, Mount Screw [ More info ]
|
| #30 | -26336 | COVER, LOWER MOUNT - PORT SIDE (1,1 required per assembly) |
|
|
26336 - Lower Mount Cover [ More info ]
|
| #30 | -26337 | COVER, LOWER MOUNT - STARBOARD SIDE (1,1 required per assembly) |
|
|
26337 - Lower Mount Cover [ More info ]
|
| #31 | 10-29256 | SCREW, LOWER MOUNT COVER FASTENING (6,6 required per assembly) |
  |
|
10-29256 - Screw - Priced Individually [ More info ]
|
