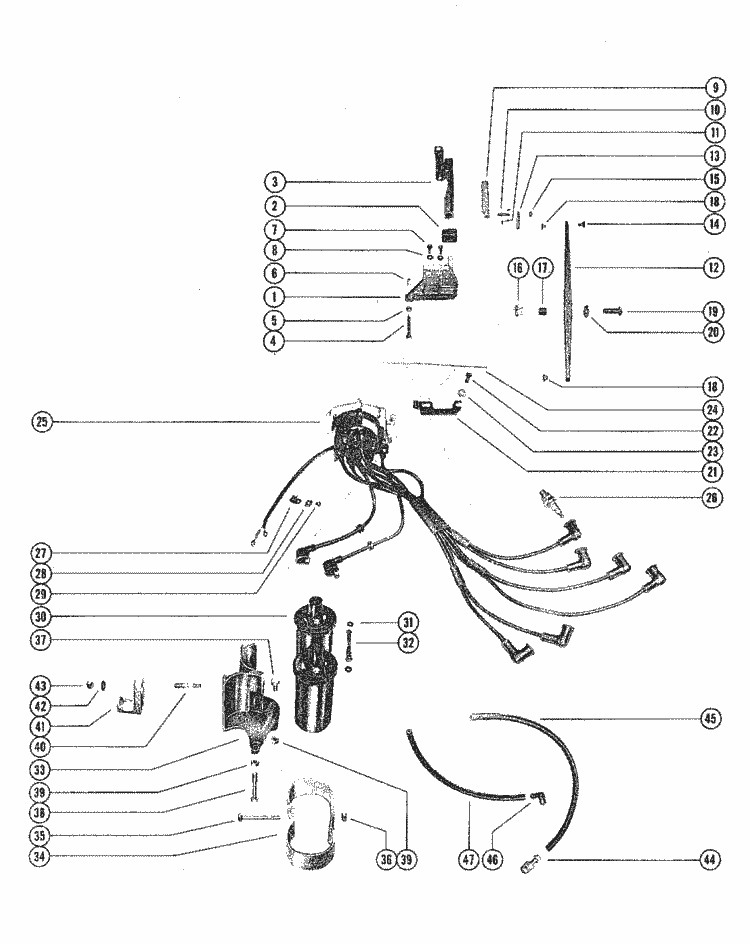

Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Distributor Vertical Linkage & Ignition Coils
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | -29889 | BRACKET, GUIDE RACK (1,1 required per assembly) |
 |
|
29889 - BRACKET NLA [ More info ] Unavailable |
| #2 | 25-29727 | GROMMET, GUIDE RACK BRACKET (1,1 required per assembly) |
|
|
25-29727 - GROMMET NLA [ More info ] Unavailable |
| #3 | -26610A 6 | GUIDE RACK ASSEMBLY (1,1 required per assembly) |
|
|
26610A 6 - RACK ASSY NLA [ More info ] Unavailable |
| #4 | 10-24227 | SCREW, THROTTLE STOP ADJUSTING (1,1 required per assembly) |
|
|
10-24227 - Screw [ More info ]
|
  |
|

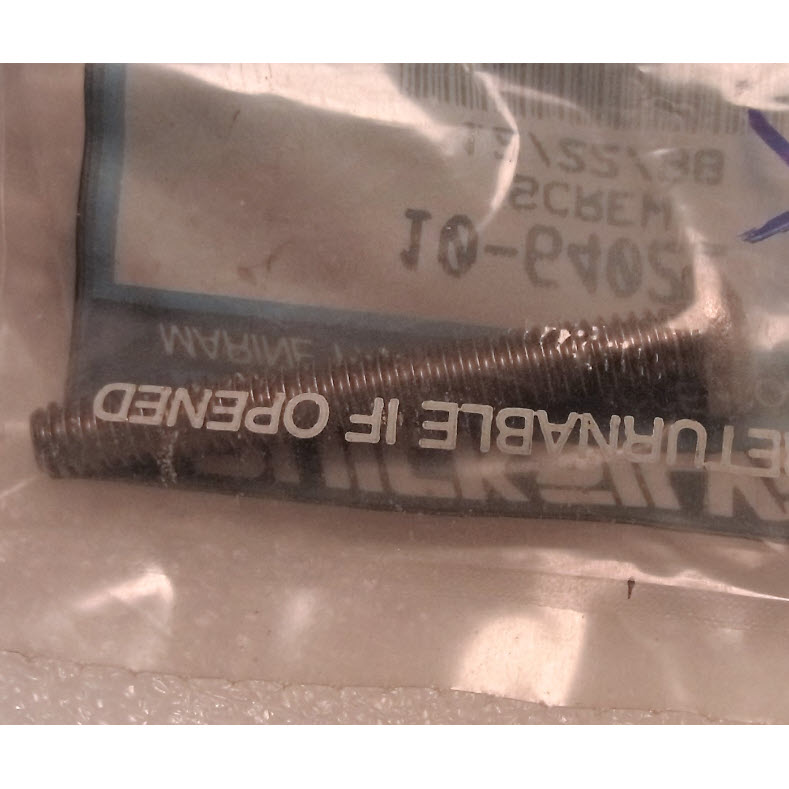

10-64022 - Screw [ More info ]
|
| #5 | 11-20890 | NUT, THROTTLE STOP ADJUSTING SCREW (1,1 required per assembly) |
  |
|
11-20890 - Nut (1/4 x20) [ More info ]
|
| #6 | -26852 | CAP, NYLON - ADJUSTING SCREW (1,1 required per assembly) |
  |
|
26852 - Nylon Cap [ More info ]
|
| #7 | 10-28636 | SCREW, GUIDE RACK BRACKET TO DISTRIBUTOR ADAPTOR (2,2 required per assembly) |
  |
|
10-28636 - Screw - Priced Individually [ More info ]
|
| #9 | -26827A 2 | RACK AND PIN ASSEMBLY, GUIDE RACK (1,1 required per assembly) |
|
|
26827A 2 - RACK ASSY NLA [ More info ] Unavailable |
| #10 | 17-29912 | PIN, LINK - NYLON RACK (1,1 required per assembly) |
|
|
17-29912 - PIN NLA [ More info ] Unavailable |
| #11 | 17-23757 | PIN, ROLL - LINK PIN TO NYLON RACK (1,1 required per assembly) |
|
|
17-23757 - Pin -roll - Priced Individually [ More info ]
|
| #12 | -29891 | LEVER, VERTICAL (1,1 required per assembly) |
|
|
29891 - LEVER NLA [ More info ] Unavailable |
| #13 | -26593 | LINK, VERTICAL LEVER TO NYLON RACK (1,1 required per assembly) |
|
|
26593 - Link, NLA [ More info ]
|
| #14 | 17-26637 | RIVERT, LINK TO VERTICAL LEVER (1,1 required per assembly) |
|
|
17-26637 - Rivet, NLA [ More info ]
|
| #15 | 11-20110 | NUT, LINK PIN TO VERTICAL LEVER LINK (1,1 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #16 | 23-26599 | BUSHING, NYLON - VERTICAL LEVER (1/2" I.D.) (1,1 required per assembly) |
|
|
23-26599 - Bushing, NLA [ More info ]
|
| #17 | 23-26603 | BUSHING, STEEL - VERTICAL LEVER (1,1 required per assembly) |
|
|
23-26603 - Bushing, NLA [ More info ]
|
| #18 | 23-26600 | BUSHING, NYLON - VERTICAL LEVER (1/4" I.D.) (2,2 required per assembly) |
|
|
23-26600 - Bushing, NLA [ More info ]
|
| #19 | 10-26638 | SCREW, VERTICAL LEVER TO EXHAUST COVER (1,1 required per assembly) |
|
|
10-26638 - SCREW NLA [ More info ] Unavailable |
| #20 | 12-21040 | WASHER, VERTICAL LEVER FASTENING SCREW (1,1 required per assembly) |
|
|
12-21040 - 12-21040 - WASHER [ More info ] Unavailable Replaced by 12-68300 |
|
|
12-68300 - Washer, (..88 X .39 X .06) [ More info ]
|
| #21 | -30006 | LEVER, REVERSE THROTTLE PICK-UP (1,1 required per assembly) |
|
|
|
| #22 | 10-29155 | SCREW, PICK-UP LEVER TO DISTRIBUTOR HOUSING (2,2 required per assembly) |
|
|
10-29155 - SCREW NLA [ More info ] Unavailable |
| #23 | 12-20533 | WASHER, PICK-UP LEVER FASTENING SCREW (2,2 required per assembly) |
  |
|
12-20533 - Washer, 9/16 Inch O.D. [ More info ]
|
| #24 | -29156 | LOCKWIRE, PICK-UP LEVER FASTENING SCREW (1,1 required per assembly) |
|
|
29156 - Lockwire, NLA [ More info ]
|
| #25 | 393-1282A14 | DISTRIBUTOR ASSEMBLY, COMPLETE (1,1 required per assembly) |
|
|
393-1282A14 - DISTRIBUTOR NLA [ More info ] Unavailable |
| #26 | 03-30578 | SPARK PLUG (J4J) (6,6 required per assembly) |
|
|
33-30578 - 33-30578 - SPARK PLUG @10 [ More info ] Unavailable Replaced by 33-813413 |
  |
|
33-813413 - NGK B7S @10 [ More info ] Unavailable |
  |
|
B7S - NGK Spark Plug, 3710 [ More info ]
|
  |
|
J6C - Champion Spark Plug ( #823) [ More info ]
|
| #27 | 54-24836 | CLIP, DISTRIBUTOR PRIMARY GROUND LEAD (1/4-6) (1,1 required per assembly) |
|
|
54-24836 - Clip - Priced Individually [ More info ]
|
| #28 | -22789 | "D" WASHER, GROUND LEAD CLIP SCREW (1,1 required per assembly) |
|
|
22789 - 22789 - D WASHER [ More info ] Unavailable Replaced by -69205 |
  |
|
69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613 |
|
|
8M0084613 - Washer [ More info ]
|
| #29 | 10-30009 | SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE (1,1 required per assembly) |
|
|
10-30009 - Screw - Priced Individually [ More info ]
|
|
|
10-69014 - Screw Note: Priced Individually [ More info ]
|
  |
|
10-807754 - 10-807754 - SCREW (#10-24 x . [ More info ] Unavailable Replaced by -8M0113176 |
|
|
108M0113176 - Screw - Priced Individually [ More info ]
|
| #30 | -26433 | COIL, IGNITION (2,2 required per assembly) |
|
|
26433 - 26433 - COIL [ More info ] Unavailable Replaced by -32193A2 |
|
|
32193A2 - 32193A2 - ->806529A1 [ More info ] Unavailable Replaced by -806529A1 |
  |
|
392-806529A1 - 392-806529A1 - ->898253T24 [ More info ] Unavailable Replaced by -898253T24 |
  |
|
898253T24 - Coil [ More info ]
|
  |
|
18-5433 - Coil, 392-806529A1 [ More info ]
|
  |
|
3852217 - Ignition Coil [ More info ]
|
  |
|
E18-0004 - Ignition Coil [ More info ]
|
| #31 | 25-26543 | "O" RING, IGNITION COIL (2,2 required per assembly) |
  |
|
25-26543 - O-Ring - Priced Individually [ More info ]
|
| #32 | -28922 | JUMPER, COIL TO COIL (1,1 required per assembly) |
|
|
28922 - Jumper Lead, NLA [ More info ]
|
| #33 | -26514 | BRACKET, COIL FASTENING (1,1 required per assembly) |
|
|
26514 - Bracket, NLA [ More info ]
|
| #34 | -26512 | BAND, COIL BRACKET (1,1 required per assembly) |
|
|
26512 - BAND NLA [ More info ] Unavailable |
| #35 | 10-26889 | SCREW, COIL BAND TO BRACKET (1,1 required per assembly) |
|
|
10-26889 - Screw, NLA [ More info ]
|
| #36 | 11-20184 | NUT, COIL BAND SCREW (1,1 required per assembly) |
  |
|
11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #37 | 10-20784 | SCREW, COIL BRACKET TO BOTTOM COWL (1 1/2") (1,1 required per assembly) |
|
|
10-20784 - Screw, NLA [ More info ]
|
| #40 | 16-20077 | STUD, COIL BRACKET TO SUPPORT (1,1 required per assembly) |
  |
|
16-20077 - Stud, NLA [ More info ]
|
| #41 | -30238 | SUPPORT, EXTERNAL WIRING HARNESS (1,1 required per assembly) |
|
|
30238 - Support, NLA [ More info ]
|
| #42 | 12-20084 | WASHER, COIL BRACKET STUD (1,1 required per assembly) |
  |
|
12-20084 - Washer, (.328 X .562 X .062) [ More info ]
|
| #43 | 11-25594 | NUT, COILBRACKET STUD (1,1 required per assembly) |
|
|
11-25594 - 11-25594 - NUT (.9375-24) [ More info ] Unavailable Replaced by 11-862902 |
|
|
11-862902 - Nut, (.312-24) [ More info ]
|
| #44 | 22-29111 | CONNECTOR, DISTRIBUTOR VENT TUBE (1,1 required per assembly) |
|
|
22-29111 - 22-29111 - CONNECTOR [ More info ] Unavailable Replaced by 22-291111 |
|
|
22-291111 - 22-291111 - ->291112 [ More info ] Unavailable Replaced by -291112 |
|
|
22-29111 2 - Fitting [ More info ]
|
| #45 | 32-26542 | HOSE, VENT - DISTRIBUTOR TO CONNECTOR (13") (1,1 required per assembly) |
|
|
32-26542 - 32-26542 - HOSE [ More info ] Unavailable Replaced by 32-34395A1 |
|
|
32-34395A1 - 32-34395A1 - ->99127109 [ More info ] Unavailable Replaced by -99127109 |
  |
|
32-99127109 - 32-99127109 - LINE (57.00 Inche [ More info ] Unavailable Replaced by 32-830756109 |
  |
|
32-830756109 - 32-830756109 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0047428 |
  |
|
32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #46 | 22-25885 | ELBOW, DISTRIBUTOR VENT TUBE (1,1 required per assembly) |
|
|
22-25885 - 22-25885 - ELBOW [ More info ] Unavailable Replaced by 22-99664 |
|
|
22-99664 - 22-99664 - ELBOW [ More info ] Unavailable Replaced by 22-996641 |
|
|
22-996641 - 22-996641 - ->996642 [ More info ] Unavailable Replaced by -996642 |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #47 | 32-26407 | HOSE, VENT - DISTRIBUTOR TO ELBOW (16") (1,1 required per assembly) |
|
|
32-26407 - 32-26407 - HOSE [ More info ] Unavailable Replaced by 32-34395A1 |
