Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Distributor Assembly, Complete

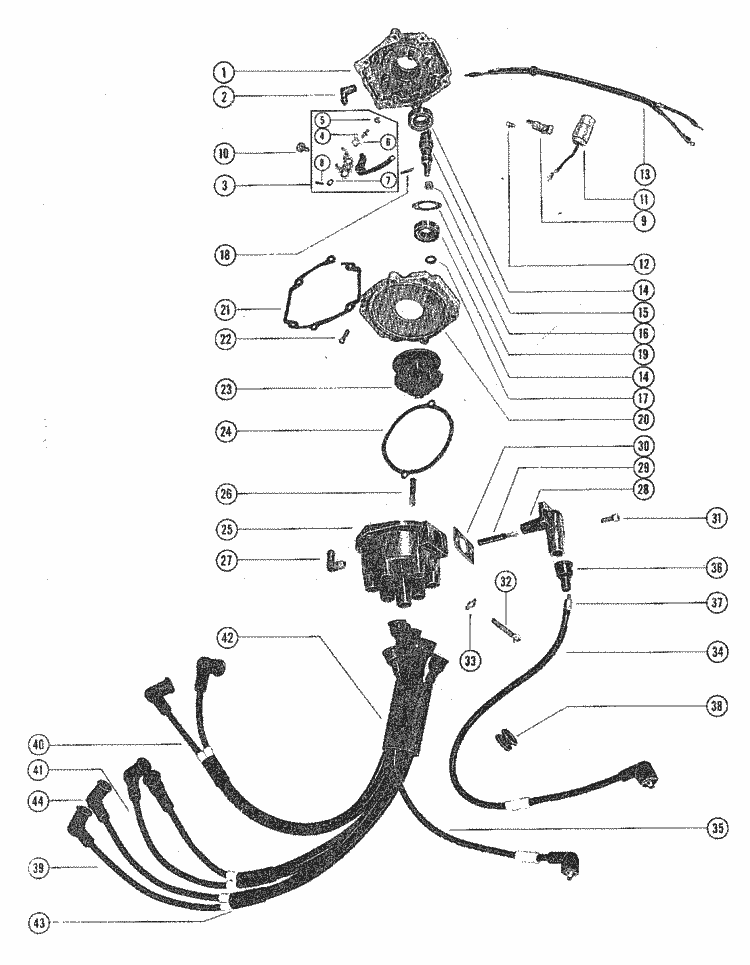

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 393-1282A14 | DISTRIBUTOR ASSEMBLY, COMPLETE (1,1 required per assembly) |
 |
|
393-1282A14 - DISTRIBUTOR NLA [ More info ] Unavailable |
| #2 | 22-25885A 1 | ELBOW ASSEMBLY, VENT HOSE - PRIMARY HOUSING (1,1 required per assembly) |
  |
|
22-25885A 1 - Elbow Assembly, NLA [ More info ]
|

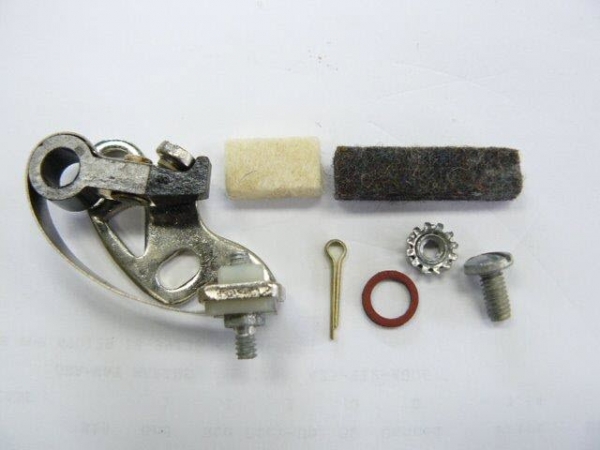

| #3 | 393-1504A 5 | BREAKER ASSEMBLY, COMPLETE (2,2 required per assembly) |
  |
|
393-1504A 5 - 393-1504A 5 - BREAKER ASSY [ More info ] Unavailable Replaced by 393-1504A10 |
  |
|
393-1504A10 - 393-1504A10 - BREAKER POINT ASY [ More info ] Unavailable Replaced by 393-1504A11 |
  |
|
393-1504A11 - BREAKER POINT ASY NLA [ More info ] Unavailable |
| #4 | 16-29230 | STUD, PRIMARY LEAD AND TENSION SPRING (2,2 required per assembly) |
|
|
16-29230 - Stud, NLA [ More info ]
|
| #5 | 11-29236 | NUT, PRIMARY LEAD FASTENING (2,2 required per assembly) |
|
|
11-29236 - Nut (#6-32) [ More info ]
|
| #6 | 393-1586 | GROMMET, PLASTIC - BREAKER ASSEMBLY (2,2 required per assembly) |
|
|
393-1586 - Grommet, Plastic - Breaker Assembly,NLA [ More info ]
|
| #7 | 12-26439 | WASHER, BREAKER PIVOT PIN (2,2 required per assembly) |
|
|
12-26439 - Washer, Breaker Pivot Pin, NLA [ More info ]
|

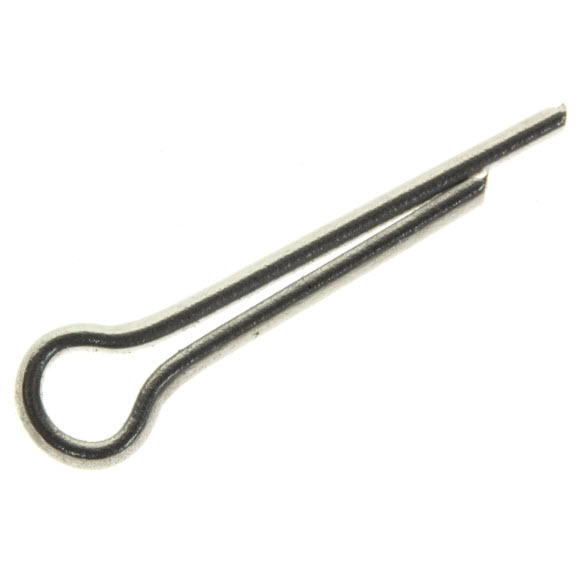

| #8 | 18-26953 | COTTER PIN, BREAKER TO PIVOT PIN (2,2 required per assembly) |
|
|
18-26953 - Cotter Pin - Priced Individually [ More info ]
|
| #9 | 393-1287A 2 | CAM WICK AND HOLDER ASSEMBLY (2,2 required per assembly) |
|
|
393-1287A 2 - Cam Wick, NLA [ More info ]
|
| #10 | 10-20597 | SCREW, BREAKER HOLDER TO HOUSING (2,2 required per assembly) |
  |
|
10-20597 - Screw - Priced Individually [ More info ]
|
| #11 | 393-1283 | CONDENSER (2,2 required per assembly) |
  |
|
393-1283 - 393-1283 - CONDENSER @2 [ More info ] Unavailable Replaced by 393-1283A1 |
  |
|
393-1283A 1 - Condenser [ More info ]
|
| #12 | 10-29434 | SCREW, CONDENSER TO HOUSING (2,2 required per assembly) |
|
|
10-29434 - SCREW NLA [ More info ] Unavailable |
| #13 | 393-1656 | WIRE, PRIMARY GROUND (1,1 required per assembly) |
  |
|
393-1656 - PRIMARY WIRE NLA [ More info ] Unavailable |
| #14 | 30-26379 | BEARING, BALL - CAM SHAFT (2,2 required per assembly) |
  |
|
30-26379 - Ball Bearing [ More info ]
|

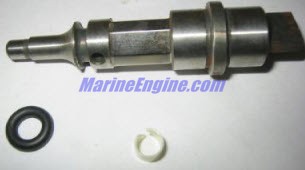

| #15 | 393-1541A 2 | SHAFT ASSEMBLY - DISTRIBUTOR CAM (1,1 required per assembly) |
  |
|
393-1541A 2 - Shaft Assembly, NLA [ More info ]
|
| #16 | 23-28933 | BUSHING, DISTRIBUTOR CAM SHAFT (1,1 required per assembly) |
|
|
23-28933 - Bushing, NLA [ More info ]
|
| #17 | 25-26543 | "O" RING, CAM SHAFT (1,1 required per assembly) |
  |
|
25-26543 - O-Ring - Priced Individually [ More info ]
|
| #18 | 17-25319 | PIN, ROLL - CAM SHAFT (1,1 required per assembly) |
|
|
17-25319 - Pin, (.125 X 0.75 Inches) [ More info ]
|

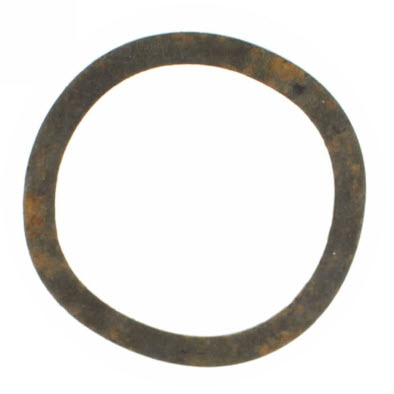

| #19 | 13-26917 | WASHER, WAVE - BALL BEARING TENSION (2,2 required per assembly) |
|
|
13-26917 - Wave Washer, NLA [ More info ]
|

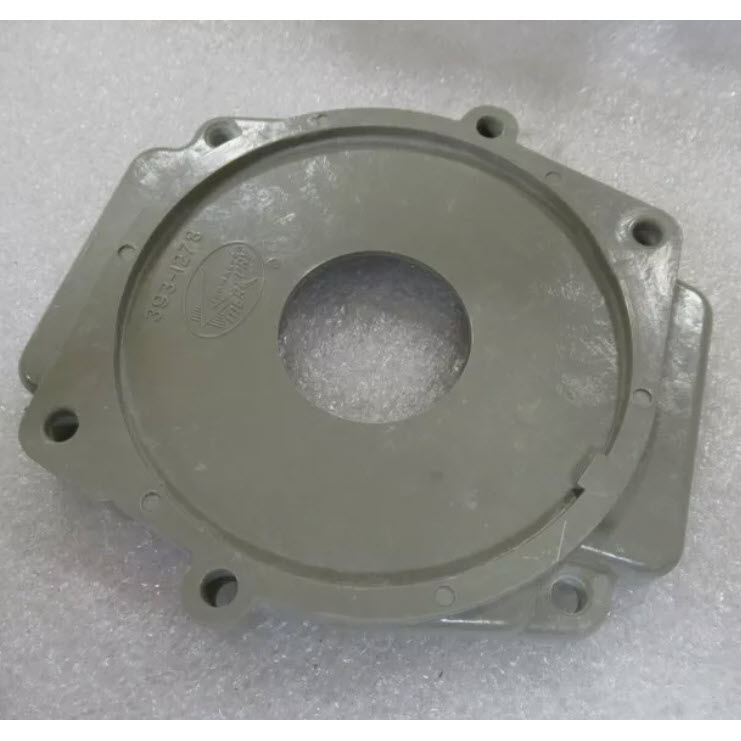

| #20 | 393-1278 | ADAPTOR, HOUSING TO DISTRIBUTOR CAP (1,1 required per assembly) |
|
|
393-1278 - Adaptor, NLA [ More info ]
|

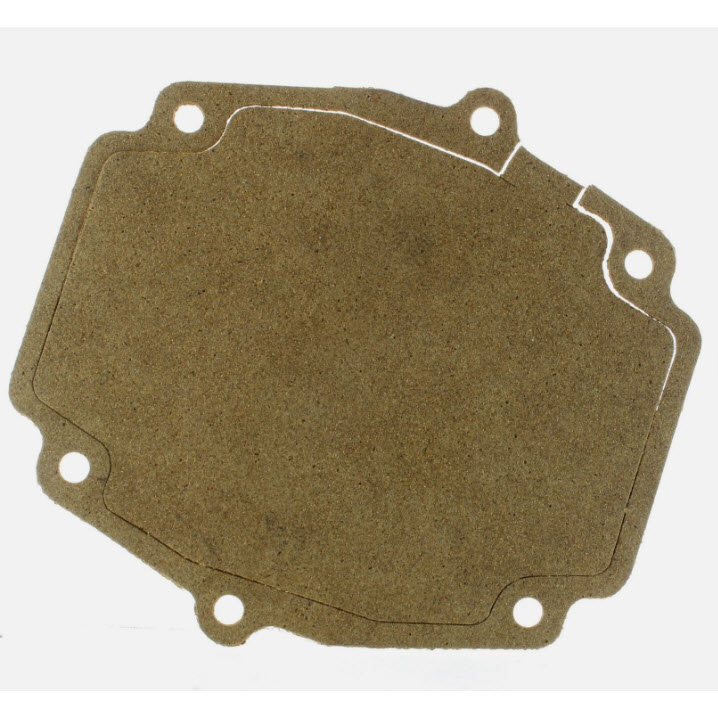

| #21 | 27-26412 | GASKET, HOUSING TO ADAPTOR (1,1 required per assembly) |
  |
|
27-26412 - Housing To Adaptor Gasket [ More info ]
|
| #22 | 10-29180 | SCREW, ADAPTOR TO HOUSING (4,4 required per assembly) |
|
|
10-29180 - 10-29180 - SCREW @5 [ More info ] Unavailable Replaced by 10-32651 |
|
|

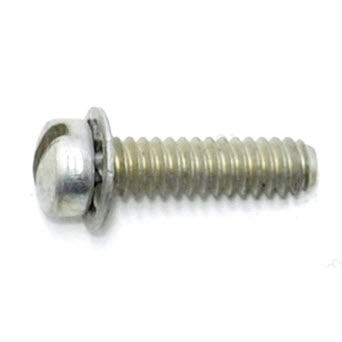

10-32651 - Screw, NLA [ More info ]
|
| #23 | 393-1280 | ROTOR, DISTRIBUTOR (1,1 required per assembly) |
|
|
393-1280 - 393-1280 - ROTOR [ More info ] Unavailable Replaced by 393-1280A1 |
  |
|
393-1280A 1 - Rotor [ More info ]
|
| #24 | 27-26446 | GASKET, DISTRIBUTOR CAP TO ADAPTOR (1,1 required per assembly) |
|
|
27-26446 -Distributor Cap To Adaptor Gasket [ More info ]
|
| #25 | 393-1573A 1 | DISTRIBUTOR CAP ASSEMBLY (1,1 required per assembly) |
|
|
393-1573A 1 - 393-1573A 1 - DISTRIBUTOR CAP [ More info ] Unavailable Replaced by 393-1927A 5 |
|
|
393-1927A 5 - 393-1927A 5 - DISTRIBUTOR CAP [ More info ] Unavailable Replaced by 393-1927A 9 |
  |
|
393-1927A 9 - DISTRIBUTOR CAP NLA [ More info ] Unavailable |
| #26 | 393-1293A 1 | BRUSH AND SPRING ASSEMBLY (1,1 required per assembly) |
  |
|
393-1293A 1 - BRUSH KIT @2 [ More info ] Unavailable |
| #27 | 22-25885 | ELBOW, VENT HOSE - DISTRIBUTOR CAP (1,1 required per assembly) |
|
|
22-25885 - 22-25885 - ELBOW [ More info ] Unavailable Replaced by 22-99664 |
|
|
22-99664 - 22-99664 - ELBOW [ More info ] Unavailable Replaced by 22-996641 |
|
|
22-996641 - 22-996641 - ->996642 [ More info ] Unavailable Replaced by -996642 |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #28 | 393-F1277 | SIDE INLET ASSEMBLY (1,1 required per assembly) |
|
|
F1277 - SCREW NLA [ More info ] Unavailable |

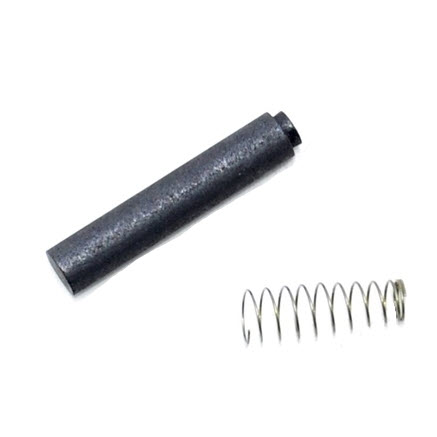

| #29 | 393-1292A 1 | BRUSH AND SPRING ASSEMBLY (1,1 required per assembly) |
|
|
393-1292A 1 - Brush Assembly, NLA [ More info ]
|

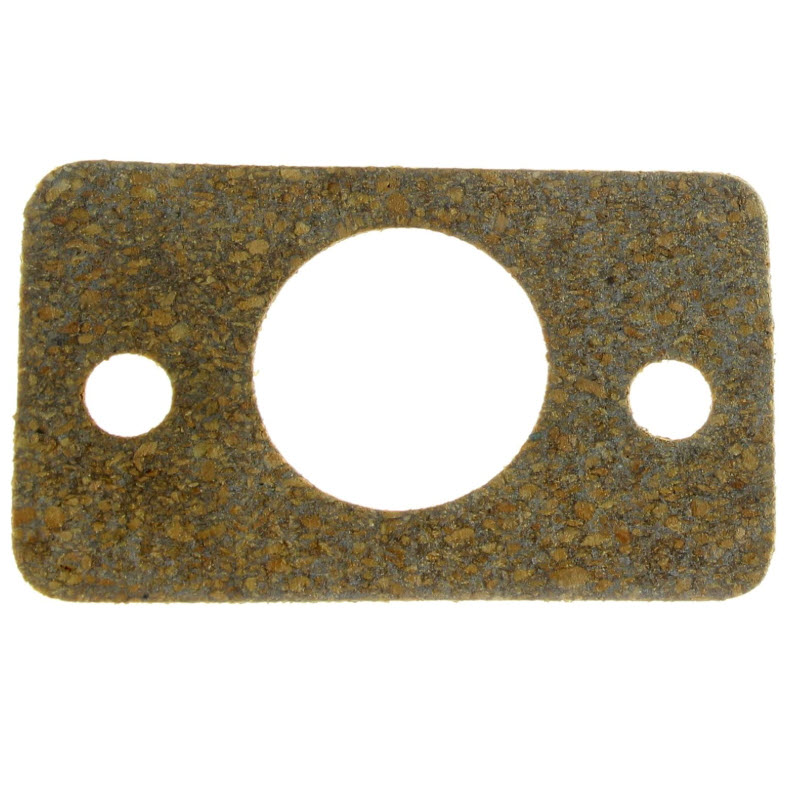

| #30 | 27-26447 | GASKET, SIDE INLET TO DISTRIUBTOR CAP (1,1 required per assembly) |
|
|
27-26447 - Side Inlet To Distributor Cap Gasket [ More info ]
|
| #31 | 10-29167 | SCREW, SIDE INLET TO DISTRIBUTOR CAP (2,2 required per assembly) |
|
|
10-29167 - Screw, NLA [ More info ]
|
| #32 | 10-29158 | SCREW, DISTRIBUTOR CAP TO ADAPTOR (2,2 required per assembly) |
|
|
10-29158 - Screw, NLA [ More info ]
|
| #33 | 14-29157 | TAB WASHER, DISTRIUBUTOR CAP FASTENING SCREW (2,2 required per assembly) |
|
|
14-29157 - Tab Washer, NLA [ More info ]
|
| #34 | 393-1621A 1 | HIGH TENSION CABLE ASSEMBLY (COIL #2) (1,1 required per assembly) |
|
|
393-1621A 1 - 393-1621A 1 - LEAD ASSY [ More info ] Unavailable Replaced by 84-93475A33 |
|
|
84-93475A33 - WIRE ASSY [ More info ]
|
|
|
84-813706A37 - 84-813706A37 - CABLE ASSEMBLY [ More info ] Unavailable Replaced by 84-821945A37 |
|
|
84-821945A37 - CABLE ASSY NLA [ More info ] Unavailable |
| #35 | 393-1622A 1 | HIGH TENSIN CABLE ASSEMBLY (COIL #1) (1,1 required per assembly) |
|
|
393-1622A 1 - 393-1622A 1 - LEAD ASSY [ More info ] Unavailable Replaced by 84-93475A32 |
|
|
84-93475A32 - WIRE ASSY [ More info ]
|
|
|
84-813706A27 - Cable Assembly [ More info ]
|
  |
|
84-821945A27 - Cable Assembly, NLA [ More info ]
|
| #36 | 393-1275 | SLEEVE, TERMINAL END COVER (2,2 required per assembly) |
|
|
393-1275 - 393-1275 - MERC PERF PROD [ More info ] Unavailable Replaced by -60096 |
|
|
60096 - 60096 - SLEEVE [ More info ] Unavailable Replaced by 85-94589 |
|
|
85-94589 - NIPPLE NLA [ More info ] Unavailable |
| #37 | -20121 | CONNECTOR, HIGH TENSION CABLE (CAP END) (2,2 required per assembly) |
  |
|
20121 - Terminal - Priced Individually [ More info ]
|
  |
|
8M0084600 - Terminal, Sold Individually [ More info ]
|
  |
|
18-5224-9 - 10-Pack Spark Plug Wire Terminals [ More info ]
|
  |
|
0510364 - Lead Terminal [ More info ]
|

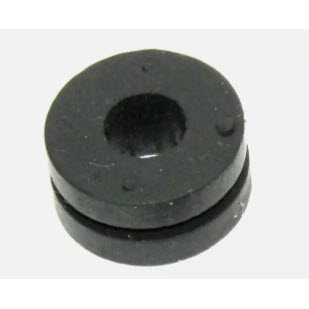

| #38 | 25-26547 | GROMMET, HIGH TENSION CABLE (2,2 required per assembly) |
|
|
25-26547 - Grommet, High Tension Cable,NLA [ More info ]
|
| #39 | -23564A 4 | SPARK PLUG LEAD ASSEMBLY (#3, 4 AND 5) (3,3 required per assembly) |
|
|
23564A 4 - 23564A 4 - LEAD ASSY [ More info ] Unavailable Replaced by -23564A 6 |
|
|
23564A 6 - 23564A 6 - LEAD ASSY [ More info ] Unavailable Replaced by -47899A 9 |
|
|
47899A 9 - 47899A 9 - LEAD ASSY [ More info ] Unavailable Replaced by 84-63212A 2 |
|
|
84-63212A 2 - 84-63212A 2 - LEAD ASSEMBLY [ More info ] Unavailable Replaced by 84-90816A25 |
|
|
84-90816A25 - 84-90816A25 - WIRE ASSEMBLY [ More info ] Unavailable Replaced by 84-93475A25 |
|
|
84-93475A25 - 84-93475A25 - LEAD ASSEMBLY [ More info ] Unavailable Replaced by 84-99215A25 |
|
|
84-99215A25 - 84-99215A25 - LEAD ASSEMBLY [ More info ] Unavailable Replaced by 84-813715A1 |
  |
|
84-813715A 1 - Ignition Cable Assembly [ More info ]
|
  |
|
18-5228-1 - Spark Plug Wire, 9 Inch, 84-813715A1 [ More info ]
|
  |
|
18-5227-1 - Spark Plug Wire, 9 Inch Pre-made [ More info ]
|
| #40 | -23564A 5 | SPARK PLUG LEAD ASSEEMBLY (#2 AND 6) (2,2 required per assembly) |
|
|
23564A 5 - 23564A 5 - LEAD ASSY [ More info ] Unavailable Replaced by -23564A 6 |
| #41 | -23564A 6 | SPARK PLUG LEAD ASSEMBLY (#1) (1,1 required per assembly) |
| #42 | 32-26624 | SLEEVE, SPARK PLUG LEAD (1,1 required per assembly) |
|
|
32-26624 - 32-26624 - SLEEVE [ More info ] Unavailable Replaced by 32-30574 |
|
|
32-30574 - SLEEVE NLA [ More info ] Unavailable |
| #43 | 32-26527 | SLEEVE, SPARK PLUG LEAD (5,5 required per assembly) |
|
|
32-26527 - 32-26527 - SLEEVE [ More info ] Unavailable Replaced by 32-265271 |
|
|
32-265271 - 32-265271 - ->46768 [ More info ] Unavailable Replaced by -46768 |
|
|
32-46768 - Sleeve [ More info ]
|
| #44 | -20119 | PROTECTOR, SPARK PLUG LEAD (6,6 required per assembly) |
|
|
20119 - 20119 - PROTECTOR @10 [ More info ] Unavailable Replaced by -20119A1 |
|
|
20119A1 - 20119A1 - ->47604A1 [ More info ] Unavailable Replaced by -47604A1 |
|
|
47604A1 - 47604A1 - ->71006A1 [ More info ] Unavailable Replaced by -71006A1 |
|
|
85-71006A1 - 85-71006A1 - ->63709A1 [ More info ] Unavailable Replaced by -63709A1 |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
