Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Distributor Adaptor & Pilot Assembly

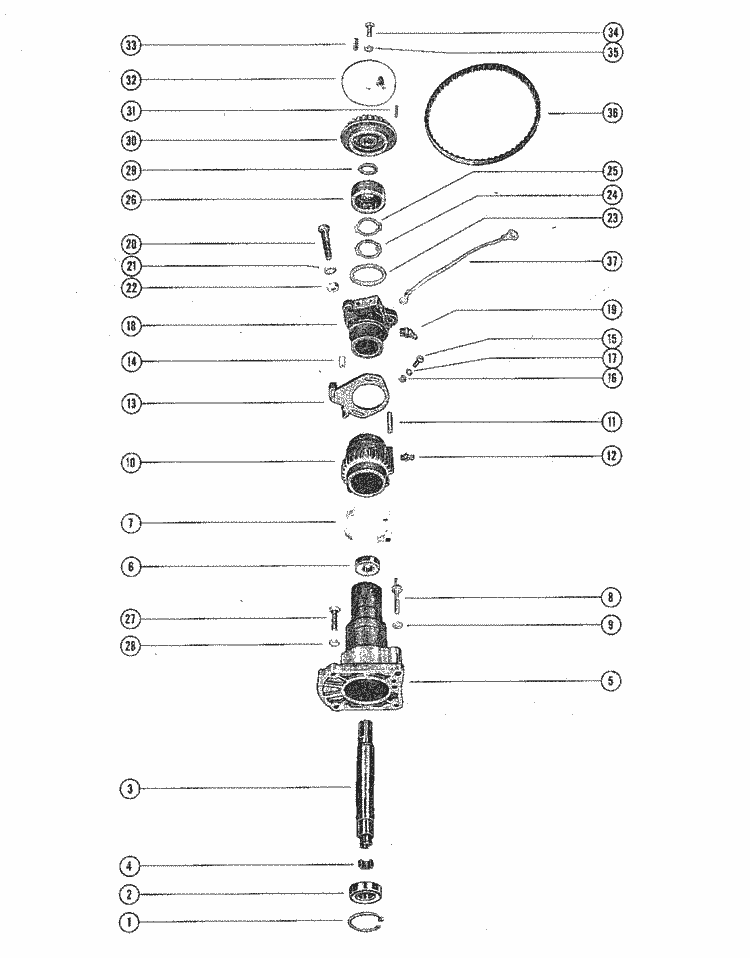

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 53-26406 | RING, SNAP - BALL BEARING RETAINING (1,1 required per assembly) |
 |
|
53-26406 - Snap Ring - Priced Individually [ More info ]
|
| #2 | 30-26379 | BEARING, BALL - DRIVE SHAFT (1,1 required per assembly) |
  |
|

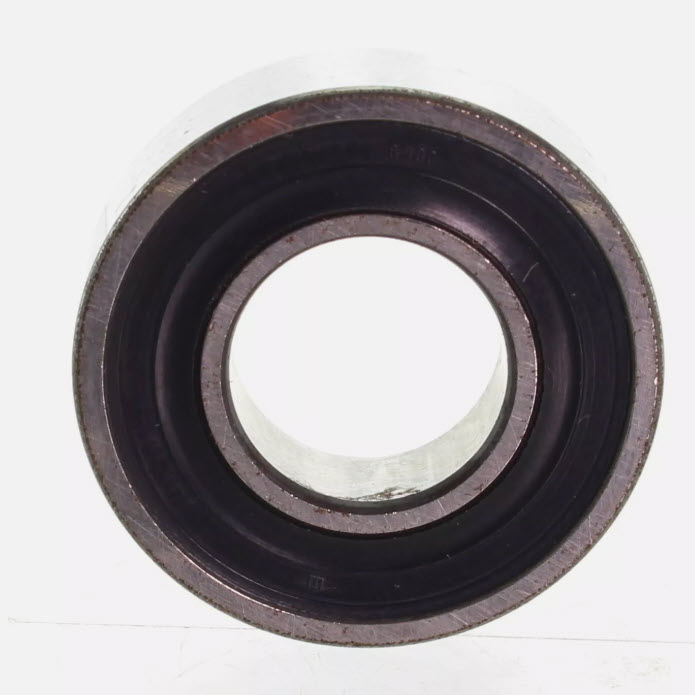

30-26379 - Ball Bearing [ More info ]
|
| #3 | 45-29864A 1 | DRIVE SHAFT ASSEMBLY - DISTRIBUTOR (1,1 required per assembly) |
|
|
45-29864A 1 - DRIVE SHAFT ASSY NLA [ More info ] Unavailable |
| #4 | 24-28469 | SPRING, DISTRIBUTOR DRIVE SHAFT (1,1 required per assembly) |
|
|
24-28469 - SPRING NLA [ More info ] Unavailable |
| #5 | -29874A 1 | PILOT ASSEMBLY (1,1 required per assembly) |
|
|
29874A 1 - Pilot Assembly, NLA [ More info ]
|
| #6 | 30-20066 | BEARING, BALL - DISTRIBUTOR PILOT (1,1 required per assembly) |
  |
|
30-20066 - Ball Bearing [ More info ]
|
| #7 | 24-29275 | SPRING, HORSESHOE (1,1 required per assembly) |
|
|
24-29275 - Spring, Horseshoe,NLA [ More info ]
|
| #8 | 17-27962 | PIN, SPRING TERMINAL (1,1 required per assembly) |
|
|
17-27962 - Anchor Pin, NLA [ More info ]
|
| #9 | 12-29245 | WASHER, SPRING TERMINAL PIN (1,1 required per assembly) |
  |
|

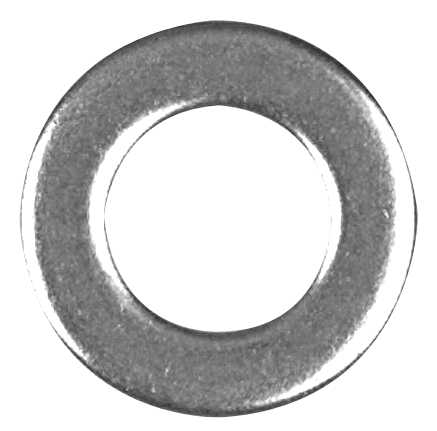

12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #10 | 43-29892A 1 | SECTOR GEAR AND PIN ASSEMBLY (1,1 required per assembly) |
|
|
43-29892A 1 - SECTOR GEAR ASSY NLA [ More info ] Unavailable |
| #11 | 17-27961 | PIN, SPRING RETAINER (1,1 required per assembly) |
|
|
17-27961 - Roll Pin, NLA [ More info ]
|
| #12 | 22-23612 | FITTING, GREASE - SECTOR GEAR (1,1 required per assembly) |
|
|
22-23612 - Fitting - Priced Individually [ More info ]
|
  |
|

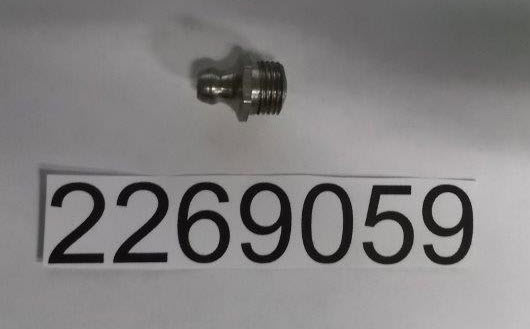

22-69059 - Fitting, Grease - Priced Individually [ More info ]
|
| #13 | -29558A 1 | THROTTLE ACTUATOR ASSEMLBY (1,1 required per assembly) |
|
|
29558A 1 - Actuator Assembly, NLA [ More info ]
|
| #14 | 23-26602 | BUSHING, NYLON - THROTTLE ACTUATOR (1,1 required per assembly) |
|
|
23-26602 - Bushing, NLA [ More info ]
|
| #15 | 10-20100 | SCREW, THROTTLE ACTUATOR TO SECTOR GEAR (2,2 required per assembly) |
|
|
10-20100 - Screw - Priced Individually [ More info ]
|
  |
|
10-69022 - Screw [ More info ]
|
| #16 | 12-20128 | WASHER, THROTTLE ACTUATOR FASTENING SCREW (2,2 required per assembly) |
|
|
12-20128 - Washer - Priced Individually [ More info ]
|
|
|
12-847883 - Washer, (.192 X .375 X .033) [ More info ]
|
| #17 | 13-26996 | LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW (2,2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #18 | -30404 | ADAPTOR, DISTRIBUTOR (1,1 required per assembly) |
|
|
30404 - ADAPTOR NLA [ More info ] Unavailable |
| #19 | 22-25094 | FITTING, GREASE - ADAPTOR (1,1 required per assembly) |
|
|
22-25094 - Fitting, NLA [ More info ]
|
| #20 | 10-22040 | SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE (3,3 required per assembly) |
|
|
10-22040 - Screw - Priced Individually [ More info ]
|
|
|

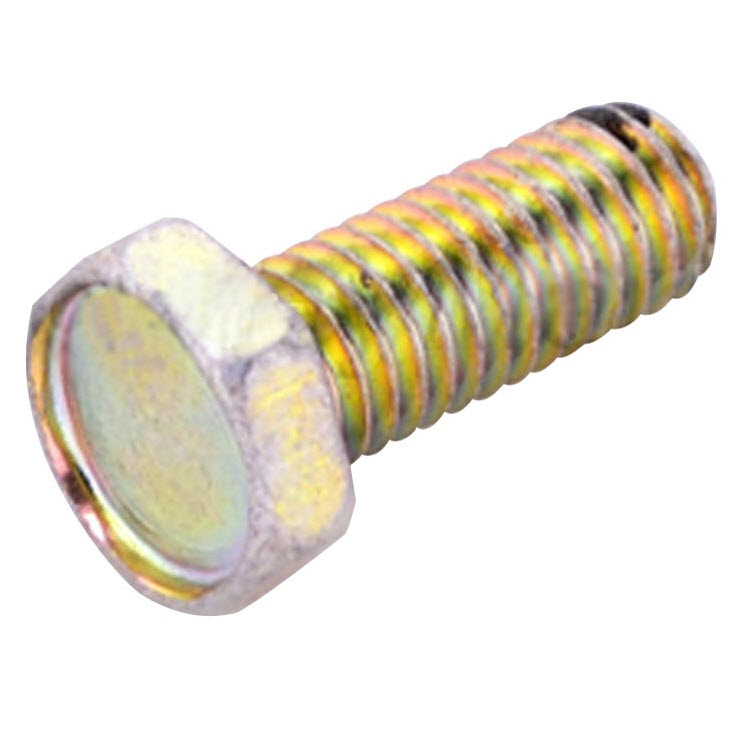

10-69097 - Screw [ More info ]
|
|
|
10-78841 - Bolt, NLA [ More info ]
|
| #21 | 12-20084 | WASHER, ADAPTOR AND PILOT FASTENING SCREW (3,3 required per assembly) |
  |
|

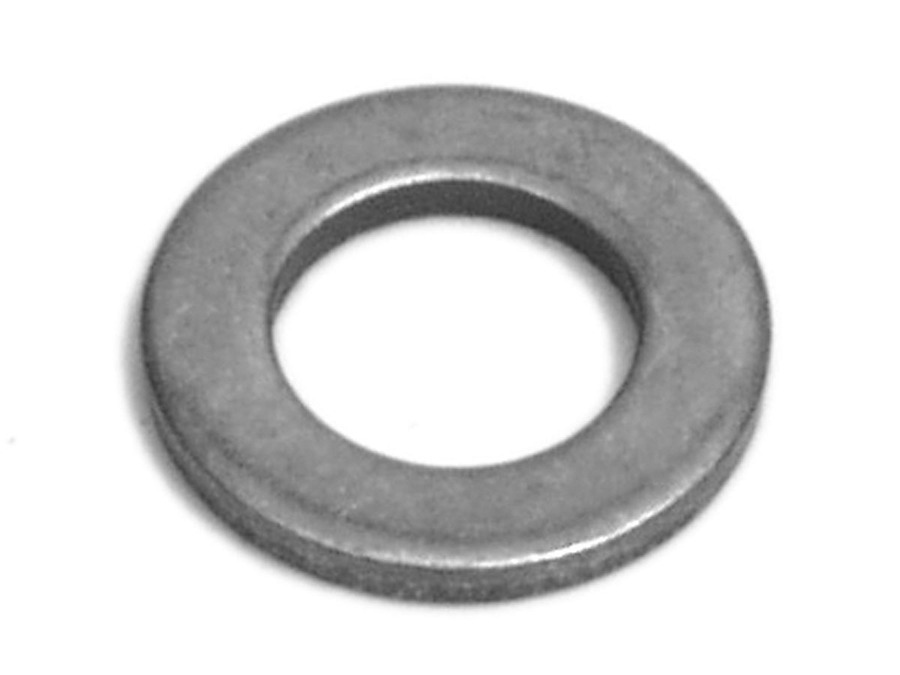

12-20084 - Washer, (.328 X .562 X .062) [ More info ]
|
| #22 | 11-20083 | NUT, ADAPTOR AND PILOT FASTENING SCREW (3,3 required per assembly) |
|
|

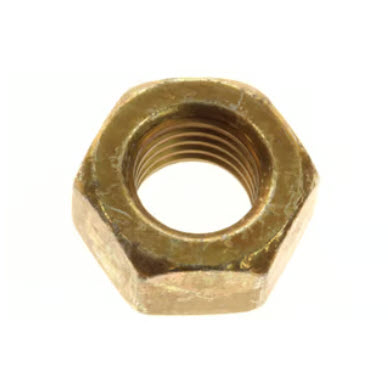

11-20083 - Nut, Starter Solenoid Terminal (5/16X24) [ More info ]
|
  |
|
11-22053 - Nut (5/16x24) [ More info ]
|
| #23 | 12-27939 | WASHER, THRUST - DISTRIBUTOR PILOT (1,1 required per assembly) |
|
|
12-27939 - Washer, Distributor Adaptor, NLA [ More info ]
|
| #24 | 14-27960 | TAB WASHER, CAP LOCKING (1,1 required per assembly) |
|
|
14-27960 - Tab Washer, NLA [ More info ]
|
| #25 | 13-27959 | WASHER, WAVE - TAB WASHER TENSIOM (1,1 required per assembly) |
|
|
13-27959 - Wave Washer, NLA [ More info ]
|
| #26 | -27955 | CAP, ADAPTOR AND PILOT FASTENING (1,1 required per assembly) |
|
|
27955 - Cap, NLA [ More info ]
|
| #27 | 10-20542 | SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR (4,4 required per assembly) |
|
|
10-20542 - 10-20542 - SCREW @5 [ More info ] Unavailable Replaced by 10-28668 |
  |
|

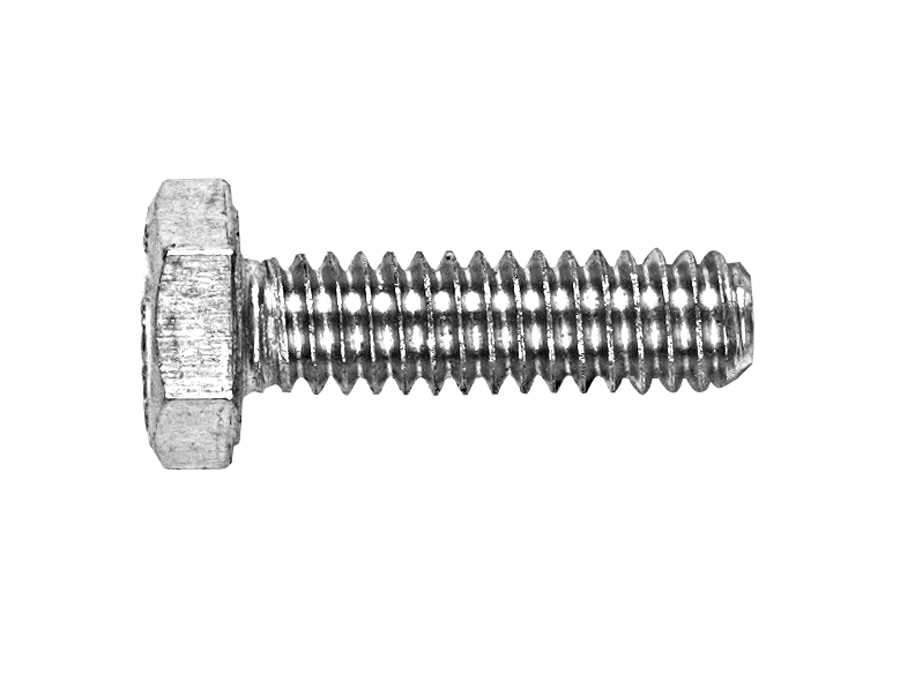

10-28668 - Screw - Priced Individually [ More info ]
|
| #28 | 13-26992 | LOCKWASHER, ADAPTOR AND PILOT TO DIST. SCREW (4,4 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #29 | 23-29909 | SPACER, DRIVEN PULLEY (1,1 required per assembly) |
|
|
23-29909 - Spacer - Driven Pulley [ More info ]
|
| #30 | -29906A 1 | DRIVEN PULLEY ASSEMBLY (1,1 required per assembly) |
  |
|
29906A 1 - Pulley Assembly, NLA [ More info ]
|
| #31 | 17-29908 | PIN, DRIVEN PULLEY (1,1 required per assembly) |
|
|
17-29908 - Pin -roll - Priced Individually [ More info ]
|
| #32 | -29907 | FLANGE, DRIVEN PULLEY (1,1 required per assembly) |
  |
|

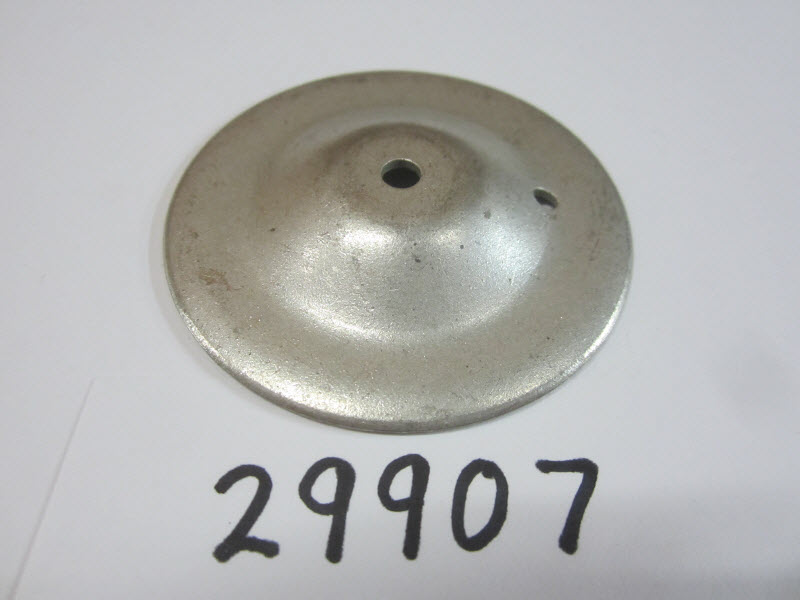

29907 - Driven Pulley Flange, NLA [ More info ]
|
| #33 | 28-29910 | KEY, MAGNETO DRIVING (1,1 required per assembly) |
|
|
28-29910 - Key, NLA [ More info ]
|
| #34 | 10-29911 | SCREW, PULLEY CLAMPING (1,1 required per assembly) |
|
|
10-29911 - 10-29911 - SCREW @5 [ More info ] Unavailable Replaced by 10-41506 |
  |
|

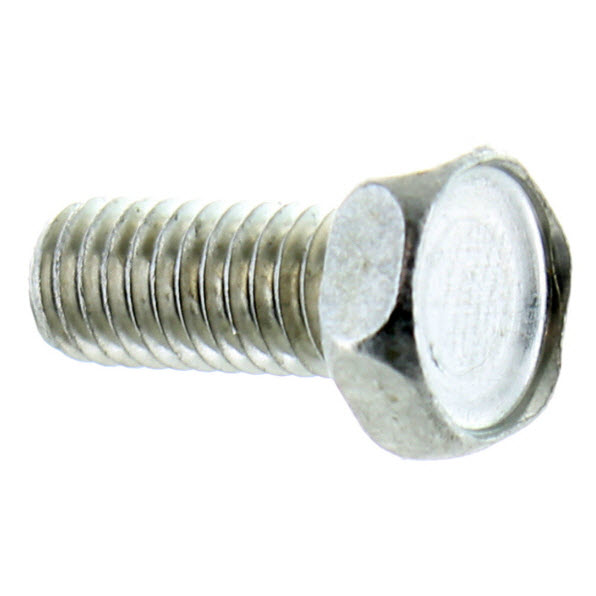

10-41506 - Screw [ More info ]
|
| #36 | -20140 | BELT, TIMING (1,1 required per assembly) |
  |
|

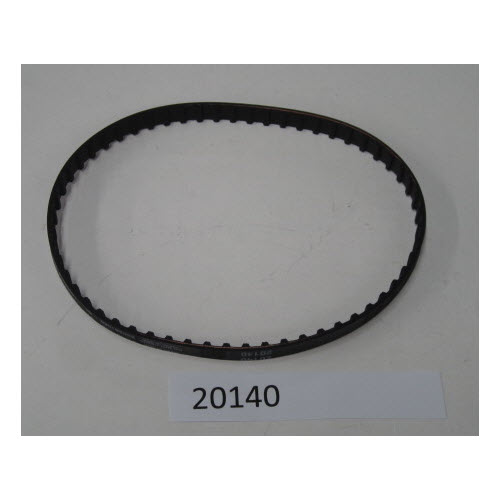

20140 - Timing Belt [ More info ]
|

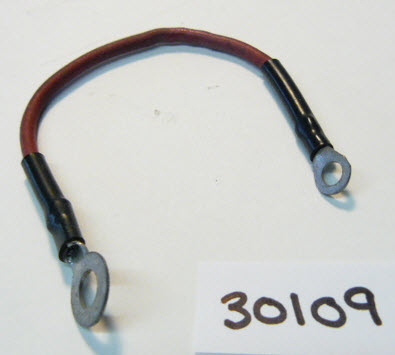

| #37 | -30109 | GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE (1,1 required per assembly) |
  |
|
30109 - GROUND STRAP NLA [ More info ] Unavailable |
