Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Carburetor Assembly

Revise Search: All Models > Model 800 80 HP (6 Cylinder) > 1335465 - 1398629 ( ) > Carburetor Assembly

NEED PARTS OR KITS?

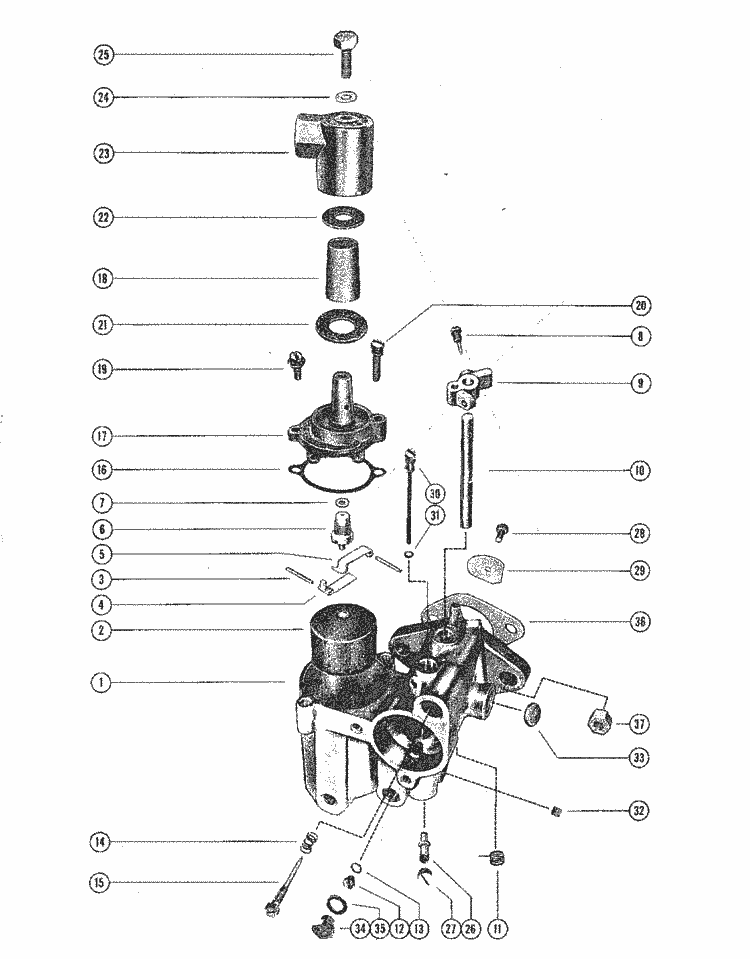

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	1399-1477	GASKET AND PACKING SET (1 PER CARBURETOR) (3,3 required per assembly)
		1399-1477 - 1399-1477 - GASKET SET [ More info ] Unavailable Replaced by 1399-2015
		1399-2015 - Carburetor Gasket Set [ More info ] $12.90 5 In Stock.
		18-7006-1 - Carburetor Gasket Set, 1399-1717 and 1399-2015 [ More info ] $8.99 $8.14 10+ In Stock.
#	1399-1741	REPAIR PARTS KIT (1 PER CARBURETOR) (3,3 required per assembly)
		1399-1741 - Repair Part, NLA [ More info ] $14.00 2 In Stock.
#1	1333-1707	CARBURETOR ASSEMLBY, COMPLETE (KA-10A) (3,3 required per assembly)
		1333-1707 - NLA NLA [ More info ] Unavailable
#2	1399-110A 1	FLOAT ASSEMLBY (3,3 required per assembly)
		1399-110A 1 - 1399-110A 1 - FLOAT ASSY @2 [ More info ] Unavailable Replaced by 1395-8983
		1395-8983 - 1395-8983 - FLOAT ASSEMBLY [ More info ] Unavailable Replaced by 1395-8673
		1395-8673 - Float [ More info ] $19.45 In Stock
		18-7208 - Float 1395-8983, 1359-8673 [ More info ] $14.95 10+ In Stock.
#3	17-20853	PIN, FLOAT LEVER PINION (6,6 required per assembly)
		17-20853 - Pin, Float Lever, NLA [ More info ] $1.98 10+ In Stock.
#4	1399-102	LEVER, FLOAT (LOWER) (3,3 required per assembly)
		1399-102 - Lever [ More info ] $2.50 10+ In Stock.
#5	1399-101	LEVER, FLOAT (UPPER) (3,3 required per assembly)
		1399-101 - Lever [ More info ] $6.00 10+ In Stock.
#6	1399-1473	INLET NEEDLE, SEAT AND GASKET (3,3 required per assembly)
		1399-1473 - 1399-1473 - INLET [email protected] [ More info ] Unavailable Replaced by 1395-9258
		1395-9258 - 1395-9258 - NEEDLE/SEAT KIT I [ More info ] Unavailable Replaced by 1395-92581
		1395-9258 1 - Valve Seat Kit [ More info ] $17.30 10+ In Stock.
		18-7057 - Needle And Seat 1395-9258 [ More info ] $10.99 $9.86 4 In Stock.
#7	27-25033	GASKET, INLET SEAT (3,3 required per assembly)
		27-25033 - Inlet Seal Gasket [ More info ] $2.49 10+ In Stock.
#8	10-20847	SCREW, THROTTLE STOP LEVER (3,3 required per assembly)
		10-20847 - 10-20847 - SCREW [ More info ] Unavailable Replaced by 1395-6027
		1395-6027 - Screw [ More info ] $2.90 10+ In Stock.
#9	1399-97	LEVER, THROTTLE STOP (SEE NOTE BELOW) (3,3 required per assembly)
		1399-97 - 1399-97 - LEVER [ More info ] Unavailable Replaced by -8146791
		814679 1 - Throttle Lever [ More info ] $8.00 10+ In Stock.
#10	1399-1475	SHAFT, THROTTLE (3,3 required per assembly)
		1399-1475 - Throttle Shaft [ More info ] $1.05 1 In Stock.
		1399-2012 - Throttle Shaft [ More info ] $16.00 10+ In Stock.
#11	24-26890	SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR) (2,2 required per assembly)
		24-26890 - Spring, Throttle Shaft Return,NLA [ More info ] $2.50 10+ In Stock.
#11	24-20869	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR) (1,1 required per assembly)
		24-20869 - Spring, Throttle Shaft Return (upper Carburetor)NLA [ More info ] $1.88 10+ In Stock.
#12	1399-1465	JET, MAIN FUEL (.065) - STANDARD (3,3 required per assembly)
		1399-1465 - Jet 065, NLA [ More info ] $8.25 10+ In Stock.
#12	1399-1463	JET, MAIN FUEL (.063) (OPT,OPT required per assembly)
		1399-1463 - Jet -.063, NLA [ More info ] $9.99 10+ In Stock.
#12	1399-1461	JET, MAIN FUEL (.061) (OPT,OPT required per assembly)
		1399-1461 - Jet 061, NLA [ More info ] $13.99 10+ In Stock.
#12	1399-1459	JET, MAIN FUEL (.059) (OPT,OPT required per assembly)
		1399-1459 - Jet -.059, NLA [ More info ] $5.99 10+ In Stock.
#13	27-28409	GASKET, MAIN FUEL JET (3,3 required per assembly)
		27-28409 - Main Fuel Jet Gasket [ More info ] $4.99 10+ In Stock.
#14	24-27160	SPRING, IDLE ADJUSTMENT SCREW (3,3 required per assembly)
		24-27160 - Spring, Idle Adjusting Screw [ More info ] $3.90 Available to Order: Usually ships within 10 days.
#15	1399-1629	SCREW, IDLE ADJUSTMENT (3,3 required per assembly)
		1399-1629 - 1399-1629 - IDLE ADJ SCREW [ More info ] Unavailable Replaced by 1399-1713
		1399-1713 - Idle Adj Screw, NLA [ More info ] $19.80 10+ In Stock.
#16	1399-99	GASKET, FLOAT BOWL COVER (3,3 required per assembly)
		1399-99 - GASKET @10 [ More info ] Unavailable
#17	1399-1133	COVER, FLOAT BOWL (3,3 required per assembly)
		1399-1133 - Float Bowl Cover [ More info ] $183.50 $123.31 10+ In Stock.
#18	1399-1754	SCREEN, FILTER - NOT AS SHWON (3,3 required per assembly)
		1399-1754 - 1399-1754 - FILTER @2 [ More info ] Unavailable Replaced by 1399-3938
		1399-3938 - Screen, NLA [ More info ] $6.75 10+ In Stock.
		18-7832 - Filter, 1399-3938 [ More info ] $11.29 $10.99 6 In Stock.
#19	10-20854	SCREW, FLOAT BOWL COVER (SHORT) (3,3 required per assembly)
		10-20854 - 10-20854 - SCREW @10 [ More info ] Unavailable Replaced by 10-22625
		10-22625 - Screw, NLA [ More info ] $3.00 10+ In Stock.
#20	10-25850	SCREW, FLOAT BOWL COVER (LONG) (3,3 required per assembly)
		10-25850 - Screw, NLA [ More info ] $1.49 9 In Stock.
#21	27-25851	GASKET, STRAINER COVER (LARGE) (3,3 required per assembly)
		27-25851 - Strainer Cover Gasket [ More info ] $1.00 10+ In Stock.
		18-2570 - Gasket 27-25851 [ More info ] $1.09 $0.71 10 In Stock.
#22	27-25849	GASKET, STRAINER COVER (SMALL) (3,3 required per assembly)
		27-25849 - Strainer Cover Gasket [ More info ] $1.20 5 In Stock.
#23	1399-1135	COVER, STRAINER (3,3 required per assembly)
		1399-1135 - Cover [ More info ] $20.00 10+ In Stock.
#24	27-25848	GASKET, STRAINER COVER SCREW (3,3 required per assembly)
		27-25848 - Cover Screw Gasket [ More info ] $2.60 10+ In Stock.
#25	10-25822	SCREW, STRAINER COVER FASTENING (3,3 required per assembly)
		10-25822 - Screw, NLA [ More info ] $1.99 10+ In Stock.
#26	1399-1739	NOZZLE, MAIN (3,3 required per assembly)
		1399-1739 - MAIN NOZZLE NLA [ More info ] Unavailable
#27	10-23178	SCREW, PLUG - MAIN NOZZLE (3,3 required per assembly)
		10-23178 - SCREW NLA [ More info ] Unavailable
#28	10-23035	SCREW AND LOCKWASHER, THROTTLE SHUTTER (3,3 required per assembly)
		10-23035 - Screw, NLA [ More info ] $1.76 10+ In Stock.
#29	1399-1740	SHUTTER, THROTTLE (3,3 required per assembly)
		1399-1740 - THROTTLE SHUTTER NLA [ More info ] Unavailable
#30	1399-1702	TUBE, IDLE (3,3 required per assembly)
		1399-1702 - IDLE TUBE NLA [ More info ] Unavailable
#31	27-23180	GASKET, IDLE TUBE (3,3 required per assembly)
		27-23180 - Idle Jet Gasket [ More info ] $3.38 10+ In Stock.
#32	10-28845	SCREW, PLUG - BODY CHANNEL (3,3 required per assembly)
		10-28845 - SCREW NLA [ More info ] Unavailable
#33	19-20011	WELCH PLUG, BODY CHANNEL (3,3 required per assembly)
		19-20011 - Plug - Welch - Priced Individually [ More info ] $4.90 $2.75 7 In Stock.
#34	10-28405	SCREW, PLUG - MAIN FUEL JET CHANNEL (3,3 required per assembly)
		10-28405 - Screw, NLA [ More info ] $4.13 10+ In Stock.
#35	27-28406	GASKET, JET CHANNEL PLUG SCREW (3,3 required per assembly)
		27-28406 - GASKET @10 NLA [ More info ] Unavailable

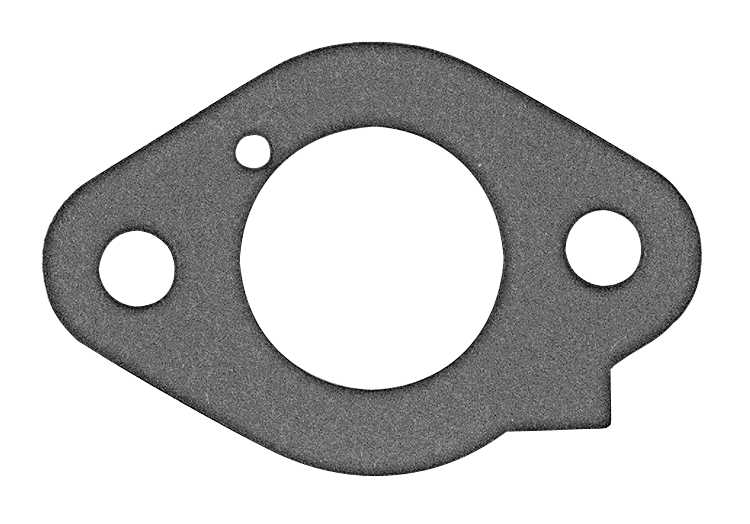

#36	27-26891	GASKET, CARBURETOR FLANGE (3,3 required per assembly)
		27-26891 - 27-26891 - GASKET @10 [ More info ] Unavailable Replaced by 27-64659
		27-64659 - 27-64659 - GASKET @10 [ More info ] Unavailable Replaced by 27-75791
		27-75791 - Carburetor Flange Gasket [ More info ] $1.49 10+ In Stock.
		27-75791 1 - Gasket [ More info ] $3.60 Available to Order: Usually ships within 10 days.
#37	11-29250	NUT, CARBURETOR MOUNTING STUD (6,6 required per assembly)
		11-29250 - Nut (5/16-24) [ More info ] $2.80 $1.57 10+ In Stock.
