Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Bottom Cowl Assembly

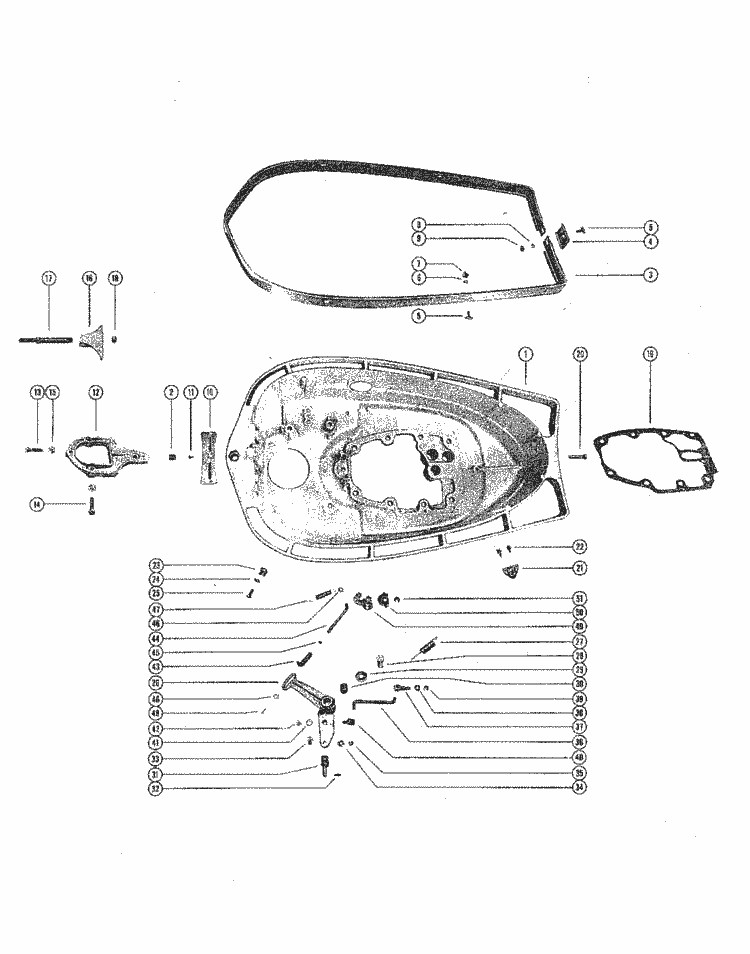

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 183-1681A 2 | BOTTOM COWL ASSEMBLY (1,1 required per assembly) |
 |
|
183-1681A 2 - BOTTOM COWL NLA [ More info ] Unavailable |
| #2 | -21041 | INSERT, TAP-LOCK (1,1 required per assembly) |
|
|
21041 - Tap Lock Insert, NLA [ More info ]
|
| #3 | -29997A 1 | TRIM MOULDING ASSEMBLY (1,1 required per assembly) |
|
|
29997A 1 - MOULDING ASSY NLA [ More info ] Unavailable |
| #4 | -29998 | SPLICER, TRIM MOULDING - REAR (1,1 required per assembly) |
|
|
29998 - Splicer, NLA [ More info ]
|
| #5 | 10-29226 | SCREW, DECORATIVE - MOULDING TO BOTTOM COWL (5,5 required per assembly) |
|
|
10-29226 - SCREW @5 NLA [ More info ] Unavailable |
| #6 | 12-24671 | WASHER, FIBRE - MOULDING FASTENING SCREW (4,4 required per assembly) |
|
|
12-24671 - Washer, Fiber, NLA [ More info ]
|
| #7 | 11-29225 | NUT, NYLON CAP - MOULDING FASTENING SCREW (4,4 required per assembly) |
|
|
11-29225 - NUT @2 NLA [ More info ] Unavailable |
| #8 | 13-26995 | LOCKWASHER, MOULDING FASTENING SCREW (1,1 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ]
|
| #9 | 11-26419 | NUT, BRASS - MOULDING FASTENING SCREW (1,1 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #10 | -30005 | BAFFLE, BOTTOM COWL (1,1 required per assembly) |
|
|
30005 - Baffle, NLA [ More info ]
|
| #11 | 10-21106 | SCREW, BAFFLE TO BOTTOM COWL (3,3 required per assembly) |
|
|
10-21106 - Screw, NLA [ More info ]
|
| #12 | -27971 | BRACKET, RECTIFIER MOUNTING (1,1 required per assembly) |
|
|
27971 - Bracket, NLA [ More info ]
|
| #13 | 10-21091 | SCREW, BRACKET TO BOTTOM COWL (1 1/8") (1,1 required per assembly) |
|
|
10-21091 - Screw, NLA [ More info ]
|
| #14 | 10-22421 | SCREW, BRACKET TO BOTTOM COWL (1 1/4") (2,2 required per assembly) |
|
|
10-22421 - 10-22421 - SCREW @25 [ More info ] Unavailable Replaced by 10-56500 |
|
|
10-56500 - Screw, NLA [ More info ]
|
| #15 | 11-20184 | NUT, RECTIFIER BRACKET MOUNTING SCREW (3,3 required per assembly) |
  |
|
11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #16 | -30003 | BRACKET, PIVOT PIN TO BOTTOM COWL (1,1 required per assembly) |
|
|
30003 - Bracket, NLA [ More info ]
|
| #17 | 17-30004 | PIN, PIVOT - BOTTOM COWL (1,1 required per assembly) |
|
|
17-30004 - PIVOT PIN NLA [ More info ] Unavailable |
| #18 | 11-20696 | NUT, PIVOT PIN FASTENING (1,1 required per assembly) |
  |
|
11-20696 - Nut, NLA [ More info ]
|
| #19 | 27-29914 | GASKET, POWERHEAD TO BOTTOM COWL (1,1 required per assembly) |
  |
|
27-29914 - Powerhead To Bottom Cowl Gasket [ More info ]
|
| #20 | 10-21504 | SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING (1,1 required per assembly) |
|
|
10-21504 - SCREW @5 NLA [ More info ] Unavailable |
| #21 | -20557 | BRACKET, CABLE END ANCHOR (1,1 required per assembly) |
|
|
20557 - Cable and Anchor Bracket, NLA [ More info ]
|
| #22 | 10-29200 | SCREW, ANCHOR BRACKET TO BOTTOM COWL (2,2 required per assembly) |
|
|
10-29200 - Screw, NLA [ More info ]
|
| #23 | -21968 | STOP BLOCK, THROTTLE ADJUSTING (2,2 required per assembly) |
|
|
21968 - Stop Block, NLA [ More info ]
|
| #24 | 12-21967 | WASHER, STOP BLOCK SCREW (2,2 required per assembly) |
|
|
12-21967 - Washer , Stop Block Screw, NLA [ More info ]
|
| #25 | 10-28636 | SCREW, STOP BLOCK HOLDING (2,2 required per assembly) |
  |
|
10-28636 - Screw - Priced Individually [ More info ]
|
| #26 | -29890 | LEVER, CONTROL (1,1 required per assembly) |
|
|
|
| #27 | 24-29109 | SPRING, TENSION - CONTROL LEVER TO VERTICAL SHAFT (1,1 required per assembly) |
|
|
24-29109 - Spring, Tension - Control Lever To Vertical Shaft,NLA [ More info ]
|
| #28 | 10-26632 | SCREW, CONTROL LEVER TO BOTTOM COWL (1,1 required per assembly) |
|
|
10-26632 - 10-26632 - SCREW (.375-16 x [ More info ] Unavailable Replaced by 10-37612 |
  |
|
10-37612 - Screw - Priced Individually [ More info ]
|
| #29 | 12-29395 | WASHER, CONTROL LEVER SCREW (2,2 required per assembly) |
  |
|
12-29395 - 12-29395 - WASHER (.390 x 1. [ More info ] Unavailable Replaced by 12-8M0042641 |
  |
|
12-8M0042641 - Washer [ More info ]
|
  |
|
18-4267-9 - Washer, 12-29395, 2PK [ More info ]
|
| #30 | 23-29529 | BUSHING, STEEL - CONTROL LEVER (1,1 required per assembly) |
  |
|
23-29529 - Bushing, NLA [ More info ]
|
| #31 | 17-30978A 1 | PIN ASSEMBLY - CLEVIS YOKE (1,1 required per assembly) |
  |
|
17-30978A 1 - Pin Assembly, Clevis Yoke,NLA [ More info ]
|
| #32 | 17-23928 | PIN, ROLL - CLEVIS YOKE PIN (1,1 required per assembly) |
|
|
17-23928 - 17-23928 - PIN [ More info ] Unavailable Replaced by 17-239281 |
|
|
17-23928 1 - Pin -roll - Priced Individually [ More info ]
|
| #33 | 10-20584 | SCREW, CLEVIS PIN TO CONTROL LEVFER (1,1 required per assembly) |
|
|
10-20584 - Screw, NLA [ More info ]
|
| #34 | 13-29402 | WASHER, WAVE - CLEVIS PIN SCREW (1,1 required per assembly) |
|
|
13-29402 - Wave Washer - Priced Individually [ More info ]
|
| #35 | 11-29488 | NUT, CLEVIS PIN SCREW (1,1 required per assembly) |
  |
|
11-29488 - Nut, (#10-32) [ More info ]
|
  |
|
11-826709106 - Nut, (#10-32) Stainless Steel [ More info ]
|
|
|
11-8M0204718 - NUT [ More info ]
|
| #36 | -26591 | LINK, CONTROL LEVER TO VERTICAL LEVER (1,1 required per assembly) |
|
|
26591 - Link, NLA [ More info ]
|
| #37 | -26590 | SWIVEL, VERTICAL LEVER (1,1 required per assembly) |
|
|
|
| #38 | 13-26851 | WASHER, WAVE - VERTICAL LEVER SWIVEL (1,1 required per assembly) |
|
|
13-26851 - 13-26851 - WAVE WASHER [ More info ] Unavailable Replaced by 13-21067 |
|
|
13-21067 - WASHER-WAVE @5 NLA [ More info ] Unavailable |
| #39 | 11-20110 | NUT, SWIVEL TO VERTICAL LEVER (1,1 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #40 | -27948 | SWIVEL, CONTROL LEVER (1,1 required per assembly) |
  |
|
|
| #41 | 12-29245 | WASHER, CONTROL LEVER SWIVEL (1,1 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #42 | 11-20361 | NUT, SWIVEL TO CONTROL LEVER (1,1 required per assembly) |
  |
|
11-20361 - 11-20361 - NUT (.250-28) [ More info ] Unavailable Replaced by 11-8267089 |
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722 - Lock Nut, 121731, 11-35888 [ More info ]
|
| #43 | -26589A 1 | LINK ROD ASSEMBLY - CONTROL LEVER END (1,1 required per assembly) |
|
|
26589A 1 - Link Rod Assembly [ More info ]
|
| #44 | -26588 | ROD, LINK - DRIVE CAM (1,1 required per assembly) |
|
|
26588 - ROD NLA [ More info ] Unavailable |
| #45 | 11-25168 | NUT, LINK ROD ADJUSTING (1,1 required per assembly) |
|
|
11-25168 - Nut (1/4-28) NLA [ More info ]
|
| #46 | 12-20533 | WASHER, LINK ROD END (2,2 required per assembly) |
  |
|
12-20533 - Washer, 9/16 Inch O.D. [ More info ]
|
| #47 | 24-24826 | SPRING, TENSION - LINK ROD TO BOTTOM COWL (1,1 required per assembly) |
|
|
24-24826 - Spring, NLA [ More info ]
|
| #48 | 18-20180 | COTTER PIN, LINK ROD TO CONTROL LEVER (1,1 required per assembly) |
|
|
18-20180 - 18-20180 - PIN-COTTER @5 [ More info ] Unavailable Replaced by 18-21071 |
  |
|
18-21071 - Cotter Pin - Priced Individually [ More info ]
|
  |
|
18-21071 1 - Cotter Pin - Priced Individually [ More info ]
|
| #49 | -29481 | CAM, DRIVE - TILTLOCK (1,1 required per assembly) |
|
|
29481 - Cam, NLA [ More info ]
|
| #50 | -29482 | CAM, TOP - TILTLOCK (1,1 required per assembly) |
|
|
29482 - Cam, NLA [ More info ]
|
| #51 | 11-25594 | NUT, CAM FASTENING - PUSH ROD (1,1 required per assembly) |
|
|
11-25594 - 11-25594 - NUT (.9375-24) [ More info ] Unavailable Replaced by 11-862902 |
|
|
11-862902 - Nut, (.312-24) [ More info ]
|
